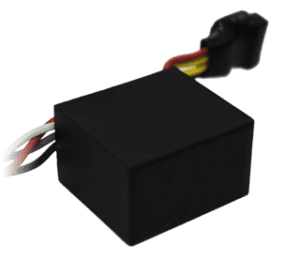

Introducing the NEW d5 dimmable driver!

Controlling light output has never been easier!
Available throughout the range of low voltage LED luminaires. Look for the d5 logo.

  • Dims to 2% with no color shift
  • 14-bit dimming resolution
  • 0-10 V dimmable
  • PWM dimmable
  • Program brightness without controls
  • Factory programmable brightness

Lumascape d5 series LED drivers offer exceptional control and protection for the LEDs they power, and form a core part of Lumascape LED engineering philosophy. At the heart of this philosophy are the concepts of simplicity and durability: Ease of installation and connection, and a long, trouble free life. The d5 LED driver goes beyond simplicity and durability to also deliver exceptional control and LED protection features.

Being so compact, the d5 driver fits inside any luminaire. It provides protection to the LEDs by sensing operating temperatures on the LED board and in the driver itself, shutting down the power to the LEDs if a high temperature condition is detected and auto-restarting when it is safe to do so. The d5 driver series also has the ability to dim via analog (0-10 V) and digital signals (PWM). The brightness of a luminaire containing a d5 driver can also be set without any external controls. The brightness can be set in 10% increments simply by switching the luminaire on/off in a pre-defined pattern. There is no need to open the luminaire or set DIP switches. All luminaires containing a d5 driver on the same circuit can be programmed at once. Alternatively, the factory can pre-program the brightness. For complete instructions on how to set the brightness in the field, click here.

Regardless of the method, the LEDs are dimmed on a 14-bit PWM resolution, providing exceptional control and the capability to dim to 2% with no color shift or flicker.

The inclusion of d5 driver technology also means the luminaire may qualify for the Lumascape 5-year LED and driver warranty. For complete details, refer to our warranty page.

Specifications

Input Voltage12-15 V AC or 12-24 V DC
Output Current Options350 mA, 700 mA
WattageUp to 6 W
Dimming MethodPulse Width Modulation (PWM)
ChannelsOne
Vf of LEDsUp to 12 V
Efficiency90% max
FeaturesLED and driver temperature monitoring with automatic shutdown and restart.


2% dimming with no color shift.
Control Options0-10 V analogue control signal:

  • Current Sinking type (Compatible with current sourcing dimmer)*
  • Current: 2 mA max
  • Max signal voltage:

PWM control signal:

  • Frequency: 100-1000 Hz
  • Current: 2 mA max
  • PWM signal voltage: 12-24 V DC

Internally controlled dimming:

  • Program brightness using pre-defined on/off switching patterns.
  • Factory programming available.
  • 100% to 10%, in 10% increments.

ProtectionsOpen circuit and short circuit protection


Thermal protection for driver


Thermal protection for LED array


Auto restart after cool down
