dAxis-5 - dAXS5

Expertly engineered directional luminaire with a 45º shield.
Configure this product Features Specifications

Product Overview

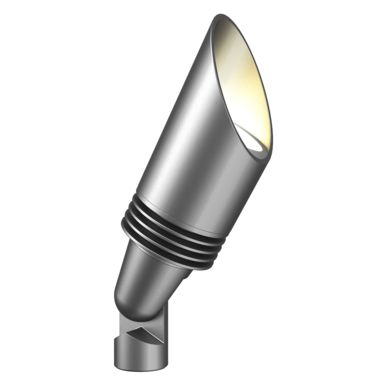

The dAxis-5 is an expertly engineered directional luminaire with a 45º shield to illuminate a variety of spaces in 1 or 3 LED.

Features

Total Lumens 289 lm Power Consumption 2.2 W | 4.4 W Input Voltage 10-15 Vac/dc, 50/60 Hz Installation Requirements Upward direction only Typical Lifetime >72,000 hours (L70, B10, TM21 Reported) Weight 1.9 lb (0.9 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White Data Sheet

Specifications

Downloads

Data Sheet Install Guide
DXF Files dAxis-5 ZIP (68.84 KB)

Technology

Product Configurator

dAXS5 _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise dAxis-5 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

111 lm

4.4 W (3LED)

289 lm

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º beam angle

Flood (FL)

35º beam angle

Wide Flood (WF)

60º beam angle

Compliance

Required

North America

North America

UL listed

International (E)

International (E)

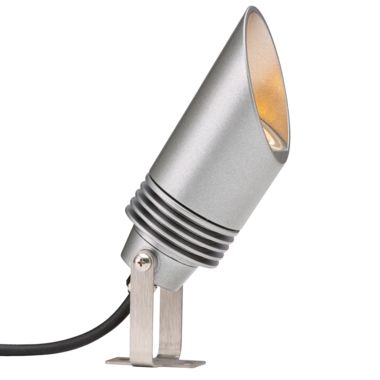

Bracket mount, UL listed and CE approved. Required for shipment outside of North America

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Accessories

Mounting & Installation

Specify Separately

Ground Stake

Ground Stake (LS6054)

19" long 2-1/2'' schedule 40 PVC post with die-cast aluminum cap. 1/2''-14 thread with stabilizer kit.

More info
Non-Penetrating Tree Ring

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

More info
Super J-Box Stake

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake.

More info
Post Mount

Post Mount (PM)

Suitable for use on 1/2" NPSM ground-mount luminaires and is specified separately.

More info
Ground Mount

Ground Mount (GM)

The Ground Mount is a 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

More info
Versabox®

Versabox® (VB-050)

A 1.5" (38 mm) brass cap with ½"-14 NPSM threads.

More info
Mini J-Box

Mini J-Box (MJ-050)

A 1.5" (38 mm) aluminum wall mount with ½"-14 NPSM threads and wire compartment.

More info
Treebox®

Treebox® (TB)

A dual ½"-14 NPSM threads with wire compartment.

More info
Wall Plate 1-Gang

Wall Plate 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads.

More info
Wall Plate, Round

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads.

More info
Mini Mount

Mini Mount (MM-050)

More info
Line Mount

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

More info

Risers & Couplings

Specify Separately. Configure product in the enquiry.

Straight Riser

Straight Riser (‒)

An aluminum straight riser with 0.8'' (12 mm) OD and 1/2''-14 Male NPSM x2 threads.

More info
Straight Coupling

Straight Coupling (COUP)

An aluminum straight coupling 1.3" (32 mm) x 2.0" (51 mm).

More info
Coupling, 90-deg, 1/2'' NPSM

Coupling, 90-deg, 1/2'' NPSM (ELBW-050)

An aluminum 90º coupling 1.3" (32 mm) x 2.0" (51 mm).

More info

Power Supplies

Specify Separately

Multi-Tap Transformer

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

More info
Non-Dimmable Mini Transformer

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee

More info
