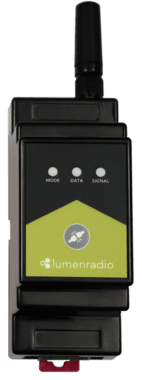

LumenRadio Galileo TX Single Universe Receiver.
The LumenRadio Galileo TX is a wireless DMX/RDM receiver designed for permanent installations, especially where traditional DMX cabling is impractical. It uses LumenRadio’s CRMX technology to provide reliable, low-latency control of lighting systems, supporting both DMX and RDM protocols. The unit is DIN-rail mountable for easy integration into standard electrical enclosures and can be configured wirelessly via Bluetooth or through remote device management. It’s suitable for indoor and outdoor use (when housed appropriately) and is often used in architectural lighting projects and public installations.
Features
Supported Protocols DMX/RDM, CRMX Classic, W-DMX G3/G4S, Bluetooth 5.0
Configuration Bluetooth configuration via App
RF Frequency 2402-2480 MHz
Output Power 7-280 mW
Latency 5 ms
Encryption 128-bit
Mounting DIN-rail 2 module width
Antenna Connector RP-SMA
Input Power 12-24 VDC/VAC
Data Connector DMX/RDM 3 pin pluggable screw terminal
