In-grade
Erden E4
Product Overview

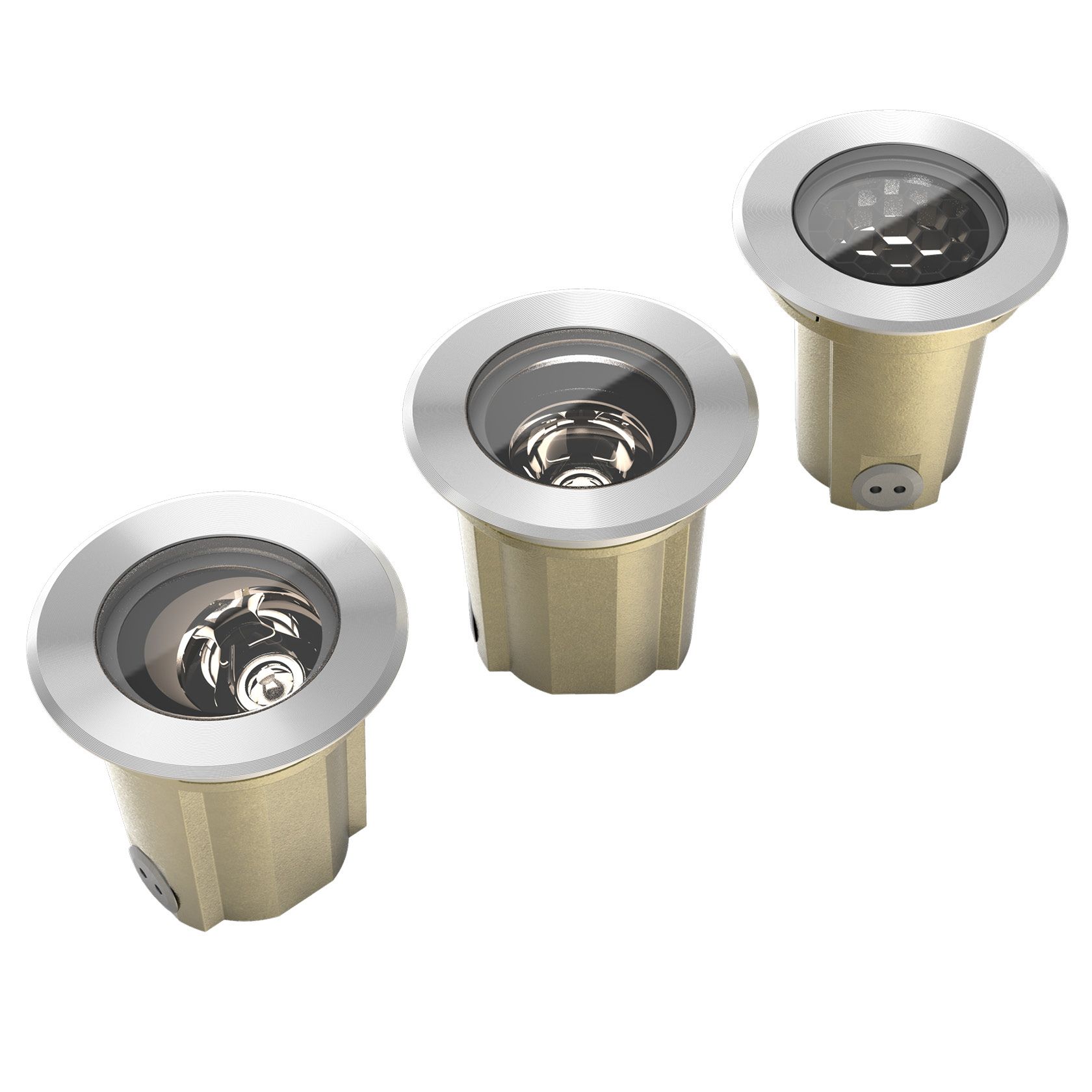

The EB2 is a compact, factory-sealed inground luminaire designed for harsh exterior environments. With a corrosion-resistant brass body, IP68 rating, and micro-antileach cable entry, it delivers long-term reliability in coastal, urban, or high-moisture settings—no drainage required.

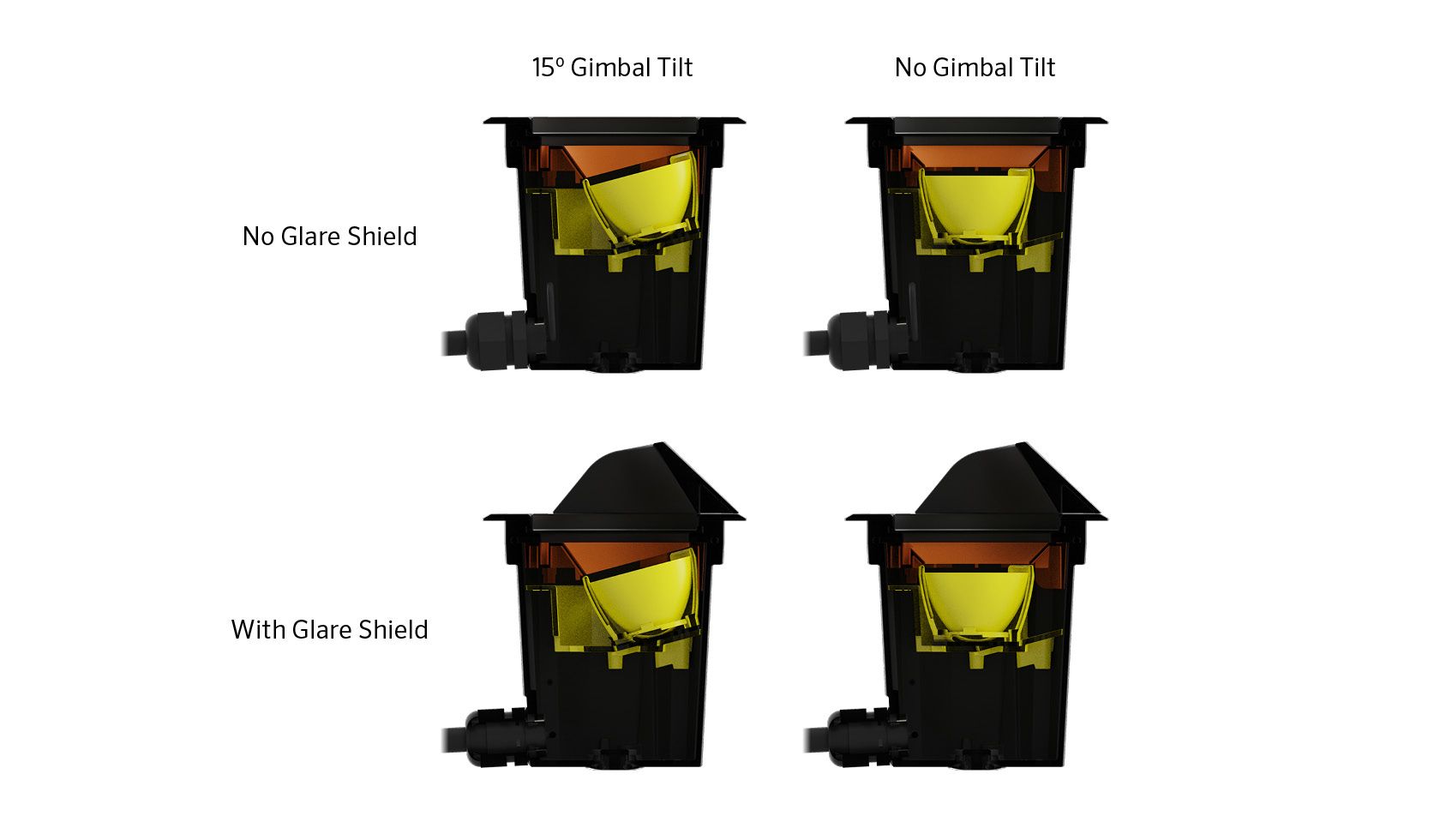

Available in vertical or 15° angled uplight options, the EB2 supports static white outputs with a DALI control option or as non-dimmable.

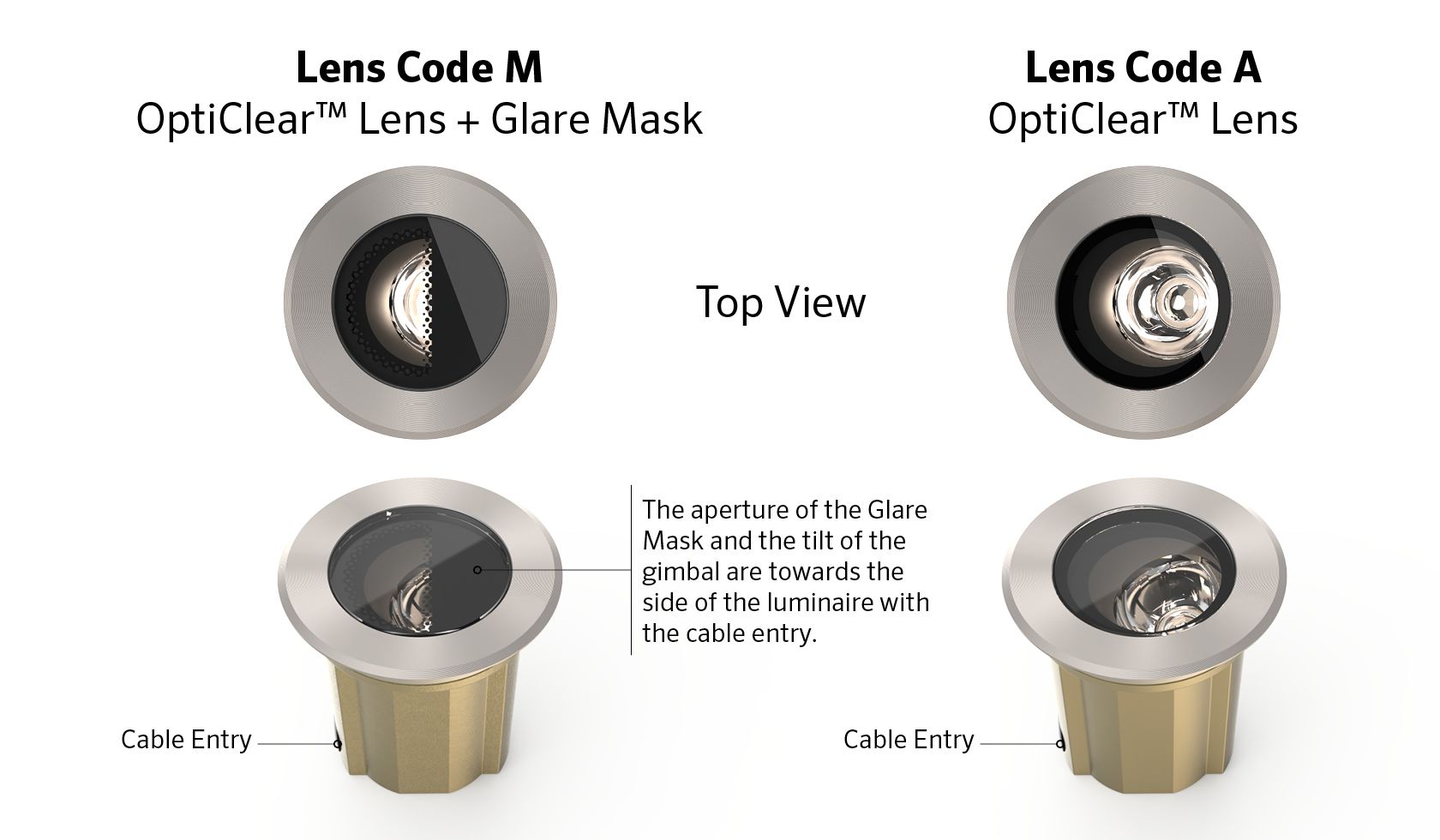

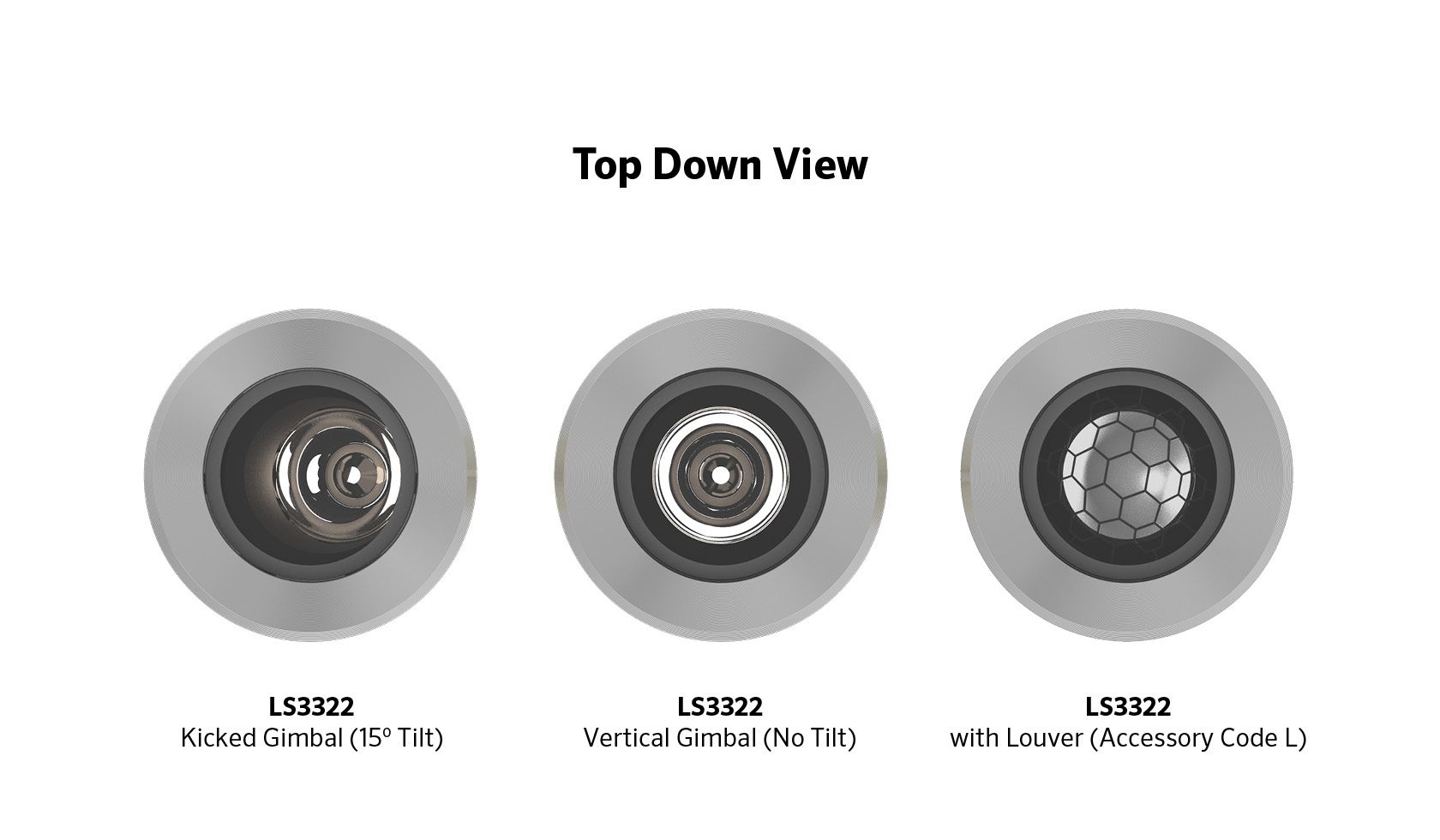

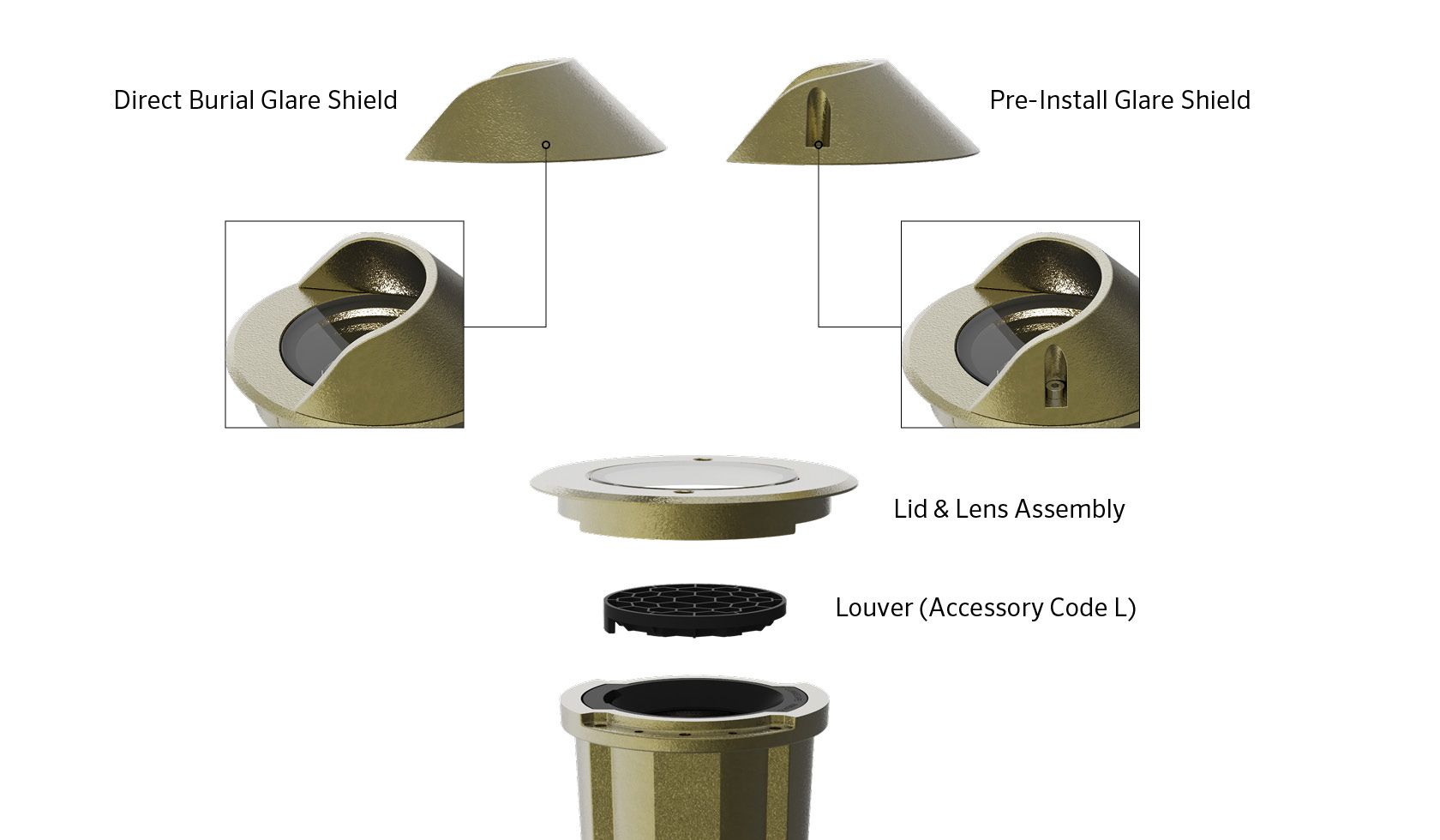

Optical accessories like wall-wash lenses, hex-cell louvres, and glare shields provide beam control and visual comfort. The lid comes in brass or stainless steel finishes:
- Brass develops an elegant natural patina over time.
- Cast 316 stainless steel offers superior corrosion resistance; the naturally patterned crystalline surface is indicative of its high-alloy composition, highlighting durability in high-salinity, high-exposure environments.

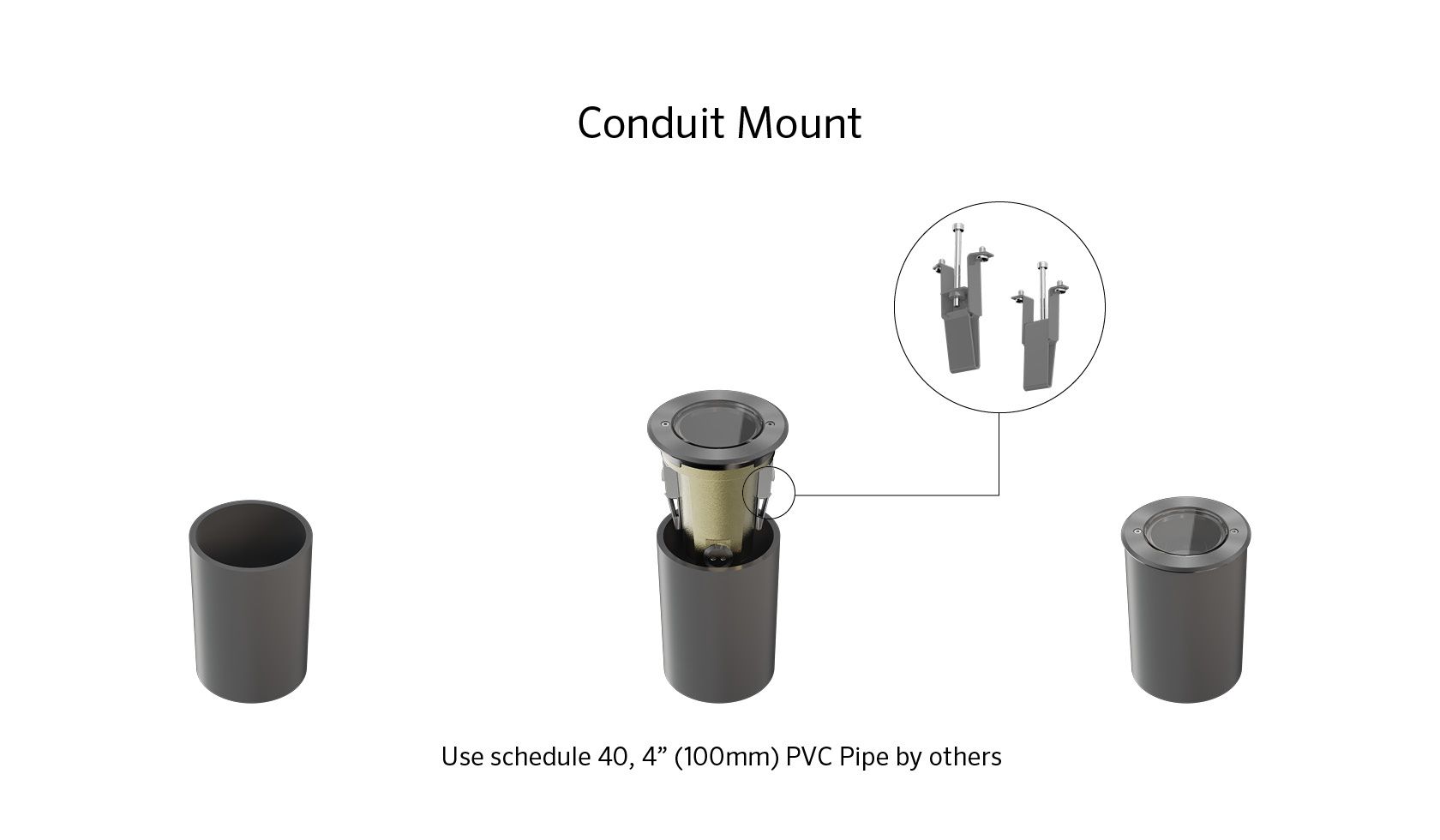

Drive-over rated and compact at 4.7" (120 mm) diameter, the EB2 delivers up to 920 lm. It installs easily via direct burial, pre-installation kits, or a 4" conduit system, making it ideal for discreet yet powerful architectural or landscape lighting.
Features
Lumen Output 920 lm
Power Consumption < 11 W
Typical Lifetime 84,309 hours @ 50°C Ambient (B10, L90, TM21 Projected)
Input Voltage 220-240 Vac, 50/60 Hz (CE) | 120 Vac, 60 Hz(UL) | Low Voltage: 24 Vdc
Control Protocol DALI® (International), Non-Dimmable
Weight 4.2 lb (1.9 kg)

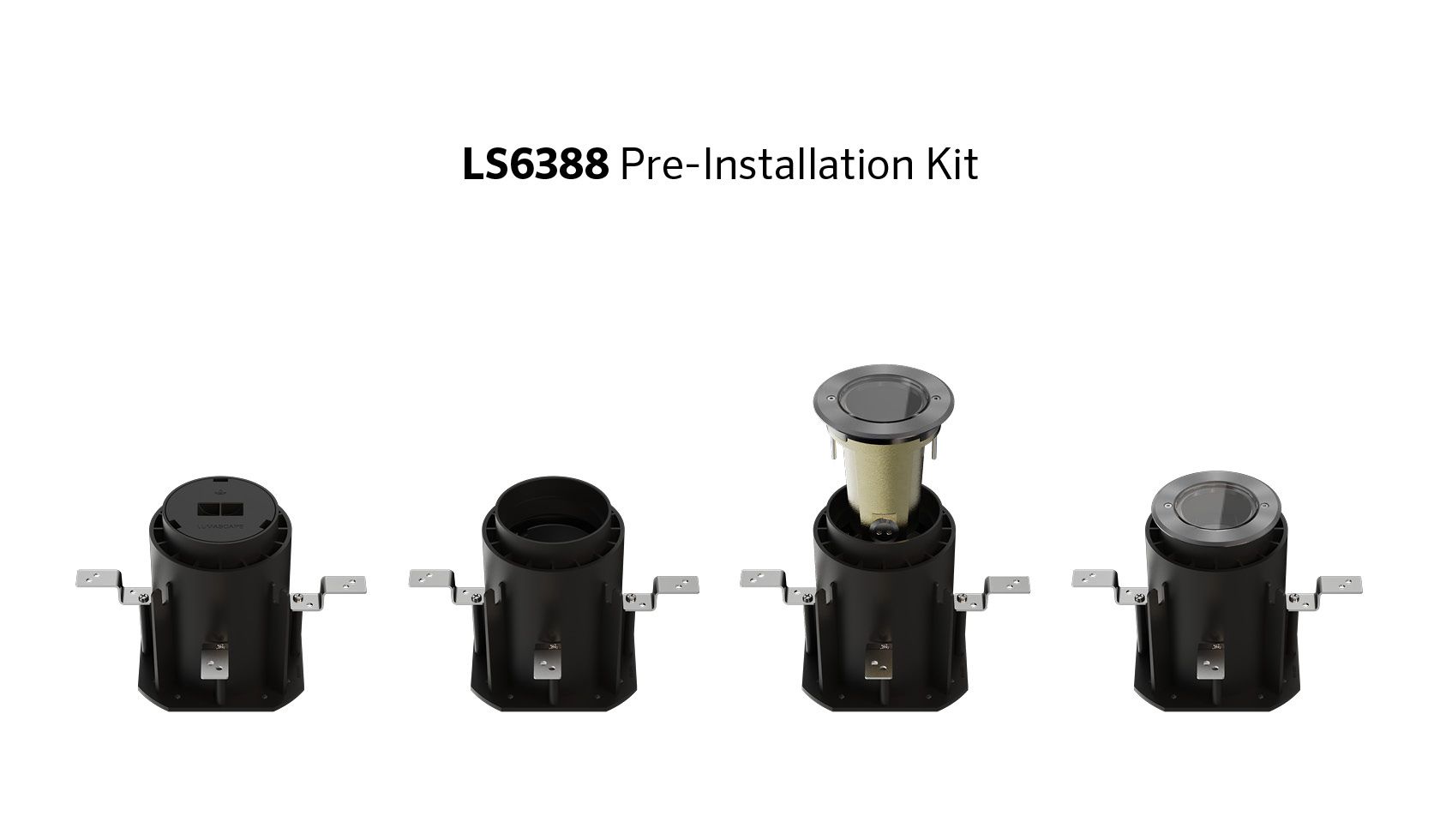

Drive-Over With pre-installation kit (LS6388)
IP Rating IP68
IK Rating IK8
Static Load Rating 6,614 lb (3,000 kg)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| LS6388 | Pre-Installation Kit |
