1,024 Channel WiFi DMX Lighting Controller

1,024 Channel WiFi DMX Lighting Controller - LS6945

1,024 Channel WiFi DMX Lighting Controller

Configure this product Features Specifications Accessories

Product Overview

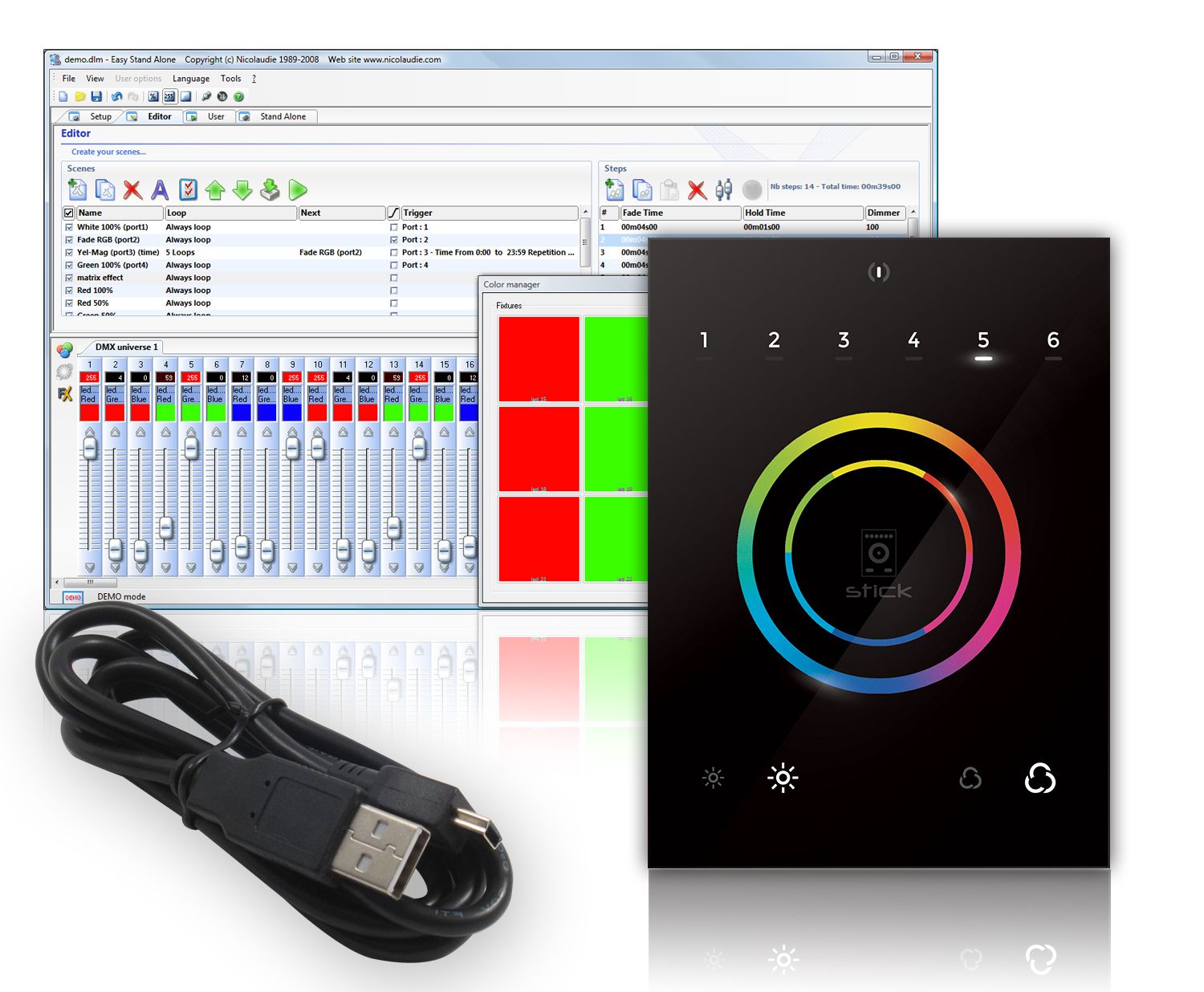

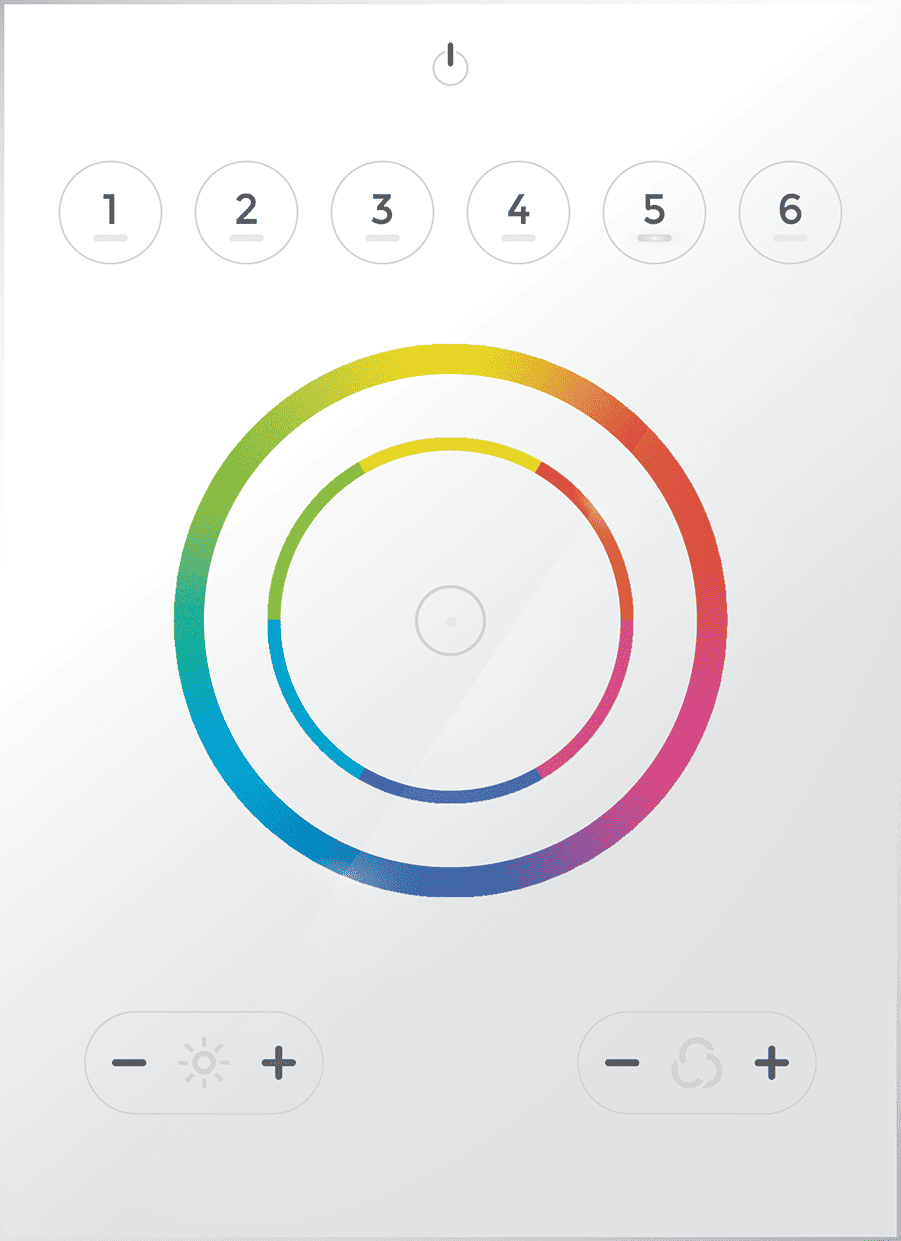

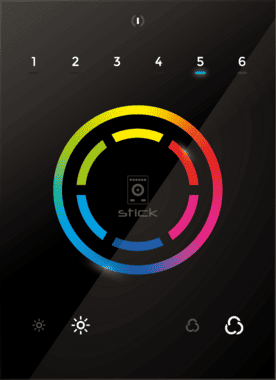

Programmable lighting controller, for RGB and RGBW lighting, has been designed around a touch sensitive color wheel.

The controller is USB or WiFi programmable from a PC or Mac using the ESA2 or ESA Pro 2 software. It is also possible to program it over WiFi using the on-site programming app Arcolis.

Up to 36 scenes can be stored within the controller and directly recalled via six touch sensitive scene buttons. A button located in the center of the color wheel can be used to jump between scenes or reset a color change.

Features

Dimensions 106 x 146 x 10 mm (4.2 x 1.6 x 0.4 in) Weight 200g (0.5 lbs) USB Connection Yes WiFi Connection Yes DMX Channels 1,024 Software ESA2 / Esa Pro 2 / Remote Control Apps (Mac & PC) Number of Scenes 36 Number of Zones 1 Memory Capacity (20 ch.) 2729 steps Memory Capacity (512 ch.) 124 steps Power Connector Screw terminal or RJ45 Live Control Color / Dimmer / Saturation Touch Sensitive Buttons 12+ Wheel Port Triggers 8 Clock/Calendar Triggers 100 Compliance
