Vedita LED VE9 - LS9409LED

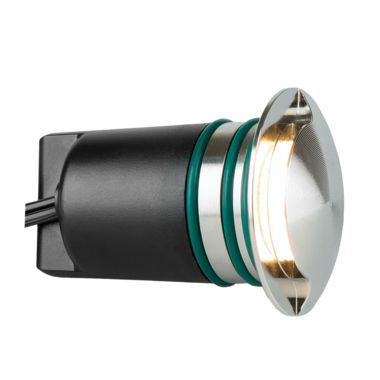

A compact and versatile low-voltage, in-ground or wall-mounted luminaire.
Configure this product Features Specifications

Product Overview

The Vedita VE9 is a compact in-ground or wall-mounted luminaire, perfect for indoor and outdoor architectural applications. This luminaire is supplied with a sturdy installation sleeve, ideal for architectural installations. The premium stainless construction ensures long-lasting performance and comes standard with an ElectroPolishPlus™ surface treatment.

Features

Lumen Output 20 lm Power Consumption 3 W Typical Lifetime > 60,000 hours (B10, L70, TM21 Reported) Control Protocol PWM (0-10V, DMX, DALI) Diameter 1.8" (45 mm) Static Load Rating 992 lb (450 kg) IP Rating IP68 IK Rating IK10 Compliance ETL - USA & Canada CE UKCA RCM Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Downloads

Data Sheet
IES Files LS9409LED ZIP (7.35 KB) DXF Files LS9409LED ZIP (134.24 KB)

Technology

Product Configurator

LS9409LED _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Vedita LED VE9 below

Power Consumption

Required

3 W (3D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Single Colour (BLU)

Single Colour (BLU)

Blue

Trim Style

Required

Stainless Steel (SS)

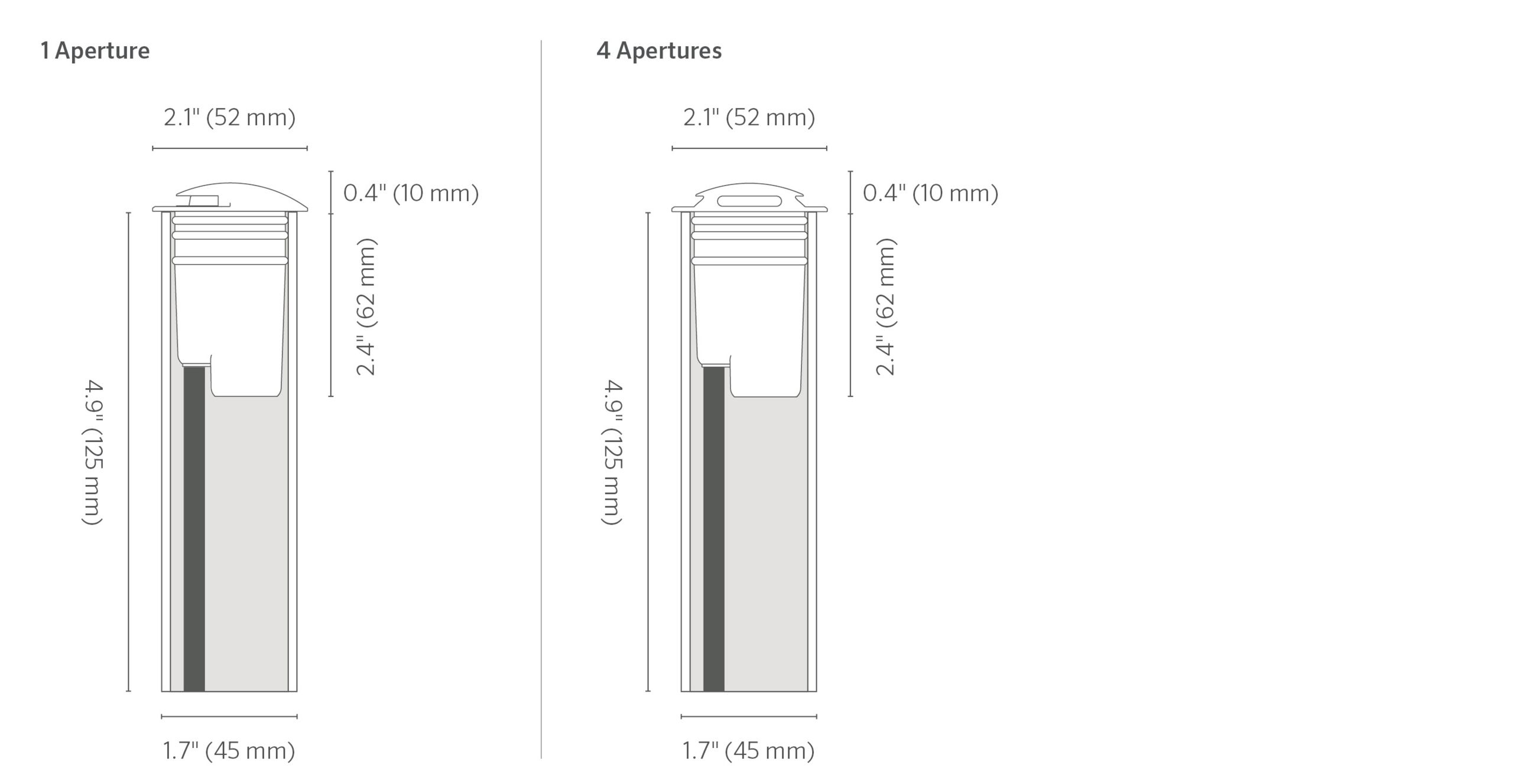

Apertures

Required

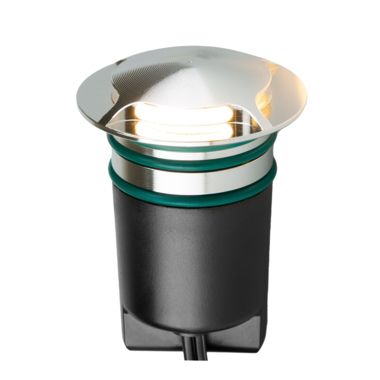

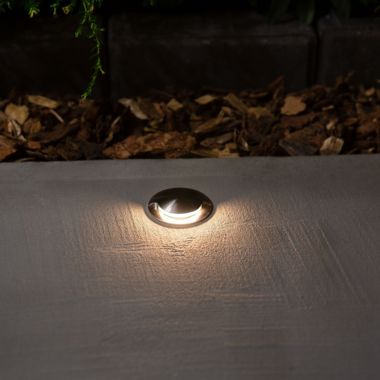

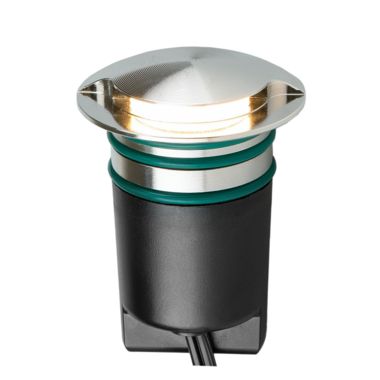

One (1A)

One (1A)

One aperture (1 x 180°)

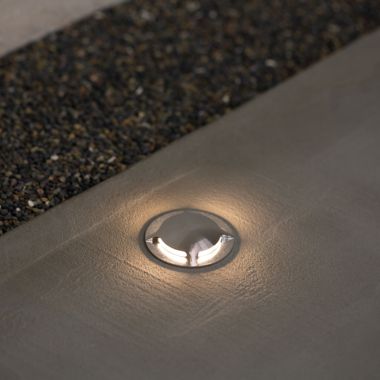

Four (4A)

Four (4A)

Four aperture (4 x 85°)

Input Voltage

Required

12-15 Vac, 60 Hz or 12-24 Vdc (13)

12-15 Vac, 60 Hz or 12-24 Vdc (13)

PWM Dimmable Driver

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PWM Dimmable (DP)

PWM Dimmable (DP)

Cable Length

Required

6 ft (006)

Flexible rubber cable

26 ft (026)

Flexible rubber cable

50 ft (050)

Flexible Rubber cable

65 ft (065)

Flexible rubber cable

82 ft (082)

Flexible rubber cable

Accessories

Mounting & Installation

Specify Separately

Included Installation Sleeve

Included Installation Sleeve

Luminaire is supplied with PVC mounting sleeve and trim. The luminaire can be used with or without this assembly. Sleeve is equivalent to a North American 1.5" Schedule 40 conduit.

Preinstallation Niche (LS6107)

Preinstallation Niche (LS6107)

In-ground mounting kit for the LS940x luminaires. Accurately position the luminaire in rebar and concrete-pour applications. Recommended use with ¾" conduit entry for each luminaire. Conduit not included.
