ZDClink® Lighting Controller - ZDClink

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™
Configure this product Features Specifications Videos Accessories

Product Overview

The ZDClink® lighting controller offers powerline zoning, dimming, RGBW color creation capabilities, and optional Wi-Fi control via Luxor Technology™.

  • Up to 250 independent lighting zones, no matter the wiring configuration or position on a circuit
  • Adjust intensity from 0–100%
  • 30,000 color options
  • Event-based scheduling options
  • Optional cloud-based iOS® or Android™ app control
  • Luxor® Linking compatible for a single point of control
  • 304 stainless steel
  • ETL certified

Features

Input Power 120 Vac, 60 Hz (NA) Output Power 14 Vac Capacity 300 W Pool & Spa Rated Yes Compliance ETL - USA & Canada Quickship Quickship Available Data Sheet

Specifications

Videos
Product Highlights | ZDClink
Introducing the ZDClink, a combined lighting controller and transformer that offers powerline zoning, dimming, RGBW color-changing, and optional Wi-Fi control via Luxor Technology™.

Accessories


WIFIMOD2 Controller-mounted Wi-Fi antennae for wireless communication
WIFIMOD2RMT Remote-mounted Wi-Fi antennae with 10' (3 m) cable for wireless communication
LAM Light assignment module for remote group assignment
LinkMOD Wireless Linking Module
LCM-LV Low-Voltage Luxor Cube
LCM-HV Line-Voltage Luxor Cube
LCM-RLY-010V Relay/0-10 V Luxor Cube
LUXFP Luxor® Facepack

Downloads

Data Sheet Install Guide
Quick Start Guide - Luxor Cloud PDF (1.4 M) Quick Start Guide - ZDClink PDF (1012.71 KB) Wi-Fi Owners Manual PDF (1.1 M) Crestron Integration Guide PDF (1.3 M) Lutron Homeworks QS Integration Guide PDF (5.73 M) Lutron® RadioRA® 2 Integration Guide PDF (3.84 M) DXF Files ZDClink ZIP (89.69 KB) FIRMWARE v1.07 Facepack ZIP (535.32 KB) FIRMWARE v0.24 Chassis ZIP (7.87 KB) FIRMWARE v1.00 Wifi Module ZIP (42.27 KB)

Product Configurator

ZDClink _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise ZDClink® Lighting Controller below

Capacity

Required

300 Watts (300)

Input Voltage

Required

120 Vac, 60 Hz

120 Vac, 60 Hz

North America

Finish

Required

Stainless Steel (SS)

Stainless Steel (SS)

304 stainless steel

Accessories

Wireless Accessories

Specified Separately

Pre-Installed Ethernet Port

Connect directly to a local networking device using standard network cabling to utilize wireless communication via the Luxor app. Ethernet port is pre-installed on all ZDClink models; no accessory required.

Wi-Fi Module (WIFIMOD2)

Wi-Fi Module (WIFIMOD2)

Controller-mounted Wi-Fi antennae for wireless communication

More info
Wi-Fi Module Remote Mount (WIFIMOD2RMT)

Wi-Fi Module Remote Mount (WIFIMOD2RMT)

Remote-mounted Wi-Fi antennae with 10' (3 m) cable for wireless communication

More info

Linking Accessories

Specified Separately

Pre-Installed Linking Port

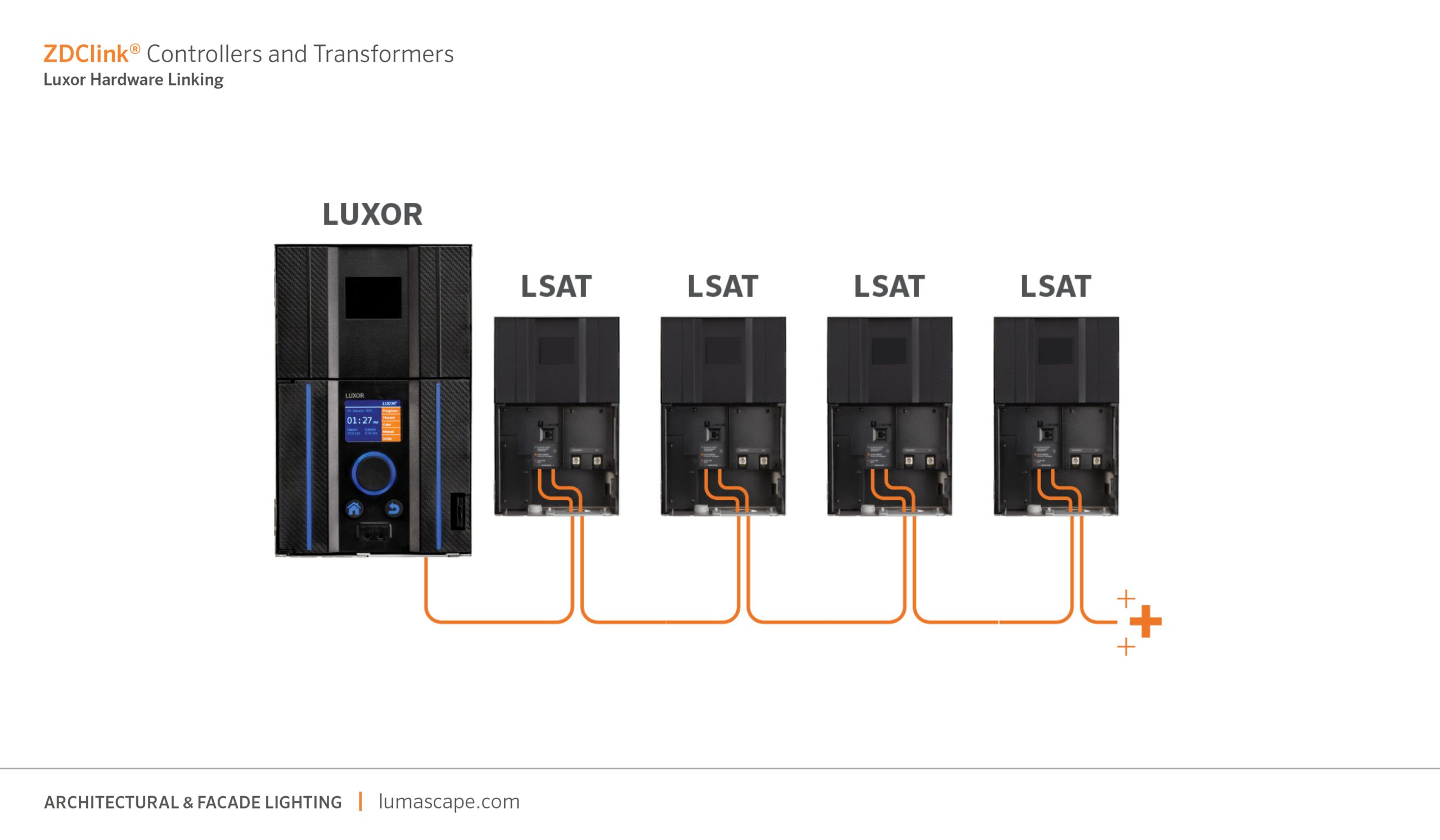

Connect directly to a SATlink Satellite Controller using standard network cabling to expand the system with additional power. Two RJ-45 linking ports are pre-installed in all ZDClink and SATlink models. Specify SATlink separately.

Long-Range Wireless Linking Module (linkMOD)

Long-Range Wireless Linking Module (linkMOD)

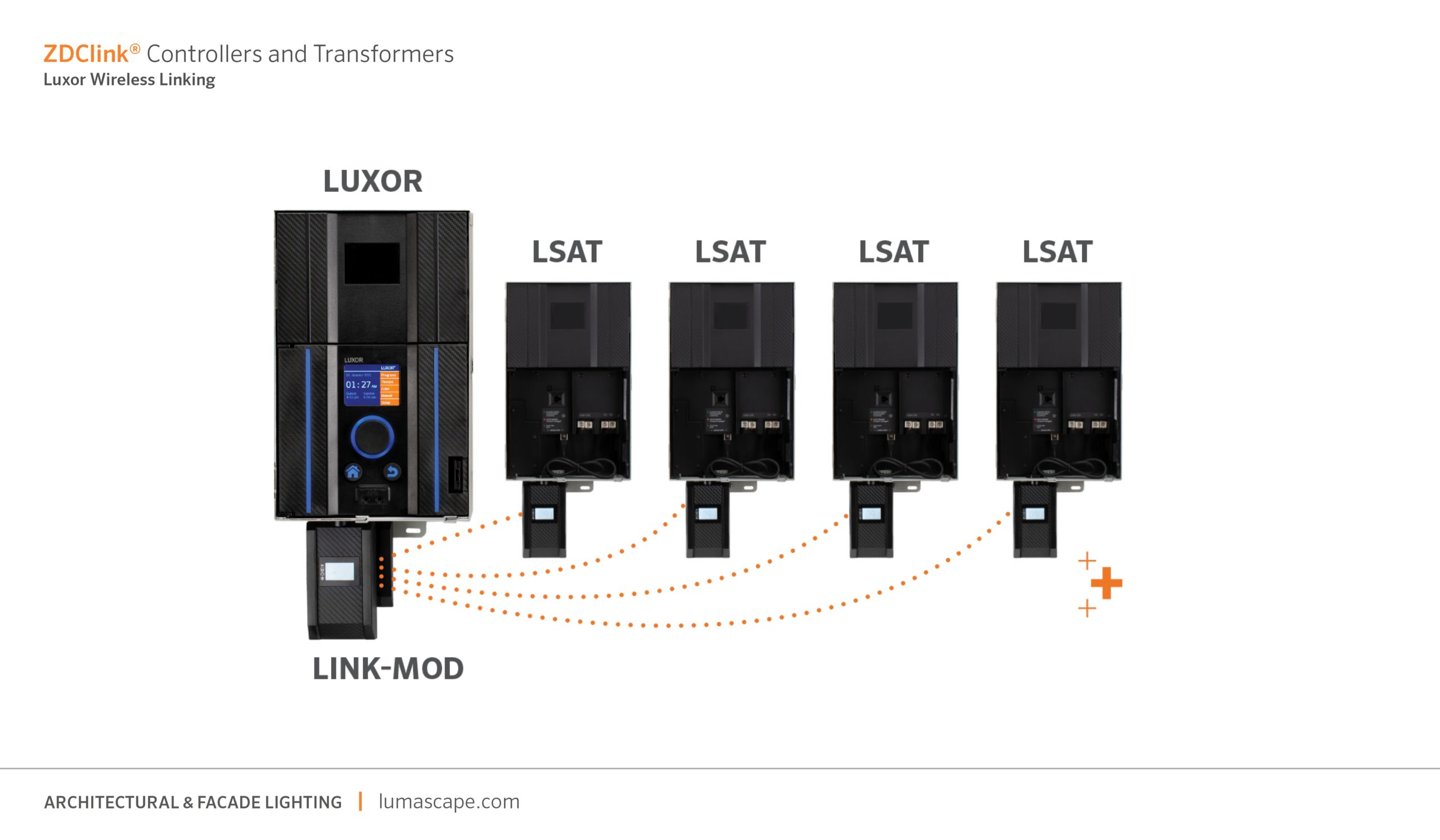

Wirelessly connect up to nine SATlink Satellite Controllers to a single ZDClink Primary Controller using the Wireless Linking Module. A linkMOD is required at the ZDClink controller and each SATlink Satellite Controller.

More info

Installation Tool

Light Assignment Module (LAM)

Light Assignment Module (LAM)

For remote group assignment. Specified separately.

More info

Power Supply

Specify Separately

Luxor Satellite Controller (SATlink)

Luxor Satellite Controller (SATlink)

Adds an additional 300W of capacity to the system. Requires linking to a ZDClink controller via ethernet cable or wireless linkMOD. Connect up to nine SATlinks to a ZDClink.

More info

Luxor Translator

Specify Separately

Low-Voltage Luxor Cube (LCM-LV)

Low-Voltage Luxor Cube (LCM-LV)

Zone and dim devices without integrated Luxor® control using the ZDClink Lighting Controller. Connect up to 60 W of dimmable 12 Vac dimmable luminaires

Line-Voltage Luxor Cube (LCM-HV)

Line-Voltage Luxor Cube (LCM-HV)

Zone and dim devices without integrated Luxor® control using the ZDClink Lighting Controller. Connect up to 400 W of dimmable 120-240 Vac dimmable luminaires.

Relay/0-10 V Luxor Cube (LCM-RLY-010V)

Relay/0-10 V Luxor Cube (LCM-RLY-010V)

Zone via relay or zone/dim via 0-10V devices without integrated Luxor® control using the ZDClink Lighting Controller.

Replacement Parts

ZDClink® Facepack (LUXFP)

ZDClink® Facepack (LUXFP)

Replacement facepack for ZDClink®.

More info
