aDuke - aDUK

Sleek area luminaires
Configure this product Features Videos Accessories

Product Overview

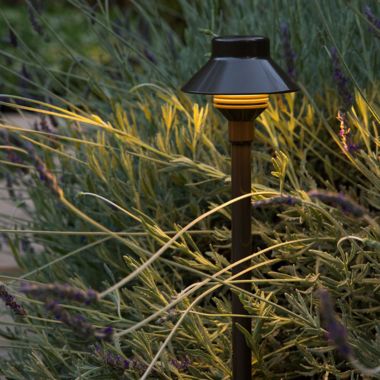

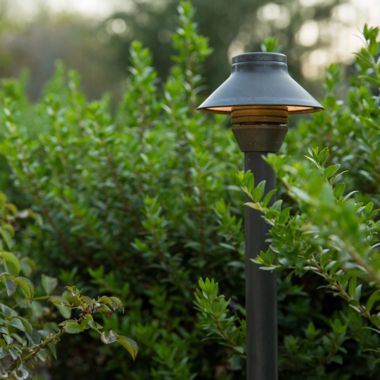

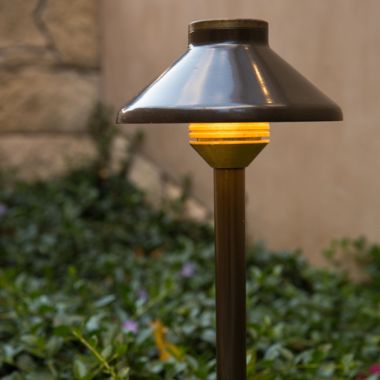

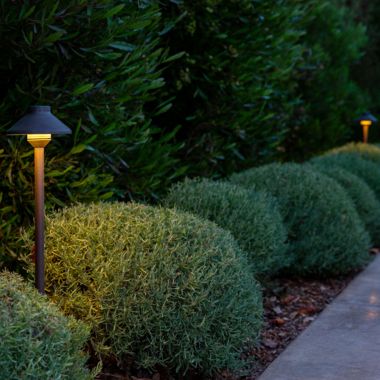

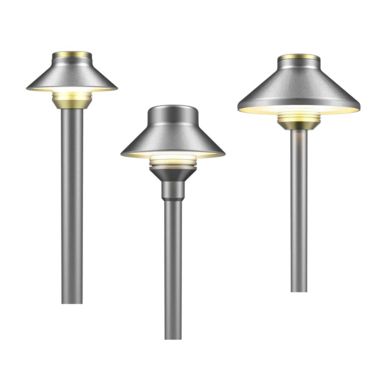

The aDuke is a sleek area luminaire available in 1 or 3 LED. Available in copper/brass or aluminum constructions. An RGBW version is also available for use with ZDClink® Controllers.

Features

Total Lumens 19-210 lm Power Consumption 2.2 W | 4.4 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | RGBW: 11-15 Vac, 50/60 Hz Installation Requirements Downward direction only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 4.0 lb (1.8 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Dark Sky Color Options Warm White RGBW Wildlife-friendly Data Sheet

Videos
Product Highlights | Path Lights
Introducing the Essential Series range of path lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


SJ Super J-Box
PM Post Mount
GM Ground Mount
VB-050 Versabox®
LNM Line Mount
S-RISER Riser, Straight
C-RISER Riser, Angled Sun-Light
COUP Coupling, Straight
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
Data Sheet aDuke-12 PDF (491.2 KB) Data Sheet aDuke-18 PDF (610.81 KB) IES Files aDuke ZIP (6.02 KB) DXF Files aDuke ZIP (45.99 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

aDUK _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise aDuke below

Input Voltage

12 Vac/Vdc

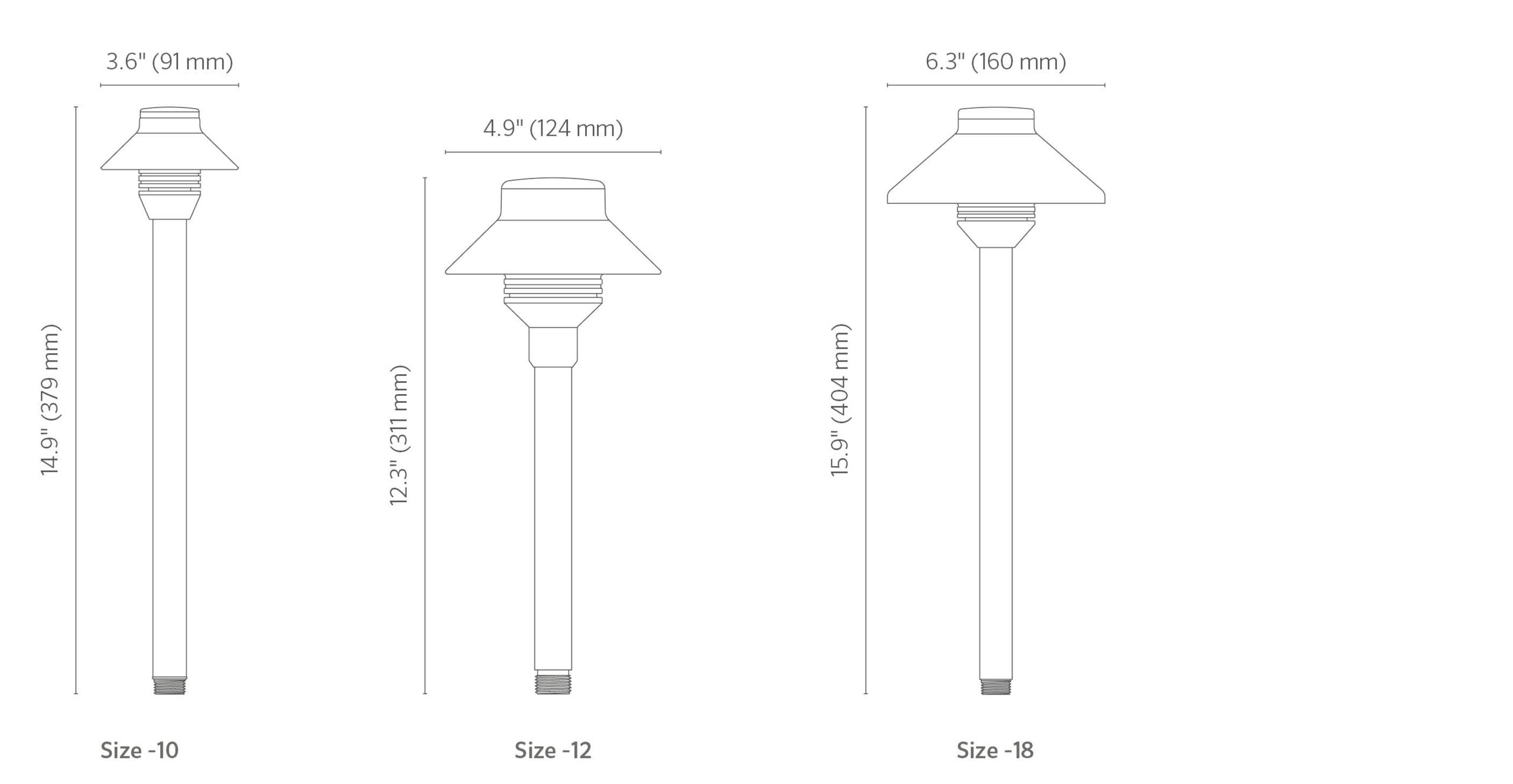

Size

Required

3.6" (91 mm) diameter (10)

3.6" (91 mm) diameter (10)

4.9" (124 mm) diameter (12)

4.9" (124 mm) diameter (12)

6.3" (160 mm) diameter (18)

6.3" (160 mm) diameter (18)

Material

Required

Copper/Brass

Aluminum (A)

Die-cast A380 aluminum with stainless steel hardware. Available in powder-coated finishes only.

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

19-44 lm

2.2 W

19-44 lm, for ZD control

4.4 W (3LED)

166-210 lm

4.4 W

166-210 lm, for ZD control, Size -12 and -18 only

4.5 W

54 lm, Wildlife-Friendly, for ZD control, Size -18 only

7.2 W

For ZDC control, Size -12 and -18 only

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Wildlife-Friendly (T)

Wildlife-Friendly (T)

Amber (585 to 595 nm)

Height

Required

8" (200 mm) Riser (08R)

12" (300 mm) Riser (12R)

18" (450 mm) Riser (18R)

24" (600 mm) Riser (24R)

36" (900 mm) Riser (36R)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Copper (CU)

Natural Copper (CU)

More info
Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Accessories

Mounting & Installation

Specify Separately

Super J-Box Stake (SJ)

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake

More info
Post Mount (PM)

Post Mount (PM)

1.3" (33 mm) metal cap with ½"-14 NPSM threads; 1.5" schedule 40 conduit

More info
Ground Mount (GM)

Ground Mount (GM)

4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit

More info
Versabox® (VB-050)

Versabox® (VB-050)

1.5" (38 mm) brass cap with ½"-14 NPSM threads

More info
Line Mount (LNM)

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

More info

Straight Riser

Specify Separately. Powder-Coat finish must be specified.

4" (4R-XX)

4" (4R-XX)

4'' (100 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
6" (6R-XX)

6" (6R-XX)

6'' (150 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
8" (8R-XX)

8" (8R-XX)

8'' (200 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
12" (12R-XX)

12" (12R-XX)

12'' (300 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
18" (18R-XX)

18" (18R-XX)

18'' (450 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
24" (24R-XX)

24" (24R-XX)

24'' (600 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
30" (30R-XX)

30" (30R-XX)

30'' (750 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
36" (36R-XX)

36" (36R-XX)

36'' (900 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info

Copper Straight Riser

Specify Separately.

12" (12R-GT-XX)

12" (12R-GT-XX)

12'' (300 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

18" (18R-GT-XX)

18" (18R-GT-XX)

18'' (450 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

24" (24R-GT-XX)

24" (24R-GT-XX)

24'' (600 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

Coupling Options

Specify Separately. Powder-Coat finish must be specified.

Straight (COUP)

Straight (COUP)

2'' (50 mm) aluminum tapered coupling with ½''-14 NPSM threads

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
