dAxis-7 - dAXS7

Expertly engineered directional luminaire with a 45º or 60º shroud.

Product Overview

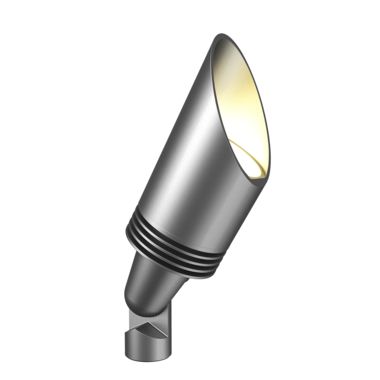

The dAxis-7 is an expertly engineered directional luminaire with a 45º or 60º shroud to illuminate a variety of spaces in 3, 6 or 9 LED. A zoning/dimming version is also available for use with ZDClink® Controllers.

Features

Total Lumens 751 lm Power Consumption 4.4 W | 9.3 W | 12.2 W | 11.0 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Upward Direction Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 1.92 lbs (0.9 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White RGBW Data Sheet

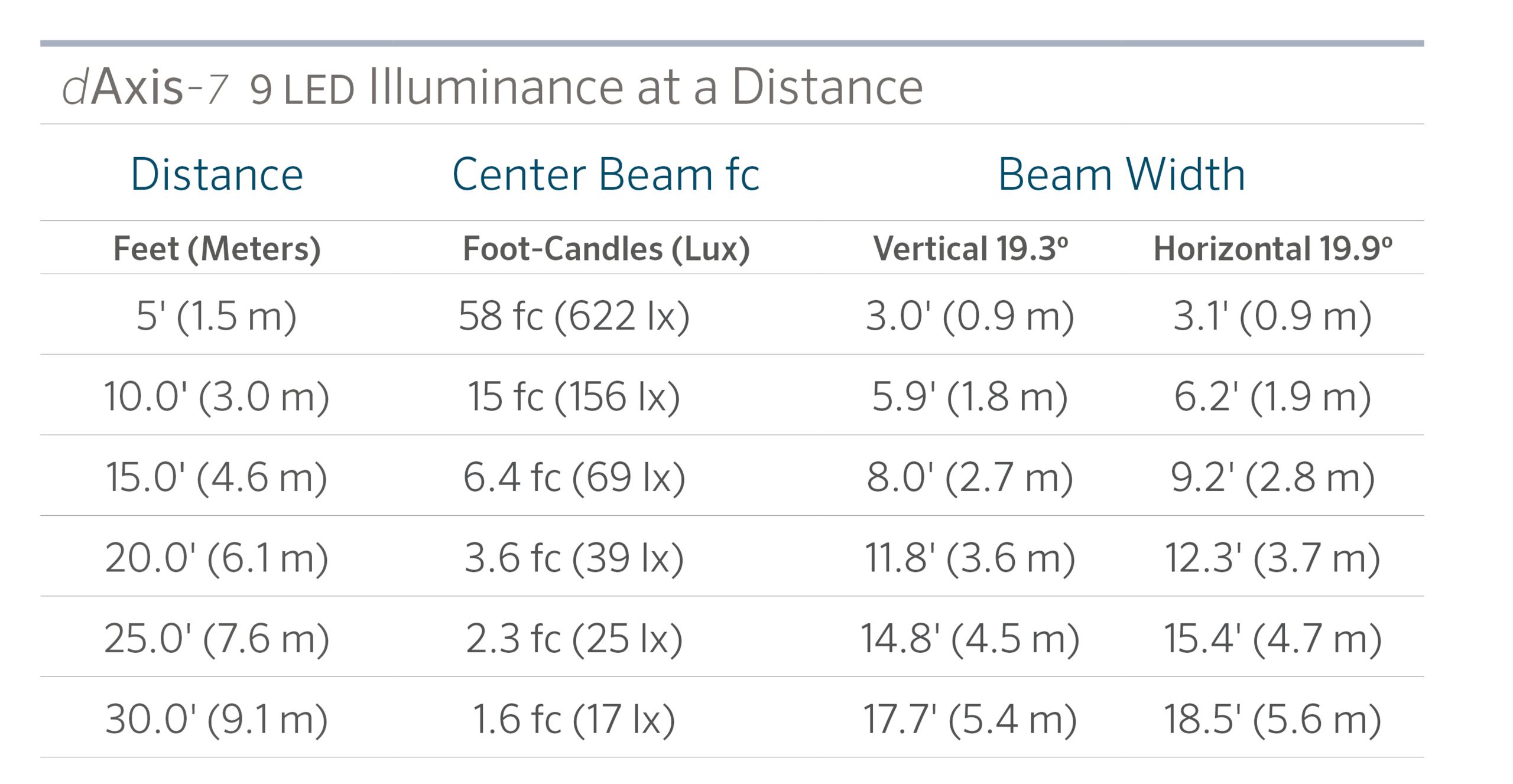

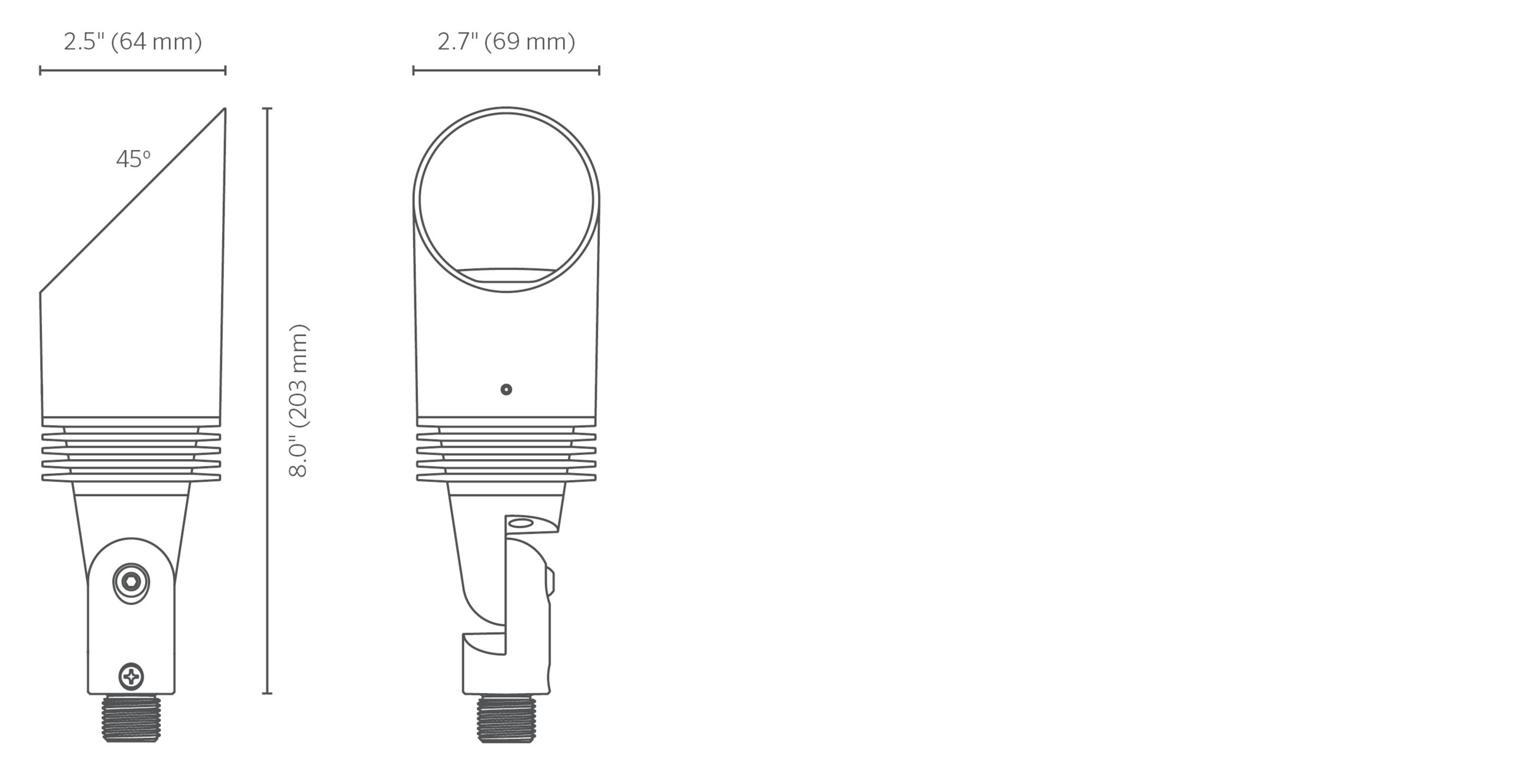

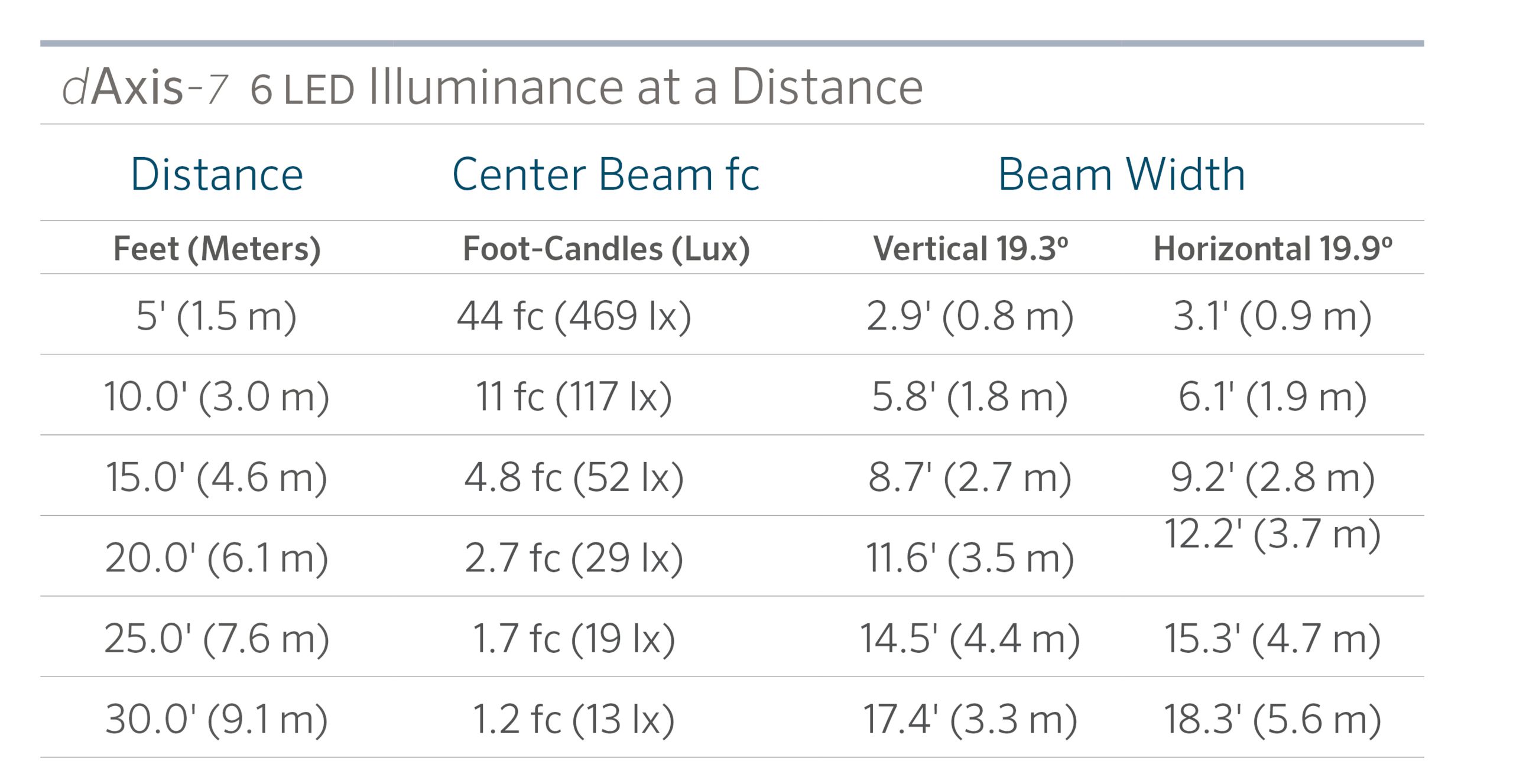

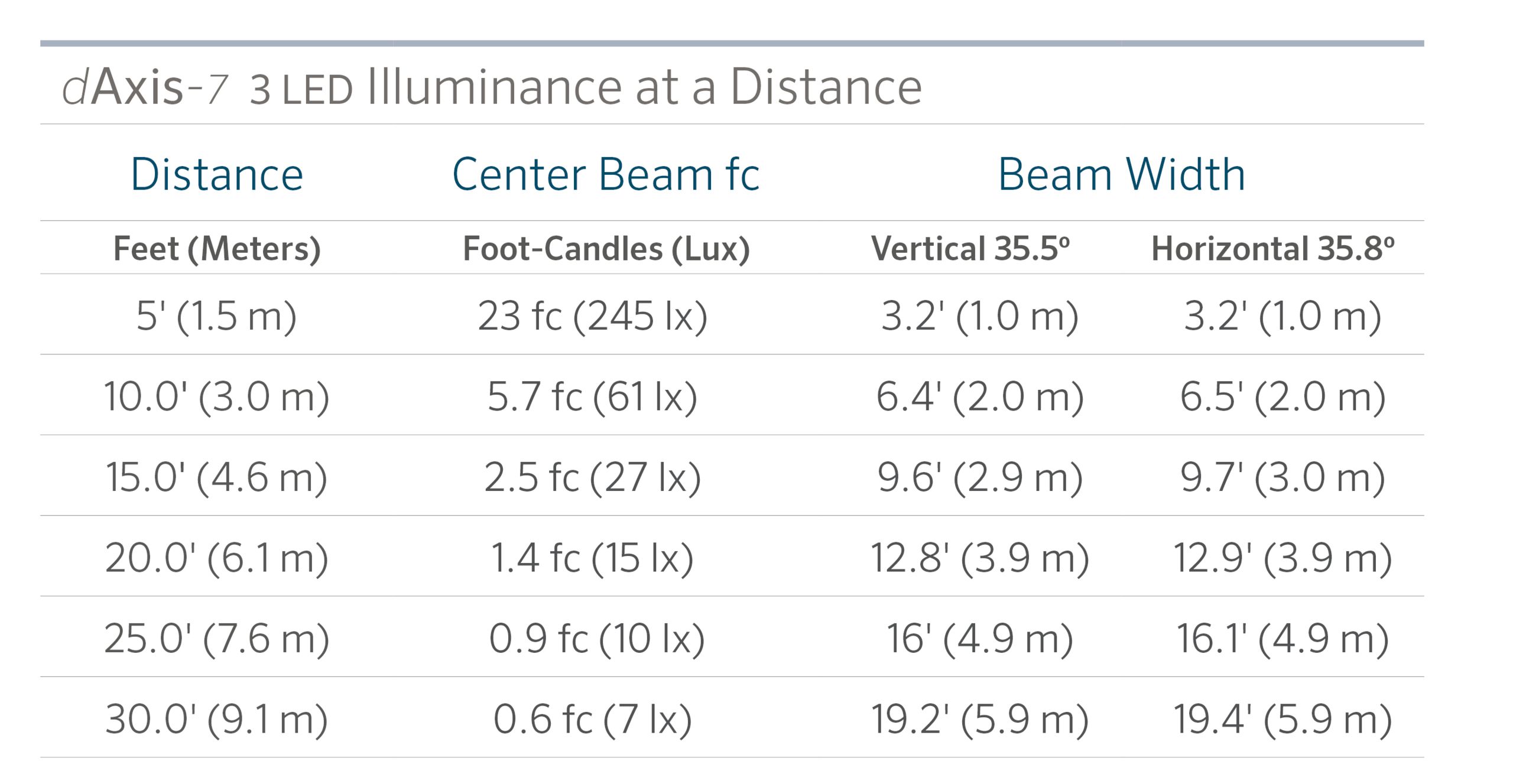

Specifications

Accessories


SJ Super J-Box
PM Post Mount
GM Ground Mount
MM-050 Mini Mount
VB-050 Versabox®
MJ-050 Mini J-Box
TB Treebox®
GM-SS Gutter Mount, Stainless Steel
WP-1G-050 Wall Plate, 1-Gang
WP-RD-050 Wall Plate, Round
TR Non-Penetrating Tree Ring
S-RISER Riser, Straight
C-RISER Riser, Angled Sun-Light
COUP Coupling, Straight
ELBW-050 Coupling, 90º
TMNT-050 Coupling, T
250015250000 Lens, Hex Baffle
250015420000 Lens, Solite Spread
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Product Configurator

Customise dAxis-7 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology

Output

Required

4.4 W (3LED)

289 lm

9.3 W (6LED)

512 lm

12.2 W (9LED)

751 lm

12.2 W (-)

751 lm, ZD Option Only

11.0 W (-)

389 lm, ZDC Option Only

Color Temperature (CCT)

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

ZDC Option Only

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º Beam Angle

Flood (FL)

35º Beam Angle

Flood

45º Beam Angle, ZDC Only

Wide Flood (WF)

60º Beam Angle

Compliance

Required

North America

North America

UL Listed

International (E)

International (E)

Bracket Mount, UL Listed and CE Approved. Required for shipment outside of North America

Shielding

Required

Standard Shroud

45º Angled Shroud

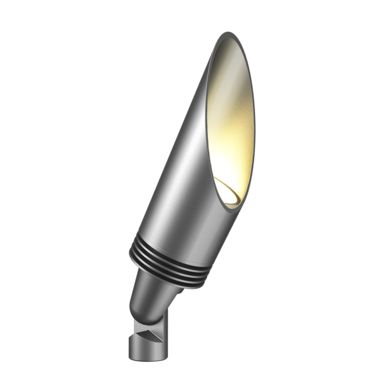

Long Shroud (LS)

60º Angled Long Shroud

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) Adjustable Stake for ½"-14 NPSM Threads

More info

Accessories

Mounting & Installation

Specify Separately

Super J-Box Stake (SJ)

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake

More info
Post Mount (PM)

Post Mount (PM)

1.3" (33 mm) metal cap with ½"-14 NPSM threads; 1.5" schedule 40 conduit

More info
Ground Mount (GM)

Ground Mount (GM)

4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit

More info
Mini Mount (MM-050)

Mini Mount (MM-050)

More info
Versabox® (VB-050)

Versabox® (VB-050)

1.5" (38 mm) brass cap with ½"-14 NPSM threads

More info
Mini J-Box (MJ-050)

Mini J-Box (MJ-050)

1.5" (38 mm) aluminum wall mount with ½"-14" NPSM threads and wire compartment

More info
Treebox® (TB)

Treebox® (TB)

Dual ½"-14 NPSM threads with wire compartment

More info
Gutter Mount (GM-SS)

Gutter Mount (GM-SS)

Stainless steel bracket with ½’’-14 NPSM threads and rotational adjustability

More info
Wall Plate, 1-Gang (WP-1G-050)

Wall Plate, 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads

More info
Wall Plate, Round (WP-RD-050)

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads

More info
Non-Penetrating Tree Ring (TR)

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

More info

Straight Riser

Specify Separately. Powder-Coat finish must be specified.

4" (4R-XX)

4" (4R-XX)

4'' (100 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
6" (6R-XX)

6" (6R-XX)

6'' (150 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
8" (8R-XX)

8" (8R-XX)

8'' (200 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
12" (12R-XX)

12" (12R-XX)

12'' (300 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
18" (18R-XX)

18" (18R-XX)

18'' (450 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
24" (24R-XX)

24" (24R-XX)

24'' (600 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
30" (30R-XX)

30" (30R-XX)

30'' (750 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
36" (36R-XX)

36" (36R-XX)

36'' (900 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info

Angled Sign-Light Riser

Specify Separately. Powder-Coat finish must be specified.

24" (24R-SL-XX)

24" (24R-SL-XX)

24'' (600 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
36" (36R-SL-XX)

36" (36R-SL-XX)

36'' (900 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
48" (48R-SL-XX)

48" (48R-SL-XX)

48'' (1,200 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info

Coupling Options

Specify Separately. Powder-Coat finish must be specified.

Straight (COUP)

Straight (COUP)

2'' (50 mm) aluminum tapered coupling with ½''-14 NPSM threads

More info
90º Coupling (ELBW-050)

90º Coupling (ELBW-050)

2'' (50 mm) aluminum 90º coupling with 1/2''-14 NPSM threads

More info
T-Coupling (TMNT-050)

T-Coupling (TMNT-050)

An aluminum T-Coupling with ½''-14 NPSM threads

More info

Lens Accessories

Specify Separately

Hex Baffle (250015260000)

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens (250013550000)

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens (250015240000)

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)

Replacement Parts

1LED Replacement Kit, Round, 2700K (KIT1LEDRDW)

More info

3LED Replacement Kit, Round, 2700K (KIT3LEDRDW)

More info

6LED Replacement Kit, Round, 2700K (KIT6LEDRDW)

More info

9LED Replacement Kit, Round, 2700K (KIT9LEDRDW)

More info

ZD 1LED Replacement Kit, Round, 2700K (KITZD1LEDRDW)

More info

ZD 3LED Replacement Kit, Round, 2700K (KITZD3LEDRDW)

More info

ZD 6LED Replacement Kit, Round, 2700K (KITZD6LEDRDW)

More info

ZD 9LED Replacement Kit, Round, 2700K (KITZD9LEDRDW)

More info

Large ZDC 3LED Replacement Kit, Round, RGBW (ZDCKITL)

More info
