Erden E4 Foundation

Erden E4 Foundation - LS3042

An architectural-grade, medium-powered in-ground

Price

Configure this product Features Specifications Videos Accessories

Product Overview

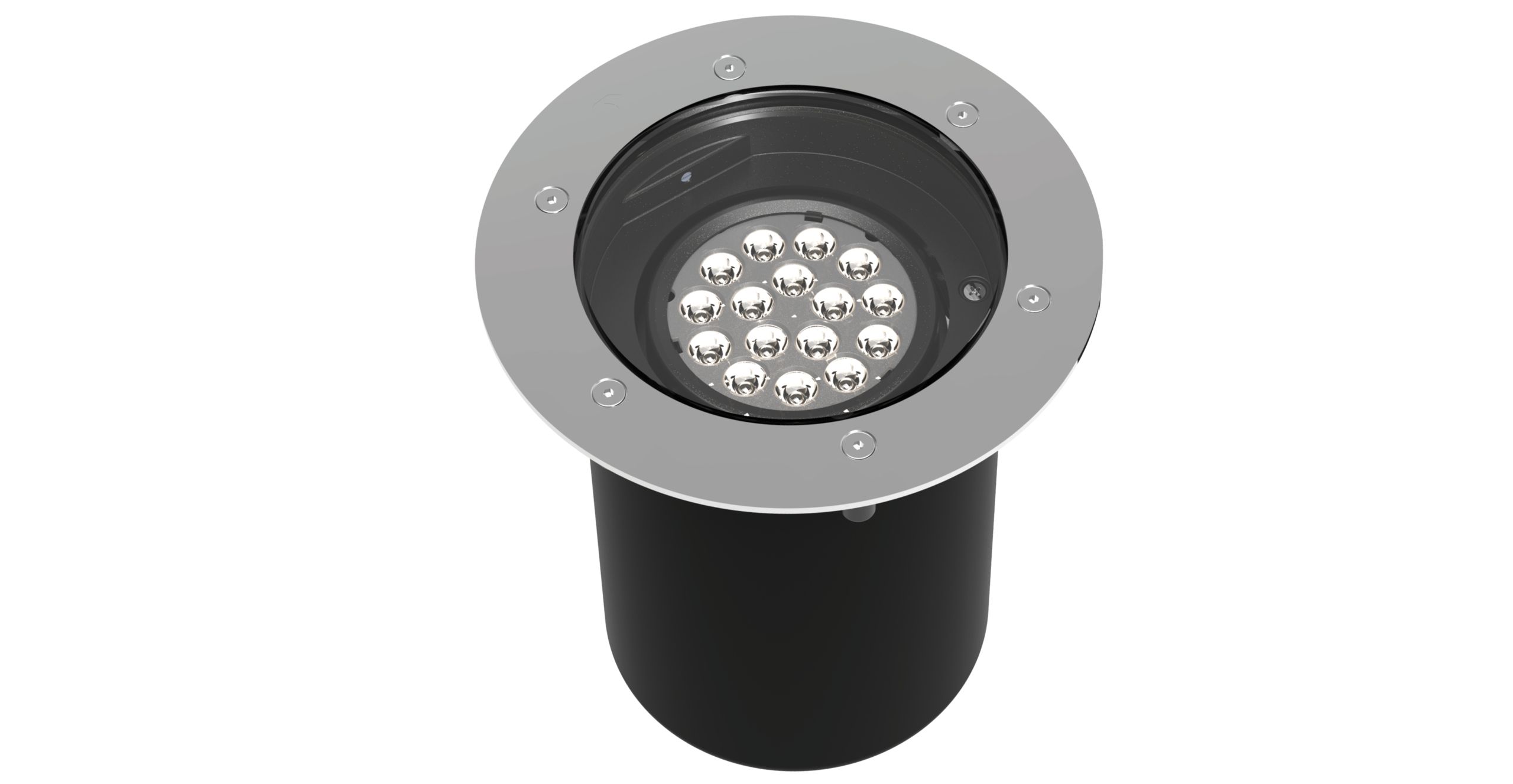

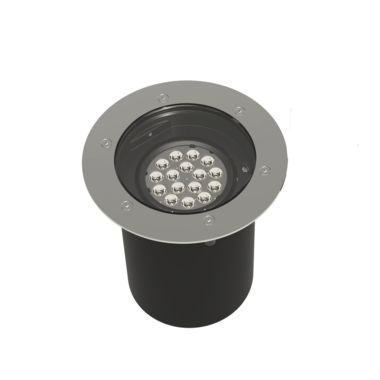

The Erden E4 Foundation is a medium-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 1,850 lm Power Consumption 18 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocol DALI 2 (International), 0-10 V (North America), Non-Dimmable Weight 8.8 lb (4.0 kg) Drive-Over With OptiClear lens and pre-installation kit (LS644-K) IP Rating IP68 IK Rating IK10 Static Load Rating 3,968 lbs (1,800 kg) Environment Inherently protected, suitable for use in poured concrete Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS644-K	Pre-Installation Kit
LS6251	Luminaire Removal Tool
LS6247	Snoot Array Louver
LS6248	Honeycomb Louver

Downloads

Data Sheet

Install Instructions Pre-Install PDF (1.17 M) Install Instructions Direct Burial PDF (947.57 KB) Install Instructions Tall Tube PDF (1.32 M) IES Files LS3042 0-10 V ZIP (662.38 KB) Product Flyer E4 & E6 PDF (110.85 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS3042 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E4 Foundation below

Installation Type

Select the installation type you require.

Required

Pre-Installation

Tall Tube

Direct Burial

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

18 W (18D)

18 W

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Round, stainless steel, polished (W)

Round, stainless steel, brushed (R)

Powder-coat Black (S)

Connection Type

For Ingrounds

Required

½” NPT Adaptor (82)

½” NPT Adapter with hook up wire for hard wired installations, includes MicroAntileach

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector with Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

Housing Depth

Required

Pre-Install Blockout (23)

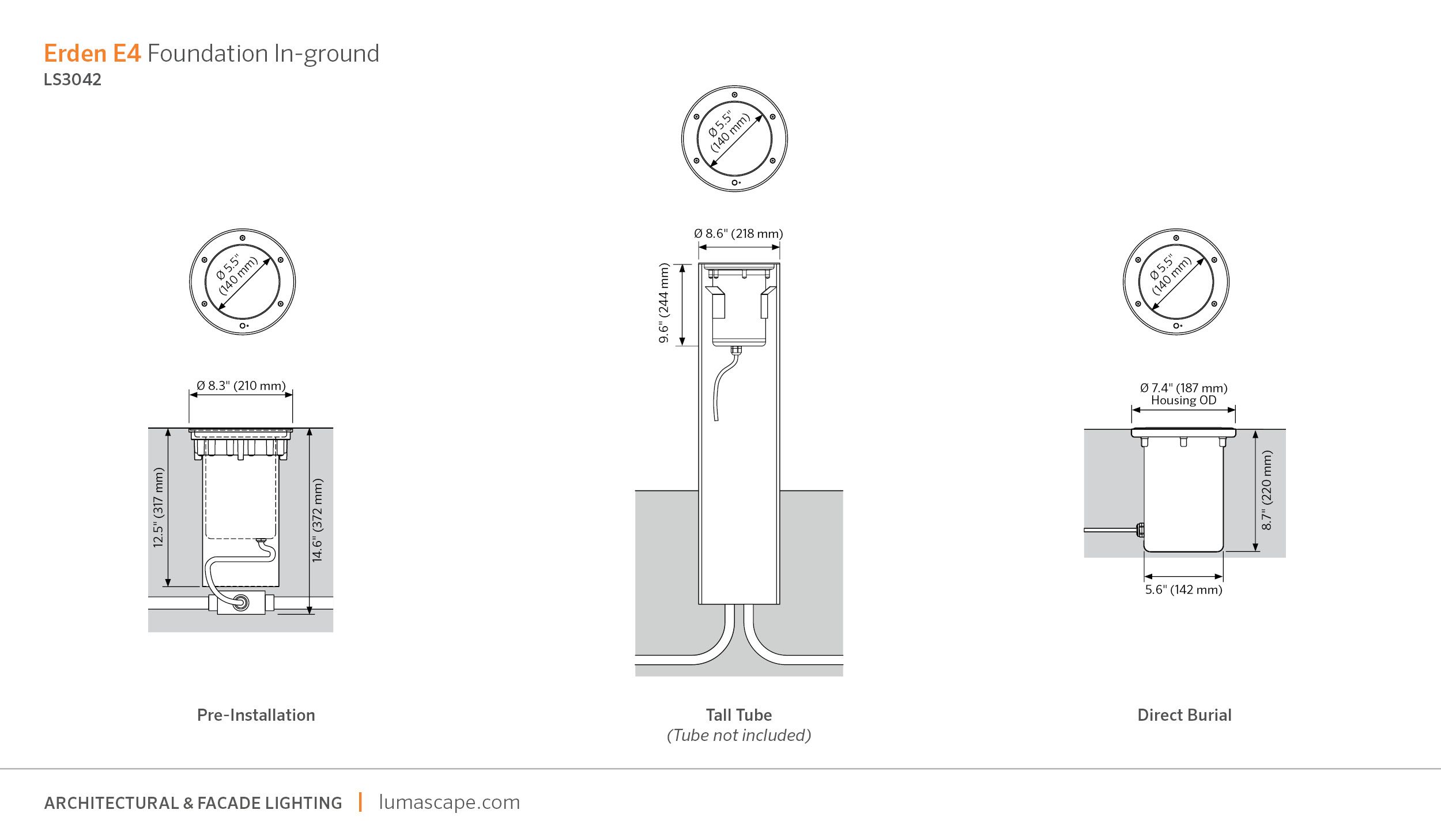

12.8"/ 325 mm

Tall Tube (26)

For installation into North American 8" schedule 40 conduit (not included).

More info

Direct Burial (21)

8.7" (220 mm)

More info

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

0-10 V (AH)

For single color dimming applications via 0-10 V.

Accessories

Pre-Installation Options

Pre-Installation Kit (LS644-K-84)

For use with either line or low voltage luminaires with Type 84 or 82 connections. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS644-K-87-09)

For use with line voltage luminaire with Type 87 connection. Includes 3' (1 m) MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS644-K-77-09-AH)

For use with line voltage. Includes IP68 connector and 3' (1 m) cable. Connection to the branch circuit via junction box (supplied by others) or other approved method.

Shielding & Glare Control

Snoot Array Louver (LS6247)

Provides additional glare control. Available in black only and ordered separately.

Honeycomb Louver (LS6248)

Provides additional glare control. Available in black only and ordered separately.

Tools

Specify Separately

Luminaire Removal Tool (LS6251)

For easy removal of the lid on the luminaire installed into a tall tube. Comes complete with plate, three (3) pins and two (2) screws. Ordered separately.

More info
