In-grade
Erden E4
Product Overview
The EB2 is a compact, factory-sealed inground luminaire designed for harsh exterior environments. With a corrosion-resistant brass body, IP68 rating, and micro-antileach cable entry, it delivers long-term reliability in coastal, urban, or high-moisture settings - no drainage required.
This direct view marker light supports RGBW, RGBA, Static and Tunable White output with DMX/RDM control via Powersync, enabling dynamic lighting scenes and remote management.

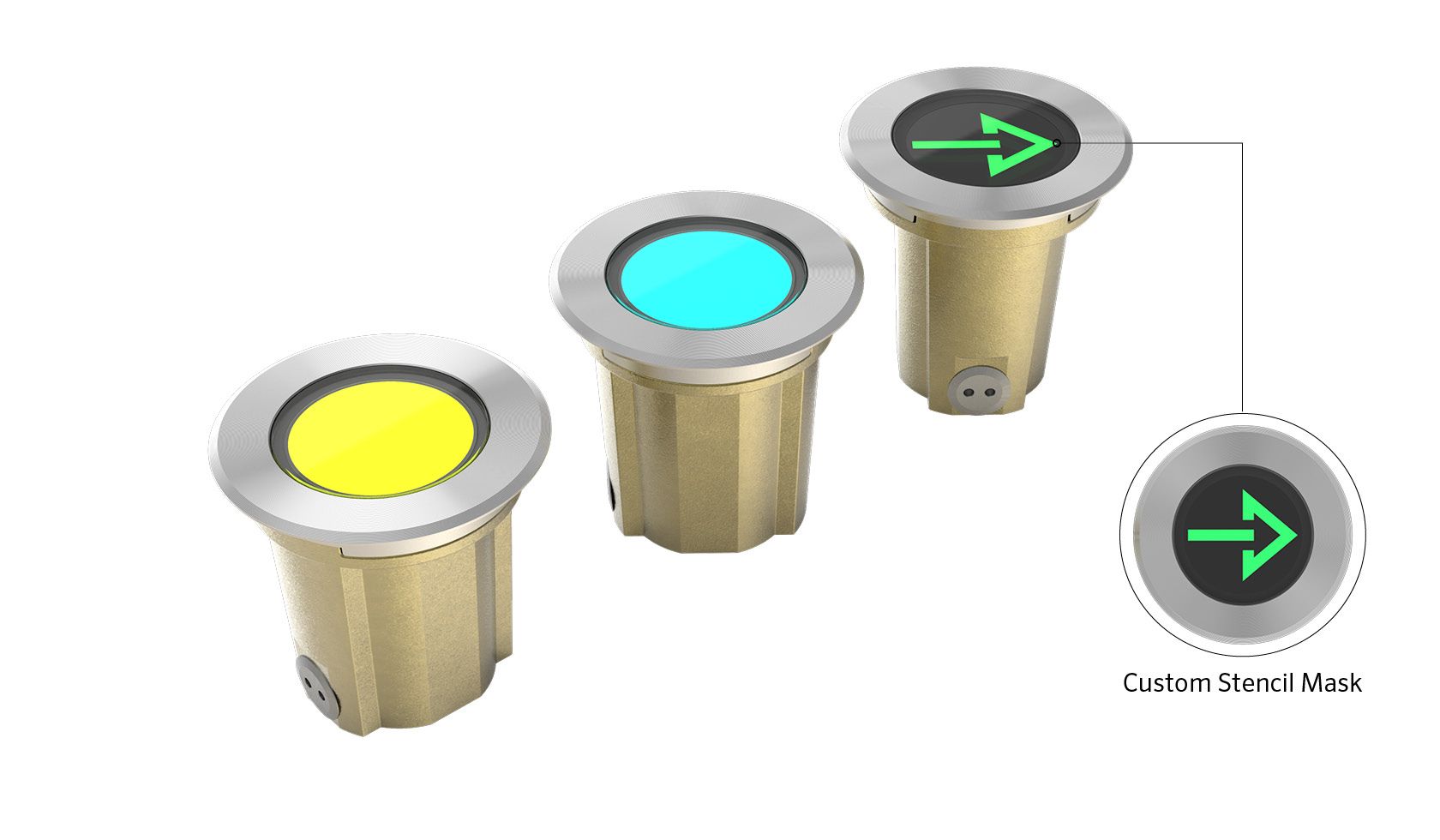

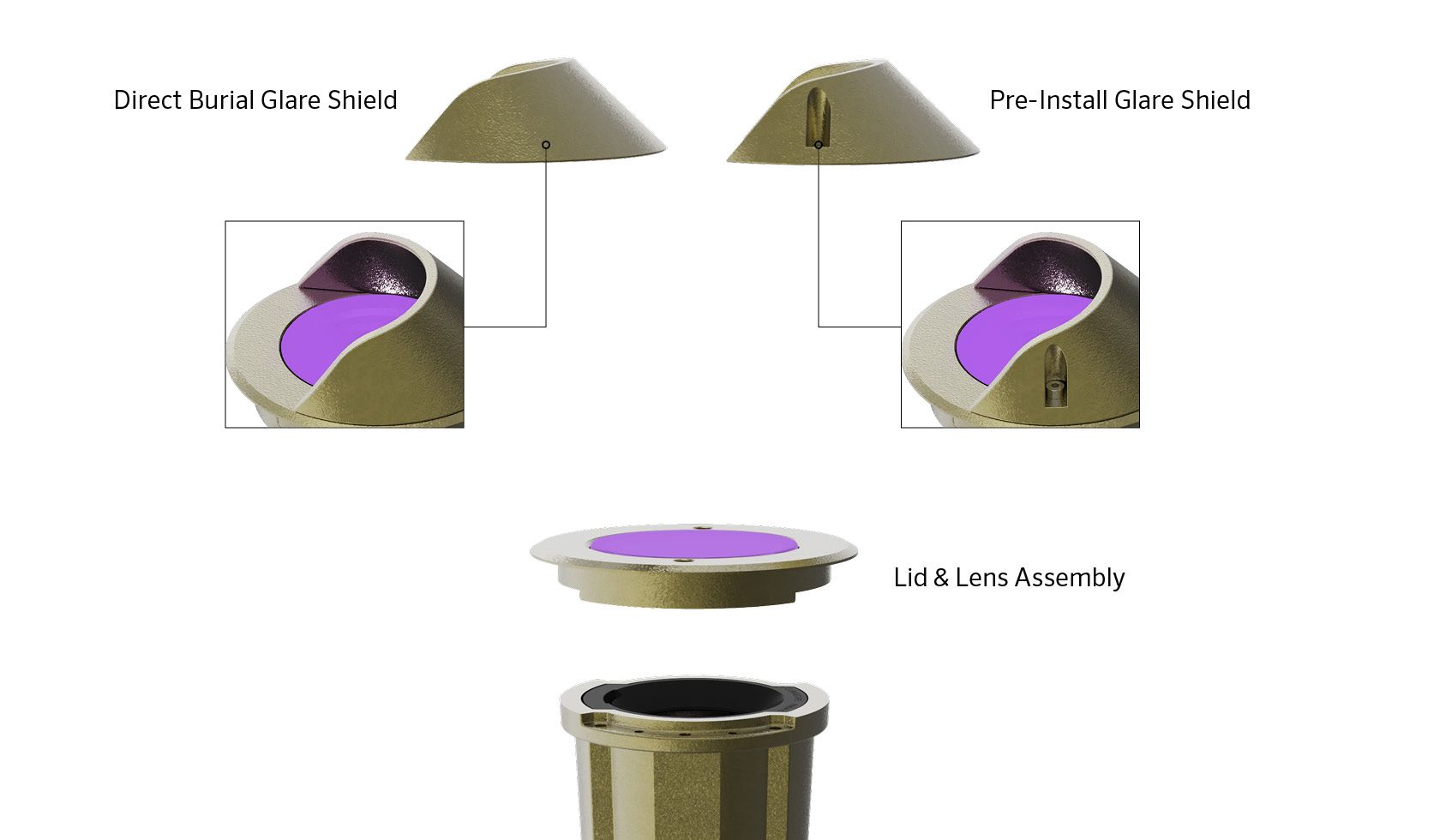

Optical accessories like an external glare shield and the option to install custom graphic masks make the luminaire fit for any job. The lid comes in brass or stainless steel finishes:
- Brass develops an elegant natural patina over time.
- Cast 316 stainless steel offers superior corrosion resistance; the naturally patterned crystalline surface is indicative of its high-alloy composition, highlighting durability in high-salinity, high-exposure environments.

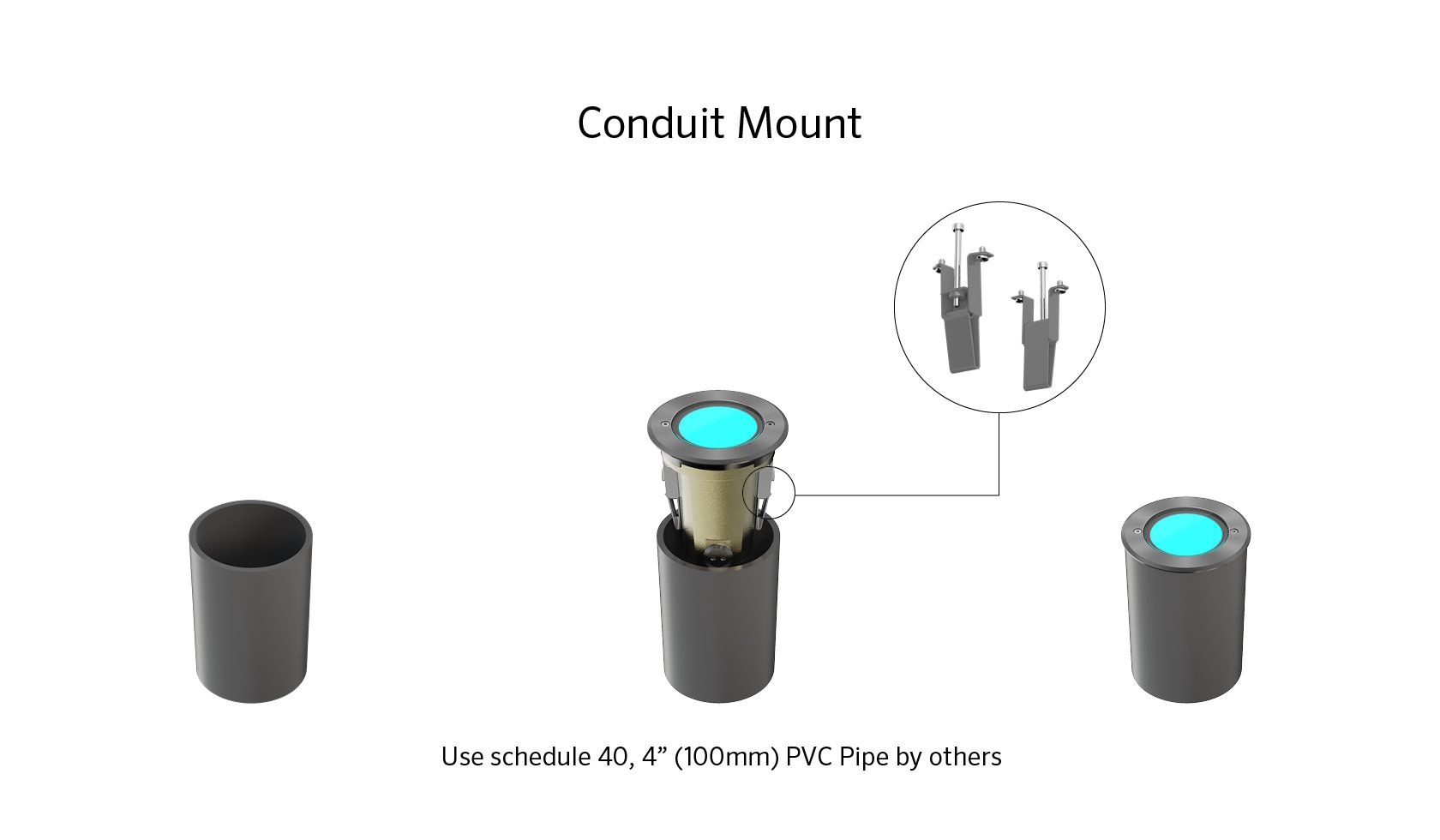

Drive-over rated and compact at 4.7" (120 mm) diameter, the EB2 delivers up to 210 lm. It installs easily via direct burial, pre-installation kits, or a 4" conduit system, making it ideal for discreet yet powerful architectural or landscape lighting.
Features
Lumen Output 210 lm
Power Consumption < 5 W
Typical Lifetime 76,554 hours @ 25°C Ambient (B10, L90, TM21 Projected)
Input Voltage Low Voltage 30 to 48 Vdc
Control Protocol DMX/RDM, Artnet
Weight 4.2 lb (1.9 kg)

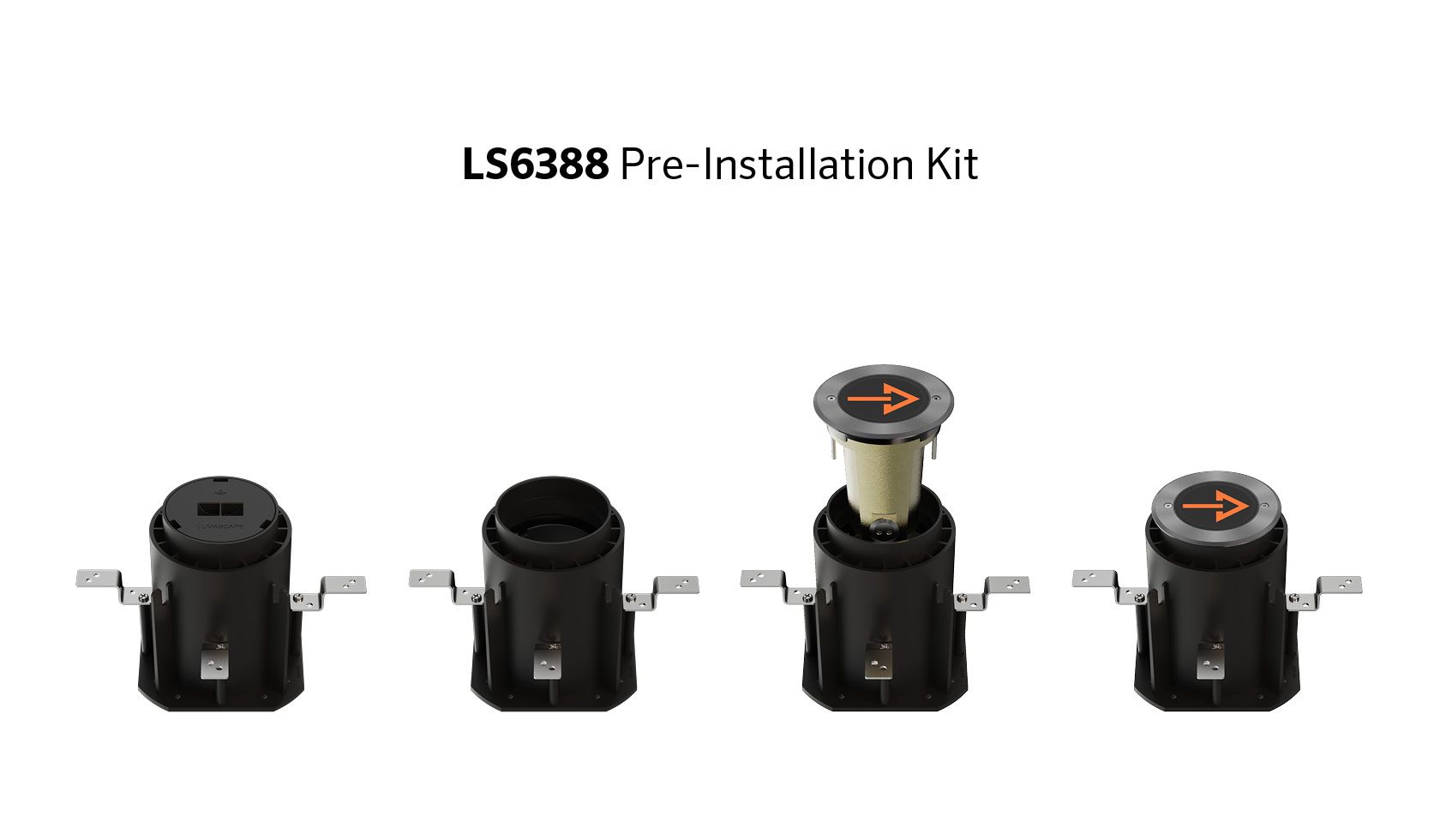

Drive-Over With pre-installation kit (LS6388)
IP Rating IP68
IK Rating IK8
Static Load Rating 6,614 lb (3,000 kg)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| LS6388 | Pre-Installation Kit |
