The 'Smart Power' for LED Luminaires
PowerSyncTM technology combines the convenience of standard wiring methods with the power of high speed, digital dimming. It translates control signal data into a digital format that can be transmitted over standard copper wire allowing highly granular addressing and control of every luminaire, using a single cable. Available in mains voltage and low voltage, the PowerSyncTM Data Injector accepts a growing list of standard protocols (0-10V, DMX/RDM), for simple integration with new and existing control systems.
Power & Data in One Cable
With PowerSyncTM, the deployment of complicated lighting control infrastructure becomes outdated. A single cable attached to the luminaire is all that is needed – the PowerSyncTM Data Injector on the circuit does the rest.
Mains Voltage luminaires run on a standard line voltage circuit (120-277 V), allowing maximum run lengths with minimal voltage drop. A fourth core in the luminaire cable carries the PowerSyncTM signal.
Low Voltage luminaires are powered from DC powersupplies for maximum efficiency. A third core in the circuit, and luminaire cable carries 512 channels of full speed DMX/RDM over Powersync.
Using PowerSyncTM technology, each luminaire can be accessed remotely, and addressed individually for DMX/RDM control. Group control using standard protocols like 0-10V and phase dimming is also supported. PowerSyncTM provides a transparent link between an increasing number of standard protocols and the luminaire. Up to 45 PowerSyncTM-enabled units can be supported from a single Data Injector with a maximum branch circuit length of 492 feet (150m).
Reduced Installation & Maintenance Costs
When it comes to installation and maintenance, PowerSyncTM offers significant cost savings over other technologies:
- No separate control infrastructure; 4-core (Mains Voltage) or 3-core (Low Voltage) PowerSyncTM cable is all that is needed.
- Up to 45 luminaires across a 150m circuit with minimal voltage drop considerations.
- Easy integration into existing systems through the use of standard protocols.
- Universal Power Input (120-277 V) allows deployment anywhere in the world.
- 30-48V DC input on low voltage luminaires provides fantastic installation flexibility, and voltage drop forgiveness.
- Total luminaire control increases luminaire efficacy and reduces power consumption.
- Smart luminaire management leads to better product reliability and longer service life.

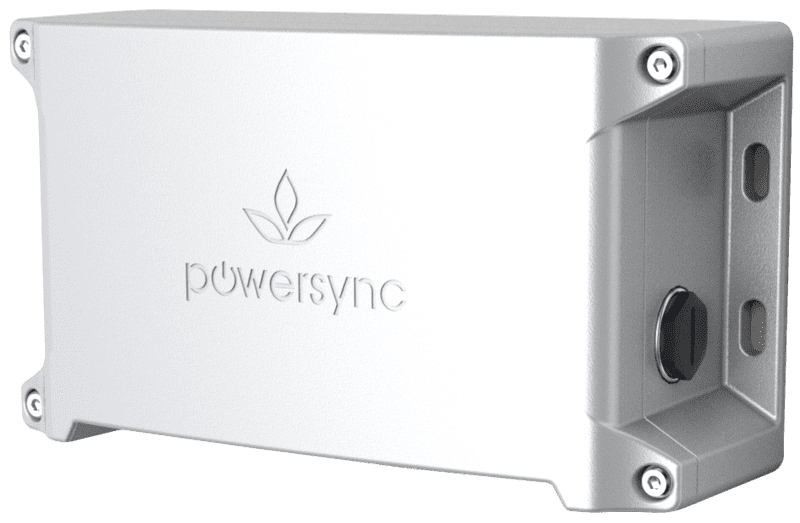

LS6540 PowerSyncTM Data Injector
Used to power and control Mains / Line Voltage Powersync luminaires.
Power and Control of a full circuit of luminaires is provided through the simplicity of 4 core building wiring.
By converting standard protocols like 0-10V, DMX/RDM into PowerSyncTM data for total luminaire control via a single, copper wire. That equals full control without the cable mess.

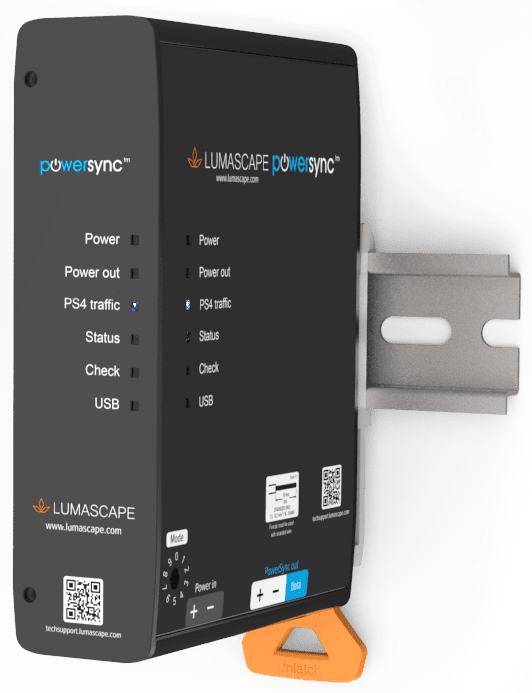

LS6550 Low Voltage PowerSyncTM Data Injector
Used in conjunction with a 30 to 48V powersupply, to power and control 30-48V Low Voltage Powersync luminaires.
Power and Control of a full circuit of luminaires is provided through the simplicity of 3 core wiring.
By converting standard protocols like 0-10V, DMX/RDM into PowerSyncTM data for total luminaire control via a single, copper wire. That equals full control without the cable mess.
