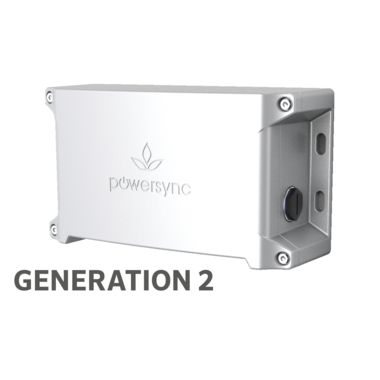

PowerSync™ Data Injector Generation 2 - LS6540

Integrated power and data to integrate seamlessly with Lumascape's intelligent luminaires.

Product Overview

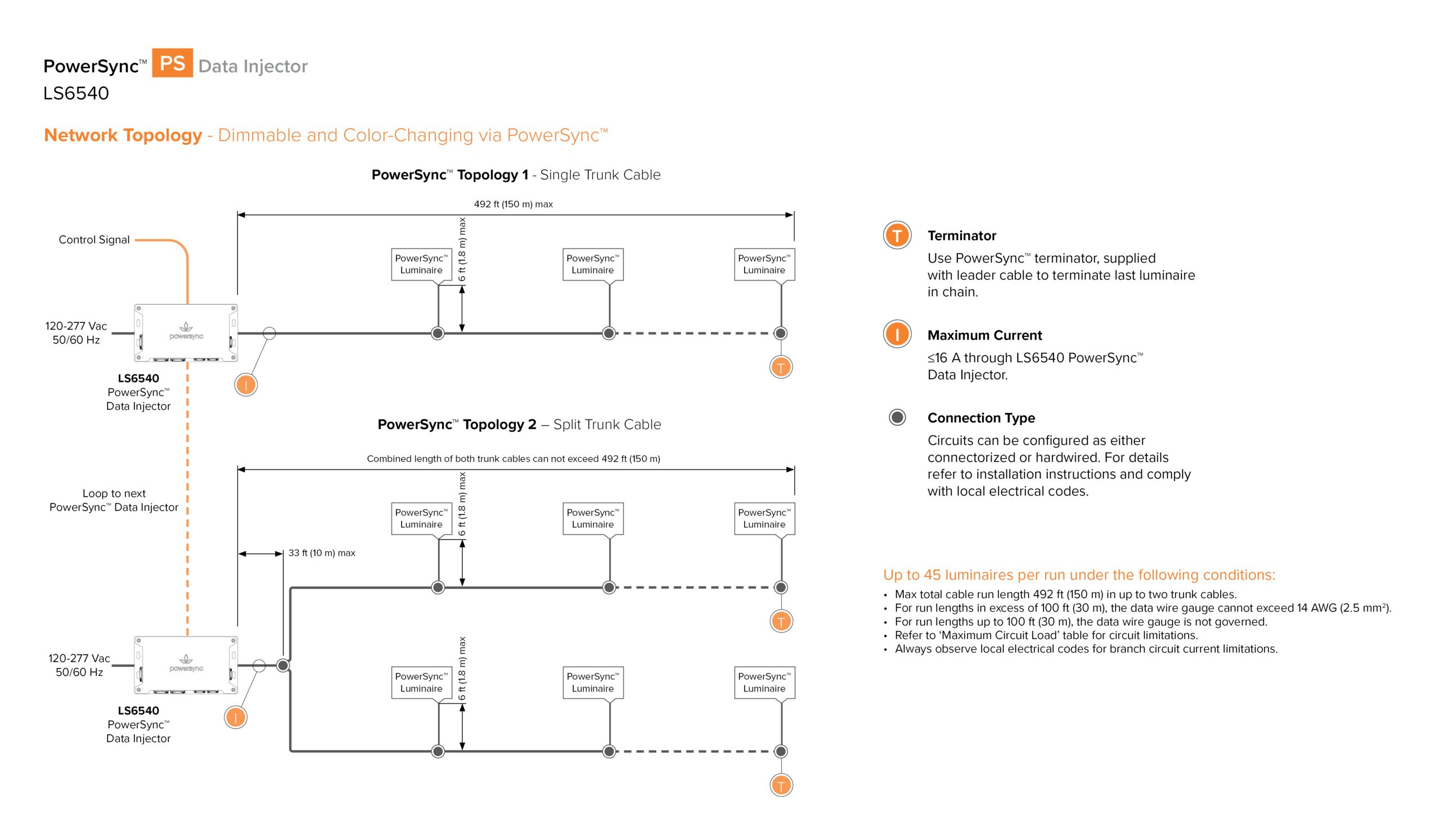

Combines the convenience of standard wiring methods to translate control signals into a digital format than can be transmitted over standard copper wire. This allows highly granular addressing and high-speed digital control of every luminaire, using only four wires. The PowerSync Data Injector accepts a growling list of standard protocols (0-10 V, DMX/RDM) for simple integration with a wide selection of control systems using these industry standard protocols.

Features

Power Consumption < 5 W Connected Current 16 A Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz Control Protocol DMX/RDM, Artnet (Ethernet Based), sACN 0-10 V Control Interface Lumascape PowerSync™ IP Rating IP66 Compliance UL - USA & Canada CE RCM Data Sheet

Specifications

Accessories


LS6402U Leader Cable Line Voltage 14AWG (1.5 mm²)
LS6404U Jumper Cable Line Voltage 14AWG (1.5 mm²)
LS6406 PowerSync Terminator (Hardwired Installation)

Product Configurator

Customise PowerSync™ Data Injector Generation 2 below

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

DMX / RDM and 0-10V Input (2D)

DMX / RDM and 0-10V Input (2D)

For controlling PowerSync™ luminaires.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
