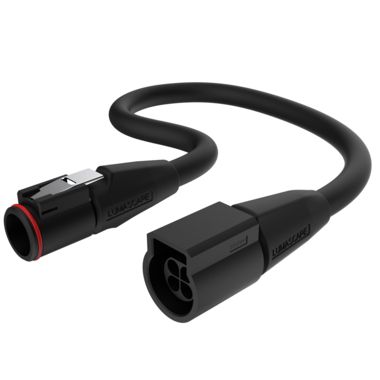

Jumper Cable Line Voltage 14AWG (1.5mm²) - LS6404U

For Connection Type 73 or 77 in UL installations

Product Overview

For use in UL installations. Compatible with all luminaires with Type 73 or 77 connectorized supply cable options. Supplied fitted with an IP68 connector for pairing with the first connectorized luminaire in a line voltage circuit.

Note:  Select the corresponding cable type according to the integrated controls of the chosen luminaire. Contact Lumascape for more information.

North America only

Suitable for use with

LS9120 Quadralux Q2 Spotlight Facade
LS9140 Quadralux Q4 Spotlight Facade
LS9160 Quadralux Q6 Spotlight Facade
LS9180 Quadralux Q8 Spotlight Facade
LS9030 Linealux L3 Linear Facade
LS9032 Linealux L3 Foundation Linear Facade
LS9050 Linealux L5 Linear Facade
LS3150 Terraluz TE5 Linear Facade Inground

Product Configurator

Customise Jumper Cable Line Voltage 14AWG (1.5mm²) below

Control Type

Select the corresponding cable type according to the integrated controls of the chosen luminaire.

Required

Non-Dimmable (ND)

Non-Dimmable (ND)

4-core cable

PowerSync (PS)

PowerSync (PS)

4-core cable

0-10 V (AH)

5-core cable

Cable Length

Line Voltage Jumper Cable 14AWG for use in UL installations.

Required

1 ft / 0.3 m (001)

1 ft (0.3 m) jumper cable

2 ft / 0.6 m (002)

2 ft (0.6m) jumper cable

3 ft / 1 m (003)

3 ft (1 m) jumper cable

4 ft / 1.2 m (004)

4 ft (1.2 m) jumper cable

6 ft / 2 m (006)

6 ft (2 m) jumper cable

10 ft / 3 m (010)

10 ft (3 m) jumper cable

16 ft / 5 m (016)

16 ft (5 m) jumper cable

26 ft / 8 m (026)

26 ft (8 m) jumper cable

33 ft / 10 m (032)

33 ft (10 m) jumper cable

50 ft / 15 m (050)

50 ft (15 m) jumper cable
