Linealux L3 Foundation

Linealux L3 Foundation - LS9032

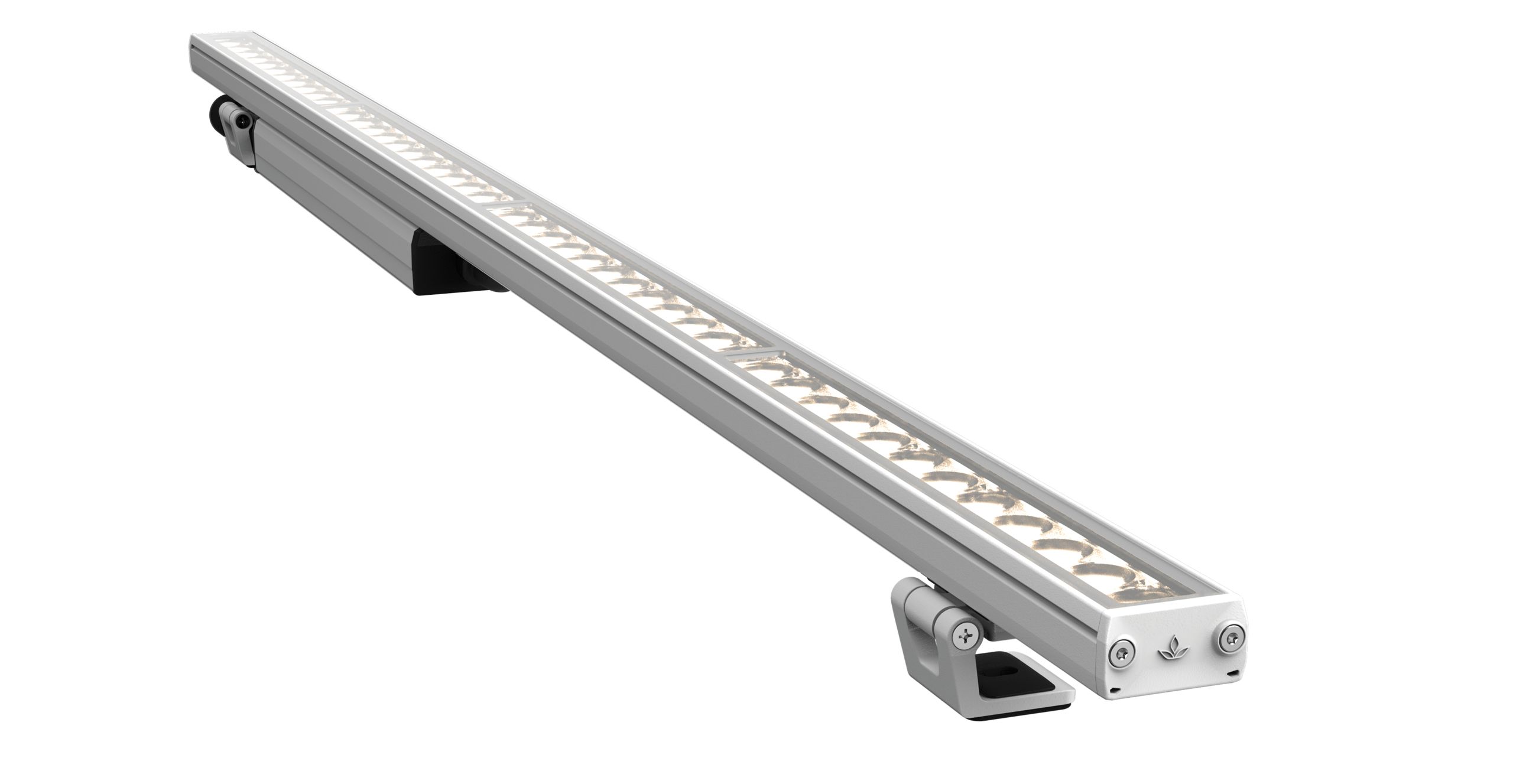

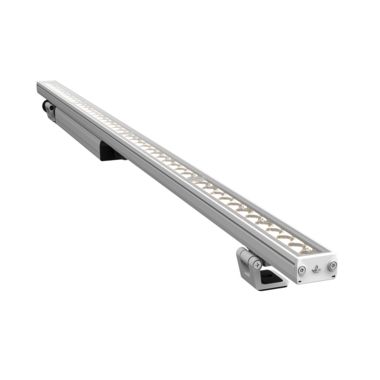

A compact, high performance linear graze luminaire for architectural and infrastructure applications.

Configure this product Features Specifications Videos Accessories

Product Overview

A compact, high-performance linear grazer luminaire combining technology and performance in a stylish design. Packed with features such as EasyGlow™ to provide visual comfort. High-performance optics provide superb color-over-angle even in the most challenging of grazing applications. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 4,810 lm Power Consumption 27 W | 35 W | 46 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277 Vac Control Protocols DALI 2 (International), 0-10 V (North America), Non-Dimmable IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK6 construction; IK10 accessories available on request Vibration Resistance 3G Rating (ANSI C136.31) Compliance

Color Options Warm White

Data Sheet

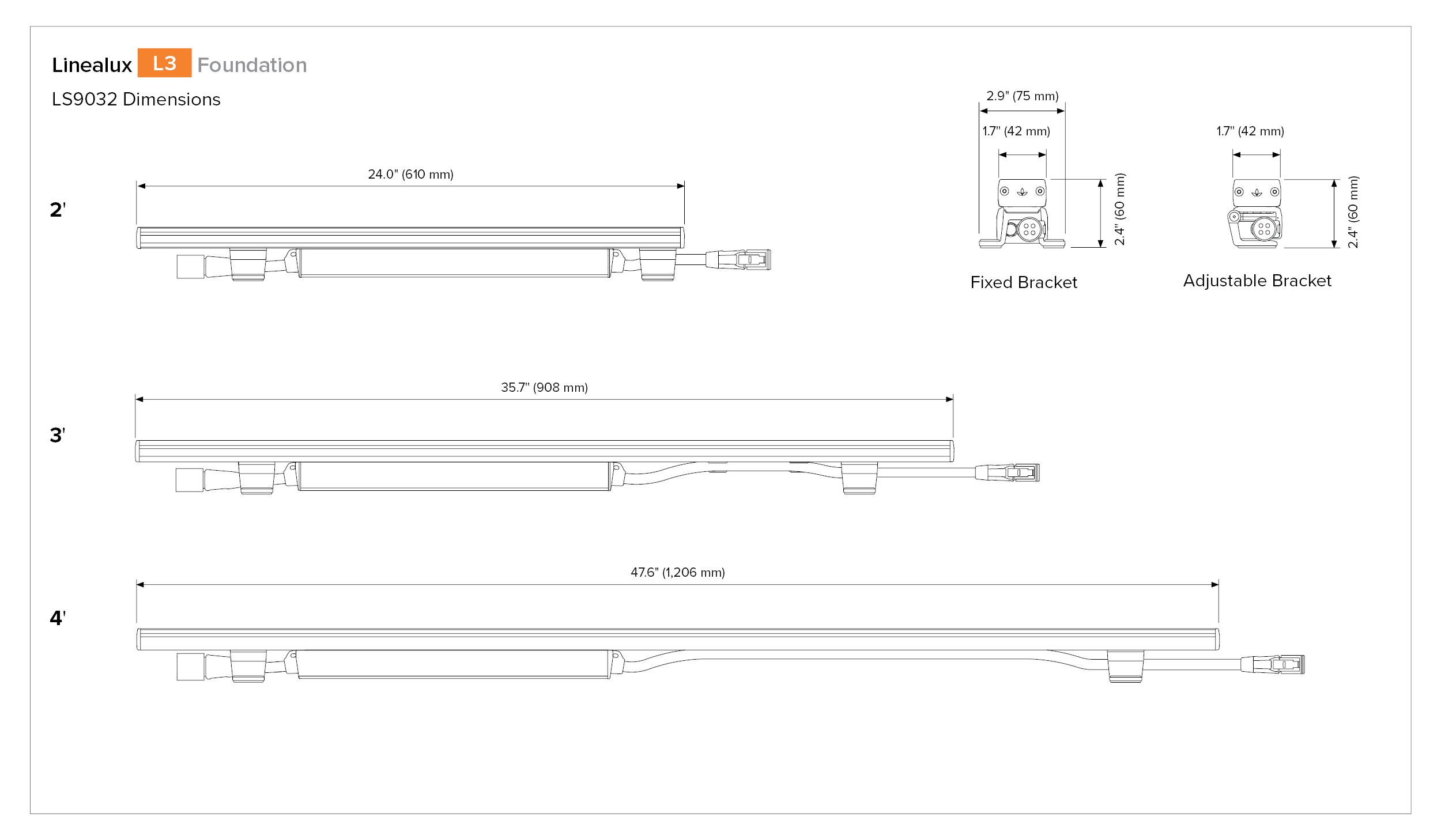

Specifications

Videos

Product Highlights | Linealux L3 Foundation

A brief introduction of the DALI lighting controls used in the Linealux L3 solution by Lumascape.

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


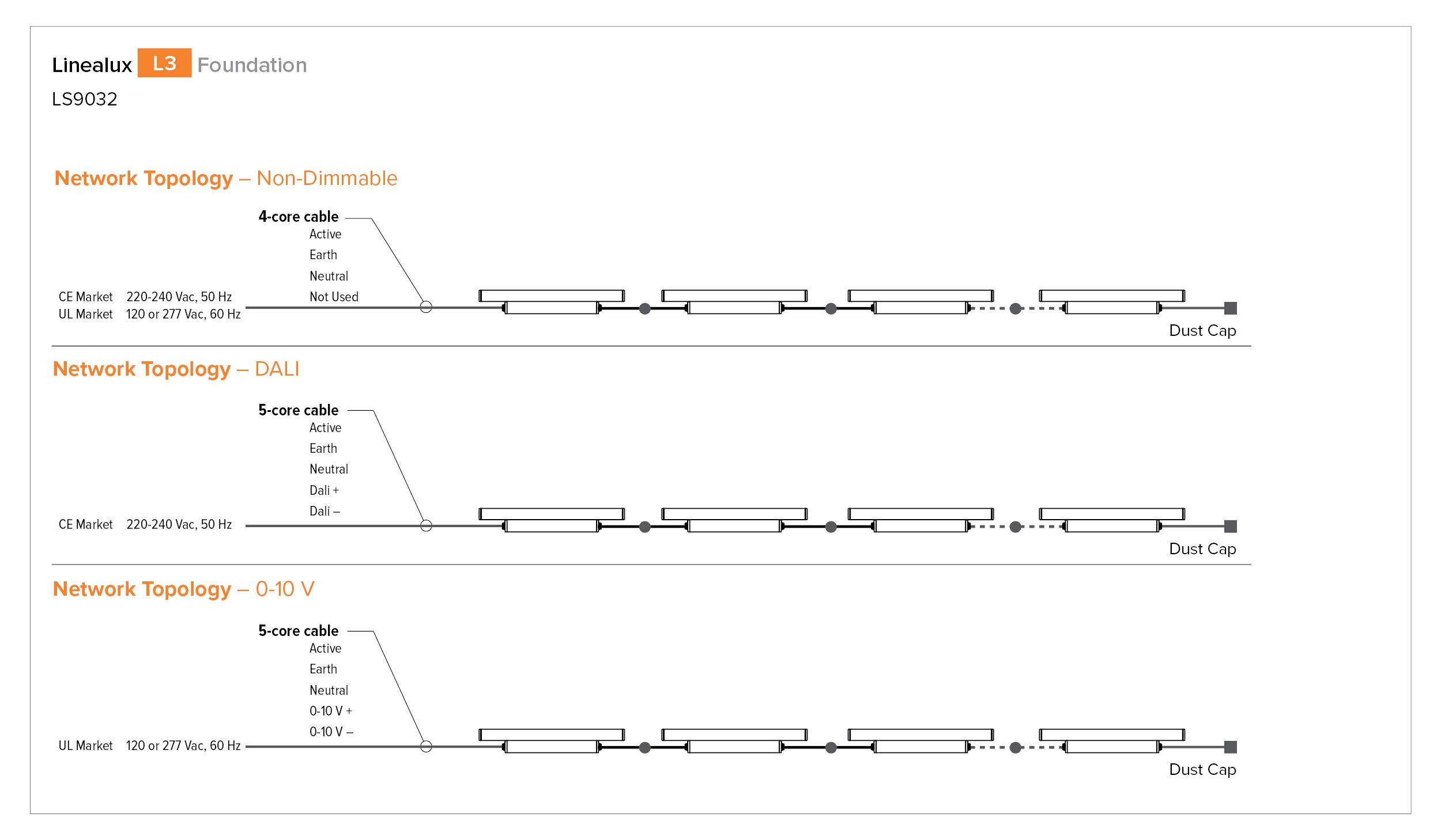

Wiring
LS6402U-ND	Leader Cable, Line Voltage, 4-Core, Non-Dimmable
LS6404U-ND	Jumper Cable, Line Voltage, 4-Core, Non-Dimmable
LS6402U-AH	Leader Cable, Line Voltage, 5-Core, 0-10 V Dimming
LS6404U-AH	Jumper Cable, Line Voltage, 5-Core, 0-10 V Dimming

Glare Control
LS6237	External / Slatted Louver
LS6238	External Shield / Visor 1-sided
LS6239	External Shield / Visor 3-sided

Mounting
LS6221-06	6" (152 mm) Stand Off Bracket
LS6221-12	12" (305 mm) Stand Off Bracket
LS6221-18	18" (47 mm) Stand-Off Bracket
LS6221-24	24" (610 mm) Stand-Off Bracket
LS6221-48	48" (1,219 mm) Stand-Off Bracket

Downloads

Data Sheet Install Guide

IES Files LS9032 0-10V V2 ZIP (2.26 M) DXF Files LS9032 ZIP (2.62 M) Product Flyer LS9032 PDF (337.73 KB) Product Brochure Foundation Family PDF (569.09 KB)
