Leader Cable Line Voltage 14AWG (1.5mm²)

Leader Cable Line Voltage 14AWG (1.5mm²) - LS6402U

For Connection Type 73 or 77 Only in UL installations.

Configure this product

Product Overview

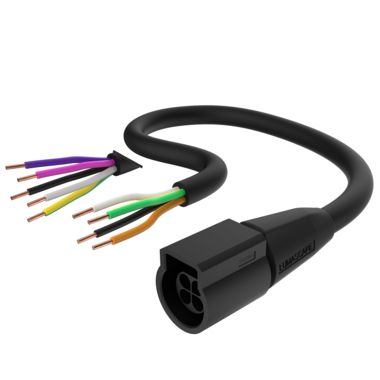

Compatible with Type 73 or 77 connectorized supply cable options. Supplied fitted with an IP68 connector for pairing with the first connectorized luminaire in a line voltage circuit. Comes complete with a matching end of circuit, line voltage terminator plug.

For Terraluz TE5 (LS3150), use of LS6435 leader cable is required in order to comply with NEC.

Note: Select the corresponding cable type according to the integrated controls of the chosen luminaire. Contact Lumascape for more information.

North America only

Suitable for use with
LS9120	Quadralux Q2 Spotlight Facade
LS9140	Quadralux Q4 Spotlight Facade
LS9160	Quadralux Q6 Spotlight Facade
LS9180	Quadralux Q8 Spotlight Facade
LS9050	Linealux L5 Linear Facade
LS9030	Linealux L3 Linear Facade
LS9032	Linealux L3 Foundation Linear Facade

Product Configurator

LS6402U _ _

Reset to Default Clear Selected Add

Customise Leader Cable Line Voltage 14AWG (1.5mm²) below

Control Type

Select the corresponding cable type according to the integrated controls of the chosen luminaire.

Required

Non-Dimmable (ND)

4-core cable

PowerSync (PS)

4-core cable

0-10 V (AH)

5-core cable

Cable Length

UL cable supplied with an IP68 connector to pair with the first luminaire in a circuit.

Required

6 ft / 2m (006)

6 ft (2m) leader cable

10 ft / 3 m (010)

10 ft (3 m) leader cable

32 ft / 10 m (032)

32 ft (10 m) leader cable

50 ft / 15 m (050)

50 ft (15 m) leader cable
