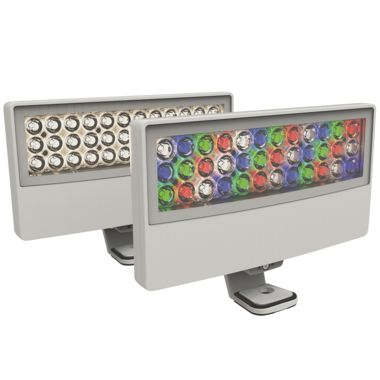

Quadralux Q4 - LS9140

A medium architectural spotlight, combining technology and performance in a modern form factor.

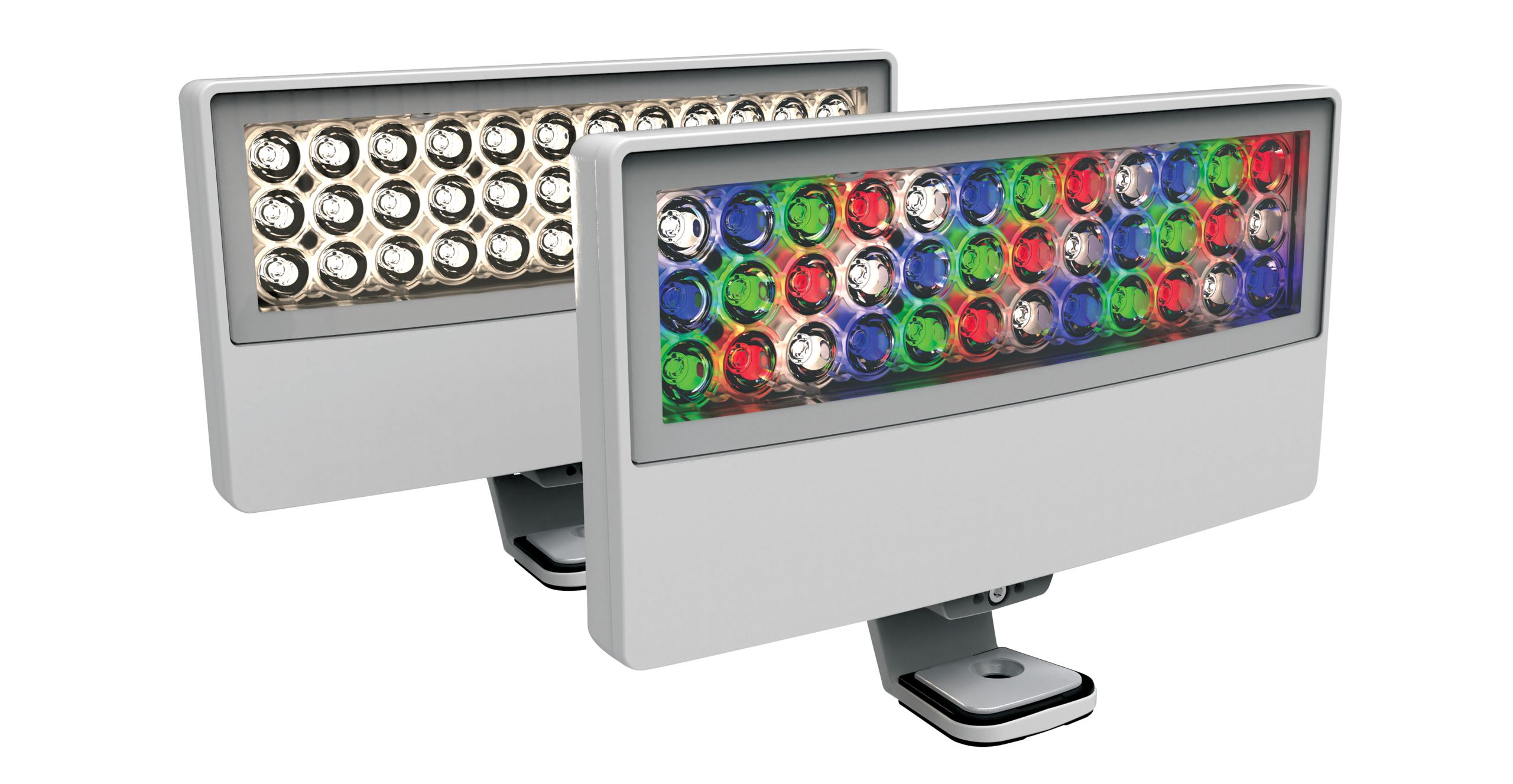

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer* and standard LED options. Available in white, colour changing and tunable white light engines.

*Reduces colour-over-angle separation, fewer striations in the beam and shorter blending distances

Features

Lumen Output 5,670 lm LED Power 50 W Power Consumption ≤ 58 W Typical Lifetime > 60,000 hrs Input Voltage 110-277 Vac, 50/60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V IP Rating IP66/IP67 (IP68 Tested) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE RCM CCC Color Options Warm White Cool White Red Green Blue RGBA RGBW RGBW with Royal Blue Tunable White Data Sheet

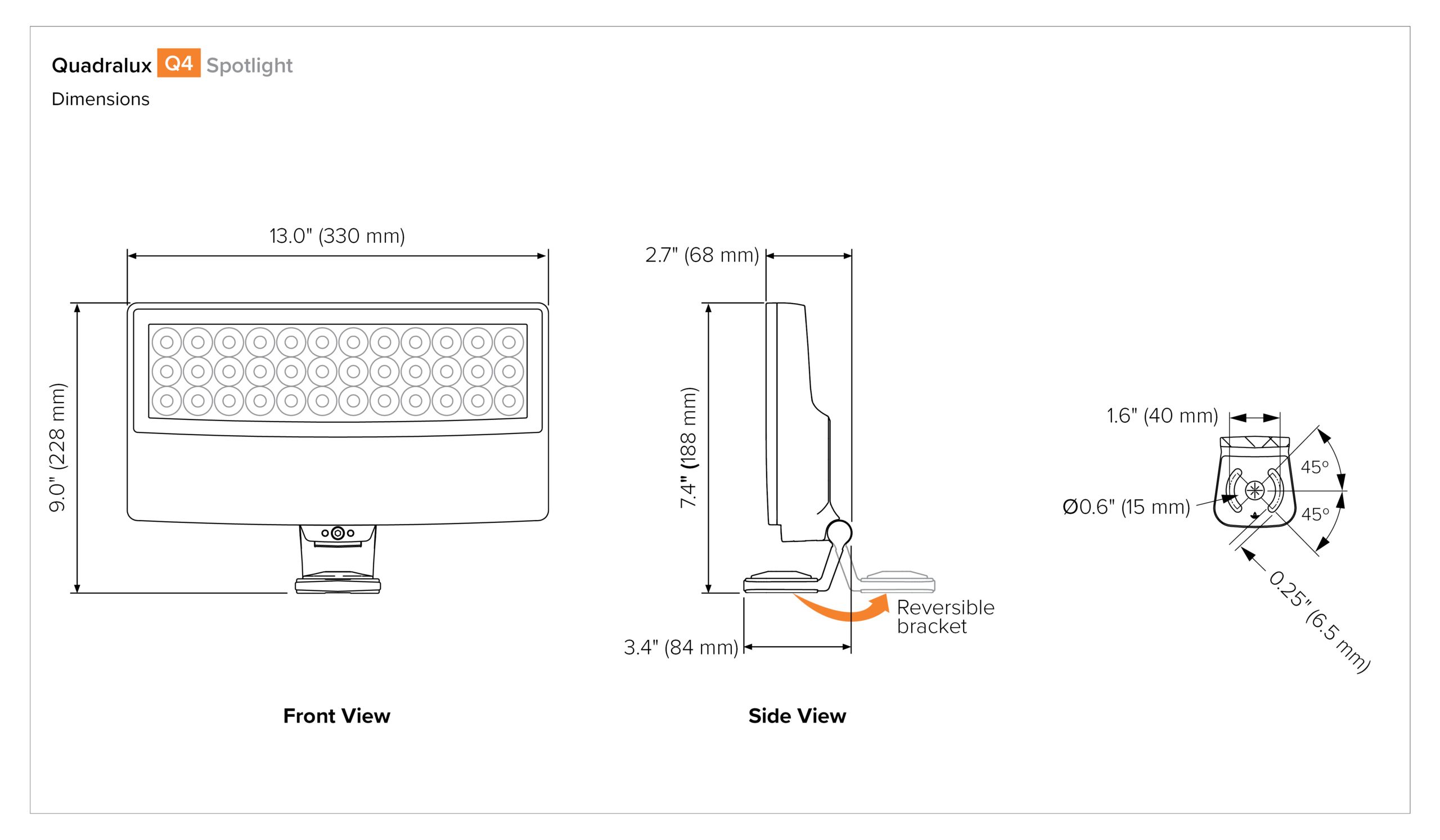

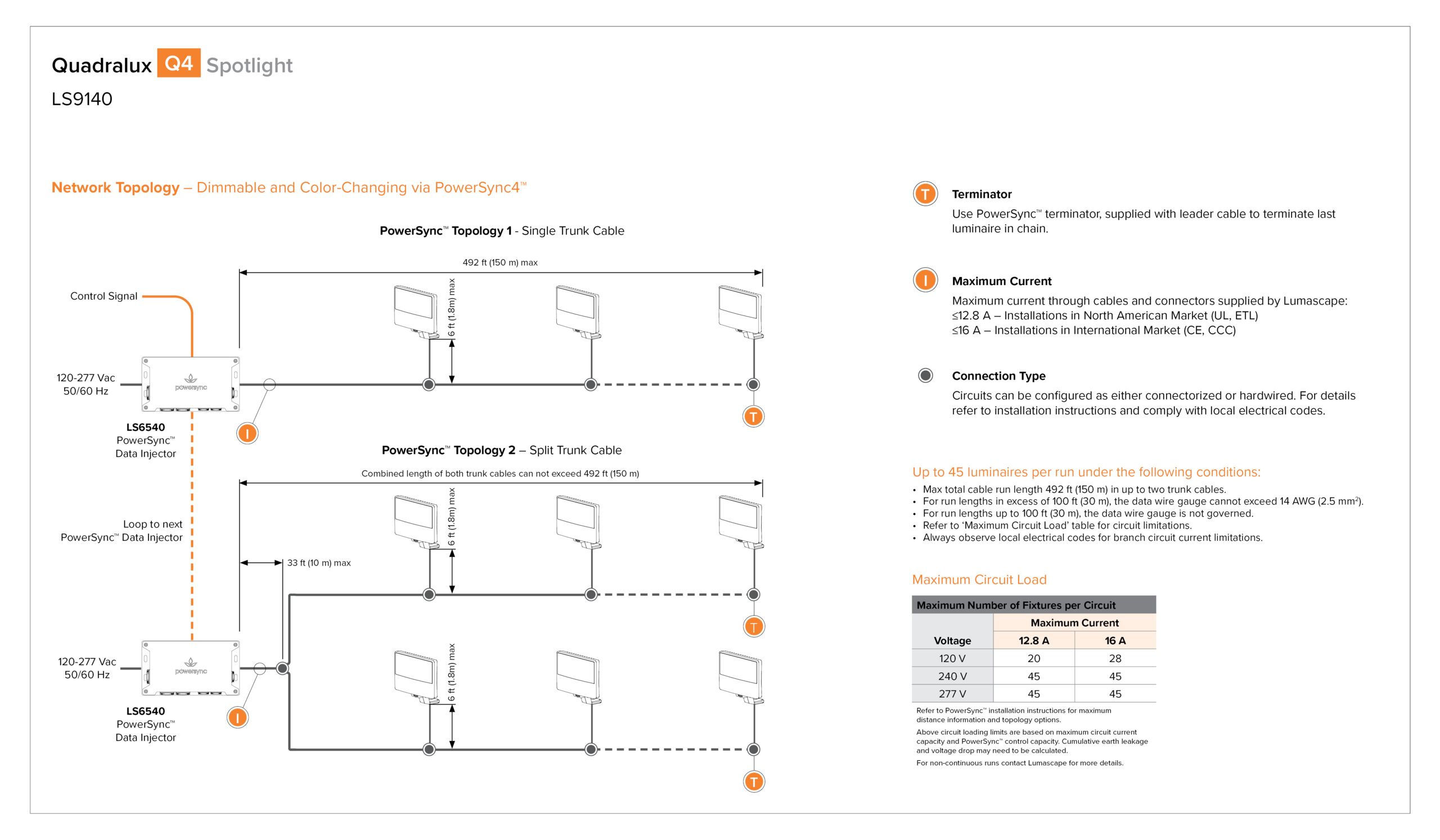

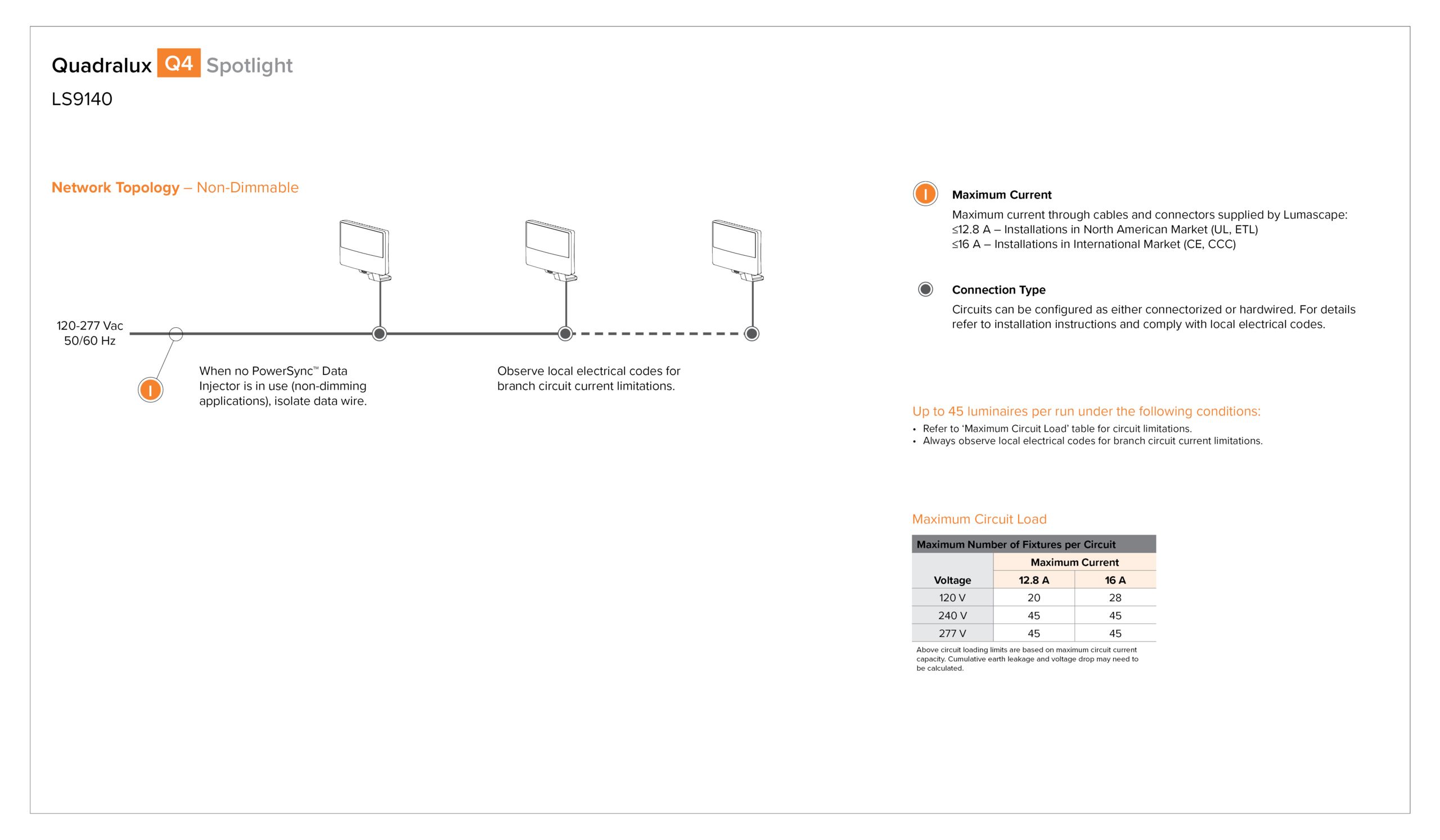

Specifications

Accessories

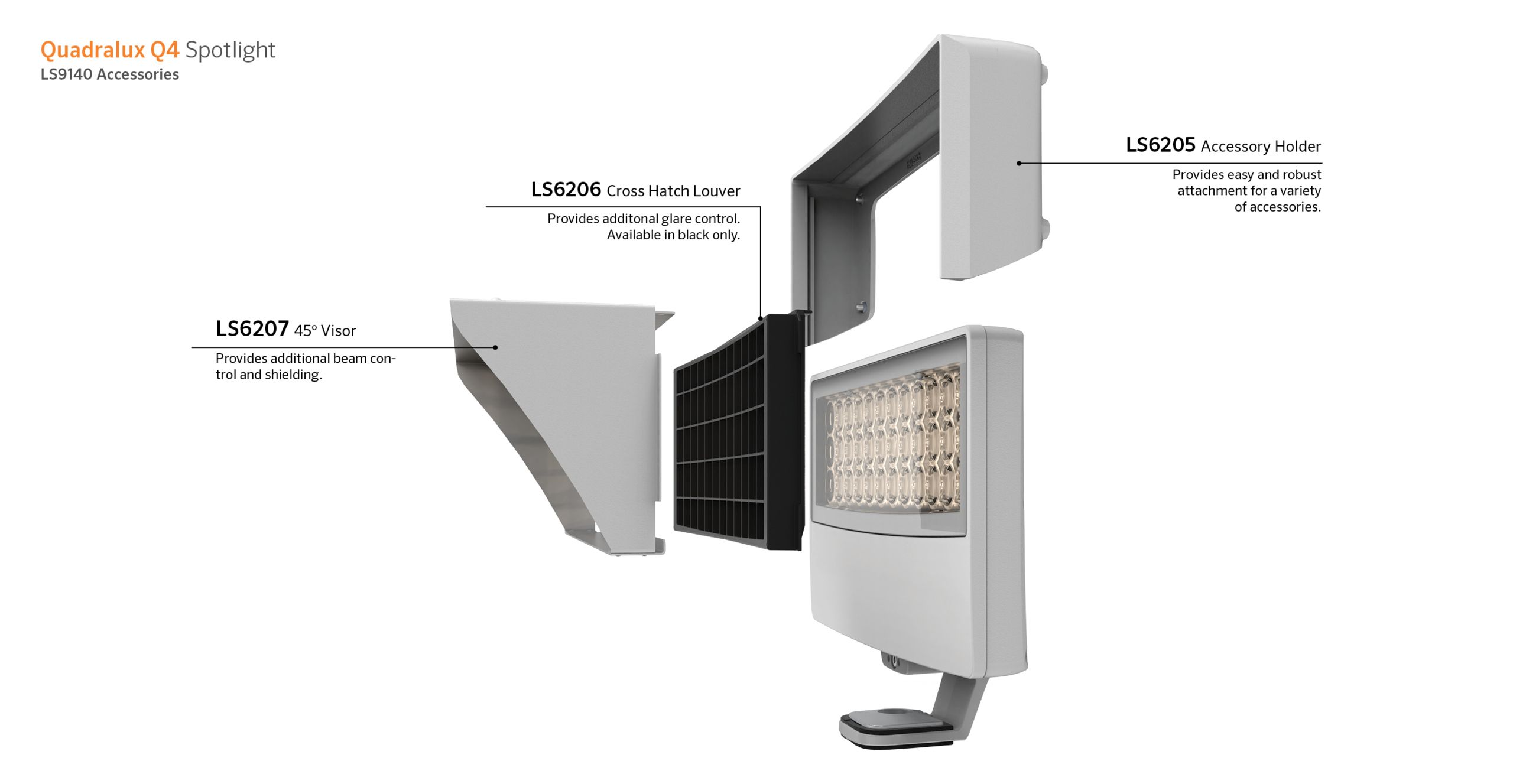

LS6205 Accessory Holder
LS6206 Cross Hatch Louvre
LS6207 45° Visor
LS6208 Custom Visor
LS6301 4.0"  (106 mm)  Junction Box Adaptor / Surface Mounting Kit
LS6302 3.0"  (76 mm)  Pole Clamp
LS6303 4.0"  (102 mm)  Pole Clamp
LS6304 4.5"  (114 mm)  Pole Clamp
LS6305 5.0"  (127 mm)  Pole Clamp
LS6221-06     6" (152 mm) Stand Off Bracket
LS6221-12 12" (305 mm) Stand Off Bracket
LS6306 2 3/8" x 4.0"  (60 mm x 104 mm)  Tenon Adaptor
LS6307 3.5" x 6.0"  (89 mm x 147 mm)  Tenon Adaptor

Product Configurator

Customise Quadralux Q4 below

Light Engine

Required

50W (50)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single Entry (84)

Single Entry (84)

For the connection to the supply circuit via flexible cable, up to 6 ft (1.8m) in length. Single entry

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

120-277 Vac, 50/60 Hz (09)

120-277 Vac, 50/60 Hz (09)

Mains Voltage

Control

Required

Non-dimming (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Cable Length

For custom cable length contact Lumascape.

Required

6 ft / 1.8m (006)

14/4 SJOW Cable
