Product Overview
The EB2 is a compact, factory-sealed inground luminaire engineered for durability in harsh exterior environments. With a corrosion-resistant brass body, IP68 rating, and micro-antileach cable entry, it ensures long-term reliability in coastal, urban, or high-moisture settings - no drainage required. Ideal for wayfinding, perimeter lighting, or ambient highlights, the EB2 delivers functional illumination while preserving design intent without adding visual clutter.
The EB2 supports RGBW, RGBA, and Static White output with DMX/RDM control via PowerSync™, enabling dynamic lighting scenes and remote management.
The cast 316 stainless steel top offers superior corrosion resistance; the naturally patterned crystalline surface is indicative of its high-alloy composition, highlighting durability in high-salinity, high-exposure environments.

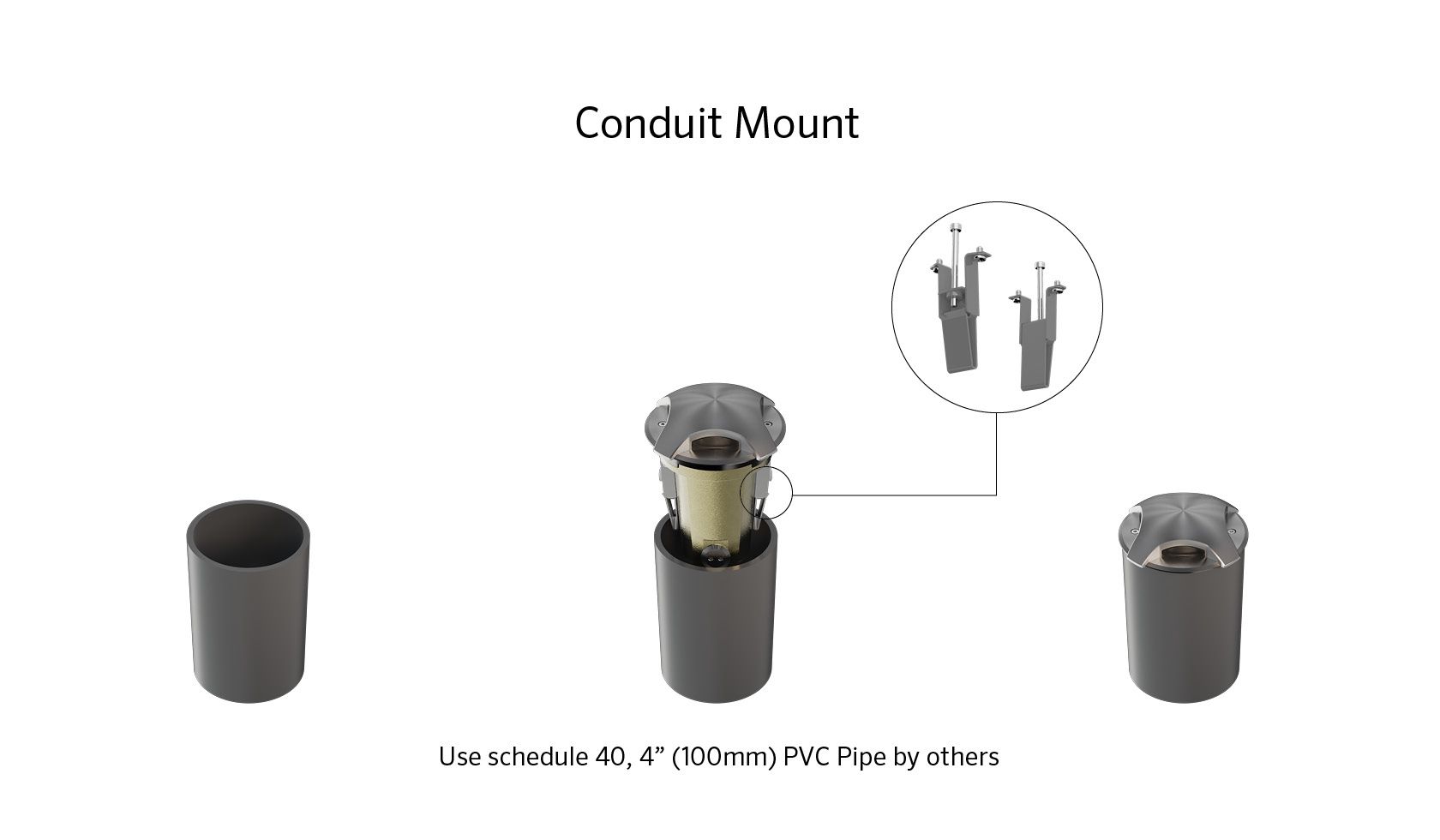

Drive-over rated and compact at 4.7" (120 mm) diameter, the EB2 delivers up to 70 lm per aperture. It installs easily via direct burial, pre-installation kits, or a 4" conduit system, making it ideal for discreet yet powerful architectural or landscape lighting.
Features
Lumen Output Up to 70 lm per aperture

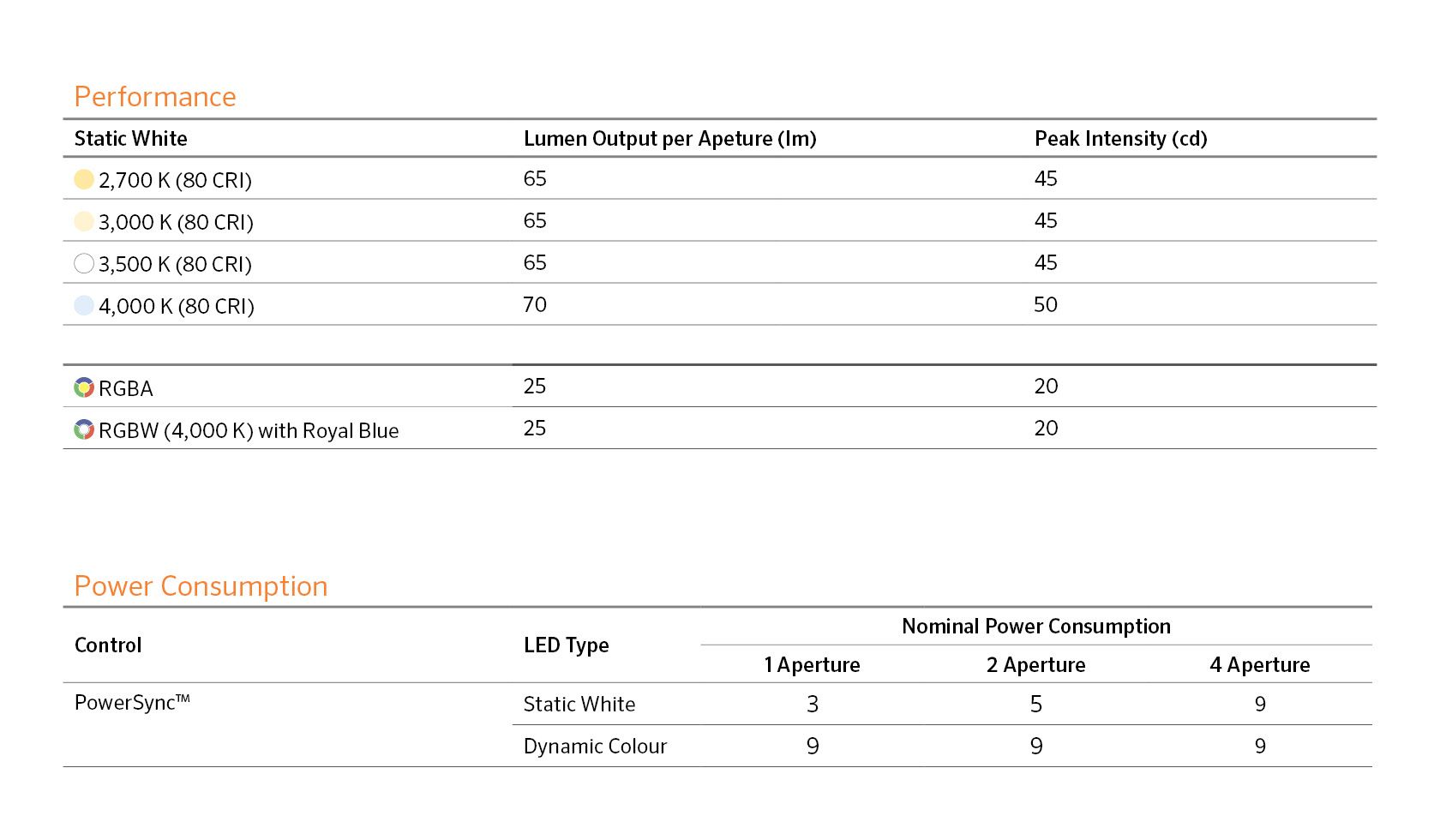

Power Consumption Refer to table
Typical Lifetime 76,554 hours @ 25°C Ambient (B10, L90, TM21 Projected)
Input Voltage Low Voltage 30 to 48 Vdc
Control Protocol DMX/RDM, Artnet
Weight 4.9 lb (2.2 kg)

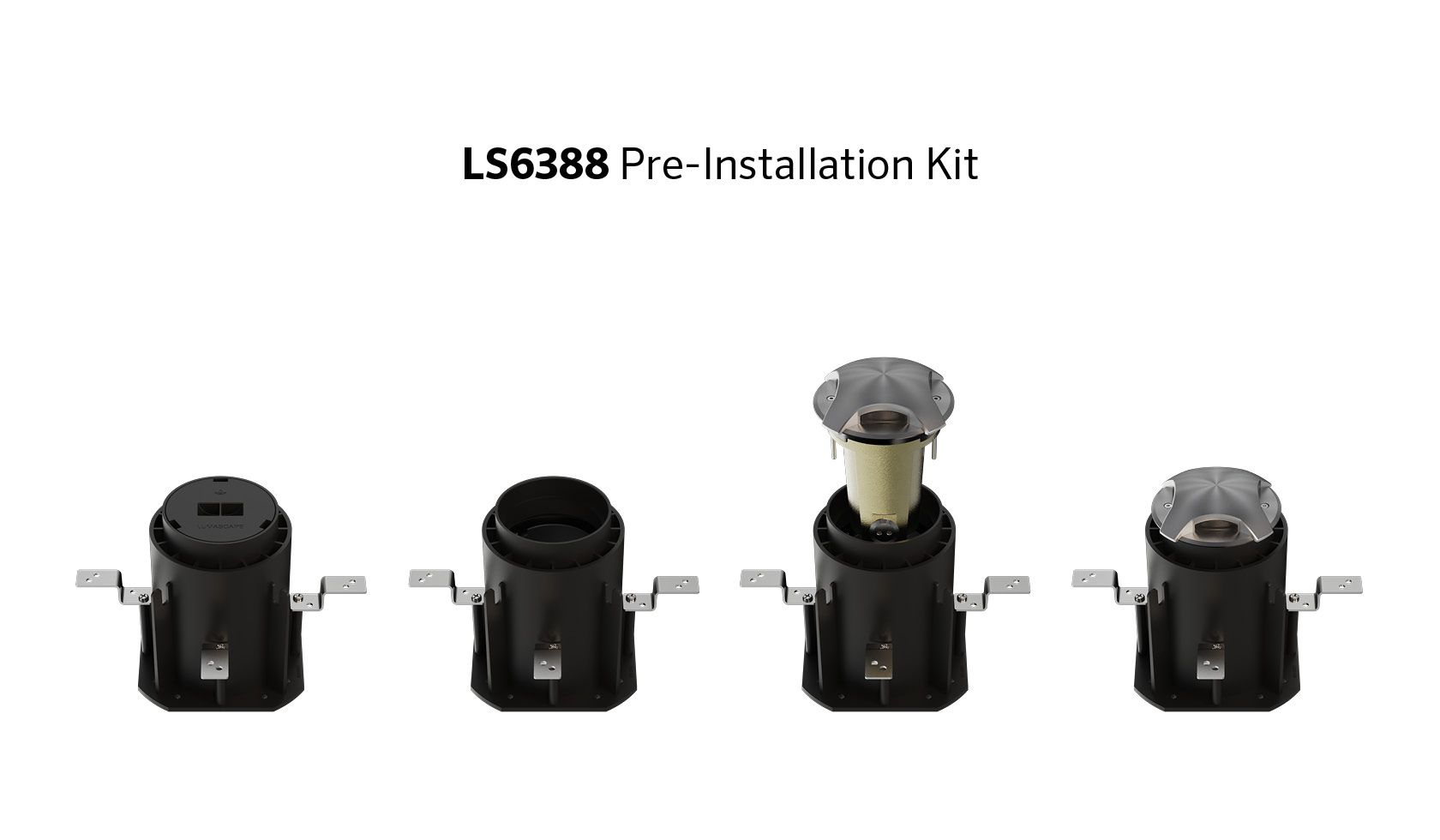

Drive-Over With pre-installation kit (LS6388)
IP Rating IP68
IK Rating IK10
Static Load Rating 6,614 lb (3,000 kg)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| LS6388 | Pre-Installation Kit |
