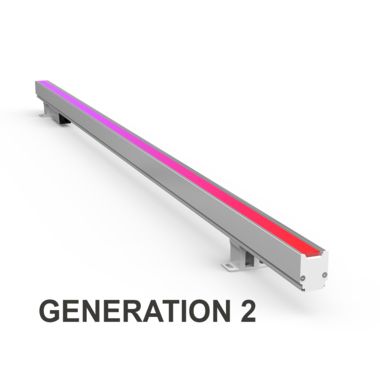

Vestalux V1 Generation 2 - LS9015

A high-performance exterior, architectural outliner featuring a flat glass diffuser.
Configure this product Features Specifications Videos

Product Overview

Features

Lumen Output 485 lm/ft LED Power 6 W/ft, 4 W/ft Power Consumption 7 W/ft, 5 W/ft Typical Lifetime > 72,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Input Voltage Low Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK06 Color Options Warm White Cool White Royal Blue RGBA RGBW with Royal Blue Tunable White Red Green Data Sheet

Specifications

Videos
Product Highlights | Vestalux V1
Designed for direct view, this luminaire has exceptional light blending properties, ensuring uniformity in color brightness and blending.
Webinar | Vestalux V1
Watch the webinar introducing the next-generation Vestalux V1 to Lumascape's Direct View family

Downloads

Data Sheet Install Guide
IES Files LS9015 Gen2 ZIP (317.57 KB) DXF Files LS9015 Gen2 ZIP (1.38 M) Product Flyer LS9015 PDF (215.77 KB)

Product Configurator

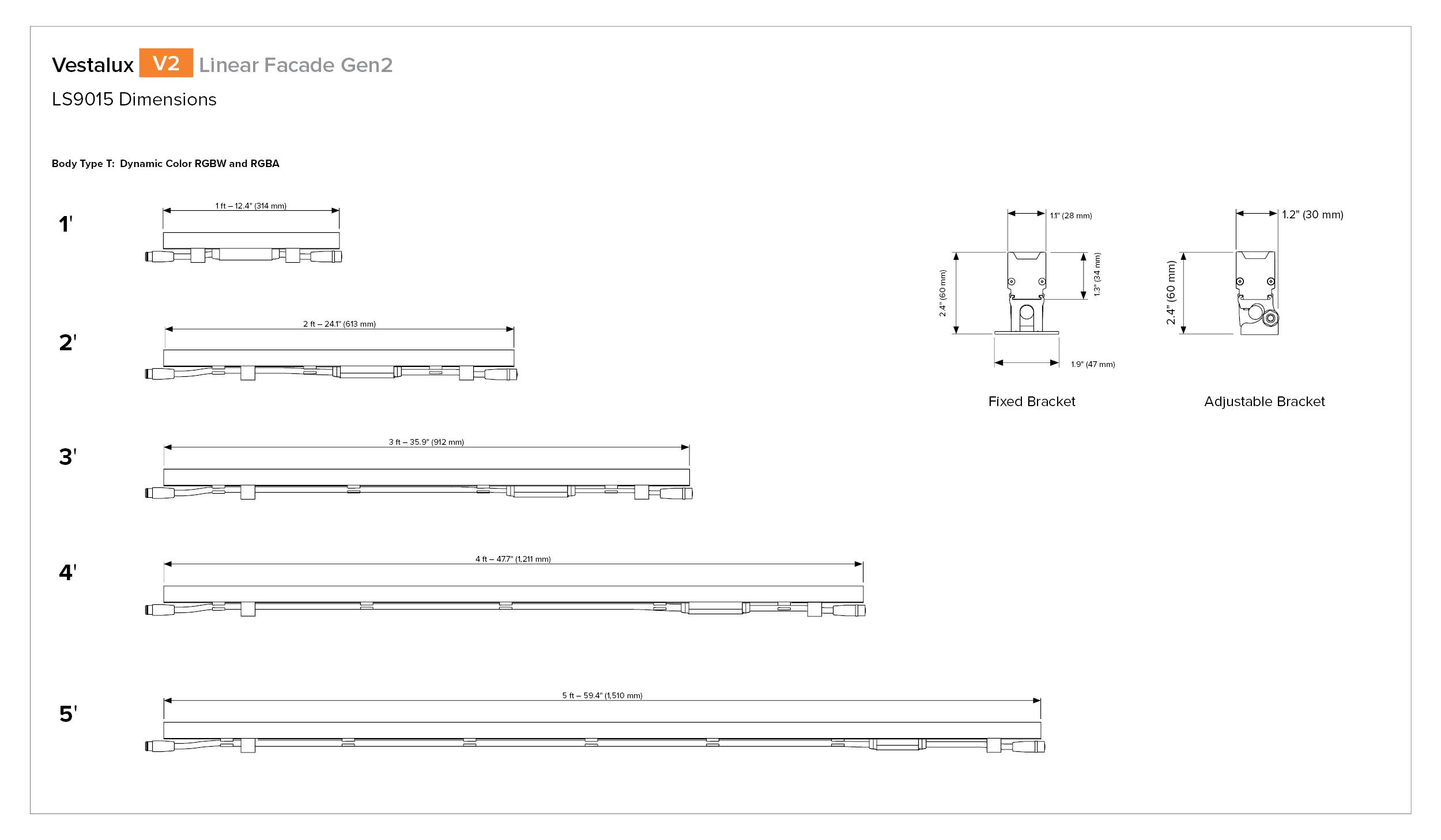

Length

Select the luminaire length

1 ft (314 mm)

2 ft (613 mm)

3 ft (912 mm)

4 ft (1,211 mm)

5 ft (1,510 mm)
LS9015 _ _ _ _ - 4 _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Vestalux V1 Generation 2 below

Power Consumption

For all PowerSync Controlled Luminaires

Required

5 W/ft (05D)

7 W/ft (07D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (RBL)

Single Colour (RBL)

Royal Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Connectorized for loop in/out (63)

Connectorized for loop in/out (63)

For connection to the branch circuit via LS6426 Leader cable. Supports loop in/out.

Optics

Required

Direct View - Flat Glass (DF)

Mounting

Required

Adjustable Bracket (A)

Adjustable Bracket (A)

Fixed Bracket (B)

Fixed Bracket (B)

Body Type

Required

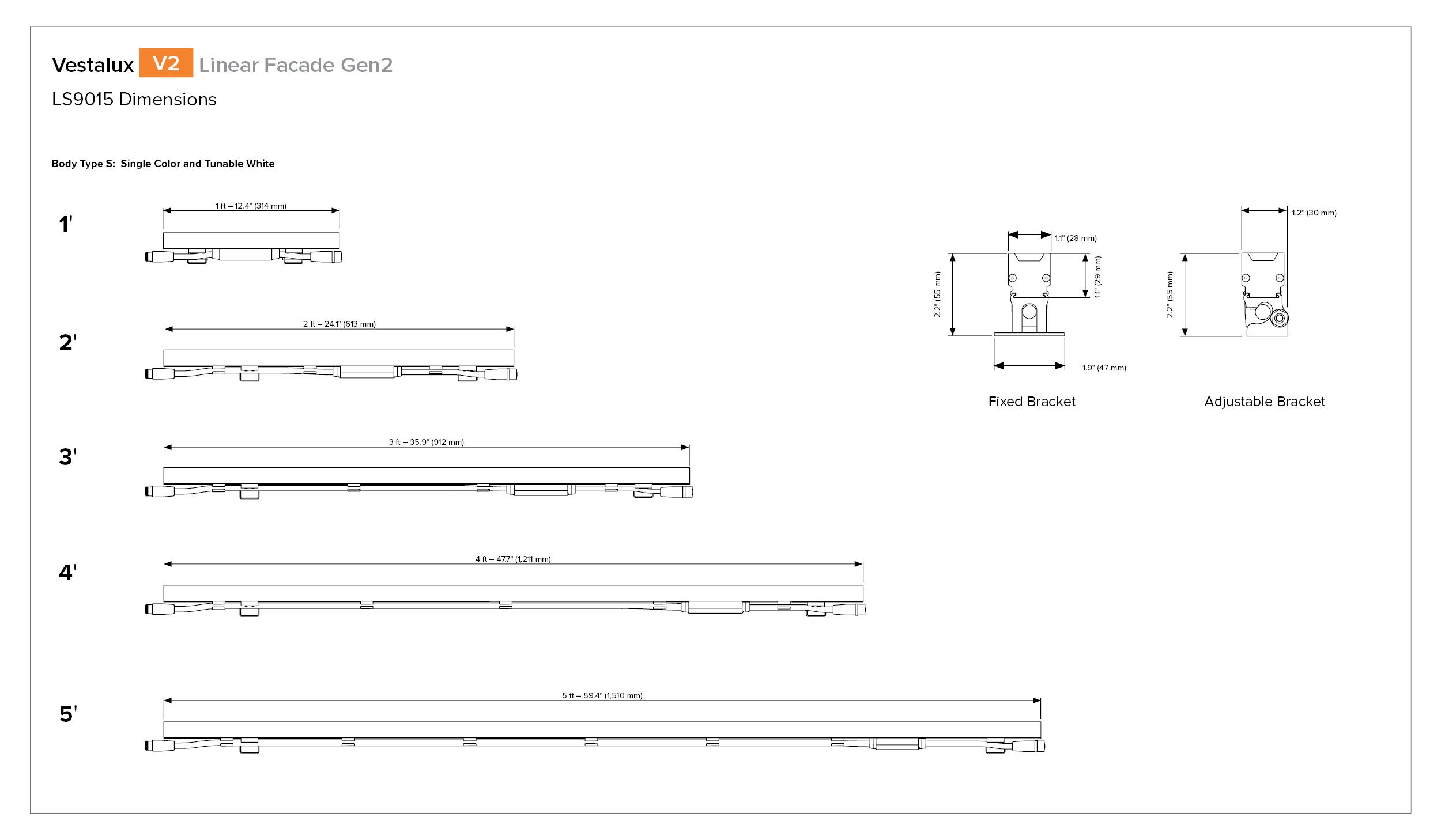

Suits Single Color and Tunable White (S)

Suits Single Color and Tunable White – 1.1" (29 mm) Extrusion

Suits Dynamic Color, RGBA and RGBW (T)

Suits Dynamic Color, RGBA and RGBW – 1.4" (34 mm) Extrusion

Input Voltage

Required

30 to 48 Vdc (13)

30 to 48 Vdc (13)

Low Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

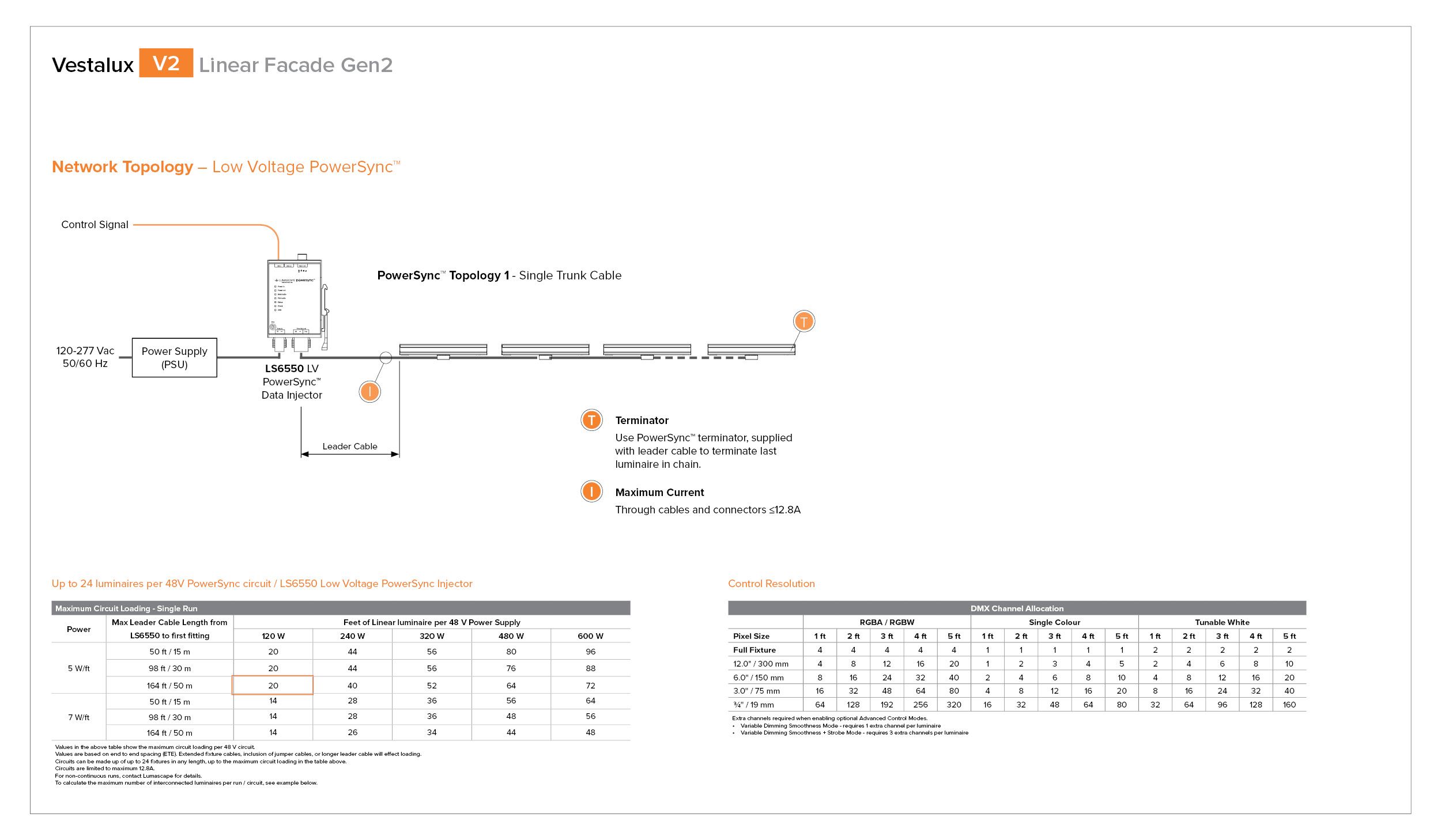

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Luminaire Gap

Required

End-To-End (000)

Luminaire is configured for end-to-end spacing - no jumper cables needed

1 ft / 0.3 m Gap (001)

Configured for 1 ft (305 mm) spacing - no jumper cables needed

2 ft / 0.6 m Gap (002)

Configured for 2 ft (610 mm) spacing - no jumper cables needed

3 ft / 0.9 m Gap (003)

Configured for 3 ft / 915 mm) spacing - no jumper cables needed

6 ft / 1.8 m Gap (006)

Configured for 6 ft (1,800 mm) spacing - no jumper cables needed
