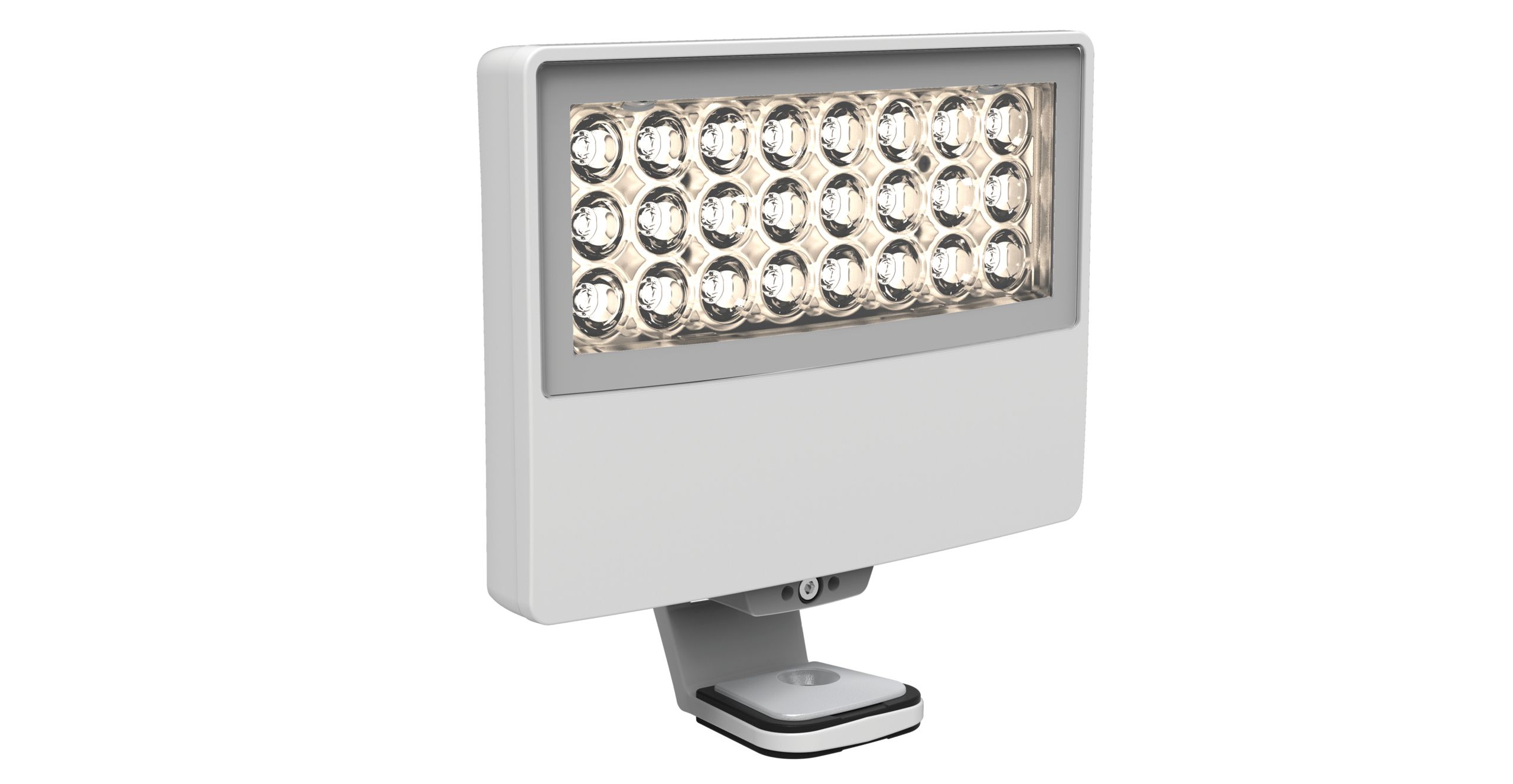

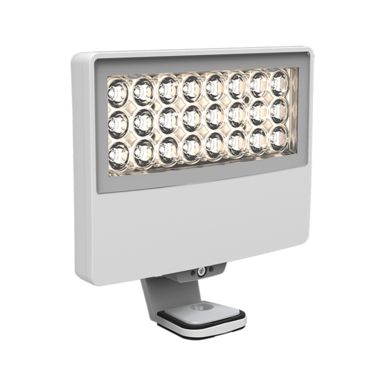

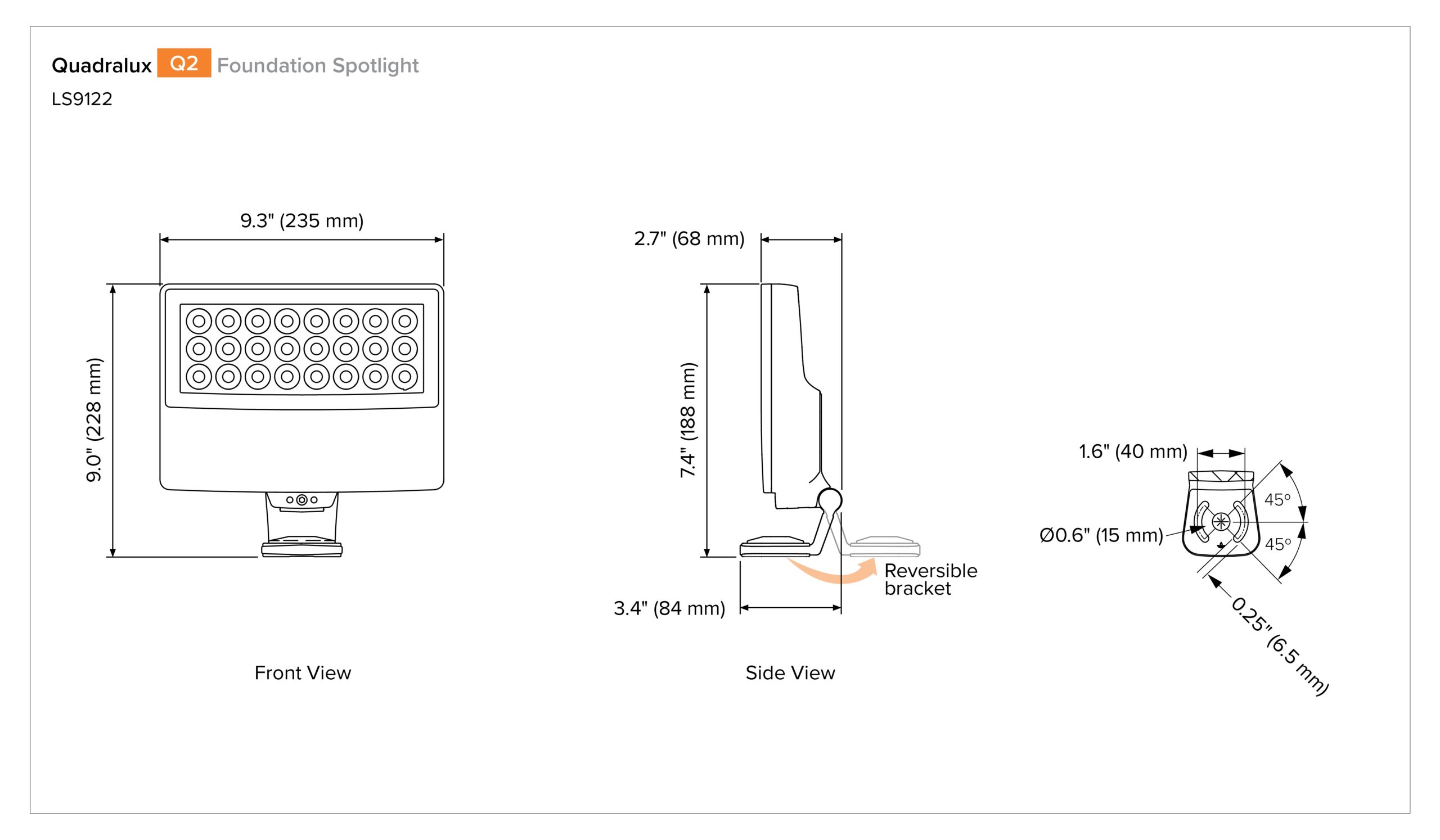

Quadralux Q2 Foundation

Quadralux Q2 Foundation - LS9122

A small architectural-grade spotlight, combining technology and performance in a modern form factor.

Configure this product Features Specifications Videos Accessories

Product Overview

Combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Supplied standard with designer optics, providing superb color-over-angle consistency. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 3,570 lm Power Consumption 33 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 6 IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance

Color Options Warm White

Warm White

Cool White

Data Sheet

Specifications

Videos

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


Glare Control
LS6201	Accessory Holder
LS6202	Cross Hatch Louver
LS6203	45° Visor
LS6204	Custom Visor

Mounting
LS6301	4.0" (106mm) Junction Box Adaptor / Surface Mounting Kit
LS6302	3.0" (76mm) Pole Clamp
LS6303	4.0" (102mm) Pole Clamp
LS6304	4.5" (114mm) Pole Clamp
LS6305	5.0" (127mm) Pole Clamp
LS6306	2 3/8" x 4.0" (60mm x 104mm) Tenon Adaptor
LS6307	3.5" x 6.0" (89mm x 147mm) Tenon Adaptor
LS6221-06	6" (152 mm) Stand-Off Bracket
LS6221-12	12" (305 mm) Stand-Off Bracket
LS6221-18	18" (47 mm) Stand-Off Bracket
LS6325	Ground Mount Post

Downloads

Data Sheet Install Guide

IES Files LS9122 0-10 V ZIP (760.83 KB) Product Flyer Q2 & Q4 PDF (148.97 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS9122 _ _ _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise Quadralux Q2 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

33 W (33D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Connection Type

Required

Single Entry (84)

Single Entry (84)

For the connection to the supply circuit via flexible cable, up to 6 ft (1.8m) in length. Single entry

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

30°

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

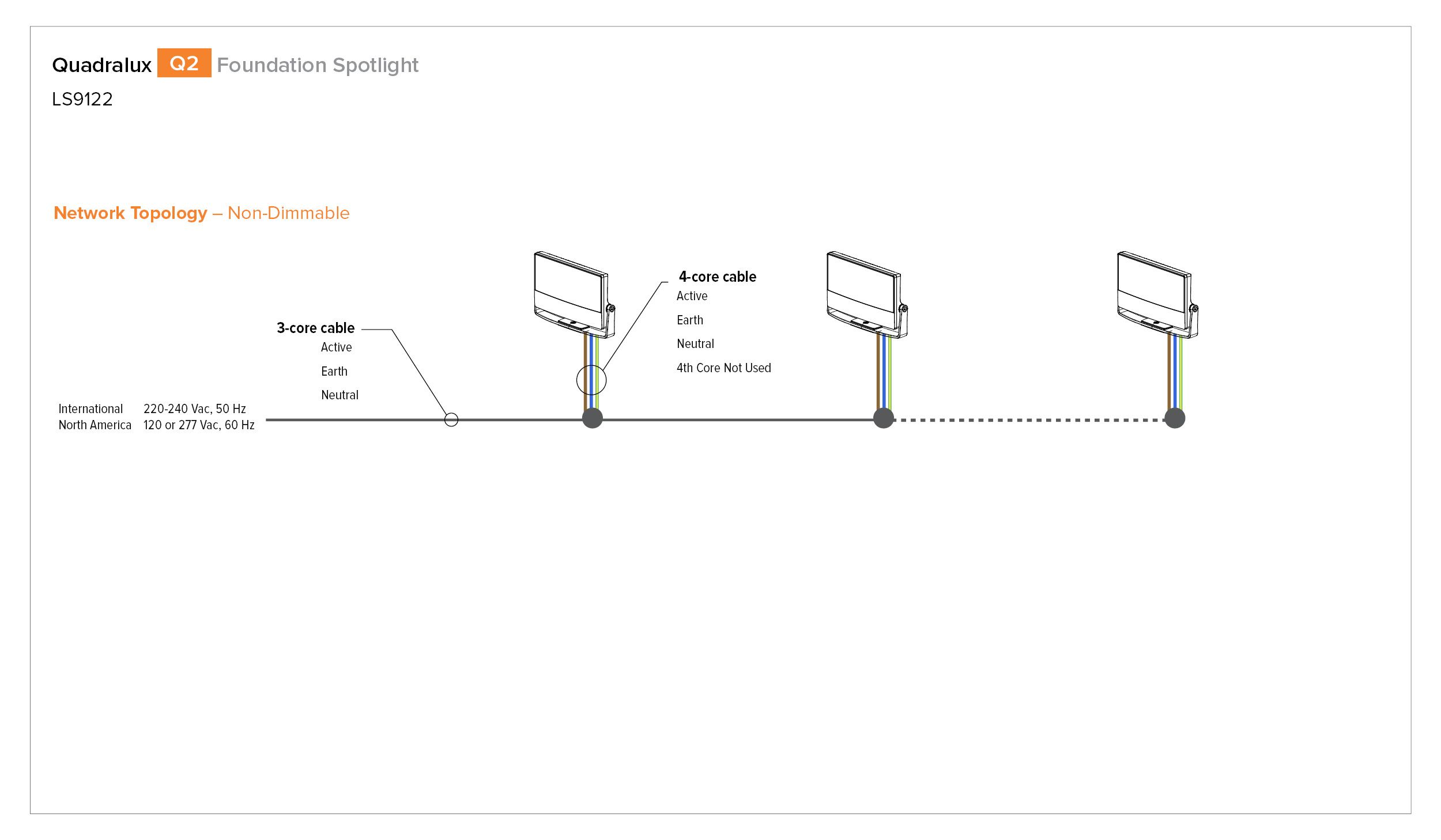

Non-Dimmable (ND)

For single color, non-dimming applications only.

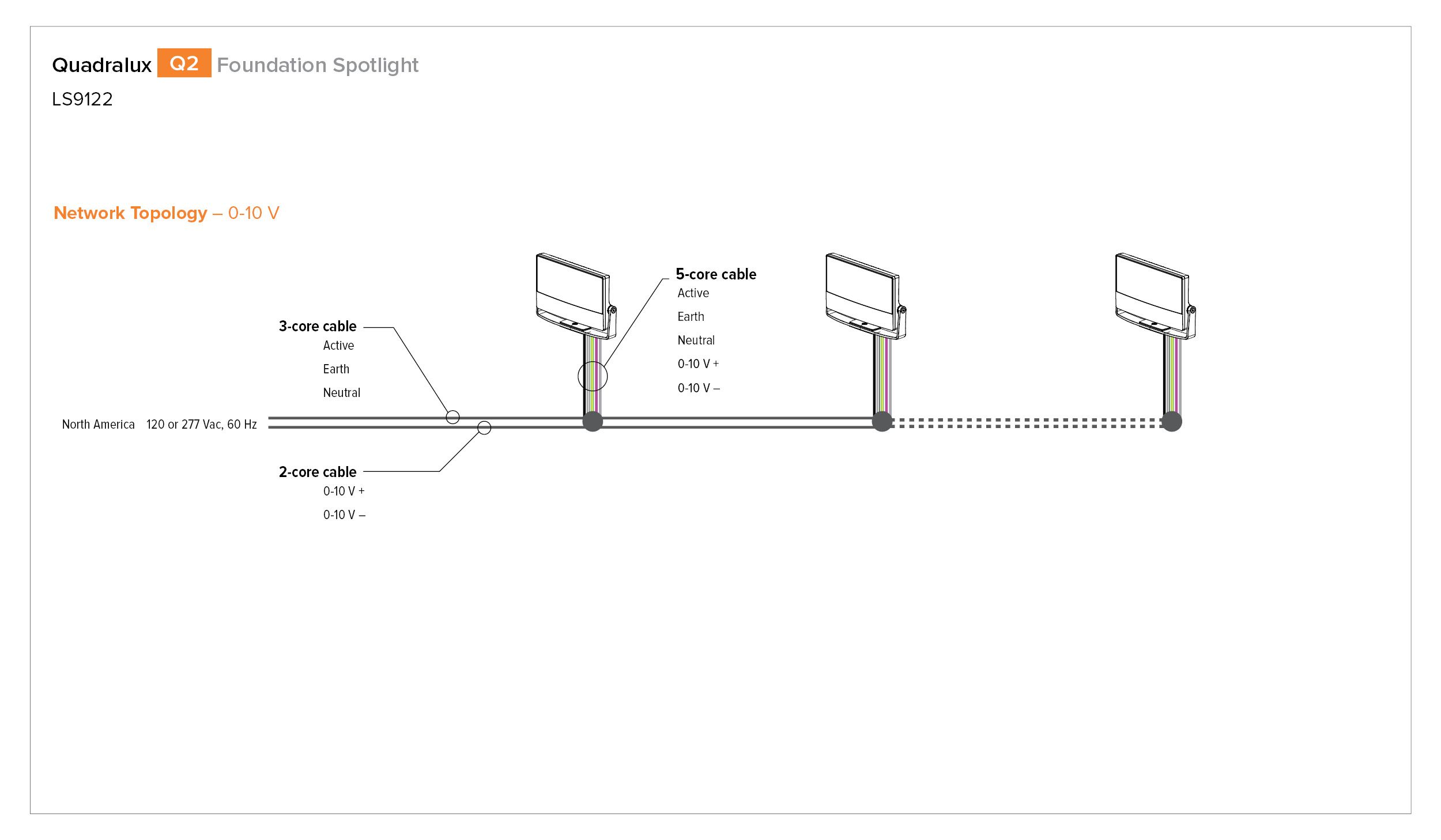

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

6 ft (1.8 m) (006)
