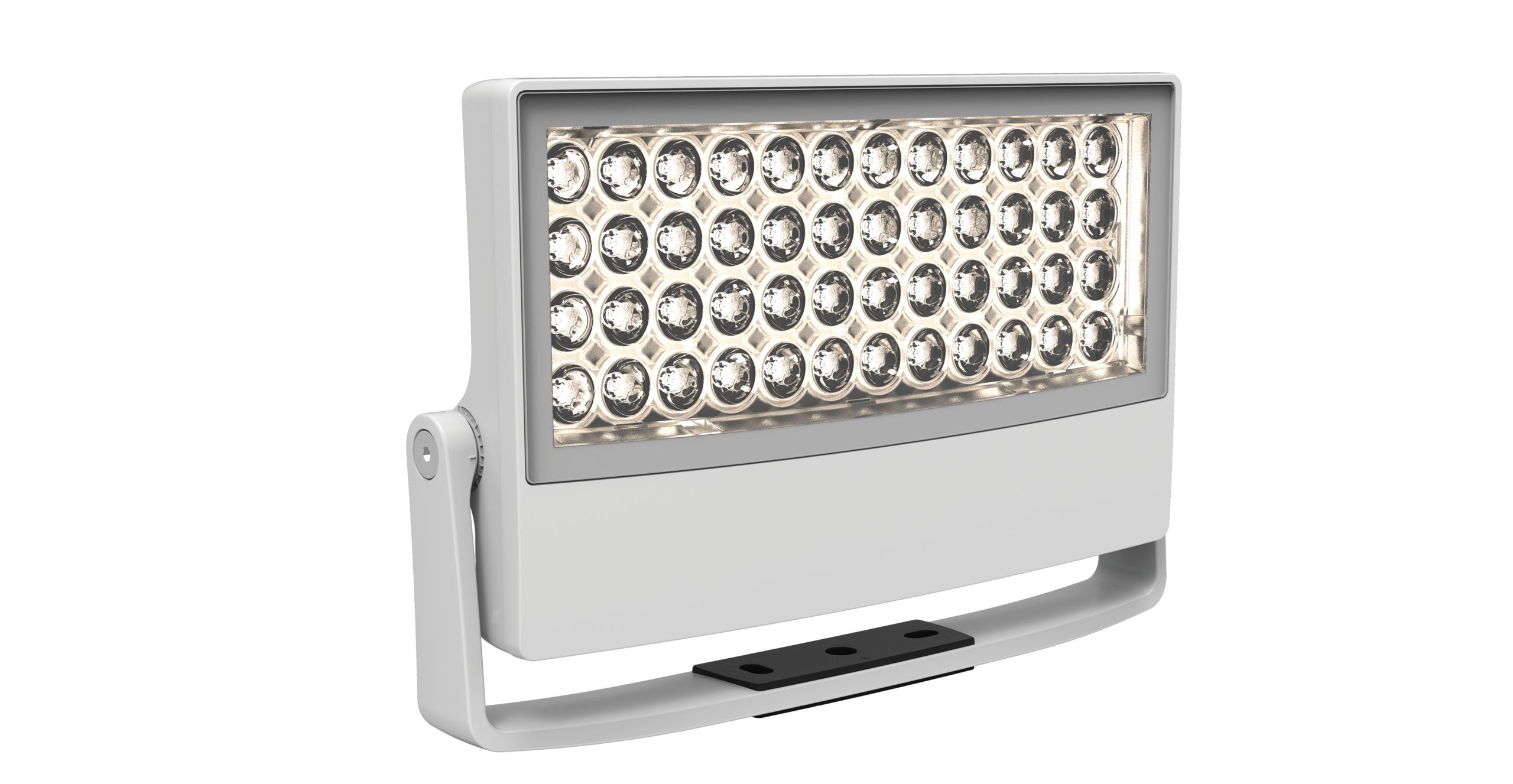

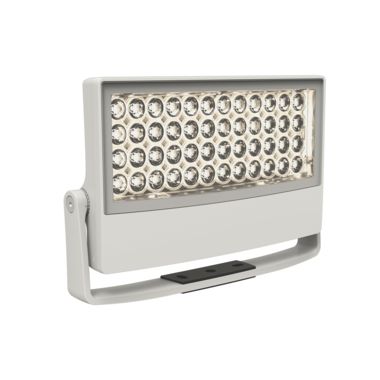

Quadralux Q6 Foundation - LS9162

A large, high-powered, architectural-grade spotlight designed to achieve a peak intensity of up to 664,00 Candela.
Configure this product Features Specifications Videos Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Featuring Designer Optics, providing superb color-over-angle consistency and blending of colors even at close distances. Available in 0-10 V dimming or non-dimmable configurations.

Features

Lumen Output 7,550 lm Power Consumption 69 W, 80 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocols DALI (International), 0-10 V (North America), Non-Dimmable IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI C136.31) With Optional 3G Bracket Compliance ETL - USA & Canada CE RCM FCC Color Options Warm White Cool White Data Sheet

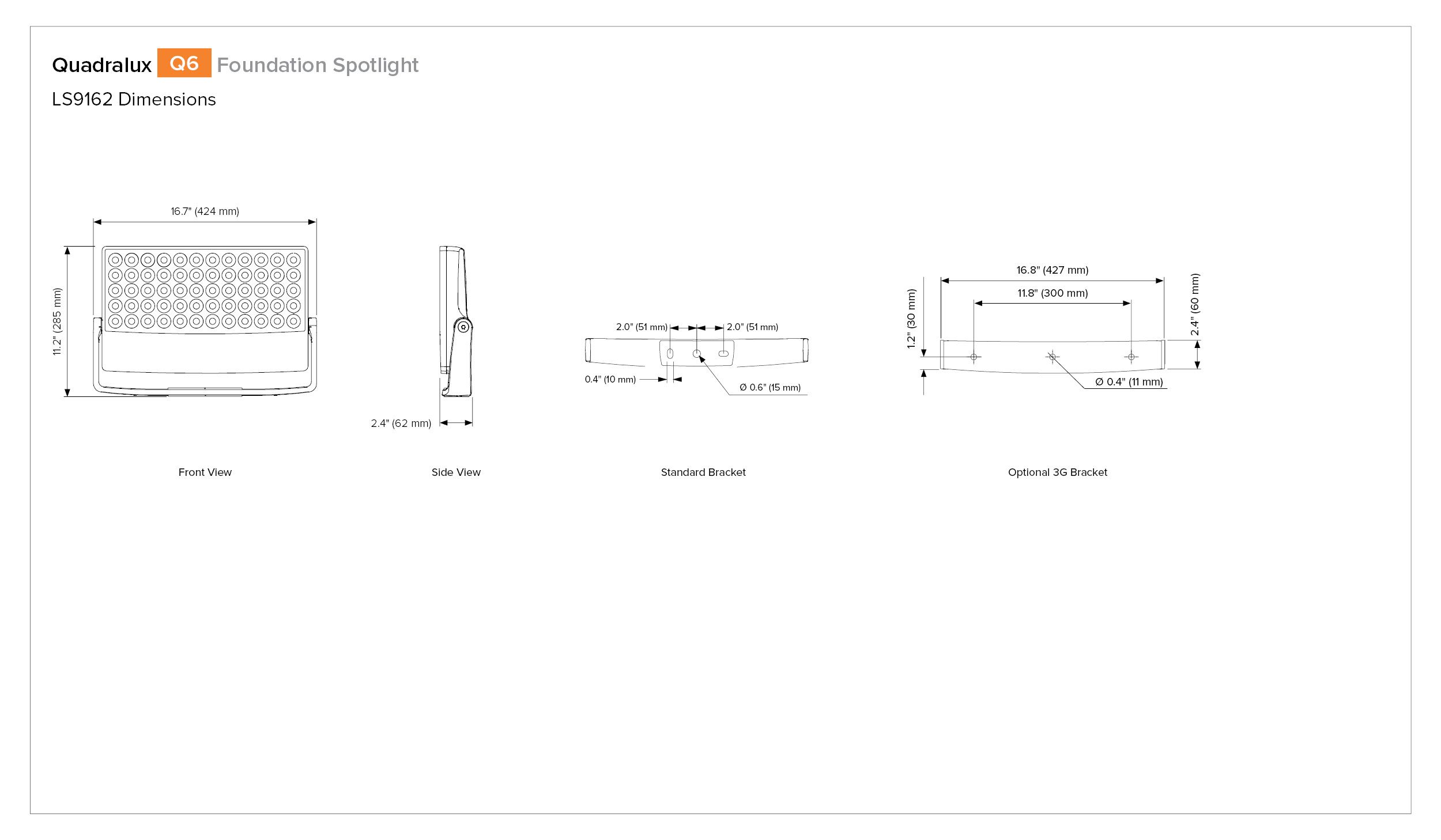

Specifications

Videos
Webinar | Foundation Family
Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6222 Accessory Holder
LS6223 Cross Hatch Louver
LS6224 45° Louver
LS6225 Custom Visor
LS6317 3.0"  (76mm)  Pole Clamp
LS6318 4.0"  (120mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

Downloads

Data Sheet Install Guide
IES Files LS9162 0-10 V ZIP (934.32 KB) DXF Files LS9162 ZIP (4.99 M) Product Flyer Q6 & Q8 PDF (166.83 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS9162 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q6 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

69 W (69D)

80 W (80D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Connection Type

Required

Hardwired via SJOW cable (84)

Hardwired via SJOW cable (84)

For hardwired connection to the branch circuit; 1.8m (6ft) 14/4 SJOW cable.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Sharp Narrow (NX)

Sharp Narrow (NX)

5º

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31). Also provides compatibility with Pole Clamp.

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

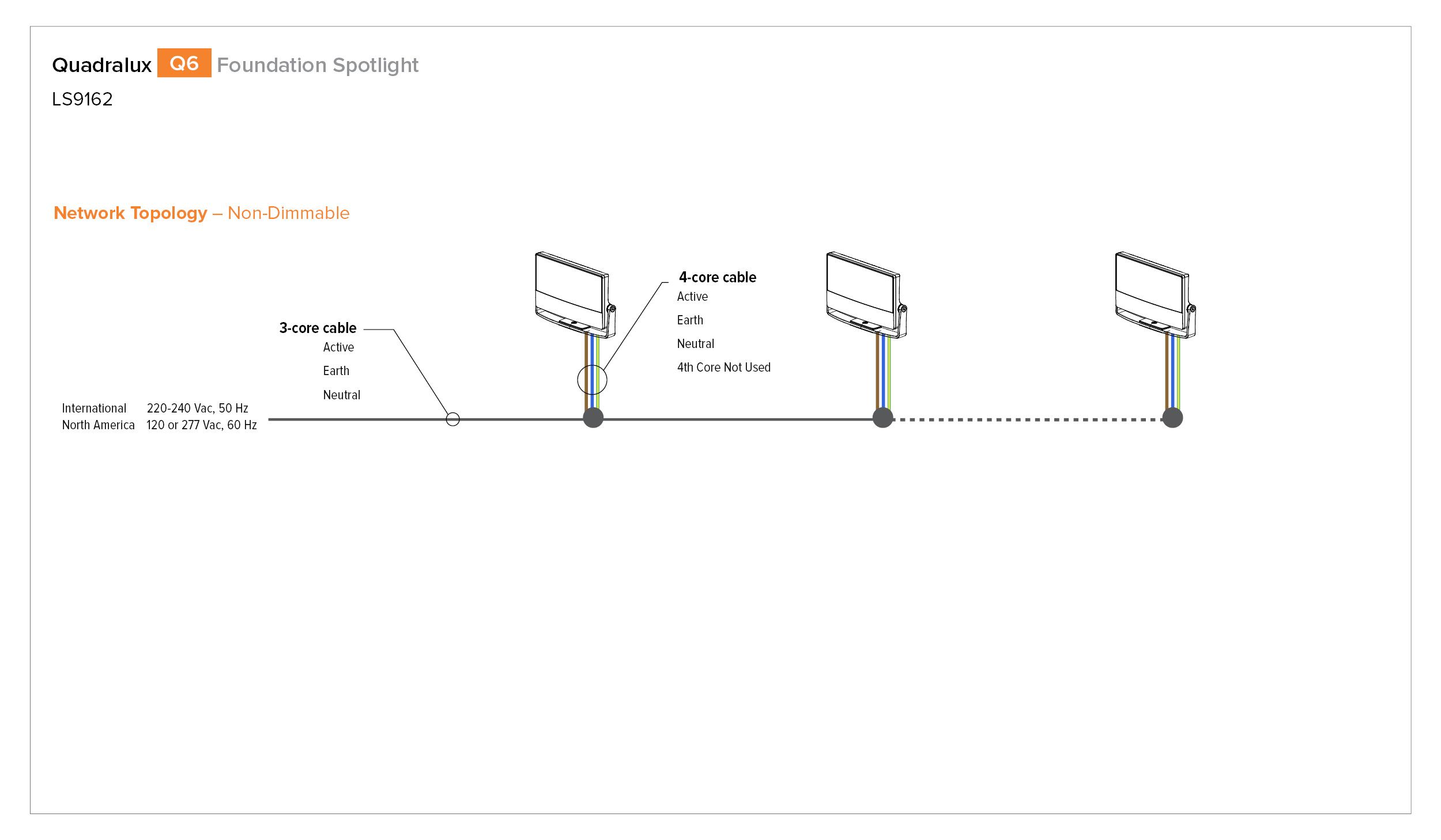

Non-Dimmable (ND)

For single color, non-dimming applications only.

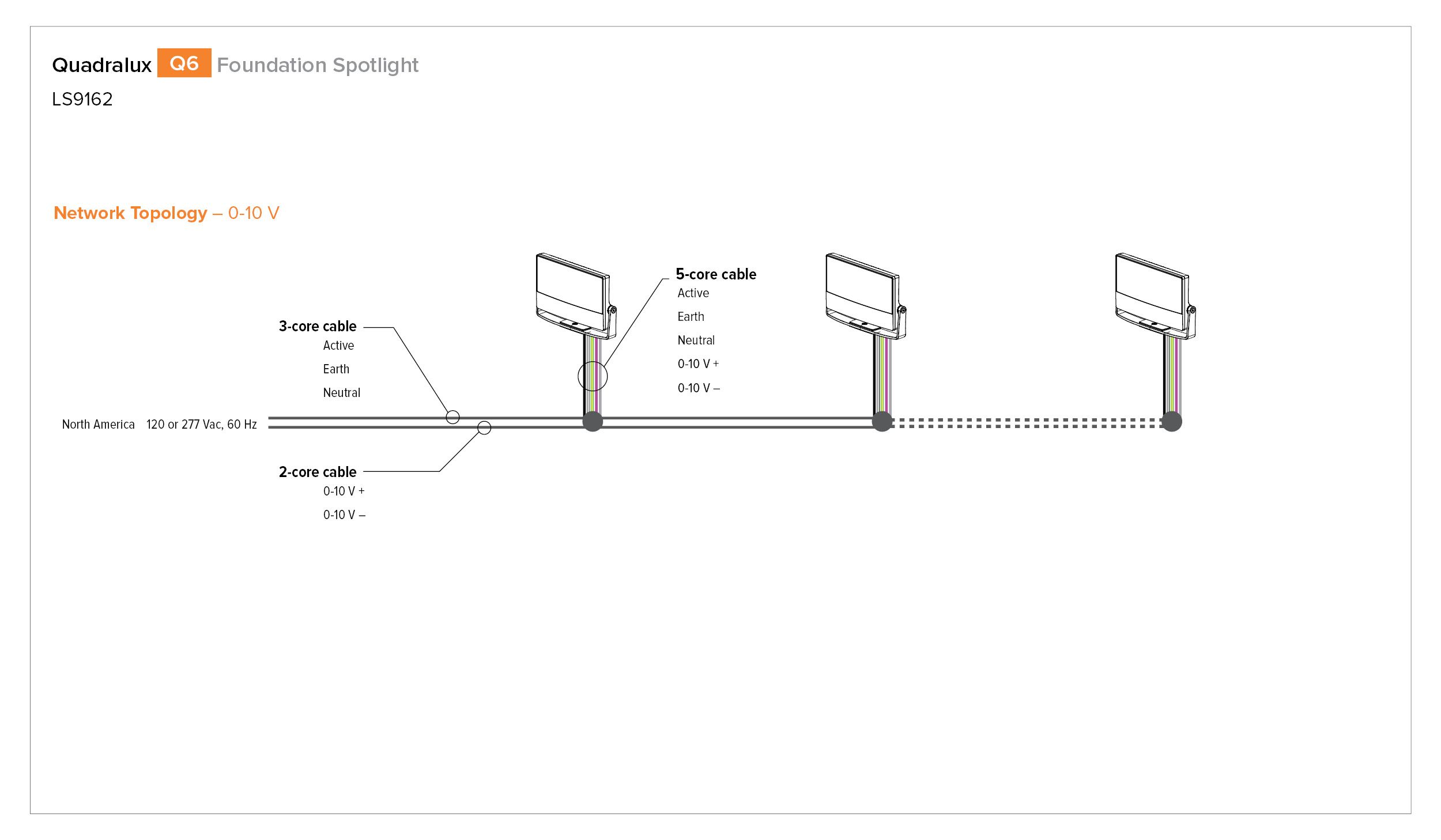

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

6 ft / 1.8m (006)

14/4 SJOW Cable

Accessories

Accessory Holder

Provides easy and robust attachment for a variety of accessories.

Accessory Holder

Accessory Holder (LS6222)

Required for the attachment of shielding and glare control accessories.

More info

Louvers

Provides additonal glare control. Available in black only.

Cross Hatch Louver

Cross Hatch Louver (LS6223)

For shielding and glare control. Accessory Holder (LS6222) is required.

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

Visor Accessory

Visor Accessory (LS6224)

For shielding and glare control. Accessory Holder (LS6222) is required.

More info

Mounting & Installation

Provides an easy method of installing the luminaire.

3" Pole Clamp

3" Pole Clamp (LS6317)

Pole clamp mounting accessory 3.0" (76 mm).

More info
4" Pole Clamp

4" Pole Clamp (LS6318)

Pole clamp mounting accessory 4.0" (102 mm)

More info
4.5" Pole Clamp

4.5" Pole Clamp (LS6319)

Pole clamp mounting accessory 4.5" (114 mm).

More info
5" Pole Clamp

5" Pole Clamp (LS6320)

Pole clamp mounting accessory 5.0" (127 mm).

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee

Custom Color Setup Fee (Custom RAL Color)

Custom RAL colour setup fee

More info
