rEcho - rECH

Glare-free wall luminaire in 1 or 3 LED
Configure this product Features Specifications Videos Accessories

Product Overview

Can also function as an uplight. Choice of four brass faceplate options. The 3LED option is available as an RGBW version for use with ZDClink® controllers.

Features

Total Lumens 34-350 lm Power Consumption 2.2 W | 4.4 W | 4.5 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac, 50/60 Hz Installation Requirements Recessed installations Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 3.6 lbs (1.6 kg) Compliance UL - USA & Canada UL-NOM RCM RoHS Color Options Warm White RGBW Data Sheet

Specifications

Videos
Product Highlights | Wall Lights
Introducing the Essential Series range of wall lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


250018590000 Pre-Installation Kit (rEcho-6)
250020600000 Pre-Installation Kit (rEcho-8)
EKITWALL Connection Kit
POBRKT Mounting Bracket (rEcho-6)
MOBRKT Mounting Bracket (rEcho-8)
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
Data Sheet rEcho-8 PDF (707.45 KB) IES Files rEcho ZIP (29.75 KB) DXF Files rEcho ZIP (34.12 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

rECH _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise rEcho below

Input Voltage

12 Vac/Vdc

Size

Required

1.4" (36 mm) Diameter (6)

Installs into North American 1.5" Schedule 40 Conduit

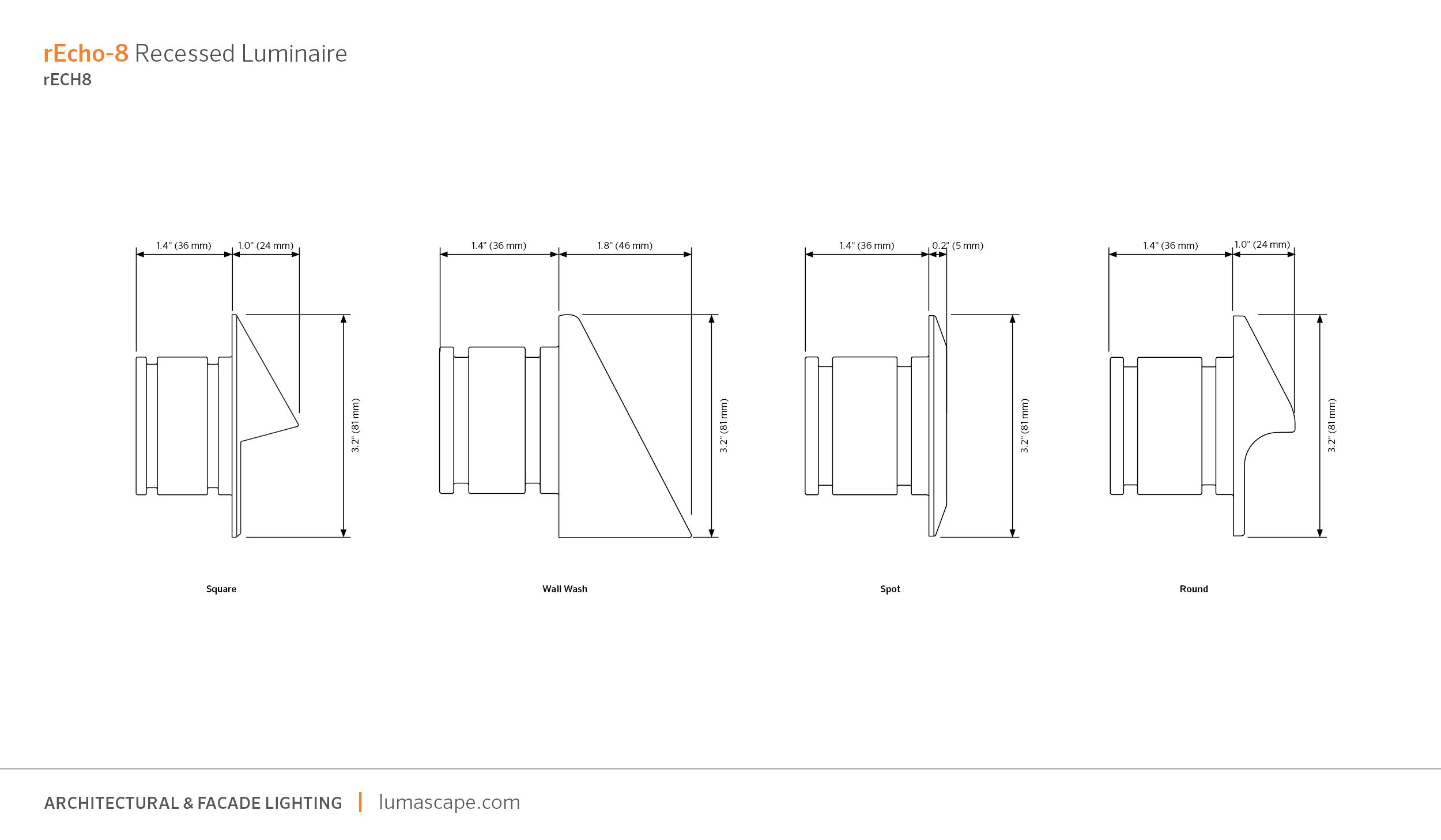

3.2" (81 mm) Diameter (8)

Installs into North American 2.0" Schedule 40 Conduit

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

34-127 lm

2.2 W

34-127 lm, for ZD control

4.4 W (3LED)

87-350 lm, Size -8 Only

4.4 W

87-350 lm, for ZD control, Size -8 only

4.5 W

21-102 lm, Wildlife-friendly, for ZD control, Size -8 only

7.2 W

For ZDC control, Size -8 only

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Wildlife-Friendly (T)

Wildlife-Friendly (T)

Amber (585 to 595 nm)

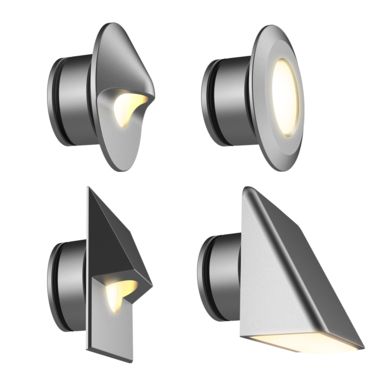

Style

Required

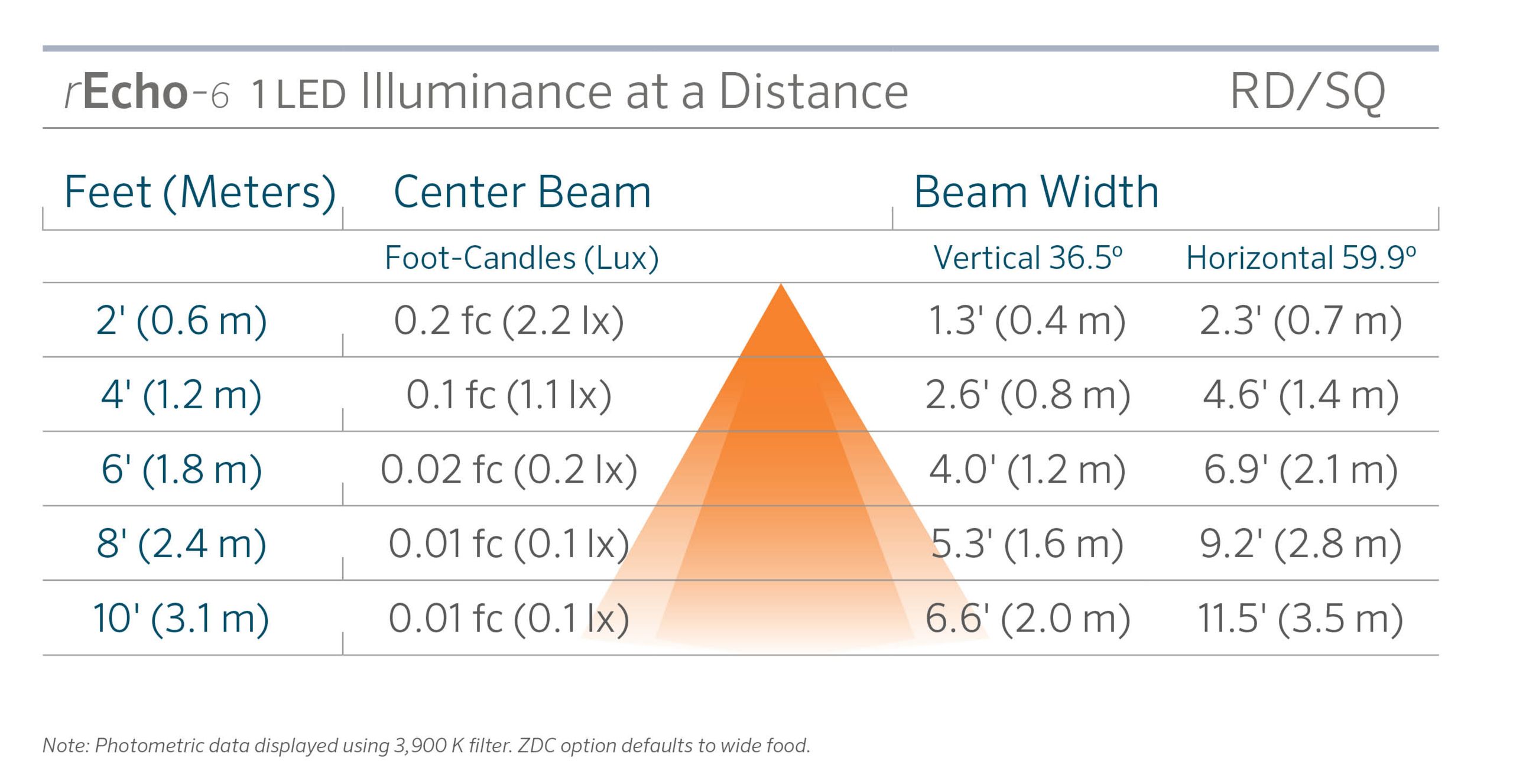

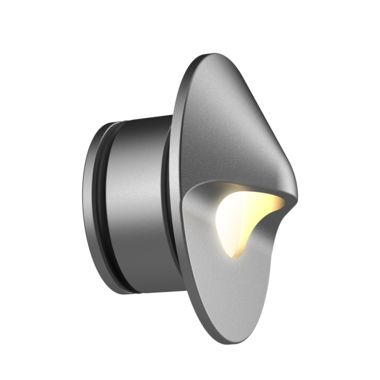

Round (RD)

Round (RD)

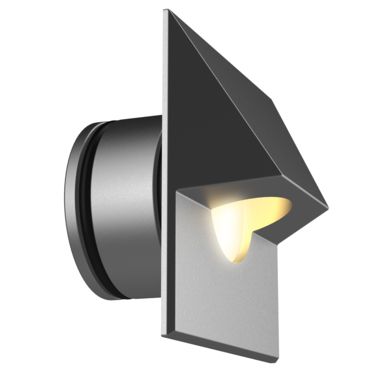

Square (SQ)

Square (SQ)

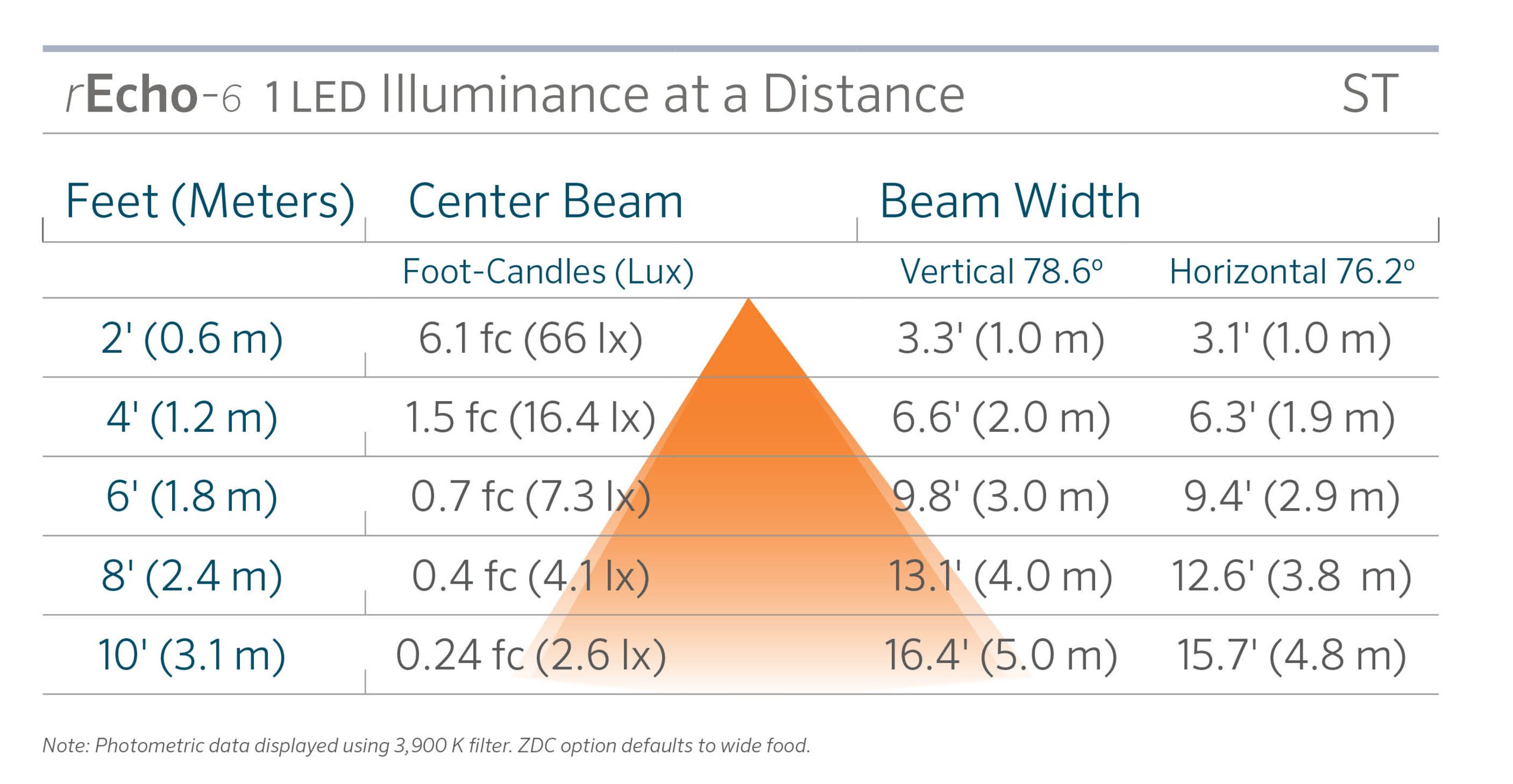

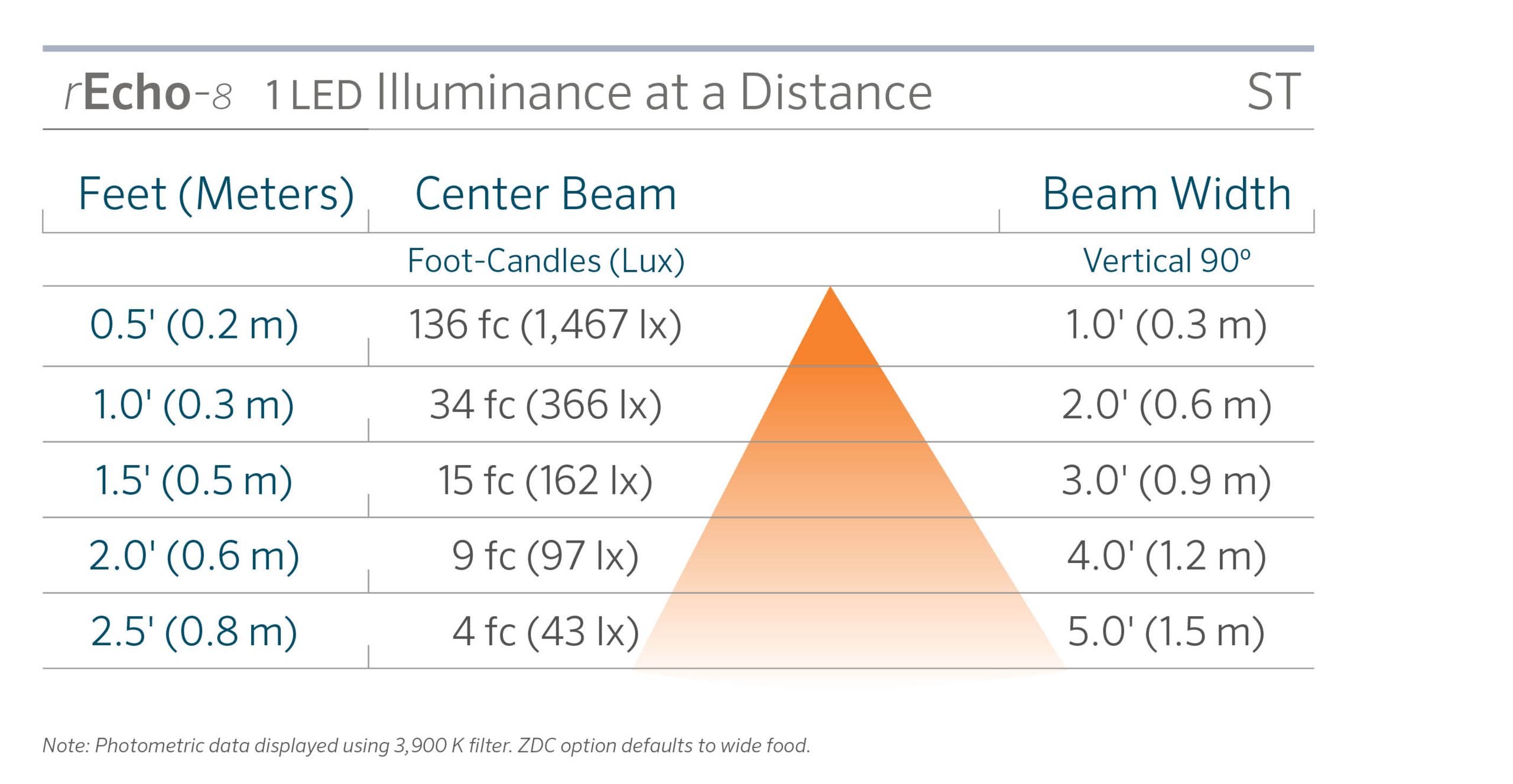

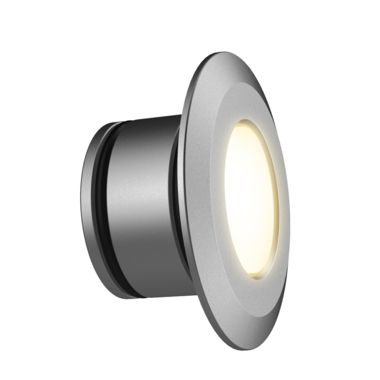

Spot (ST)

Spot (ST)

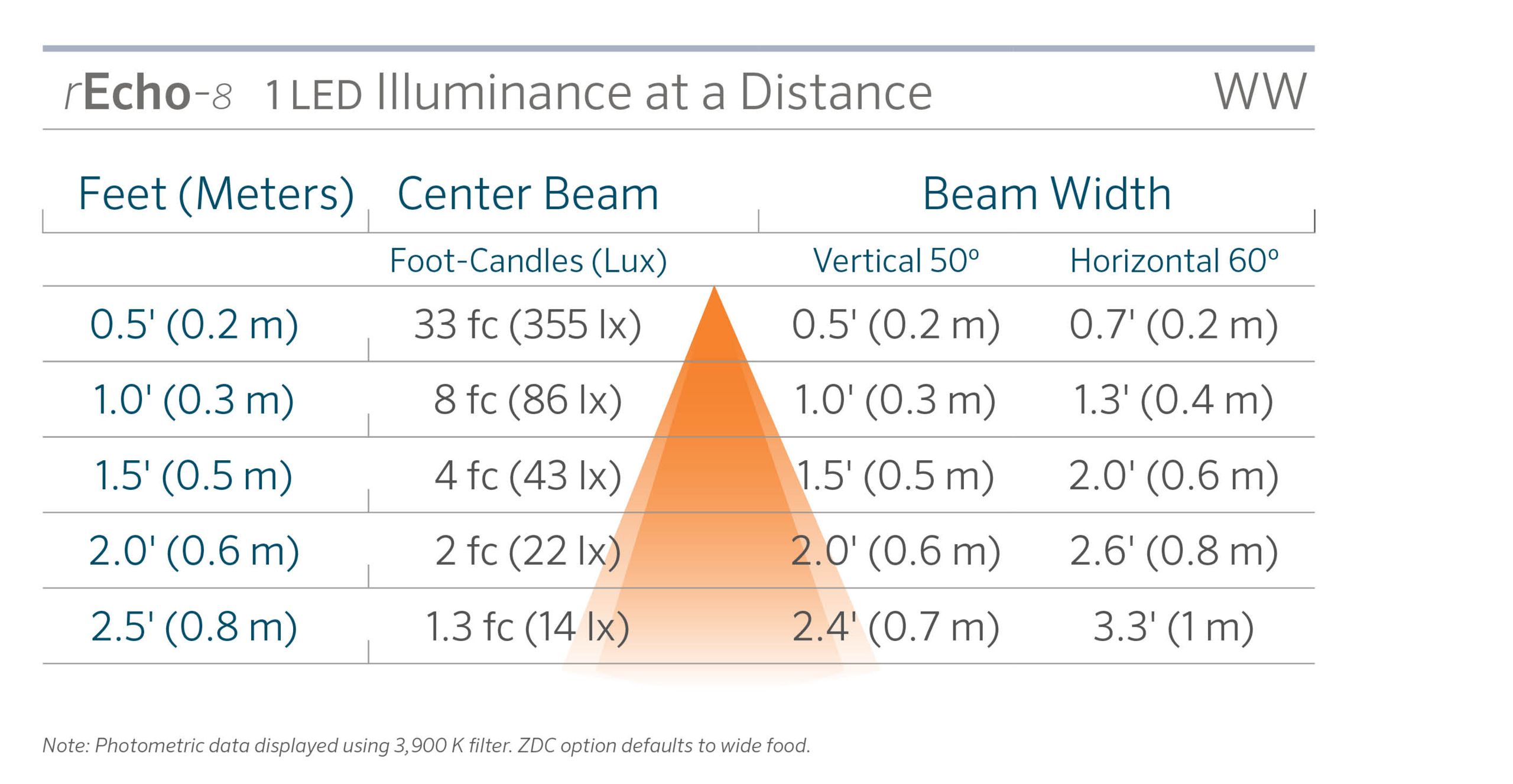

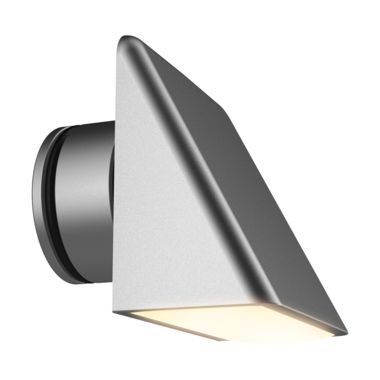

Wall Wash (WW)

Wall Wash (WW)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Brass (BS)

Natural Brass (BS)

Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

Pre-Installation Kit Ships with Product

Pre-Installation Kit Ships with Product

Pre-installation kit for rEcho-6 is equivalent to the North American 1.5'' schedule 40 conduit."

Pre-Installation Kit Ships with Product

Pre-Installation Kit Ships with Product

Pre-installation kit for rEcho-8 is equivalent to the North American 2.0'' schedule 40 conduit."

Accessories

Pre-Installation Kit

Specify Separately.

Ship Separately (250018590000)

Ship Separately (250018590000)

Pre-Installation kit for rEcho-6 is equivalent to the North American 1.5'' schedule 40 conduit.

Ship Separately (250020600000)

Ship Separately (250020600000)

Pre-Instllation kit for rEcho-8 is equivalent to the North American 2.0'' schedule 40 conduit.

Connection Kit

Specify Separately

Connection Kit (EKITWALL)

Connection Kit (EKITWALL)

Suitable for use on wall lights with ½" - 14 NPSF threads or knock-out.

More info

Mounting & Installation

Specify Separately

Mounting Bracket (POBRKT)

Stainless steel, wall-mount installation bracket for use without pre-installed sleeve or North American 1.5'' schedule 40 conduit.

More info

Mounting Bracket (MOBRKT)

Stainless steel, wall-mount installation bracket for use without pre-installed sleeve or North American 2.0'' schedule 40 conduit.

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
