sDelta-8 - sDLT8

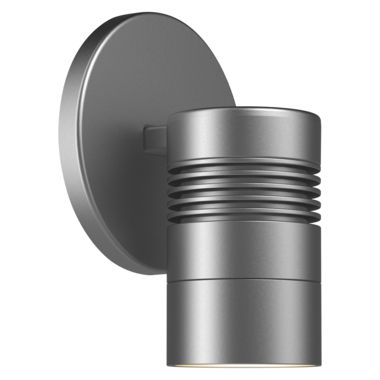

Surface-mounted luminaire.
Configure this product Features Specifications Videos Accessories

Product Overview

The sDelta-8 is a surface-mounted luminaire is available with 3, 6, or 9 LED. Its simple cylindrical drum design complements classic and contemporary applications. Also available in an RGBW version for use with ZDClink® Controllers.

Features

Total Lumens 864 lm Power Consumption 4.5 W | 13.5 W | 11.0 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac, 50/60 Hz Installation Requirements Downward Direction Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 2.1 lbs (1.0 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Dark Sky Color Options Warm White RGBW Data Sheet

Specifications

Videos
Product Highlights | Surface Mount
Introducing the Essential Series range of wall lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


250015260000 Lens, Hex Baffle
250013550000 Lens, Linear Spread
250015240000 Lens, Solite Spread
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
IES Files sDelta-8 ZIP (16.33 KB) DXF Files sDelta ZIP (42.31 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

sDLT8 _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise sDelta-8 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

4.4 W (3LED)

332 lm

9.3 W (6LED)

641 lm

12.2 W (9LED)

864 lm

12.2 W

864 lm, for ZD control

11.0 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º beam angle

Flood (FL)

40º beam angle

Flood

40º beam angle, for ZDC control

Wide Flood (WF)

60º beam angle

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Lens Accessories

Specify Separately

Hex Baffle (250015260000)

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens (250013550000)

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens (250015240000)

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
