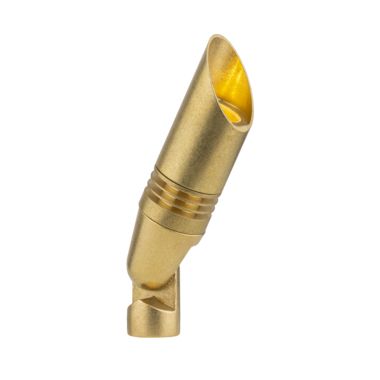

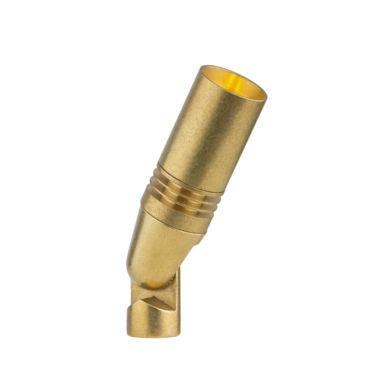

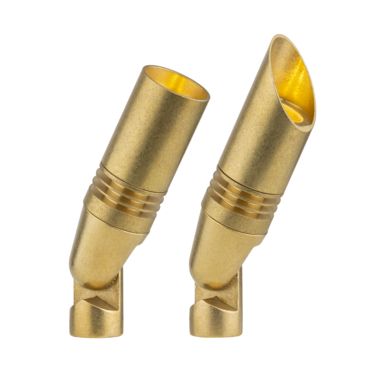

The dLuna-4 is an expertly engineered directional luminaire designed to illuminate a variety of spaces in 1 or 3 LED. An RGBW version is also available for use with ZDClink® Controllers.
1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology
Zone/Dim with Luxor® Technology
Zone/Dim/Color with Luxor® Technology
115 lm, Wildlife-Friendly Option Only
215 lm, ZDC Option Only
2,700 K (80+ CRI)
ZDC Option Only
Amber (585 to 595 nm)

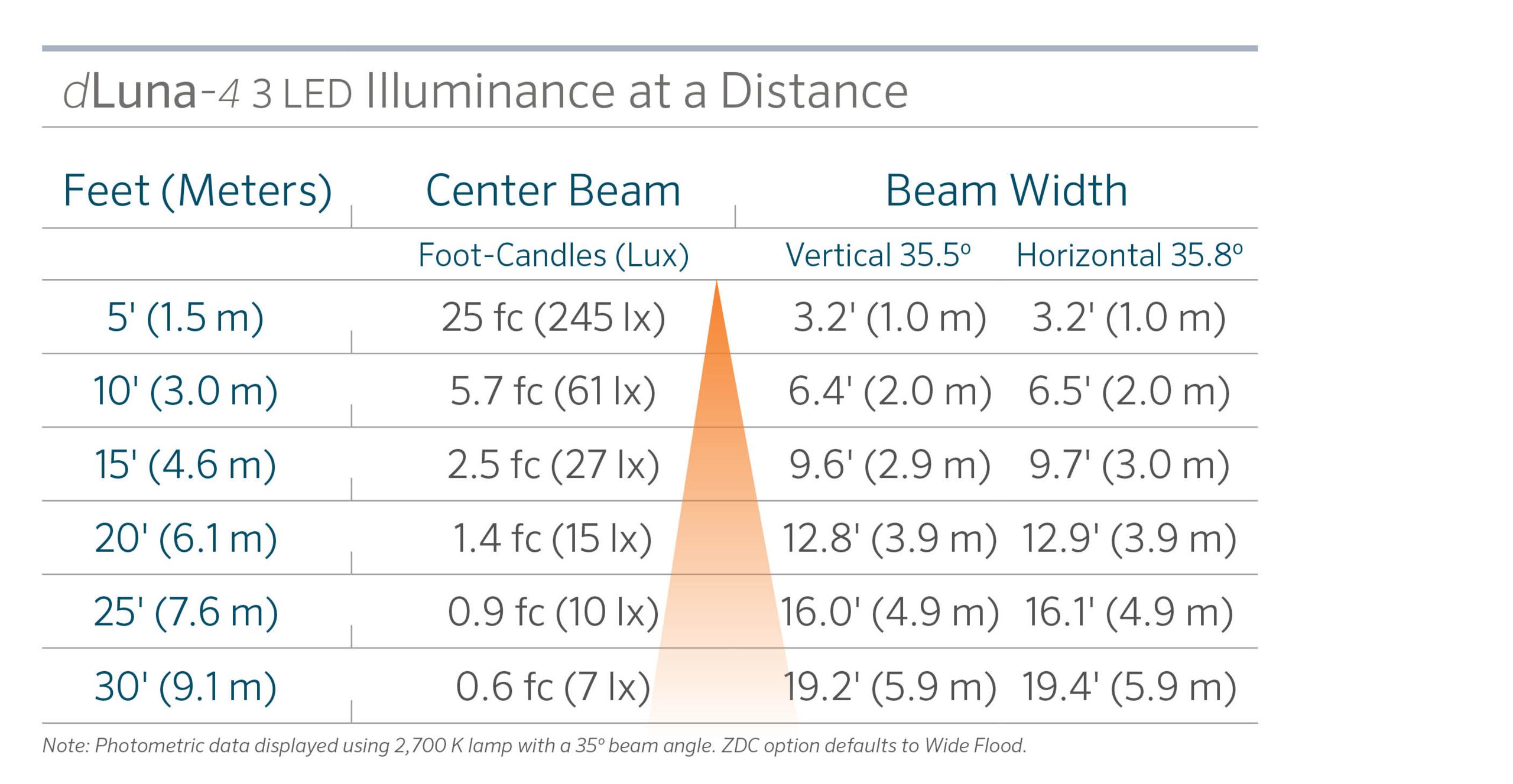

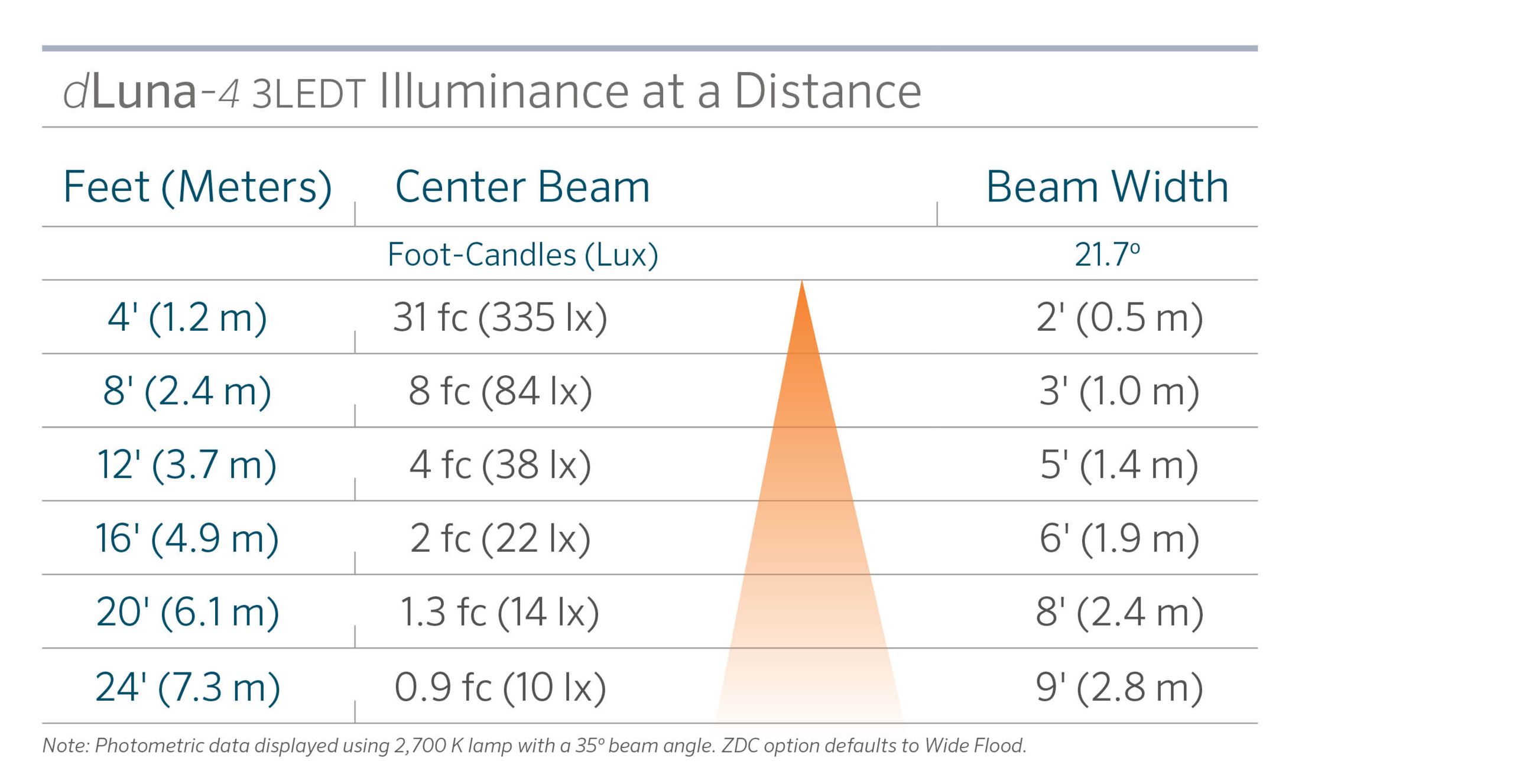

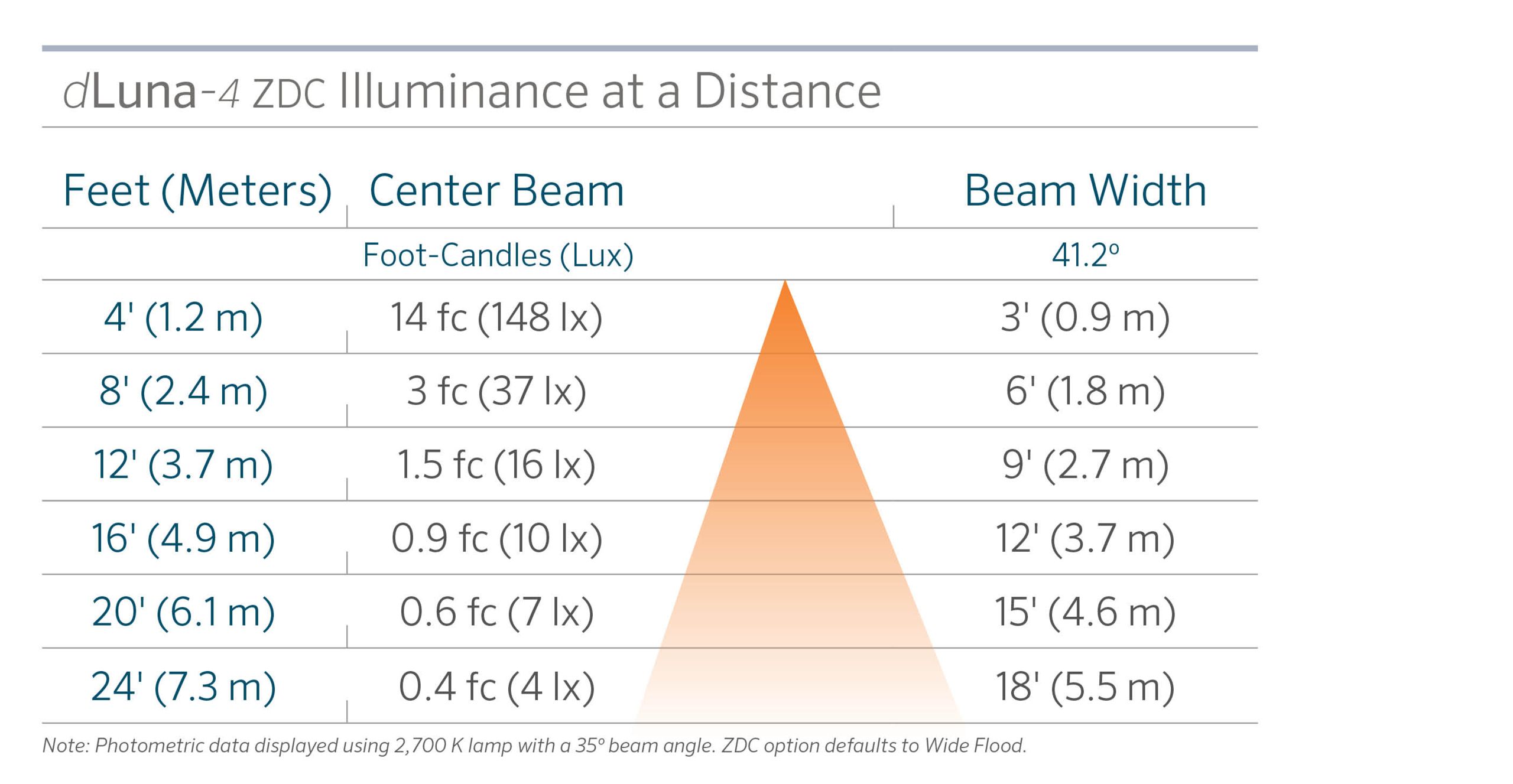

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.
20º Beam Angle
35º Beam Angle
50º Beam Angle, ZDC Only
60º Beam Angle
Bracket Mount, UL Listed and CE Approved. Required for shipment outside of North America
90º Straight Shroud
45º Angled Shroud
Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.
Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.
ProAim™ Ratcheting Stake
10" (250 mm) Adjustable Stake for ½"-14 NPSM Threads
Super J-Box Stake
2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake
1.3" (33 mm) metal cap with ½"-14 NPSM threads; 1.5" schedule 40 conduit
4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit
1.5" (38 mm) brass cap with ½"-14 NPSM threads
Stainless steel bracket with ½’’-14 NPSM threads and rotational adjustability
12'' (300 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads
18'' (450 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads
24'' (600 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads
1.4'' (36 mm) diameter (MR-11)
Solite Spread Lens
PROlink Multi-Tap Transformer
A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.
ZDClink® Lighting Controller
A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™
Dimmable Mini Transformer
A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.
Non-Dimmable Mini Transformer
A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.
6 W Plug-in Transformer
Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.
30 W Plug-in Transformer
Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.
In-Line Surge Arrestor
Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.
Heat Shrink Wire Connectors - Small
Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)
Heat Shrink Wire Connectors - Medium
Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
