dAlta-7 - dALT7

Expertly engineered directional luminaire in 3, 6 or 9LED.
Configure this product Features Specifications Videos Accessories

Product Overview

The dAlta-7 is an expertly engineered directional luminaire that illuminates a variety of spaces in 3, 6, or 9 LED. An RGBW version is also available for use with ZDClink® systems.

Features

Total Lumens 597 lm Power Consumption 4.4 W | 9.3 W | 12.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Upward Direction Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 2.8 lbs (1.3 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White RGBW Data Sheet

Specifications

Videos
Product Highlights | Directional
Introducing the Essential Series range of directional luminaires by Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


SJ Super J-Box
PM Post Mount
GM Ground Mount
VB-050 Versabox®
GM-SS Gutter Mount, Stainless Steel
LNM Line Mount
C-RISER Riser, Angled Sun-Light
250015260000 Lens, Hex Baffle
250013550000 Lens, Linear Spread
250015240000 Lens, Solite Spread
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
IES Files dAlta-7 ZIP (8.77 KB) DXF Files dAlta-7 ZIP (33.12 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

dALT7 _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise dAlta-7 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

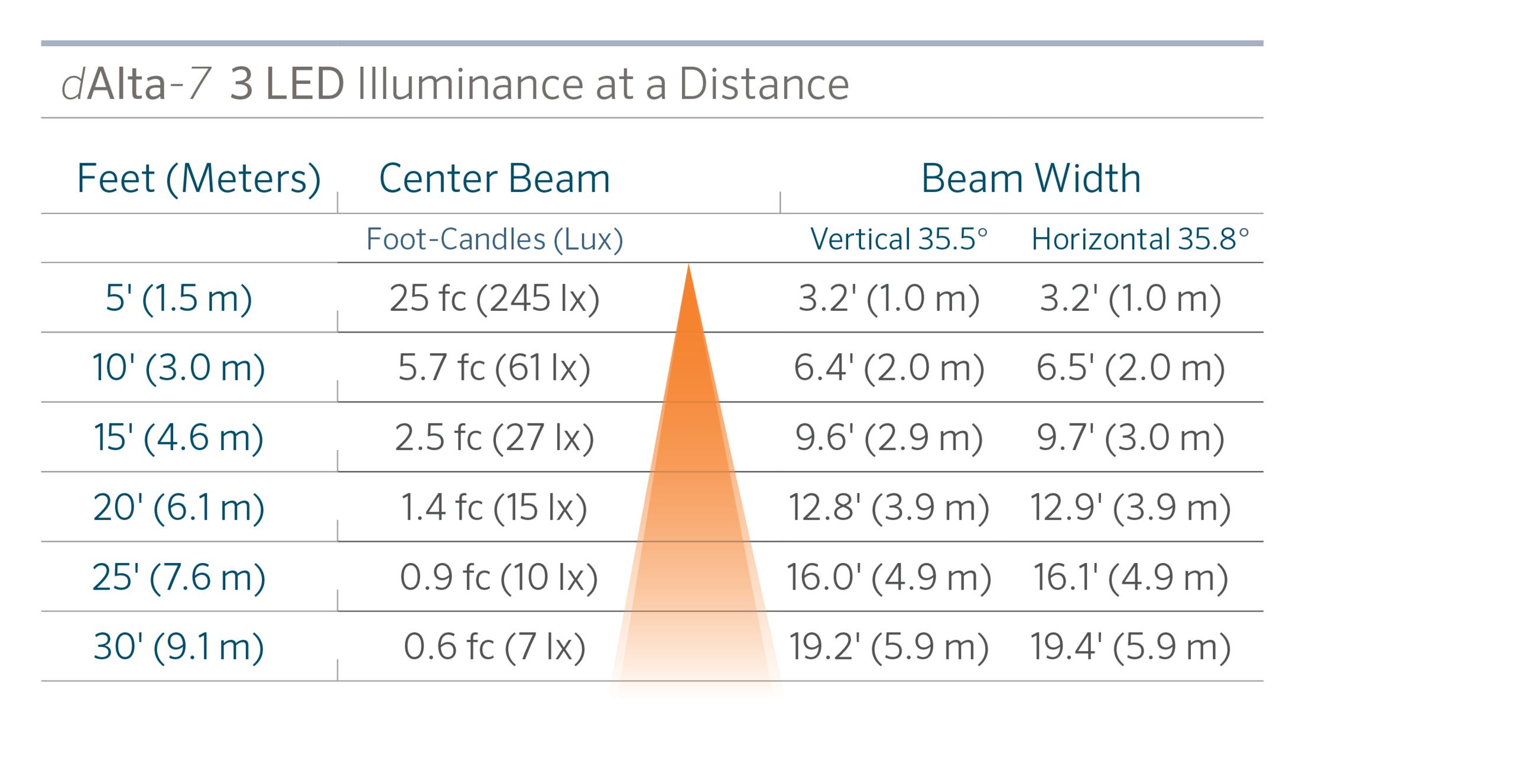

4.4 W (3LED)

223 lm

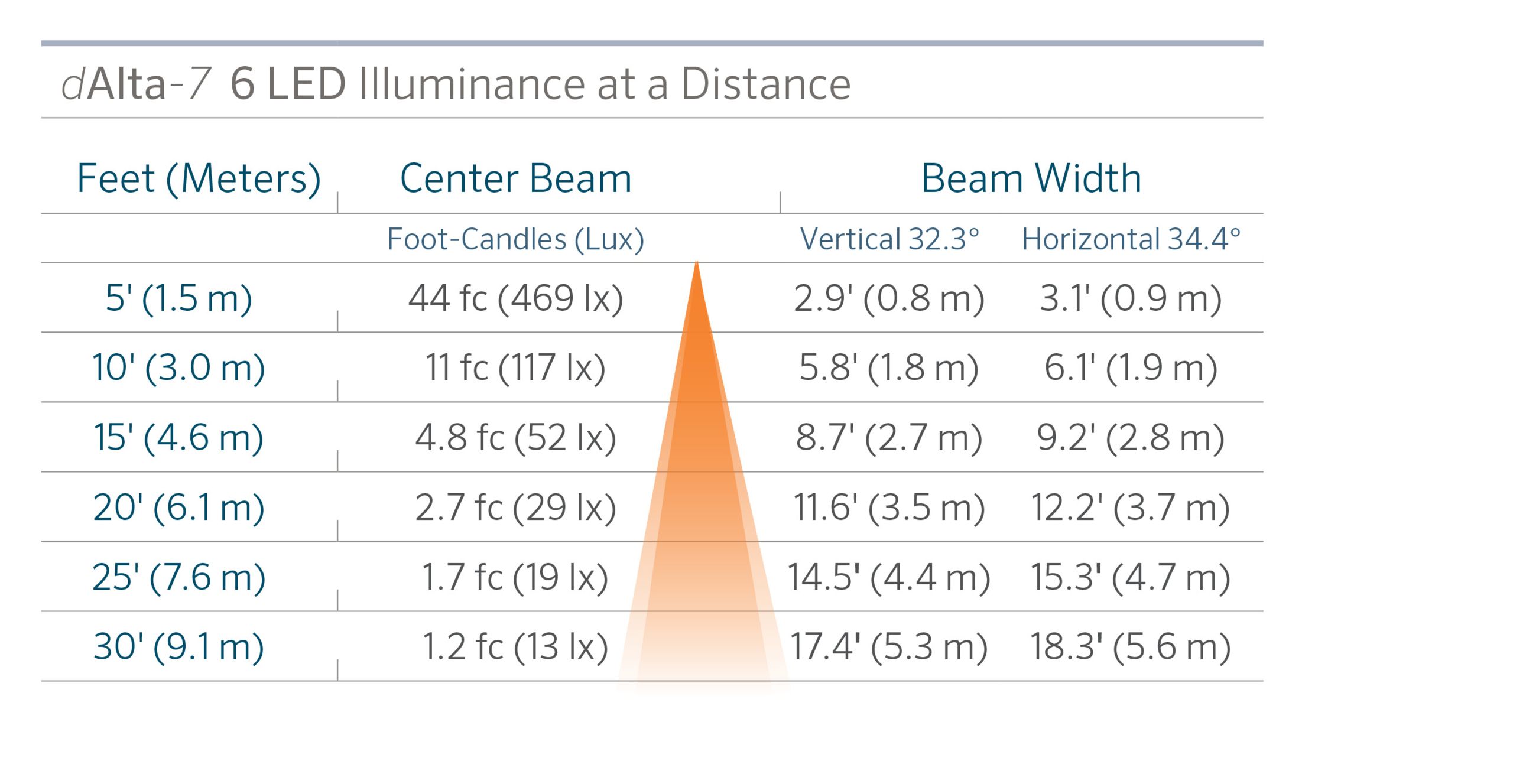

9.3 W (6LED)

424 lm

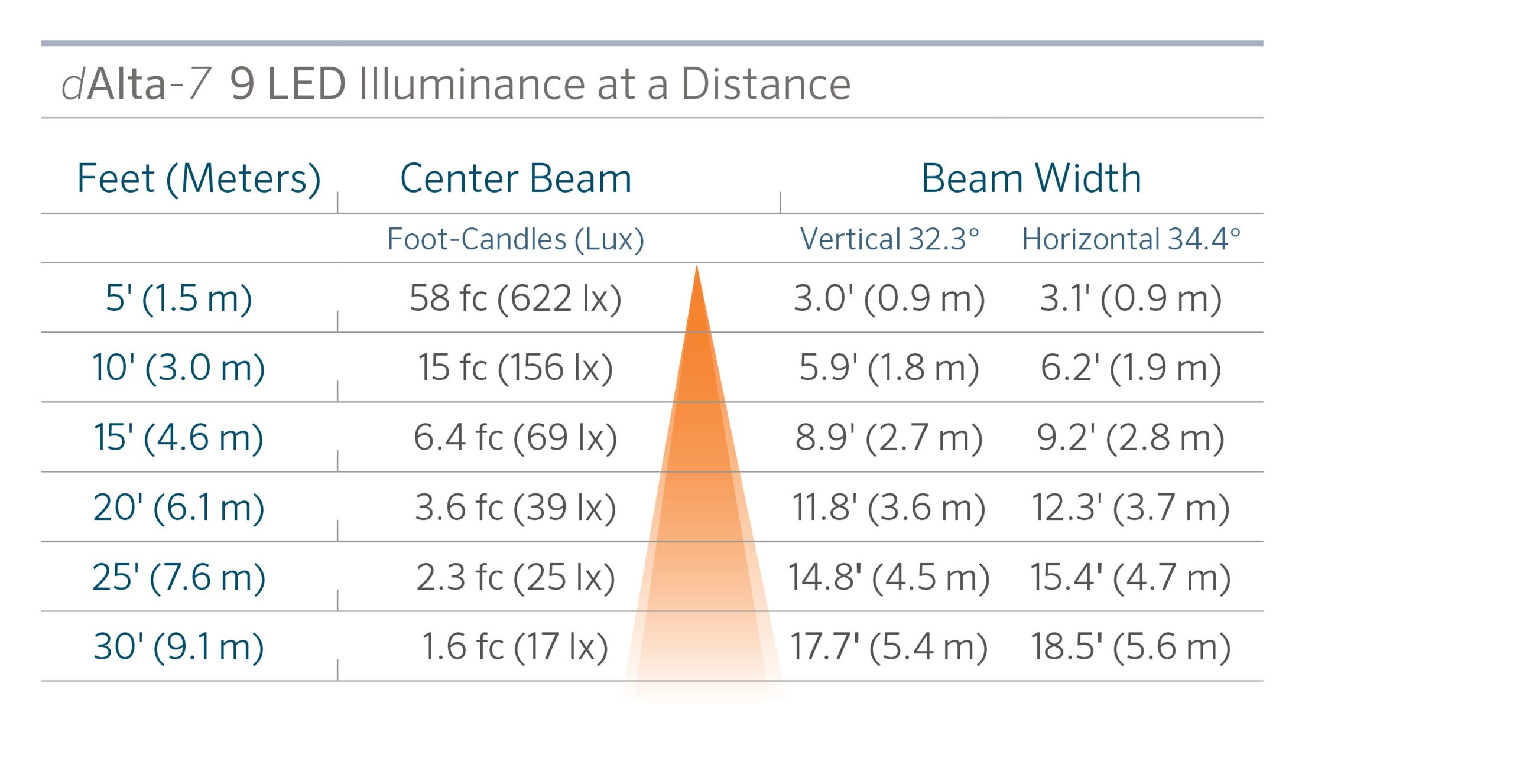

12.2 W (9LED)

597 lm

12.2 W

597 lm, for ZD control

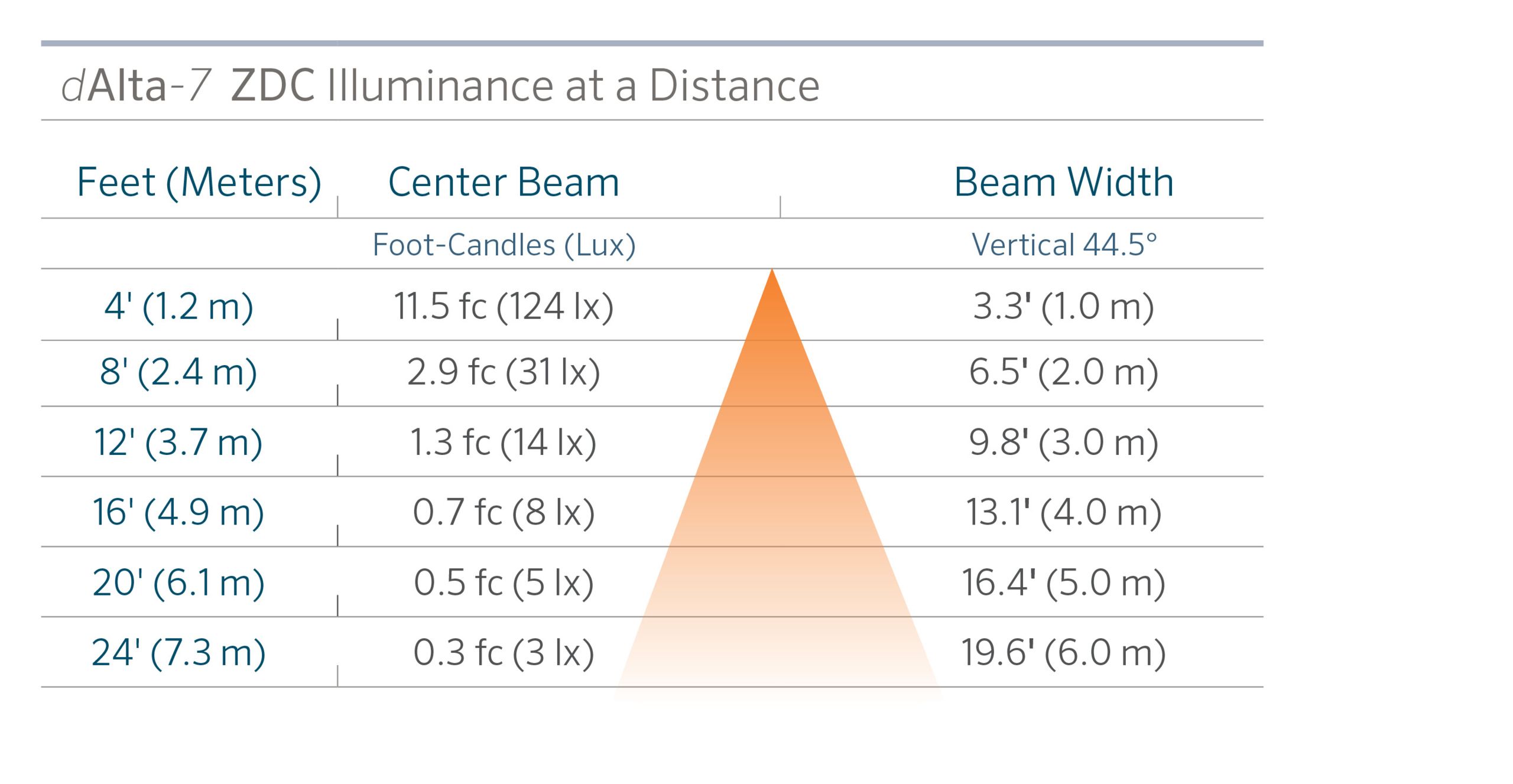

11.0 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º beam angle

Flood (FL)

35º beam angle

Flood

45º beam angle, for ZDC control

Wide Flood (WF)

60º beam angle

Compliance

Required

North America

North America

UL listed

International (E)

International (E)

Bracket mount, UL listed and CE approved. Required for shipment outside of North America

Shielding

Required

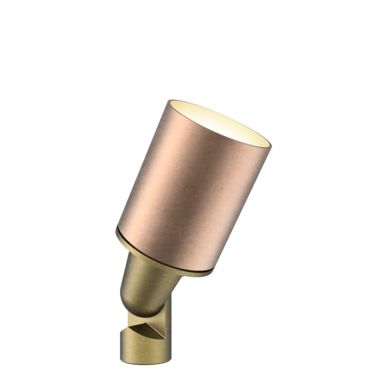

Standard Shroud

90º Straight Shroud

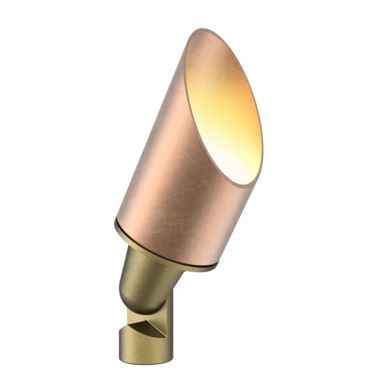

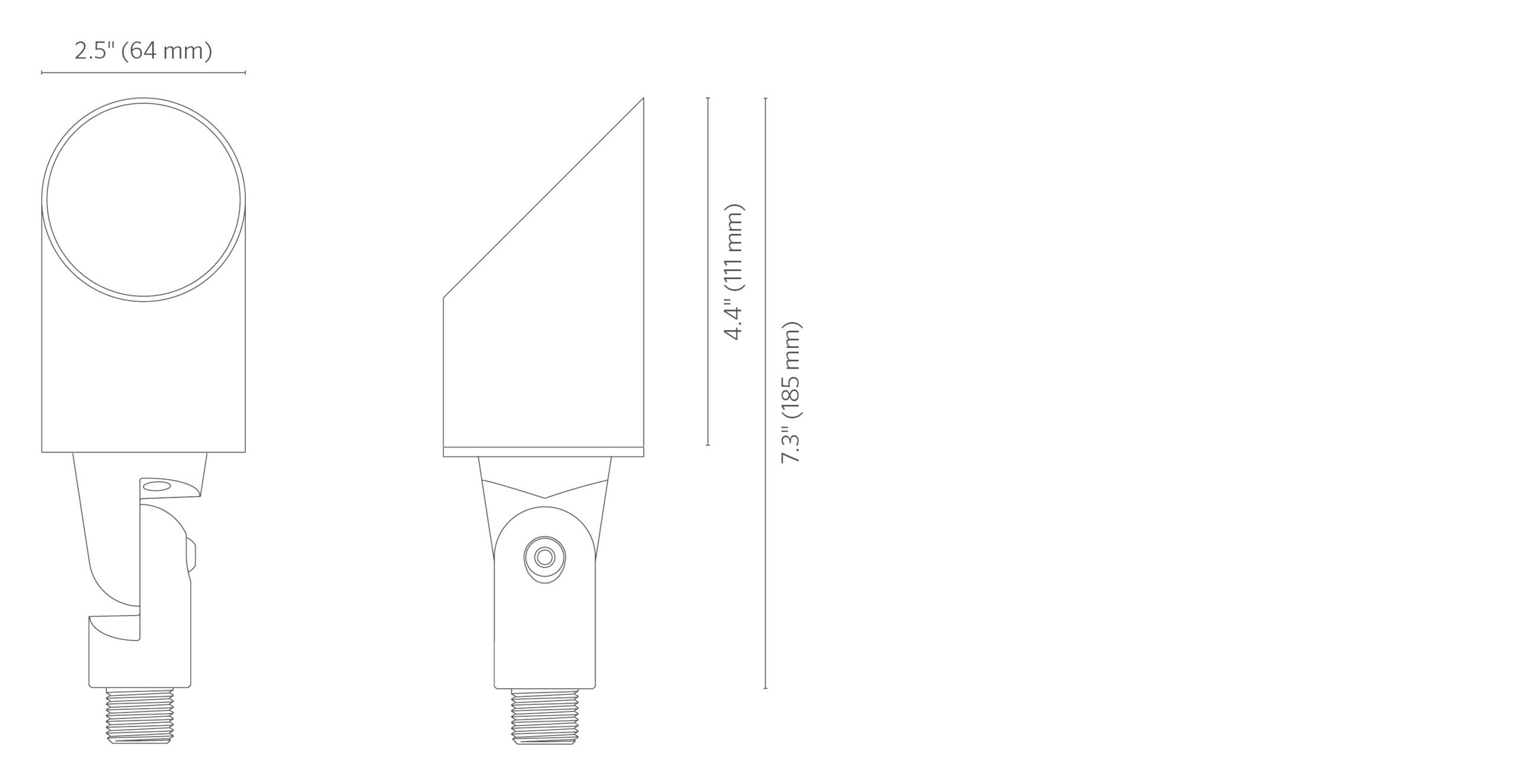

Long Shroud (LS)

45º Angled Shroud

Finish

Required

Natural Copper (CU)

Natural Copper (CU)

Requires the selection of cover option.

More info
Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Accessories

Mounting & Installation

Specify Separately

Super J-Box Stake (SJ)

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake

More info
Post Mount (PM)

Post Mount (PM)

1.3" (33 mm) metal cap with ½"-14 NPSM threads; 1.5" schedule 40 conduit

More info
Ground Mount (GM)

Ground Mount (GM)

4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit

More info
Versabox® (VB-050)

Versabox® (VB-050)

1.5" (38 mm) brass cap with ½"-14 NPSM threads

More info
Gutter Mount (GM-SS)

Gutter Mount (GM-SS)

Stainless steel bracket with ½’’-14 NPSM threads and rotational adjustability

More info
Line Mount (LNM)

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

More info

Copper Straight Riser

Specify Separately.

8" (8R-GT-XX)

8" (8R-GT-XX)

8'' (200 mm) copper straight riser with 1.2'' (30 mm) OD and ½''-14 Male and Female NPS threads

12" (12R-GT-XX)

12" (12R-GT-XX)

12'' (300 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

18" (18R-GT-XX)

18" (18R-GT-XX)

18'' (450 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

24" (24R-GT-XX)

24" (24R-GT-XX)

24'' (600 mm) copper straight riser with 1.2'' (30 mm) OD and 1/2''-14 Male and Female NPS threads

Lens Accessories

Specify Separately

Hex Baffle (250015260000)

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens (250013550000)

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens (250015240000)

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
