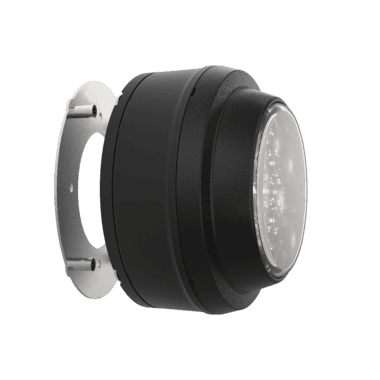

Fayra F6-P – Compact Architectural Projector

Product Overview

The Fayra F6-P is a compact architectural projector within the F6 family, available in 10W and 22W performance packages delivering up to 1040 and 2140 lumens respectively, for landscape, façade, and civic environments. Engineered for precise optical control, Fayra F6-P offers a range of beam distributions suited to accent, public realm, and general architectural illumination applications.

Available in RGBW, RGBA, Tunable White, and static white configurations with PowerSync control technology, Fayra F6-P supports both functional and dynamic lighting applications across a wide range of project environments.

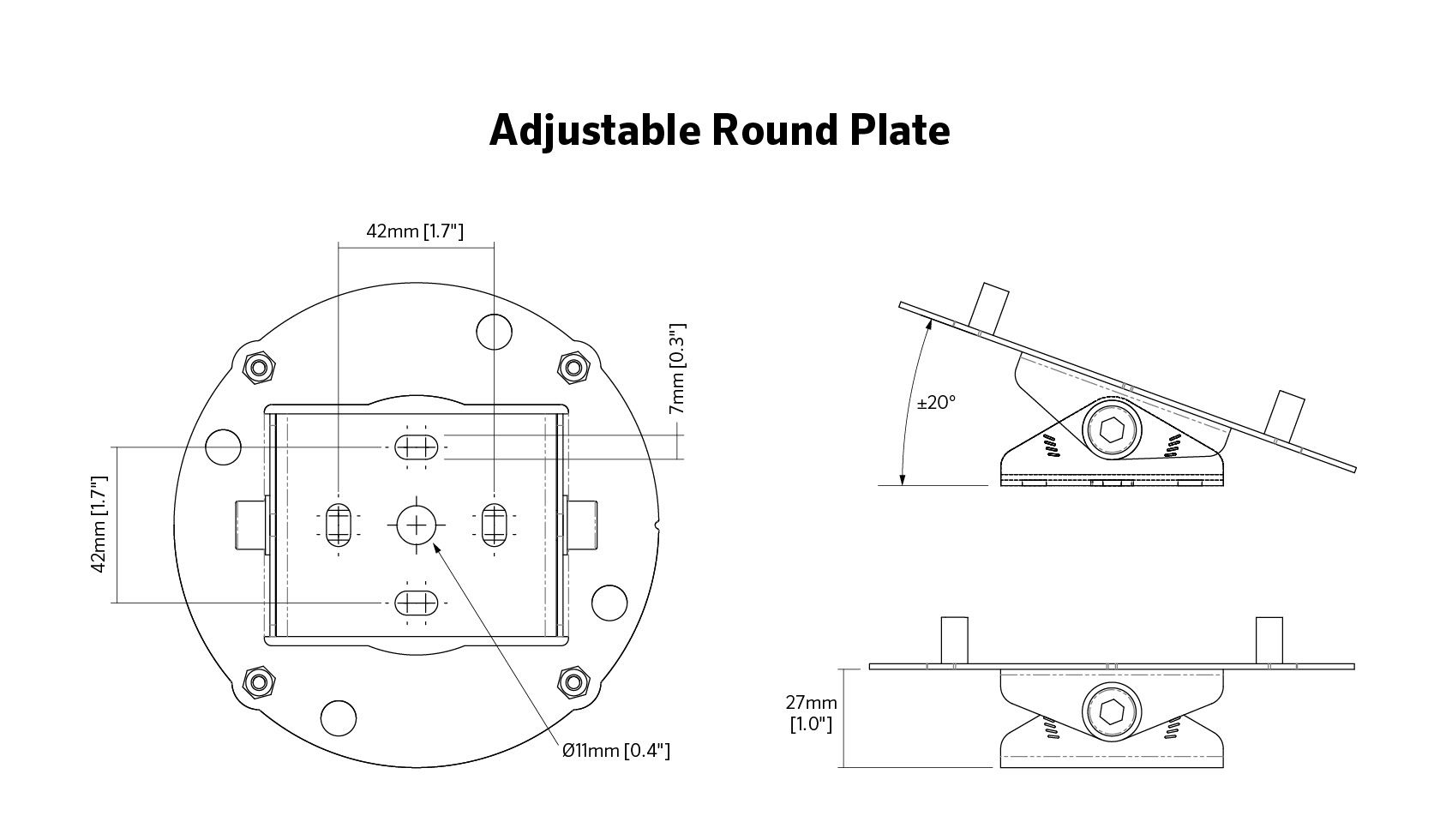

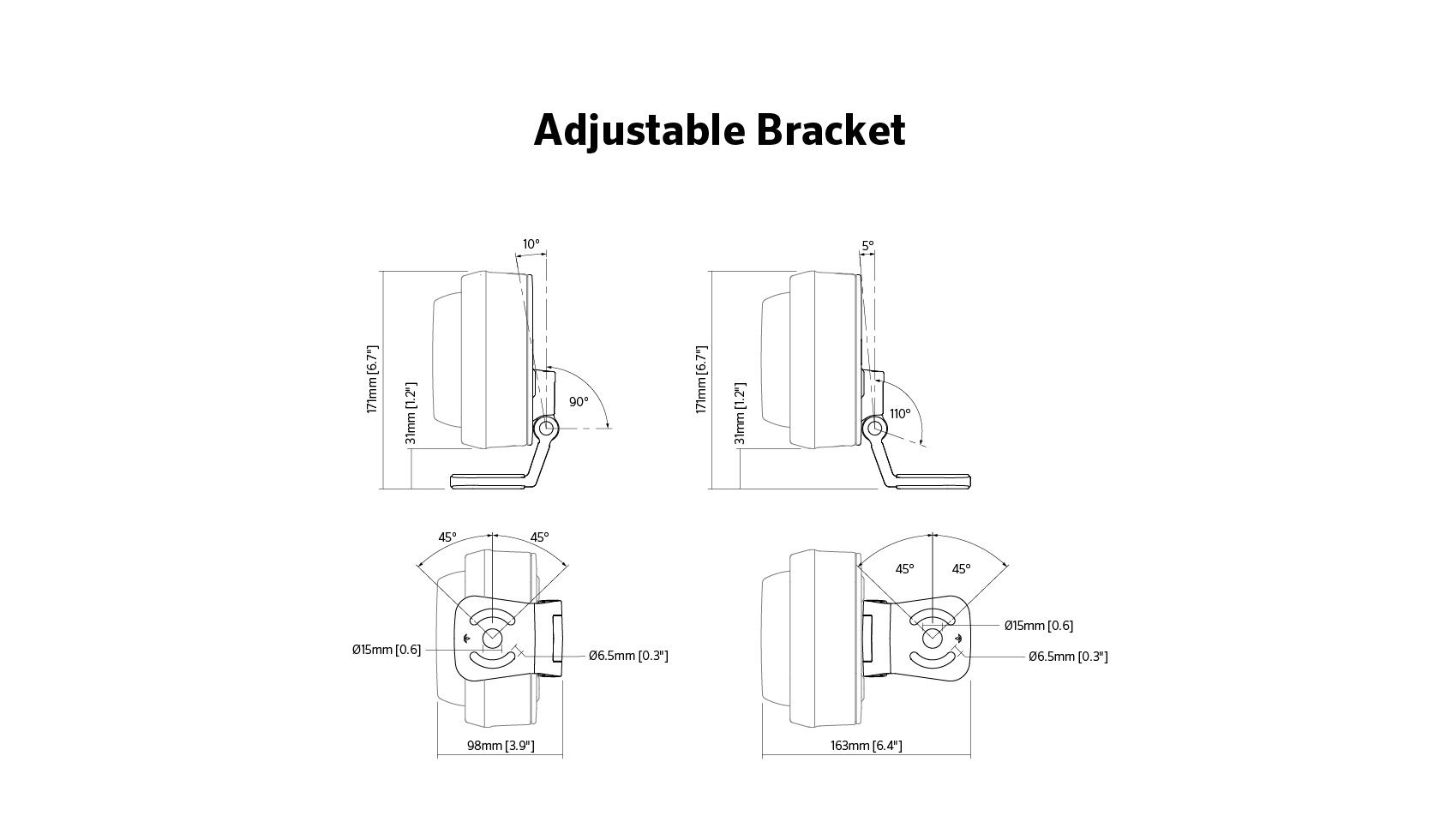

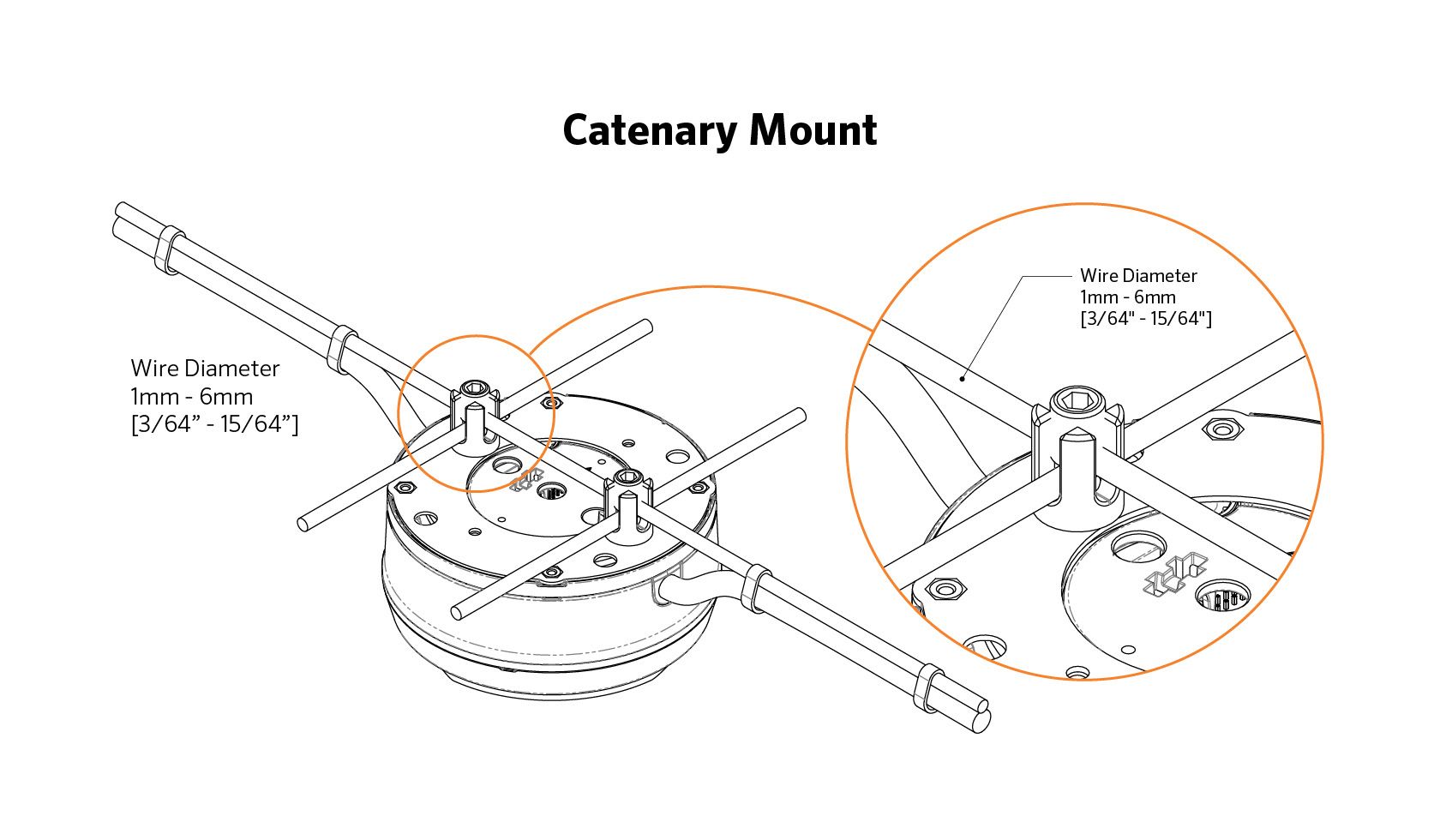

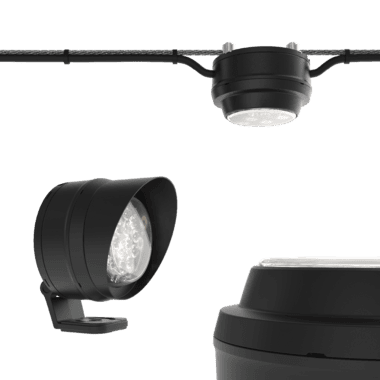

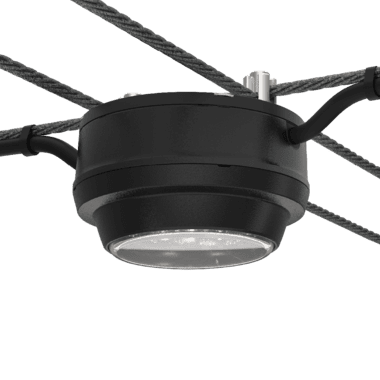

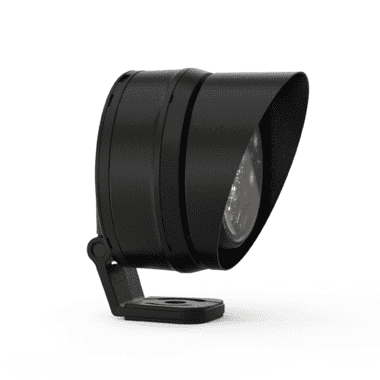

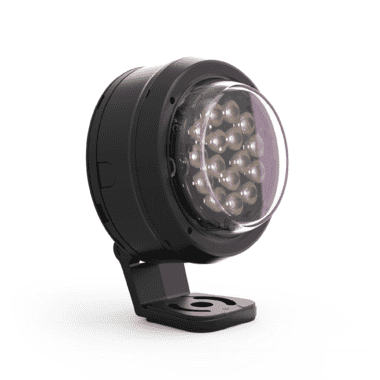

Sharing the same mounting versatility as other F6 luminaires—including surface, catenary, and adjustable arm mounting options—Fayra F6-P adapts across a wide variety of project conditions while maintaining a discreet architectural presence.

Together with other F6 and smaller F3 luminaires within the F-series family, Fayra F6-P enables layered architectural lighting schemes that combine functional illumination with creative lighting effects.

Features

Lumen Output 2,140 lm | 1,040 lm Power Consumption 22 W | 10 W Typical Lifetime (TM21 Reported) > 72,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 72,318 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK10 Compliance UL - USA & Canada CE RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

Specifications

Videos

Product Highlights | Faisca F6
Meet the Faisca F6, with a surface brightness of 100,000 cd/m² in RGBW, imagination is the only limit!

Accessories


Control
LS6550 PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)
LSLED40W-48V DC Power Supply, 48 V, 40 W
LSLED80W-48V DC Power Supply, 48 V, 80W
LSLED120W-48V      DC Power Supply, 48 V, 120 W
LSLED240W-48V DC Power Supply, 48 V, 240 W
LSLED320W-48V DC Power Supply, 48 V, 320 W
LSLED480W-48V DC Power Supply, 48 V, 480 W
LSLED600W-48V DC Power Supply, 48 V, 600 W

Shielding & Glare Control 63 or 67 Only)

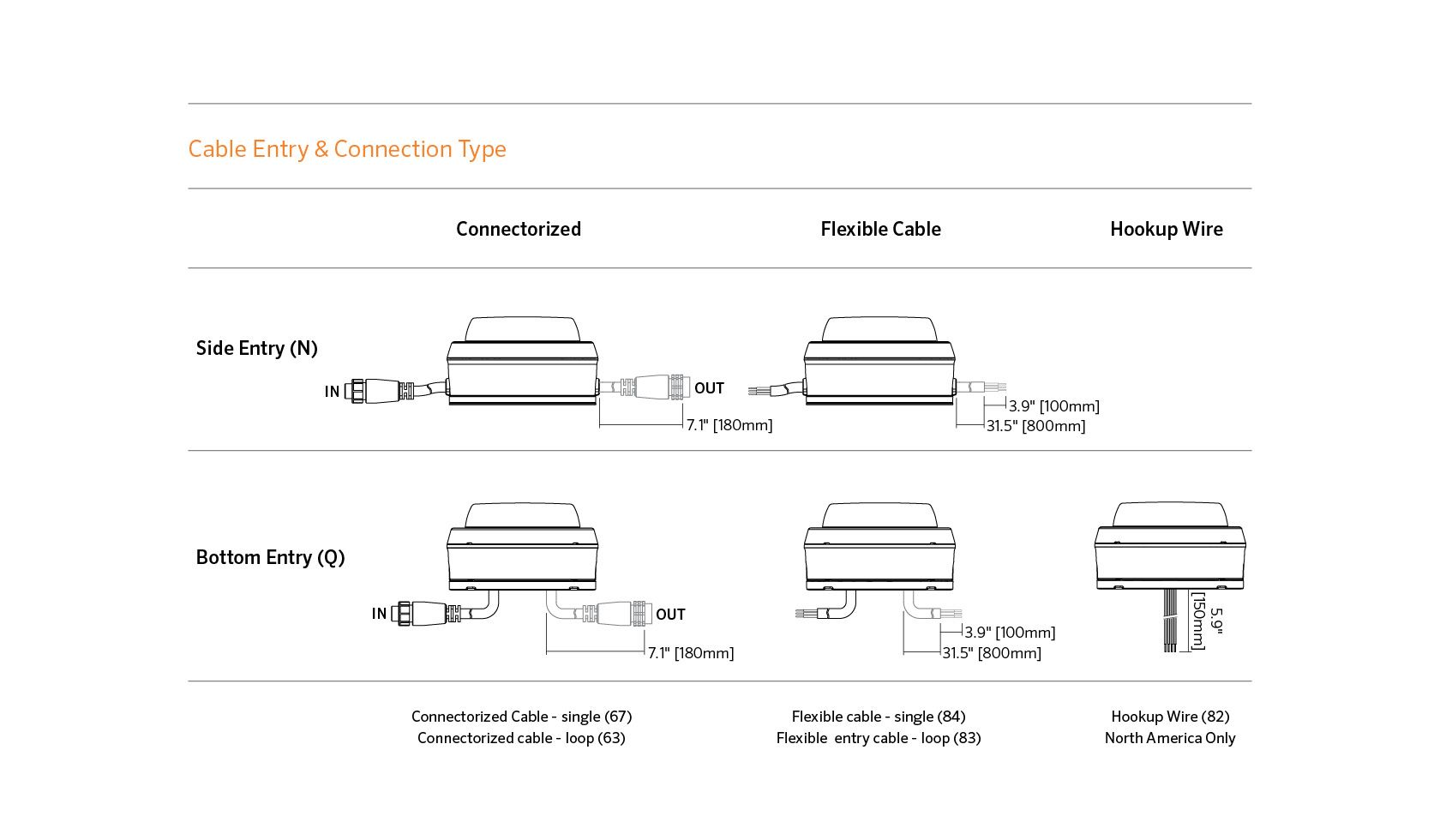

LS6426-PS Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync

Shielding & Glare Control
LS6270 Snoot
LS6271 Visor

Mounting & Installation

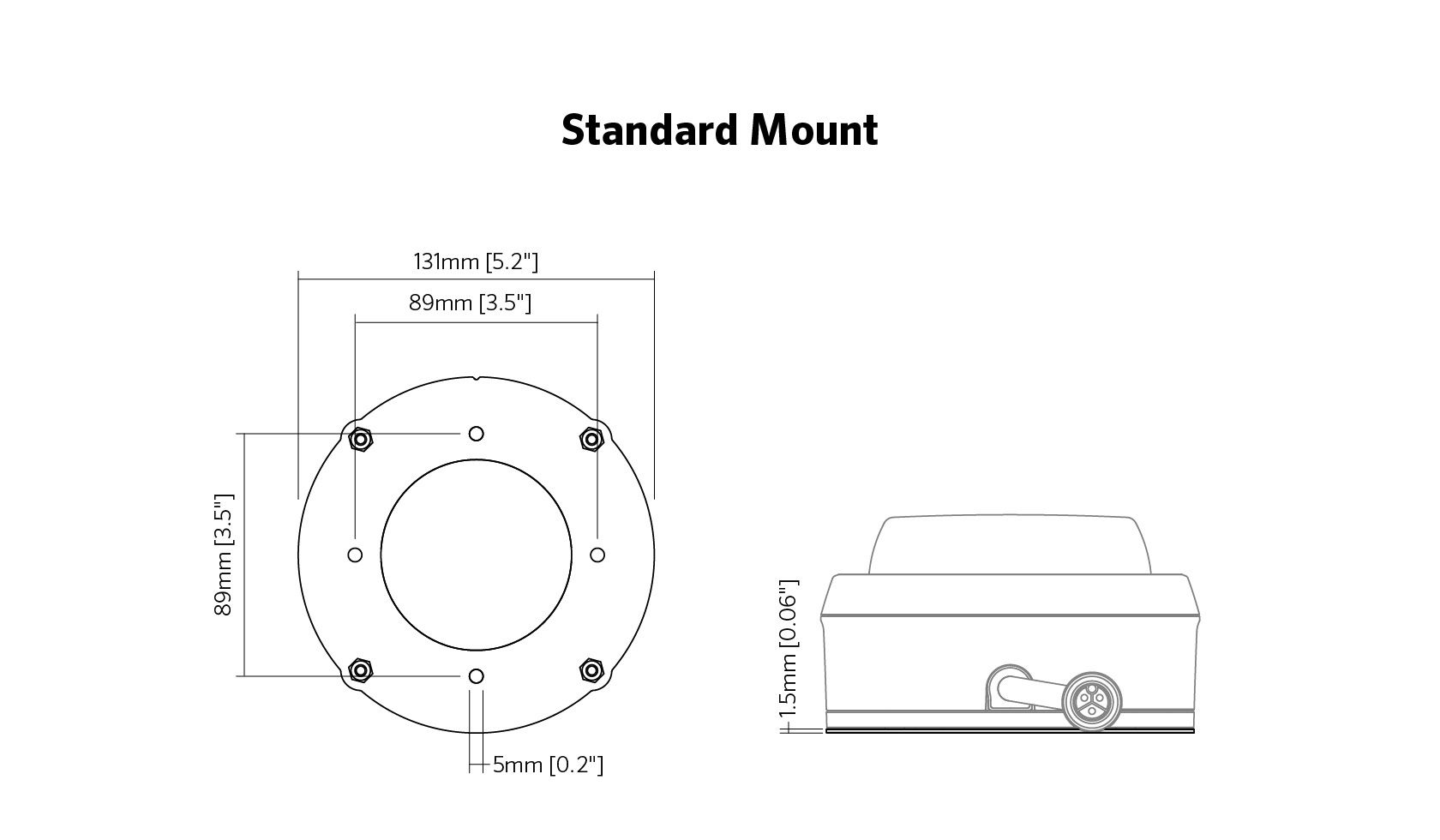

LS6301 Surface Mounting Kit
LS6306 Tenon Adaptor
LS6307 Tenon Adaptor
LS6302 3" Pole Clamp
LS6303 4" Pole Clamp
LS6304 4.5" Pole Clamp
LS6305 5" Pole Clamp
LS6258 Wall / Pole Mount Arm
LS6327 UL Junction Box
LS6325 Ground Mount Post
