Product Overview

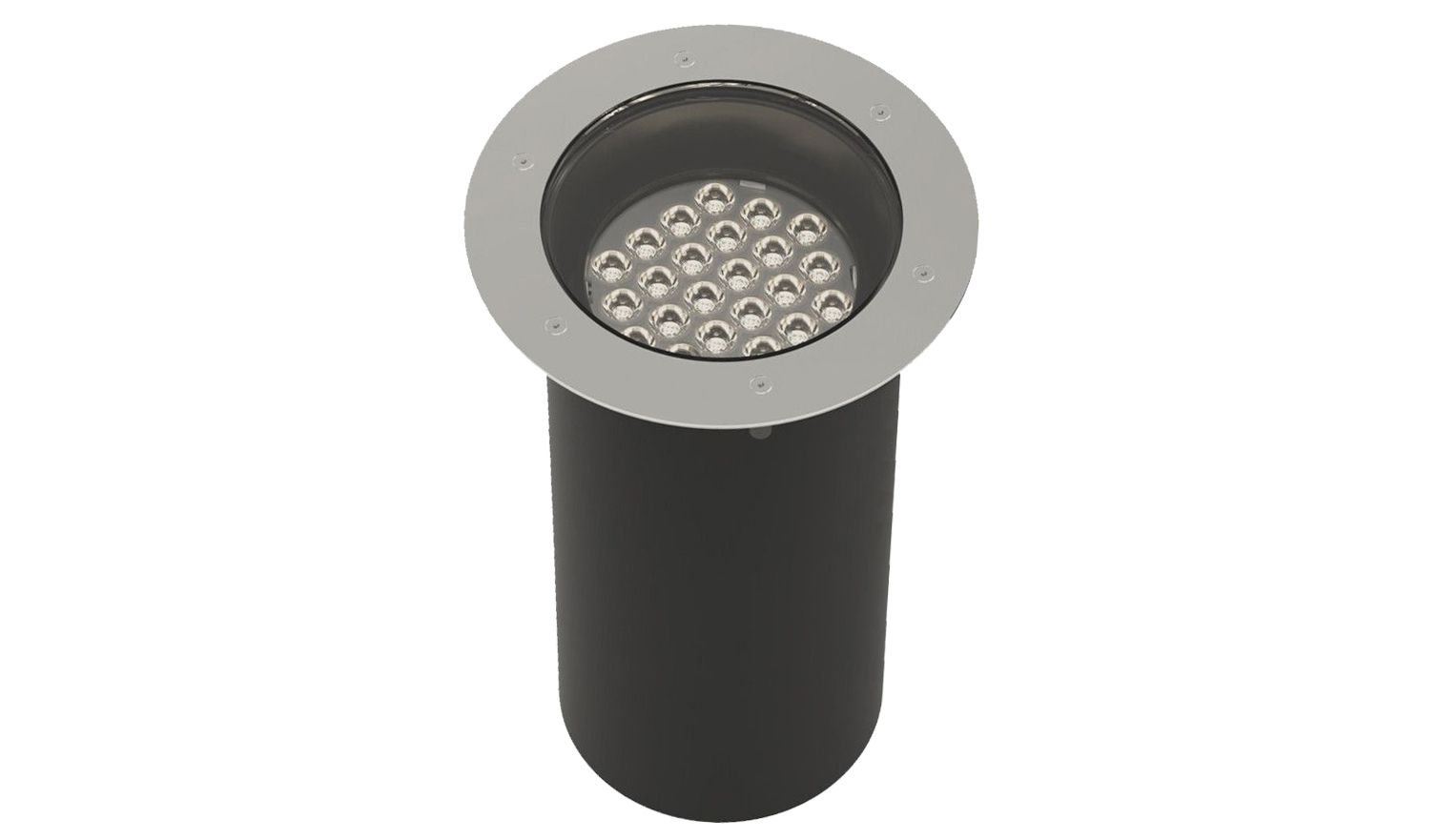

The Erden E8 is a high-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available as non-dimmable or DALI and 0-10V dimmable configurations.

Features

Lumen Output 3,520 lm Power Consumption 34 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.3 mA @ 120 Vac, 0.4 mA @ 240 Vac, 0.6 mA @ 277 Vac Control Protocol DALI, 0-10 V, Non-Dimmable IP Rating IP68 IK Rating IK10 Compliance

Color Options Warm White

Data Sheet

Specifications

Accessories


LS640-K	Pre-Installation Mounting Kit
LS6234	Snoot Array Louver
LS6235	Diffusion Media

Downloads

Data Sheet

Install Guide - Pre-Install (connector) PDF (2.98 M) Install Guide - Pre-Install (hardwired) PDF (2.5 M) Install Guide - Direct Burial PDF (1.84 M) DXF Files LS308X.zip ZIP (639.26 KB) IES Files LS3082 ZIP (1.81 M)

Technology

Product Configurator

LS3082 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E8 Foundation below

Installation Type

Select the installation type you require.

Required

Pre-Installation

Direct Burial

Light Engine

Required

34 W (34D)

Light Source

Alternative LED colors and CRIs available on request.

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

½” NPT Adaptor (82)

½” NPT Adapter with hook up wire for hard wired installations, includes MicroAntileach

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector with Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

6°

Narrow Medium (NM)

15°

Medium (ME)

30°

Wide (WD)

45°

Wide Flood (WF)

60°

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

Housing Depth

Required

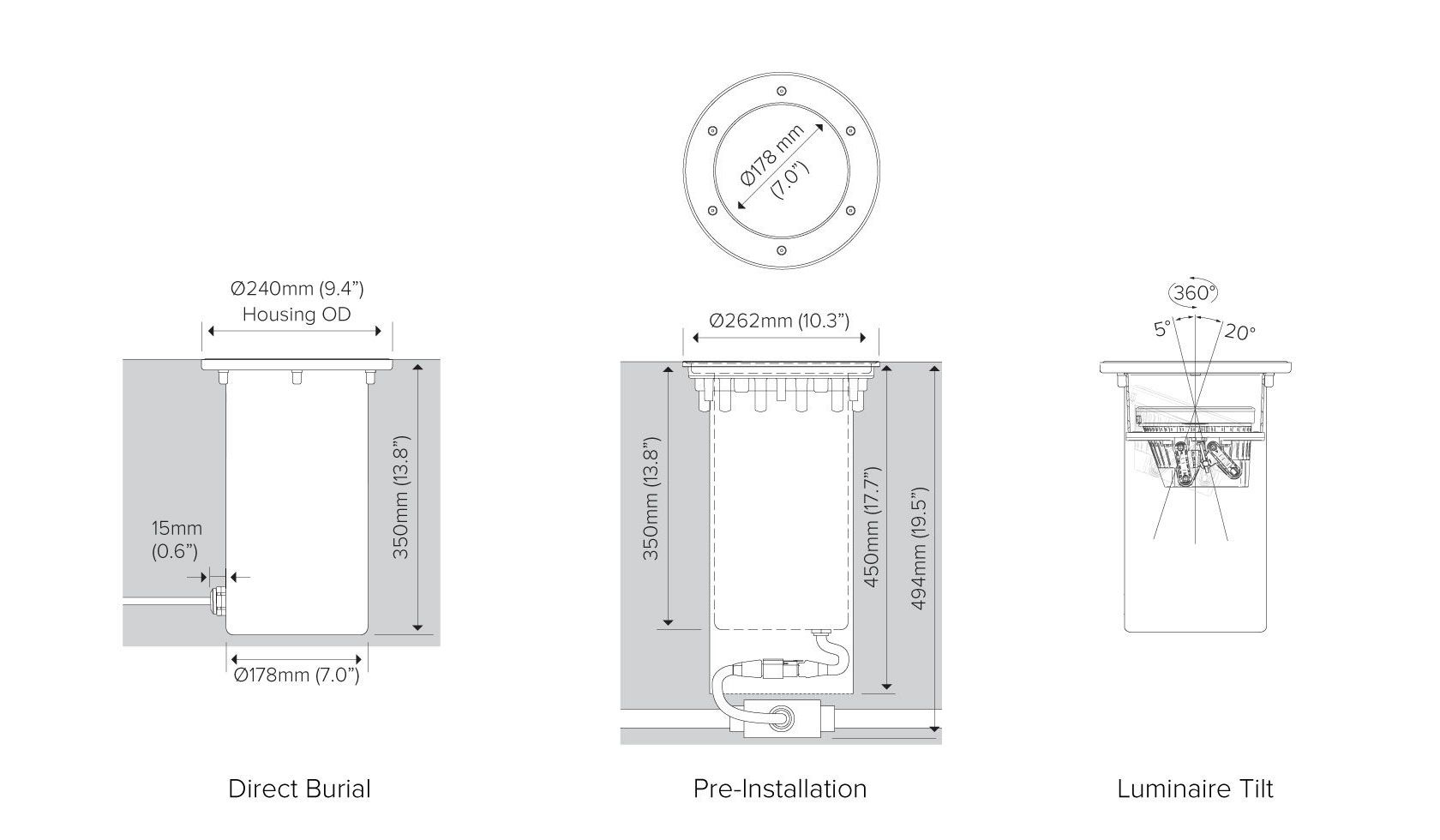

Pre-Install Blockout (24)

450mm / 17.7”

More info

Direct Burial (25)

350mm / 13.8”

More info

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

120-277 Vac, 50/60 Hz (09)

Mains Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

0-10 V (AH)

For single color dimming applications via 0-10 V.

Accessories

Pre-Installation Options

Pre-Installation Kit (LS640-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Install Blockout (LS640-K-87-09)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Install Blockout (LS640-K-77-09)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 4 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Shielding & Glare Control

Snoot Array Louver (LS6234)

Provides additional glare control. Available in black only and ordered separately.

Lens

Diffusion Media (LS6235-10)

Diffusion Media, 10° Microstructure Film

Diffusion Media (LS6235-20)

Diffusion Media, 20° Microstructure Film

Diffusion Media (LS6235-30)

Diffusion Media, 30° Microstructure Film

Diffusion Media (LS6235-40)

Diffusion Media, 40° Microstructure Film
