Terraluz TE5 Foundation

Terraluz TE5 Foundation - LS3152

A high-output, linear inground luminaire for architectural and infrastructure applications.

Configure this product Features Specifications Accessories

Product Overview

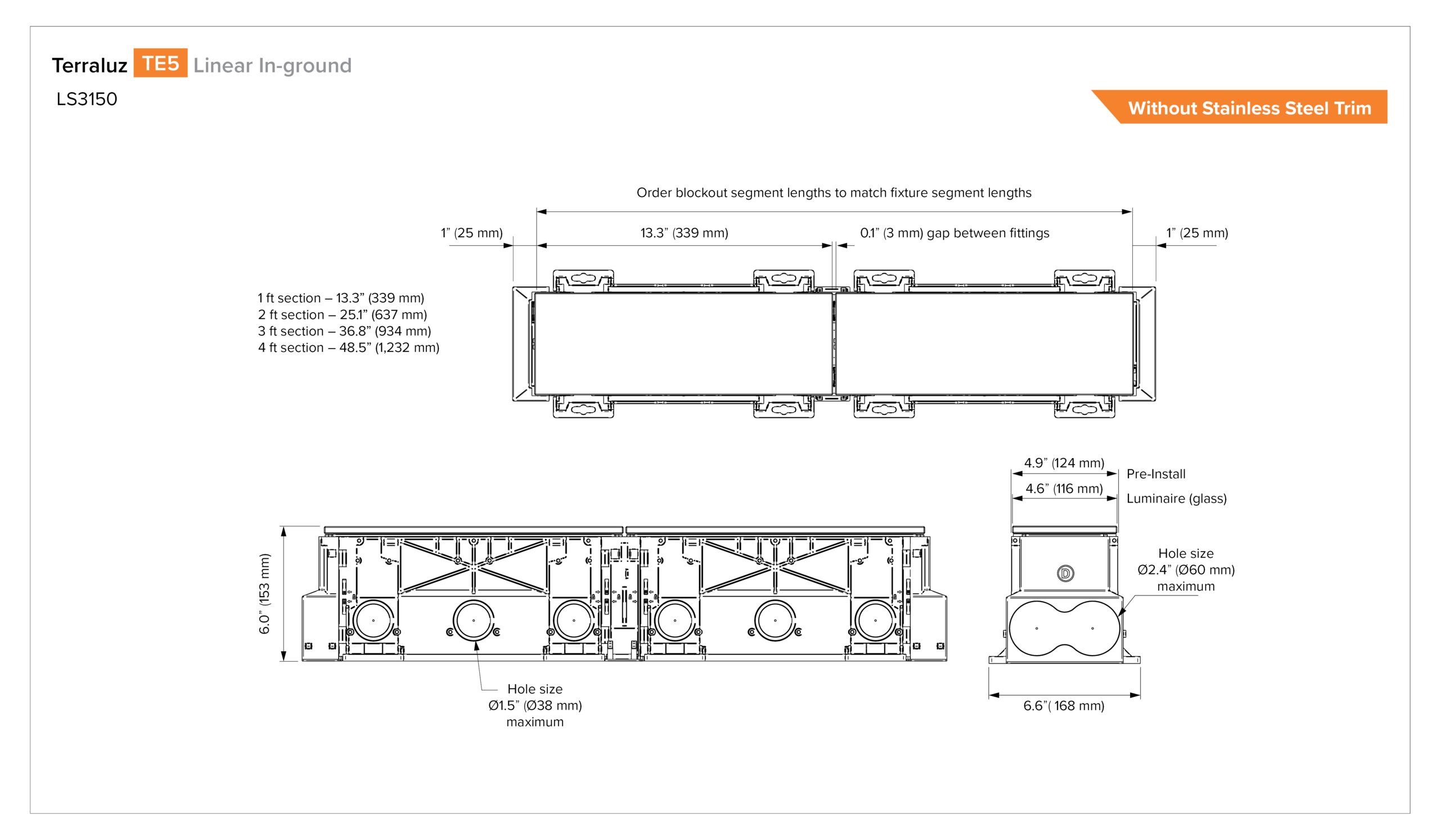

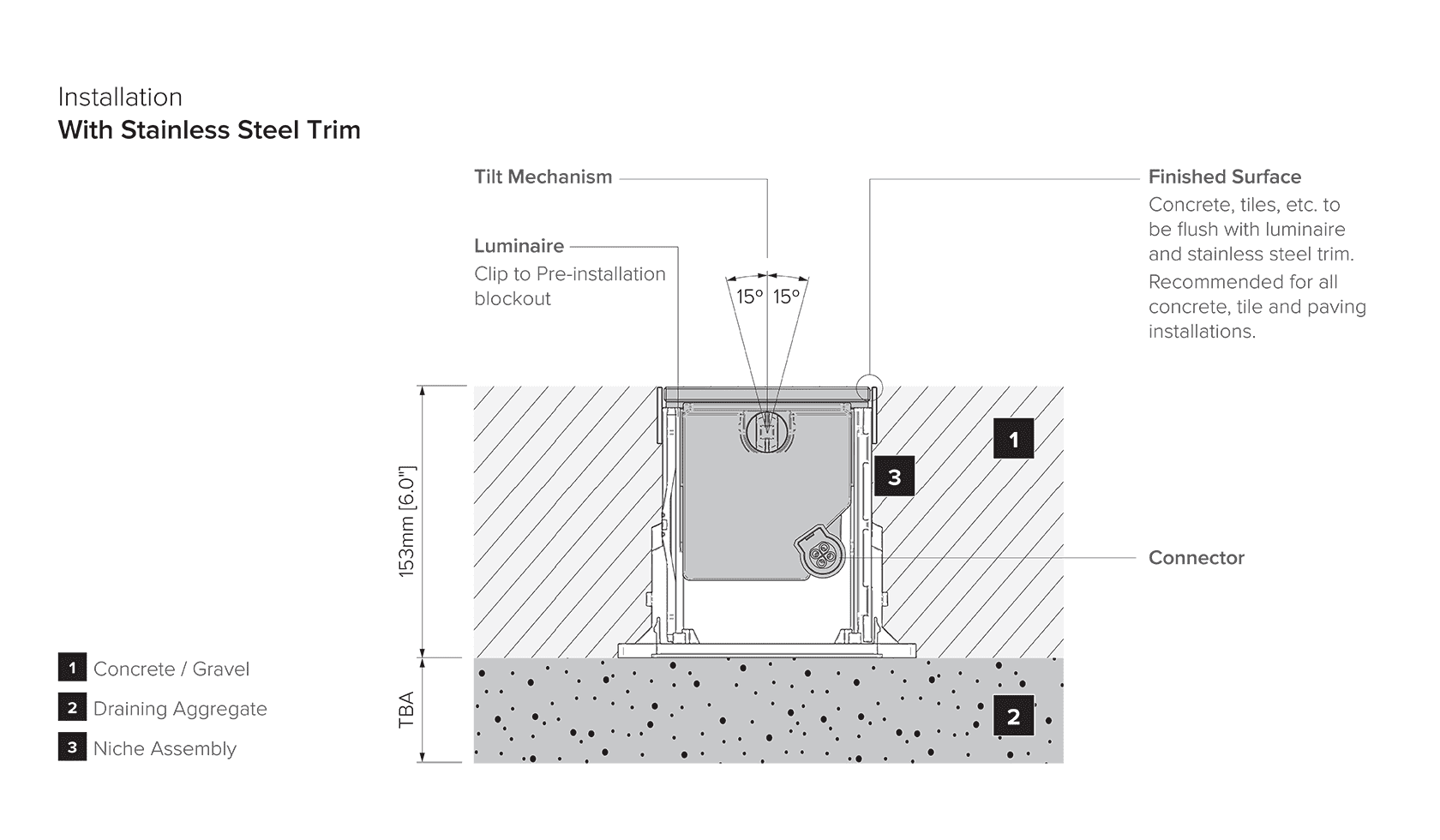

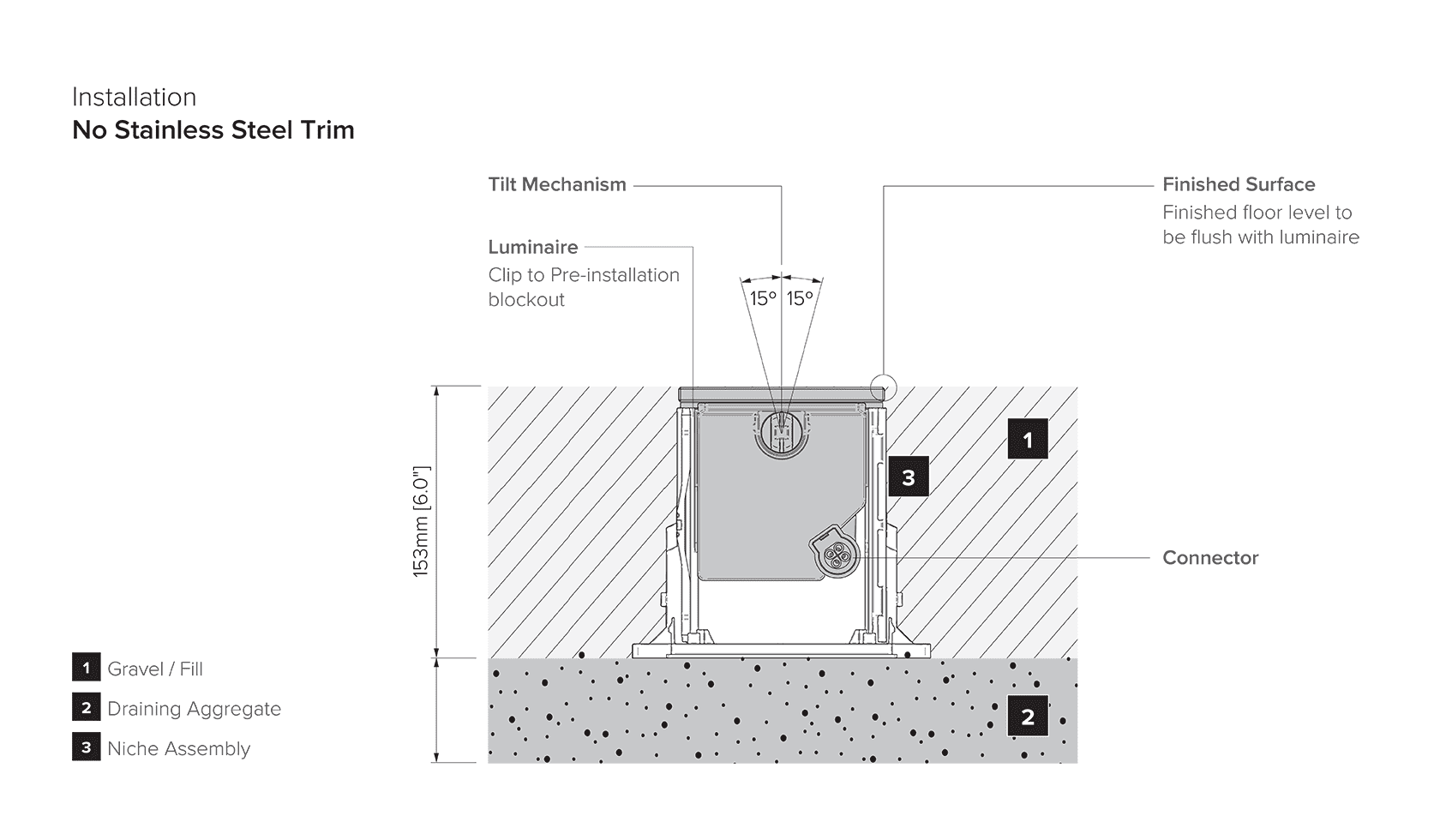

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available in cool and warm white light engines, the luminaire can be conrolled via DALI or 0-10V. The LS3152 is available in 1-4 foot lengths and multiple luminaires can be connected end-to-end, allowing for long continuous runs.

Features

Lumen Output 6,020 Power Consumption 18 W/ft Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage 220-240 Vac, 50/60 Hz (CE) | 120/277 Vac, 60 Hz (UL) Earth Leakage 0.6 mA @ 220 V Control Protocol DALI, 0-10 V, Non-Dimmable IP Rating IP66 / IP67 (IP68 Tested) IK Rating IK9 Compliance UL - USA & Canada

Color Options Warm White

Data Sheet

Specifications

Accessories


Control
LS6540	PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only)

Wiring
LS6435-PS	Leader Cable, Line Voltage, 4-Core Hook Up Wire, PowerSync
LS6404U-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
