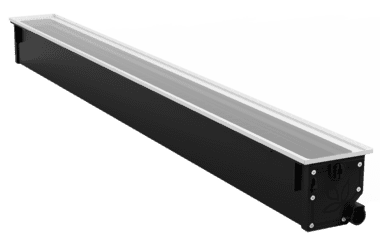

Terraluz TE5 Generation 2

Terraluz TE5 Generation 2 - LS3150

A high-output, linear inground luminaires for architectural and infrastructure applications.

Configure this product Features Specifications Accessories

Product Overview

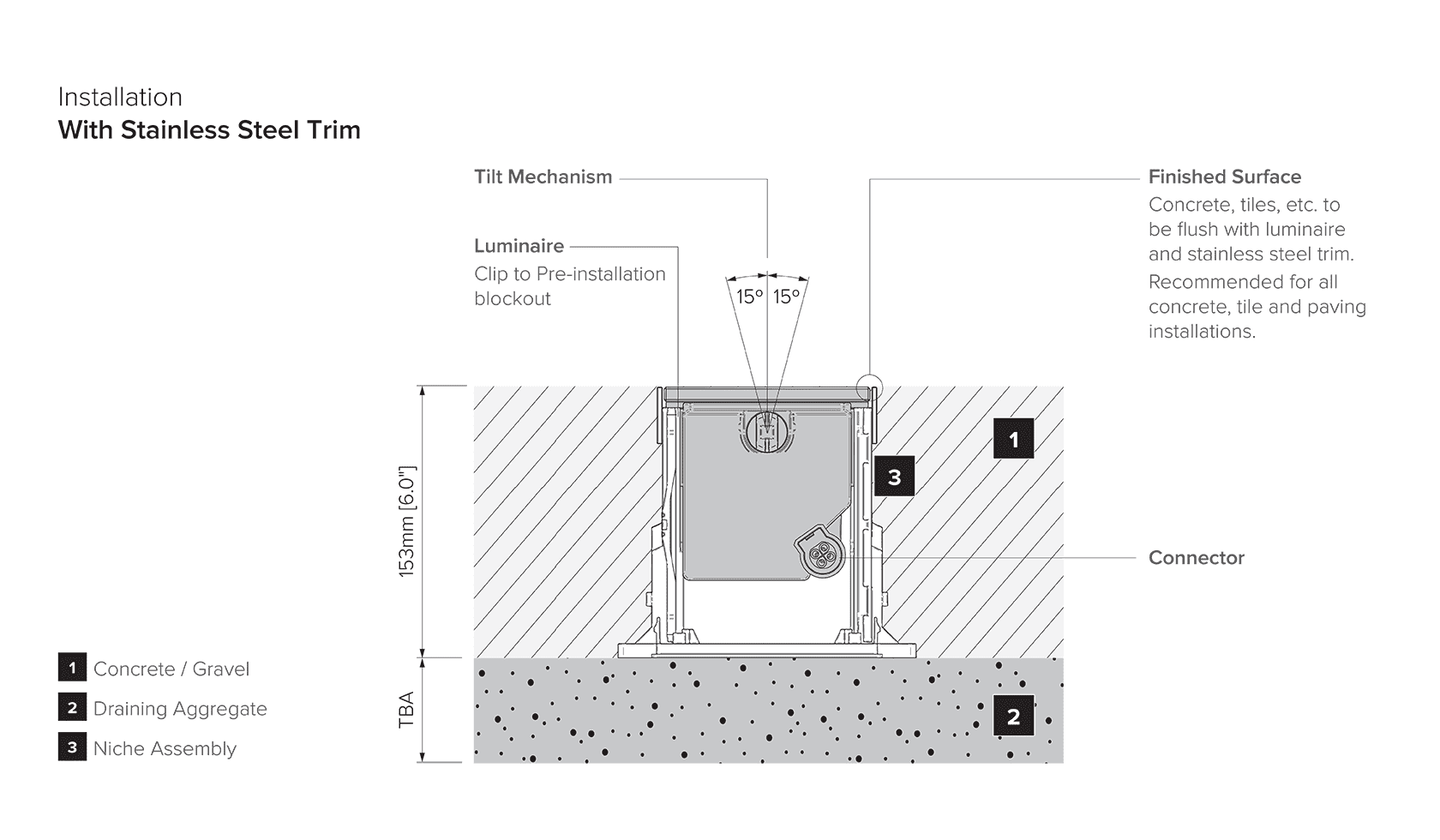

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Available in a range of lengths and combined with unique and flexible T and L junctions enables the luminaire to be installed in multiple orientations including continuous linear. Available in white, colour changing and tunable white light engines.

Features

Lumen Output 7,480 lm Power Consumption 15 W/ft | 23 W/ft Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage 220-240 Vac, 50/60 Hz (CE) | 120/277 Vac, 60 Hz (UL) Earth Leakage 0.6 mA @ 220 V Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V IP Rating IP66 / IP67 (IP68 Tested) IK Rating IK9 Compliance UL - USA & Canada

Color Options Warm White

Data Sheet

Specifications

Accessories


Control
LS6540	PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only)

Wiring
LS6435-PS	Leader Cable, Line Voltage, 4-Core Hook Up Wire, PowerSync
LS6404U-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
