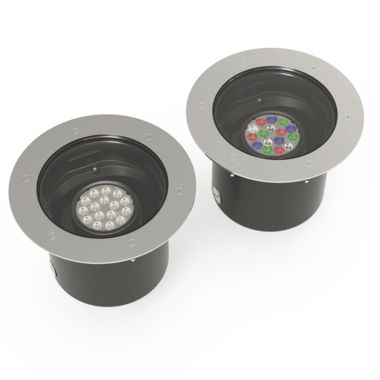

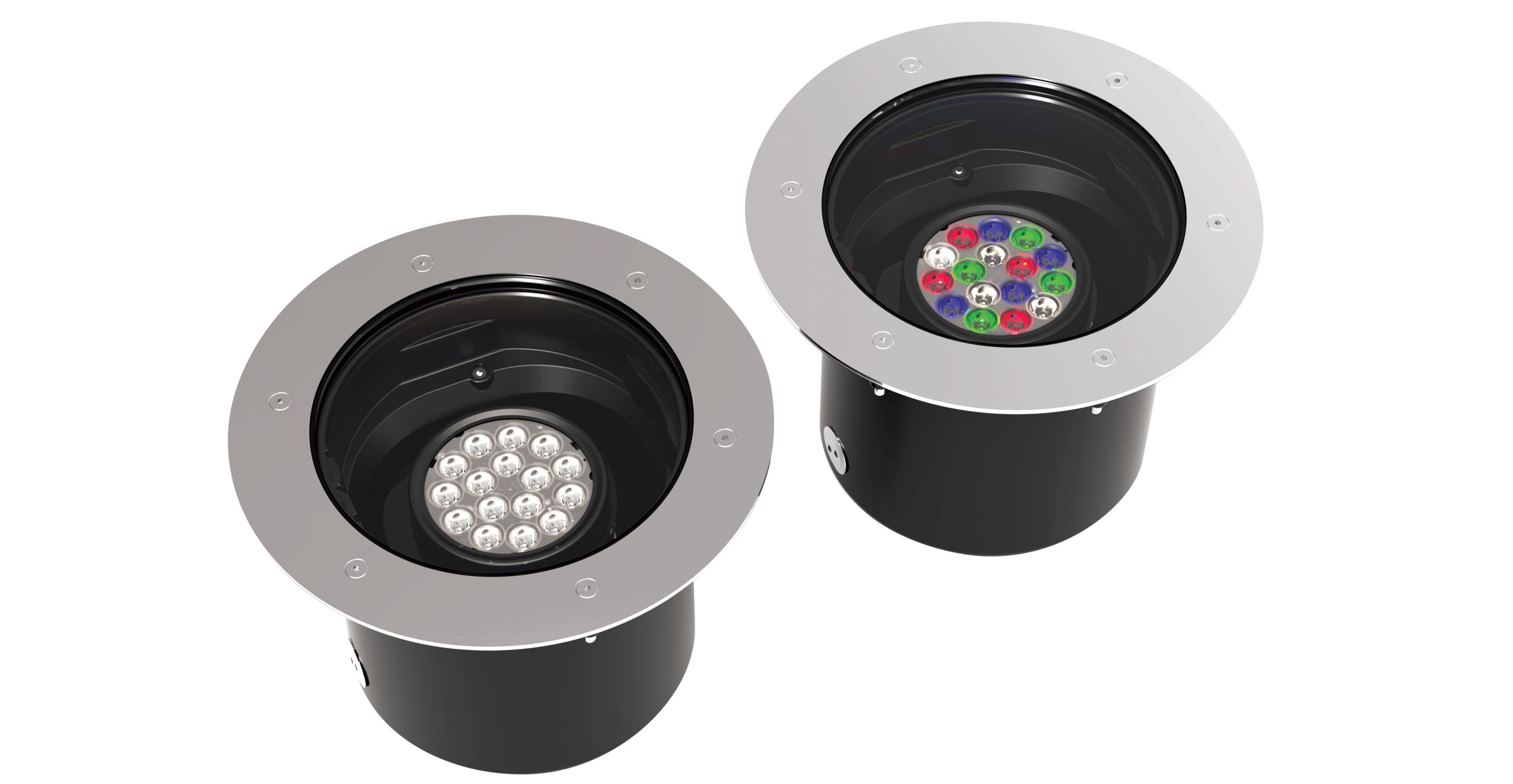

Erden E6

Erden E6 - LS3060

An architectural-grade, medium-powered, shallow-depth in-ground.

Price

Configure this product Features Specifications Videos Accessories

Product Overview

The Erden E6 is a medium-powered, shallow-depth in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™allows for highly granular digital control via common protocols using mains voltage. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 2,245 lm Power Consumption 25 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocols DMX/RDM, Artnet, PWM, 0-10 V Weight 8.8 lb (4.0 kg) IP Rating IP68 IK Rating IK10 Static Load Rating 9,259 lb (4,200 kg) Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Webinar | Erden E6

Introducing Lumascape's shallow-depth in-ground luminaire, the Erden E6

Accessories


LS6052-K	Pre-Installation Kit
LS6247	Snoot Array Louver
LS6248	Honeycomb Louver

Downloads

Data Sheet

Install Instructions (Pre-Install) PDF (1.17 M) Install Instructions (Direct Burial) PDF (908.25 KB) IES Files LS3060 V2 ZIP (1.09 M) DXF Files LS3060 ZIP (368.64 KB) Product Flyer LS3060 PDF (178.95 KB)

Technology

Product Configurator

LS3060 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E6 below

Installation Type

Select the installation type you require.

Required

Pre-Installation

Direct Burial

Power Consumption

For all PowerSync Controlled Luminaires

Required

25 W (25D)

Light Source

Alternative LED colors and CRIs available on request.

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Red

Single Colour (GRN)

Green

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

½” NPT Adaptor (82)

½” NPT Adapter with hook up wire for hard wired installations, includes MicroAntileach

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

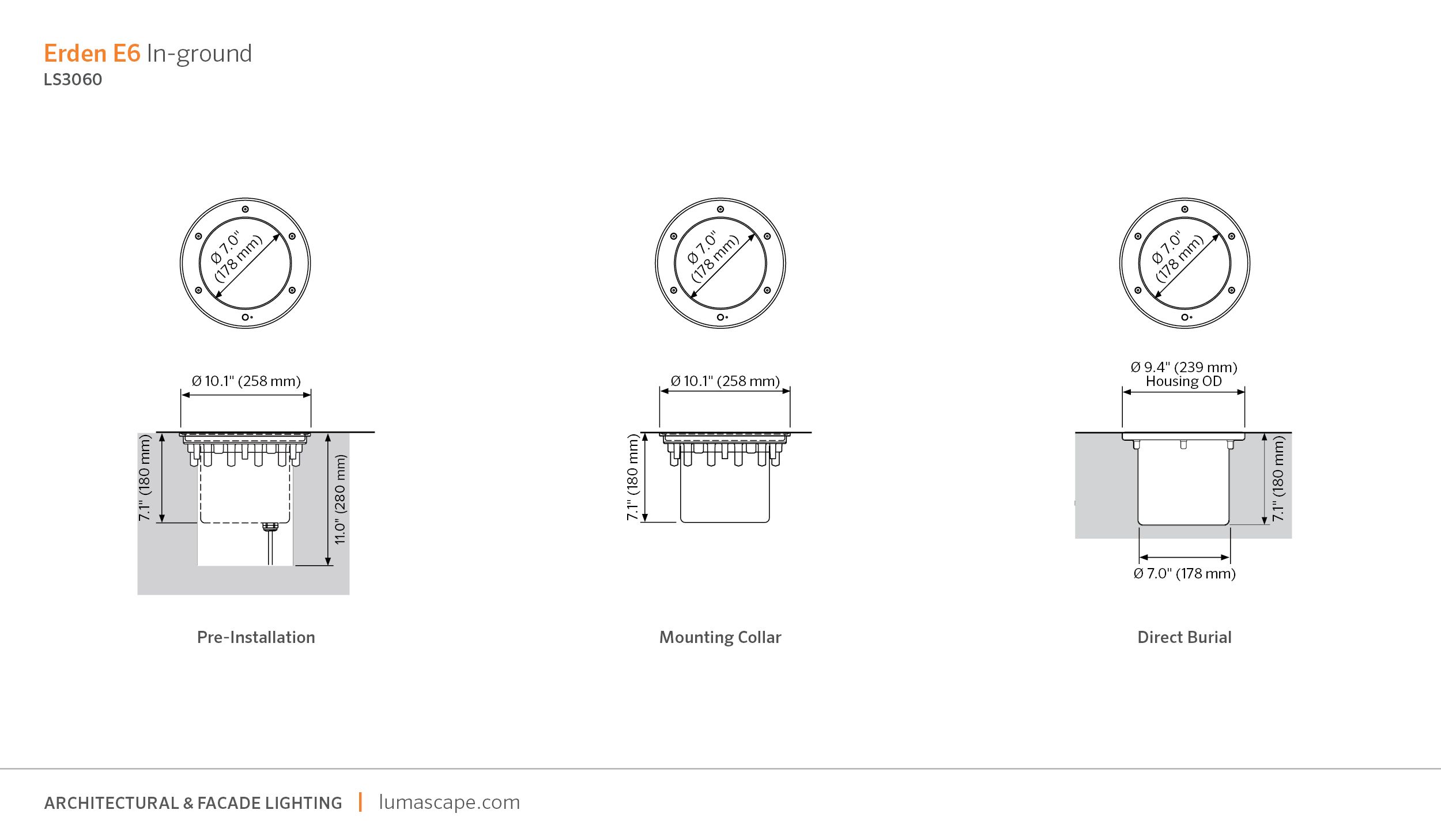

Housing Depth

Required

Pre-Install Blockout (23)

12.8"/ 280 mm

Direct Burial (21)

7.1" / 180 mm

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Accessories

Pre-Installation Options

Pre-Installation Kit (LS6052-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS6052-K-77)

For use with Type 77 connections. Fitted with an IP68 connector, which attaches directly to the cable supplied with an LS640-K without the use of any tools. The cable is 3' (1 m) in length and is factory-assembled with a junction box. Price inclusive with Pre-Installation Blockout luminaire.

More info

Shielding & Glare Control

Snoot Array Louver (LS6247)

Provides additional glare control. Available in black only and ordered separately.

Honeycomb Louver (LS6248)

Provides additional glare control. Available in black only and ordered separately.
