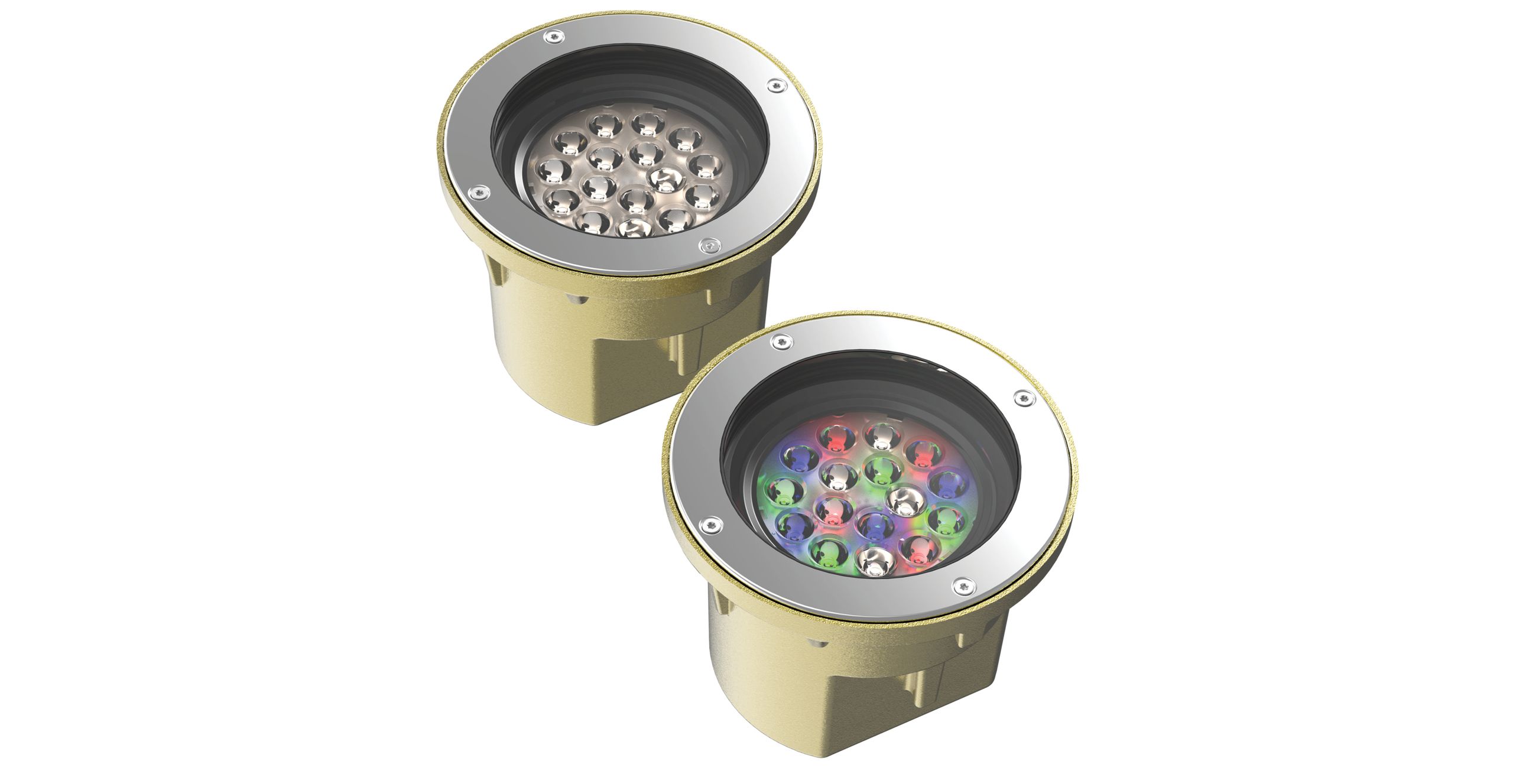

Erden Brass EB3 - LS3330

A robust and compact, high-performance in-ground luminaire designed for challenging environments.

Product Overview

The Erden Brass EB3 is a robust and compact in-ground luminaire, delivering an impressive output of over 1,400 lumens. IP68 factory-sealed, features a die-cast brass body, and is designed for reliability and superior outdoor performance in the most challenging of environments.

Highly versatile, the Erden Brass EB3 offers two orientations (vertical and a 15° tilted), a selection of stainless-steel and brass lids, glare control louvers, and the choice between direct burial or a pre-installation sleeve for mounting in concrete. This luminaire can also be rotated 360º within its pre-installation sleeve for easy aiming without the need for disassembly or unsealing.

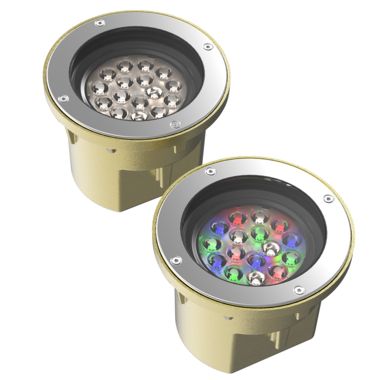

Available in static white or RGBW (with royal blue) and in a range of symmetrical and elliptical beam options. Ideal for a variety of projects, the Erden Brass EB3 is the perfect blend of durability, performance, and style for any outdoor applications.


Total Lumens 1,420 lm Power Consumption < 15 W Input Voltage 30 to 48 Vdc Typical Lifetime > 179,506 hours @ 122ºF (50ºC) Ambient Temperature (B10, L90, TM21 Projected) Control Protocols DMX/RDM, Artnet IP Rating IP68 IK Rating IK8 Compliance ETL - USA & Canada CE RCM FCC Color Options Warm White Cool White RGBW with Royal Blue Data Sheet



LS6550 PowerSync Data Injector, Low Voltage, Generation 2
Pre-Installation Kits
LS6387 Pre-Installation Kit Blockout

Product Configurator


Select the required orientation
