nSola - nSLA15

Versatile, classic halogen up light.
Configure this product Features Specifications

Product Overview

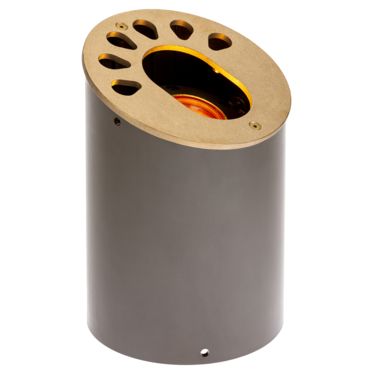

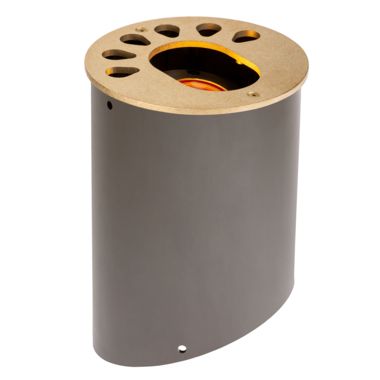

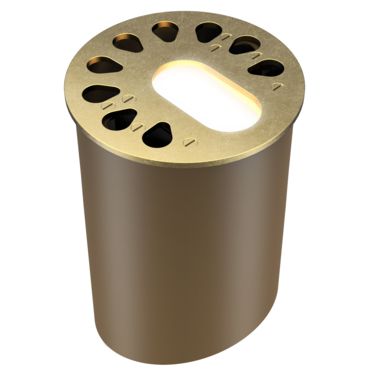

The nSola is a versatile, classic halogen up light that accepts MR-16 lamps and is manufactured in die-cast brass.

Features

Total Lumens 337 lm Power Consumption 4.3 W | 5.4 W Input Voltage 10-15 Vac/dc, 50/60 Hz Lamp Type MR-16 Installation Requirements Upward Direction Only Typical Lifetime White: 72,000 hrs Weight 6.8 lbs (3.1 kg) Compliance UL - USA & Canada RoHS Color Options Cool White Data Sheet

Specifications

Downloads

Data Sheet Install Guide

Technology

Product Configurator

nSLA15 _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise nSola below

Input Voltage

12 Vac/Vdc

Control

Required

Default (LED)

1) On/Off or 2) Phase-cut Dimming

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology

Output

Required

4.3 W (20)

261 lm

5.4 W (35)

337 lm

Color Temperature (CCT)

Required

Static White (W)

Static White (W)

2,700 K (80+ CRI)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Flood (FL)

35º Beam Angle

Wide Flood (WF)

60º Beam Angle

Compliance

Required

North America

UL Listed

International (E)

UL Listed and CE Approved. Required for shipment outside of North America.

Finish

Required

Natural Brass (BS)

Natural Brass (BS)

Accessories

Mounting & Installation

Specify Separately

Protective Insert (KG-CPI)

Protective Insert (KG-CPI)

A clear, protective insert for in-ground well lights to prevent debris from entering the luminaire's primary tube.

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
