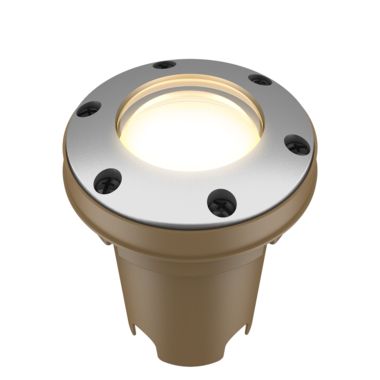

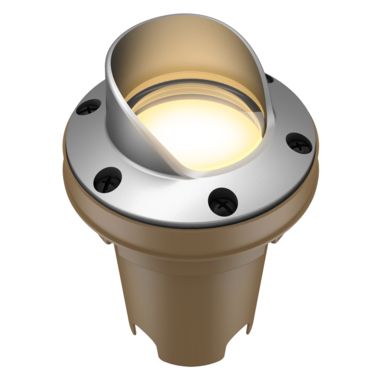

nColumn-10 - nCOL10

Cylindrical in-grade luminaire with versatile faceplate options in 1, 3, 6, or 9LED.
Configure this product Features Specifications Videos

Product Overview

Available in brass construction. An RGBW version is also available for use with ZDClink® controllers.

Features

Total Lumens 192 lm Power Consumption 2.4 W | 4.4 W | 12.2 W | 11.0 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac, 50/60 Hz Installation Requirements In-grade Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 2.4 lbs (1.1 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White RGBW Quickship Quickship Available Data Sheet

Specifications

Videos
Product Highlights | In-Grades
Introducing the in-grade Essentials Series of luminaires from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Downloads

Data Sheet Install Guide
IES Files nColumn-10 ZIP (34.02 KB) DXF Files nColumn-10 ZIP (86.93 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

nCOL10 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise nColumn-10 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Material

Required

Brass

Die-cast C360 brass with stainless steel hardware.

Aluminum (A)

Die-cast A380 aluminum with stainless steel hardware. Available in powder-coated finishes and in the ring style only.

Output

Required

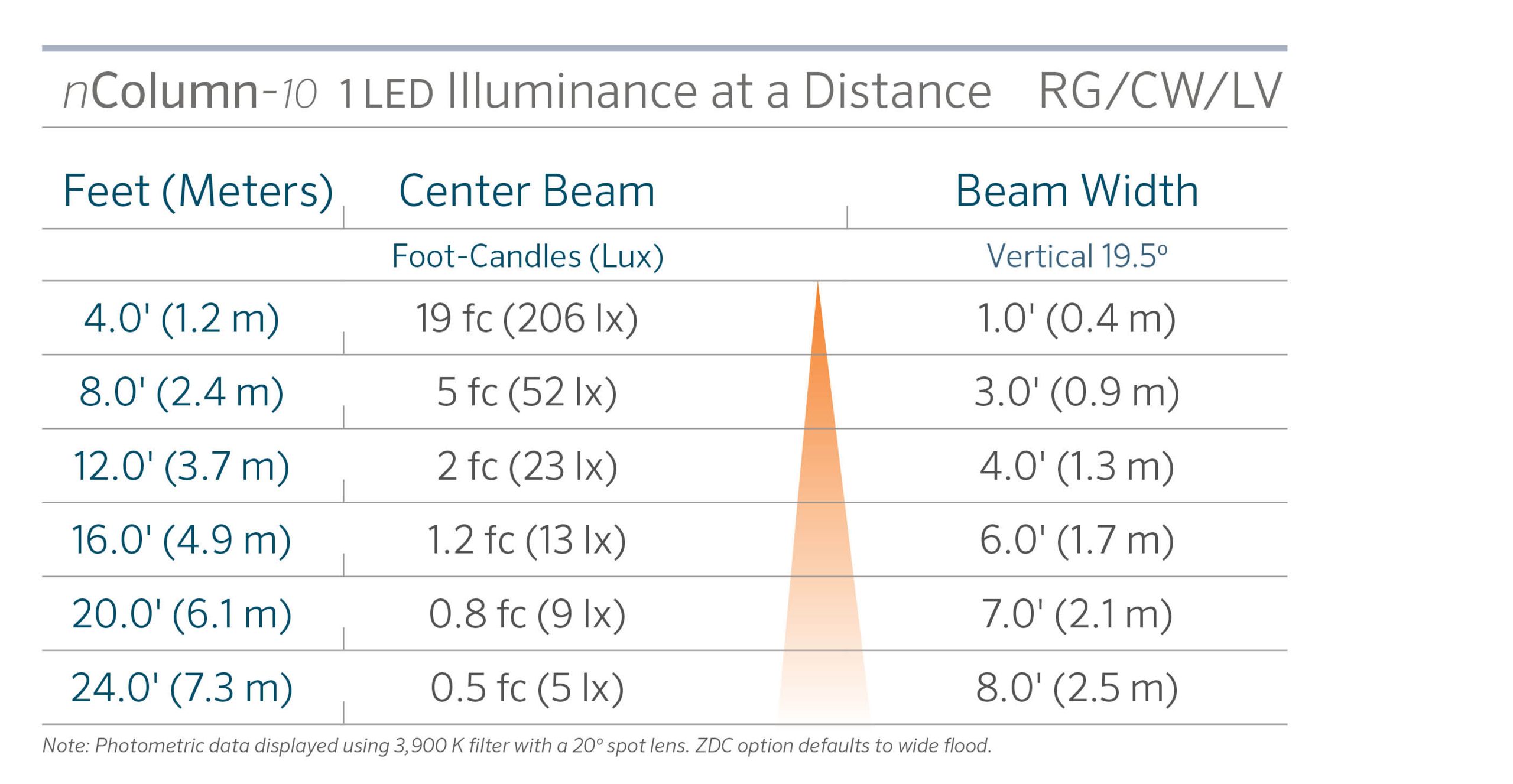

2.2 W (1LED)

79 lm

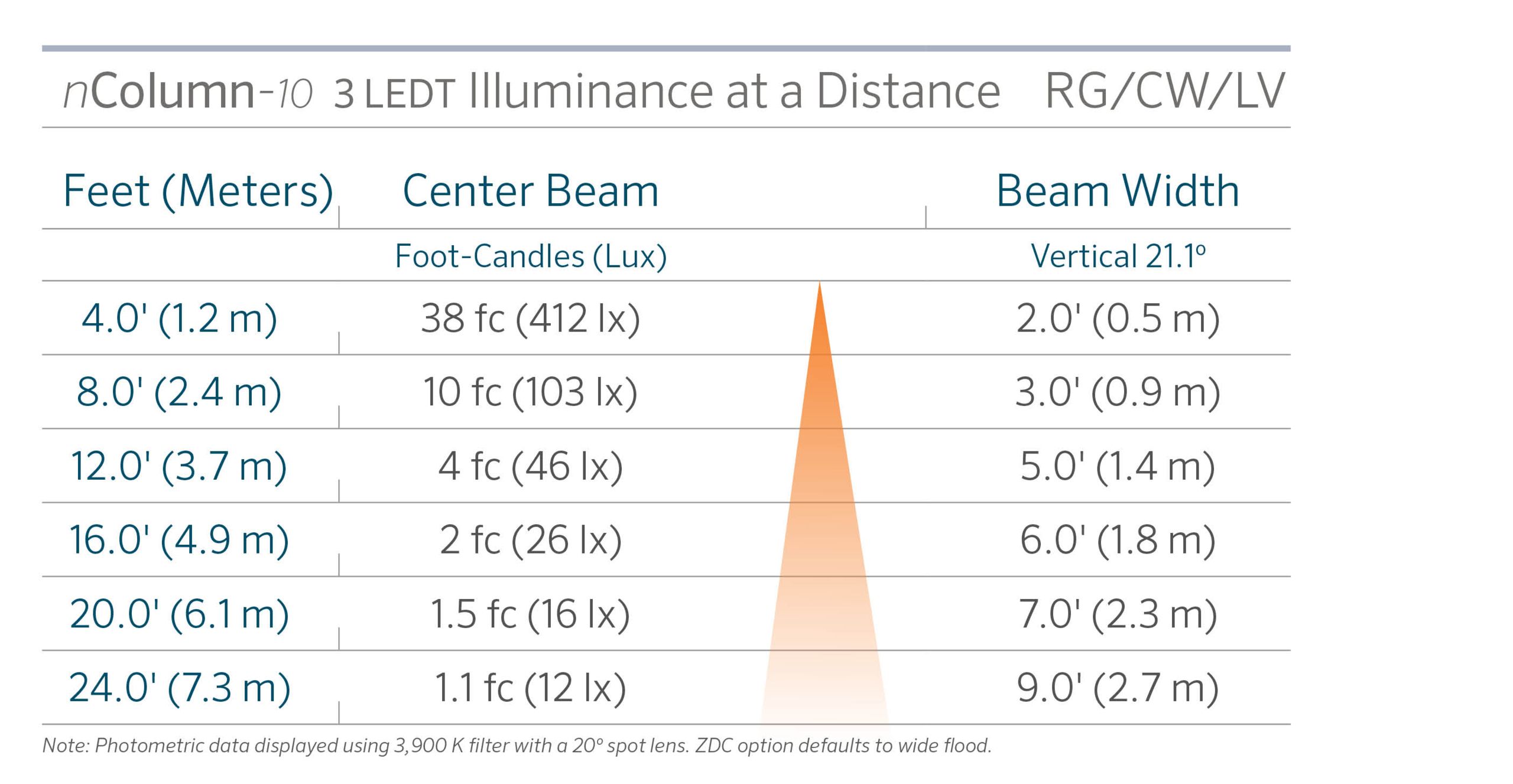

4.4 W (3LED)

305 lm

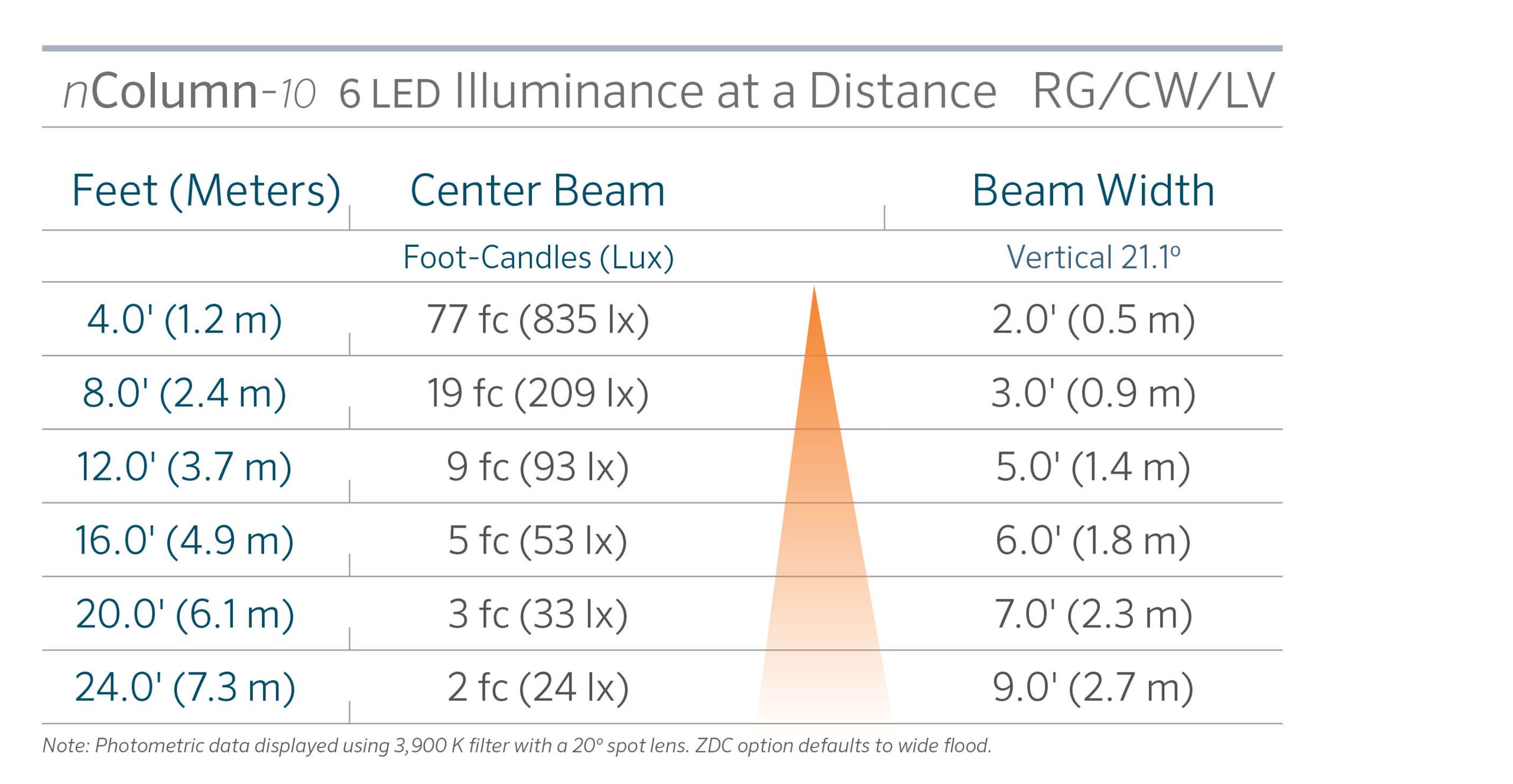

9.3 W (6LED)

540 lm

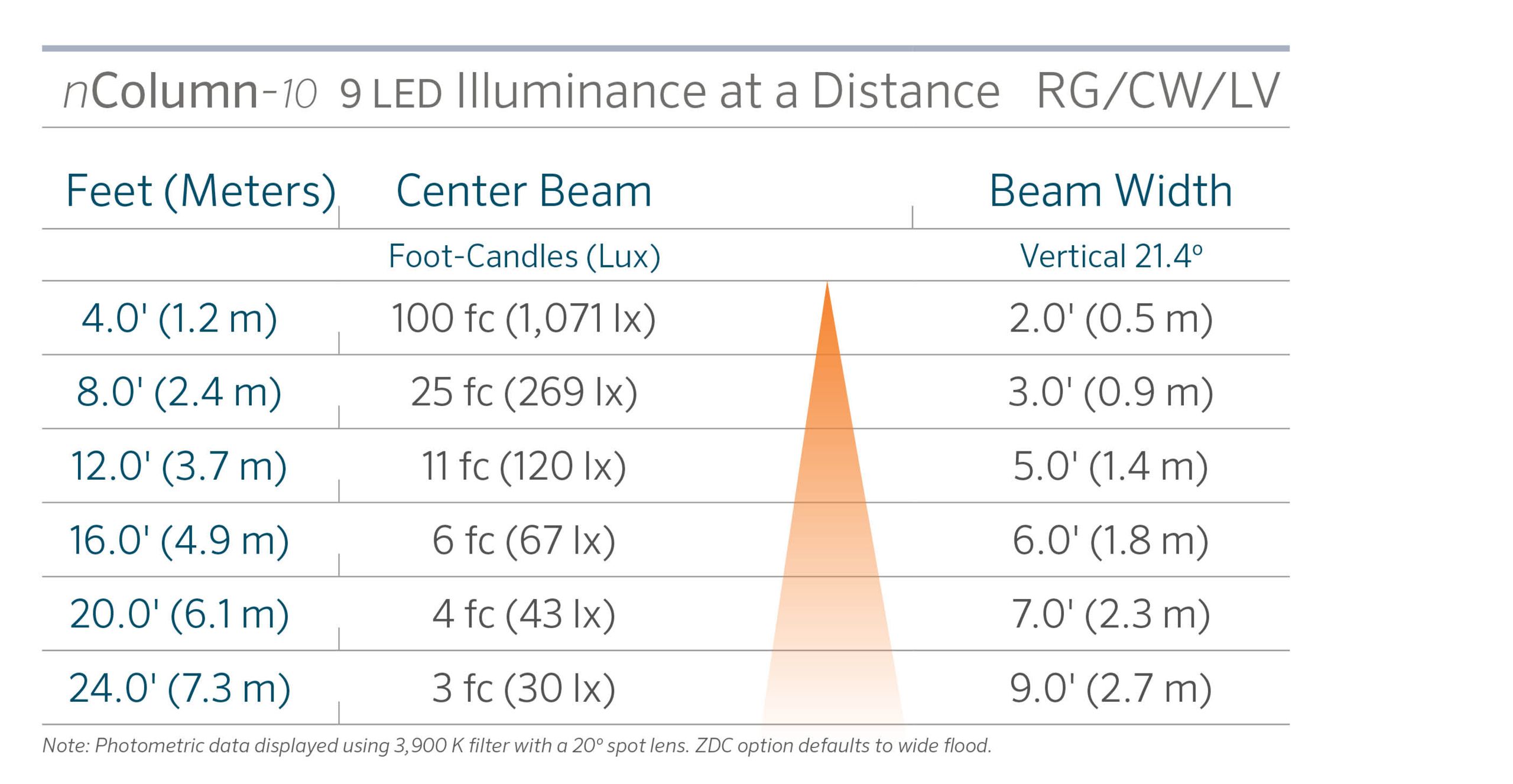

12.2 W (9LED)

811 lm

12.2 W

811 lm, for ZD control

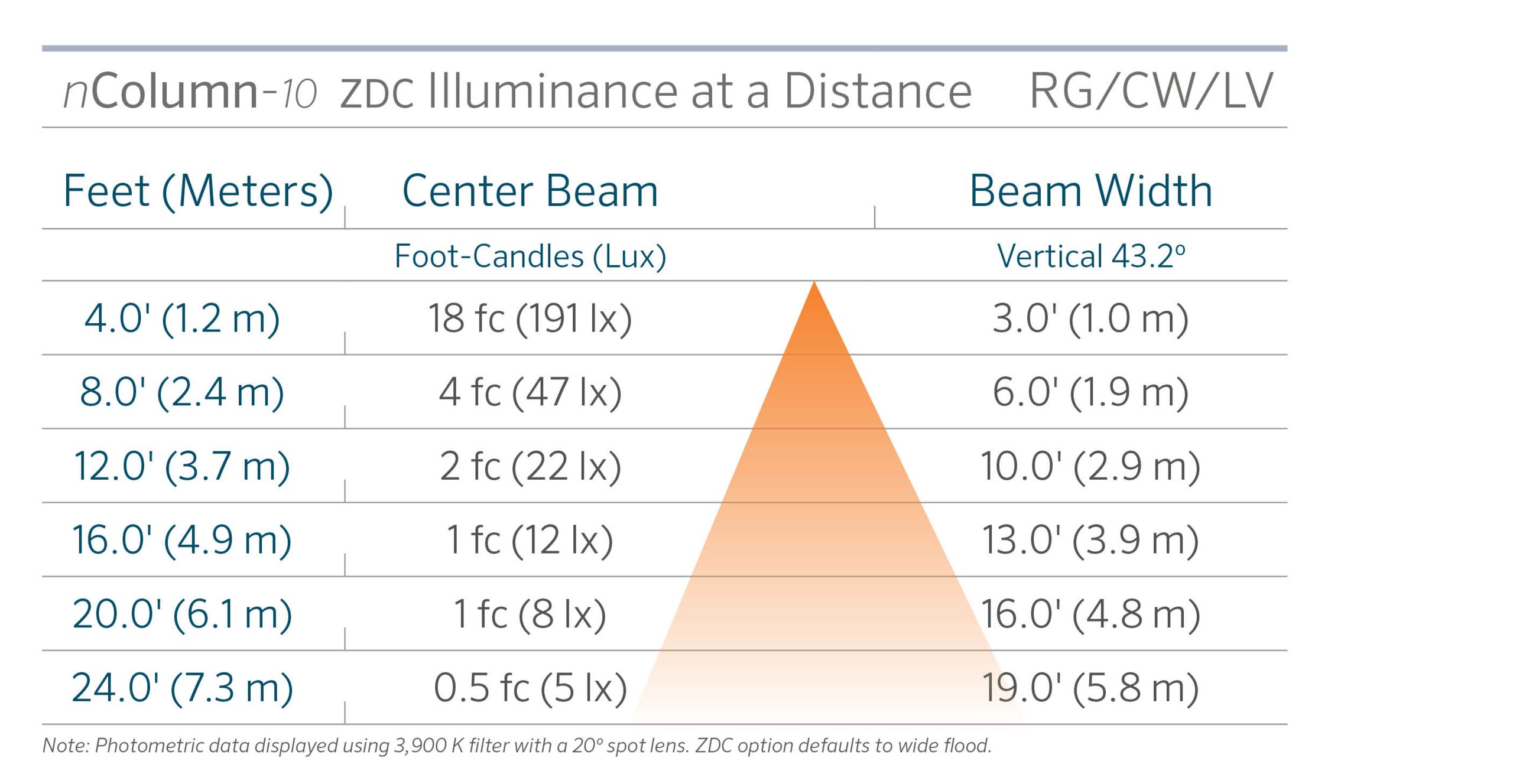

11.0 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º beam angle

Flood (FL)

35º beam angle

Flood

45º beam angle, for ZDC control

Wide Flood (WF)

60º beam angle

Ground Wash (Default)

Compliance

Required

North America

UL listed

International (E)

UL listed and CE approved. Required for shipment outside of North America.

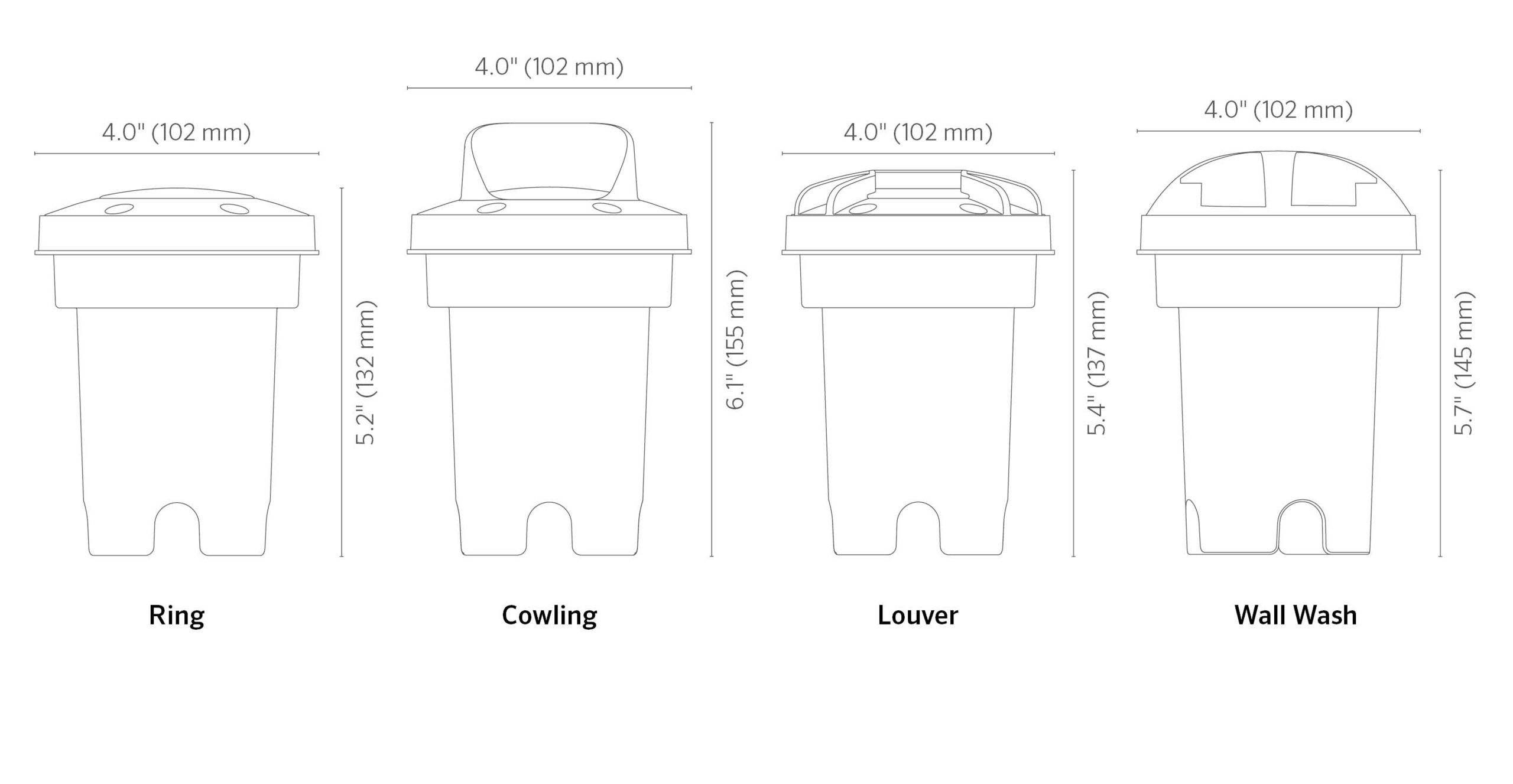

Style

Required

Ring (RG)

Ring (RG)

Cowling (CW)

Cowling (CW)

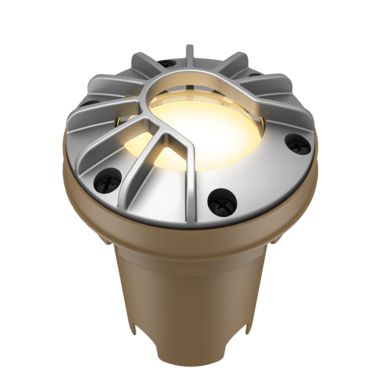

Louver (LV)

Louver (LV)

90º Ground Wash (GW090)

90º Ground Wash (GW090)

180º Ground Wash (GW180)

180º Ground Wash (GW180)

270º Ground Wash (GW270)

270º Ground Wash (GW270)

360º Ground Wash (GW360)

360º Ground Wash (GW360)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Brass (BS)

Natural Brass (BS)

Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

Pre-Installation Kit

Pre-Installation Kit

Kit shipped with the complete luminaire.

Accessories

Pre-Installation Kit

Specify Separately

Ship Separately

Ship Separately (250014260000)

Kit shipped with the complete luminaire.

More info

Lens Accessories

Specify Separately

Hex Baffle

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info

Power Supplies

Specify Separately

Multi-Tap Transformer

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

More info
ZDClink® Lighting Controller

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer

Dimmable Mini Transformer (ST-120-DIM)

60 W, 120 V to 12 Vac step-down transformer.

More info
Non-Dimmable Mini Transformer

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

More info

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Medium

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info
Heat Shrink Wire Connectors - Small

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee

More info
