uPebble-7 - uPBL7

Smallest integrated LED underwater luminaire.
Configure this product Features Specifications Videos Accessories

Product Overview

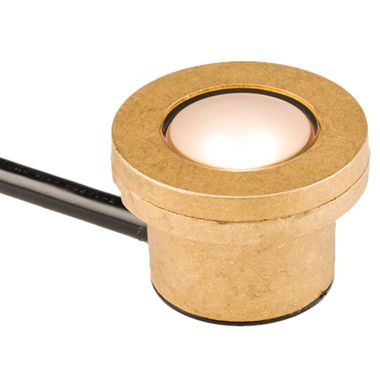

The uPebble-7  is the smallest integrated LED underwater luminaire and is available in 1 or 3 LED. With integrated Luxor® Technology, three color filters, and flexible lead options, the highly durable luminaire adds a distinctive design element to any water feature. An RGBW option is also available for use with ZDClink® Controllers.

Features

Total Lumens 173 lm Power Consumption 2.2 W | 4.4 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Underwater Up to Maximum Depth of 10' (3 m) Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 1.0 lb (0.5 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White RGBW Data Sheet

Specifications

Videos
Product Highlights | Underwater
Introducing the Essential Series range of underwater luminaires by Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


250022480000 Support Stand
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
DXF Files uPebble-7 ZIP (35.02 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

uPBL7 _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise uPebble-7 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

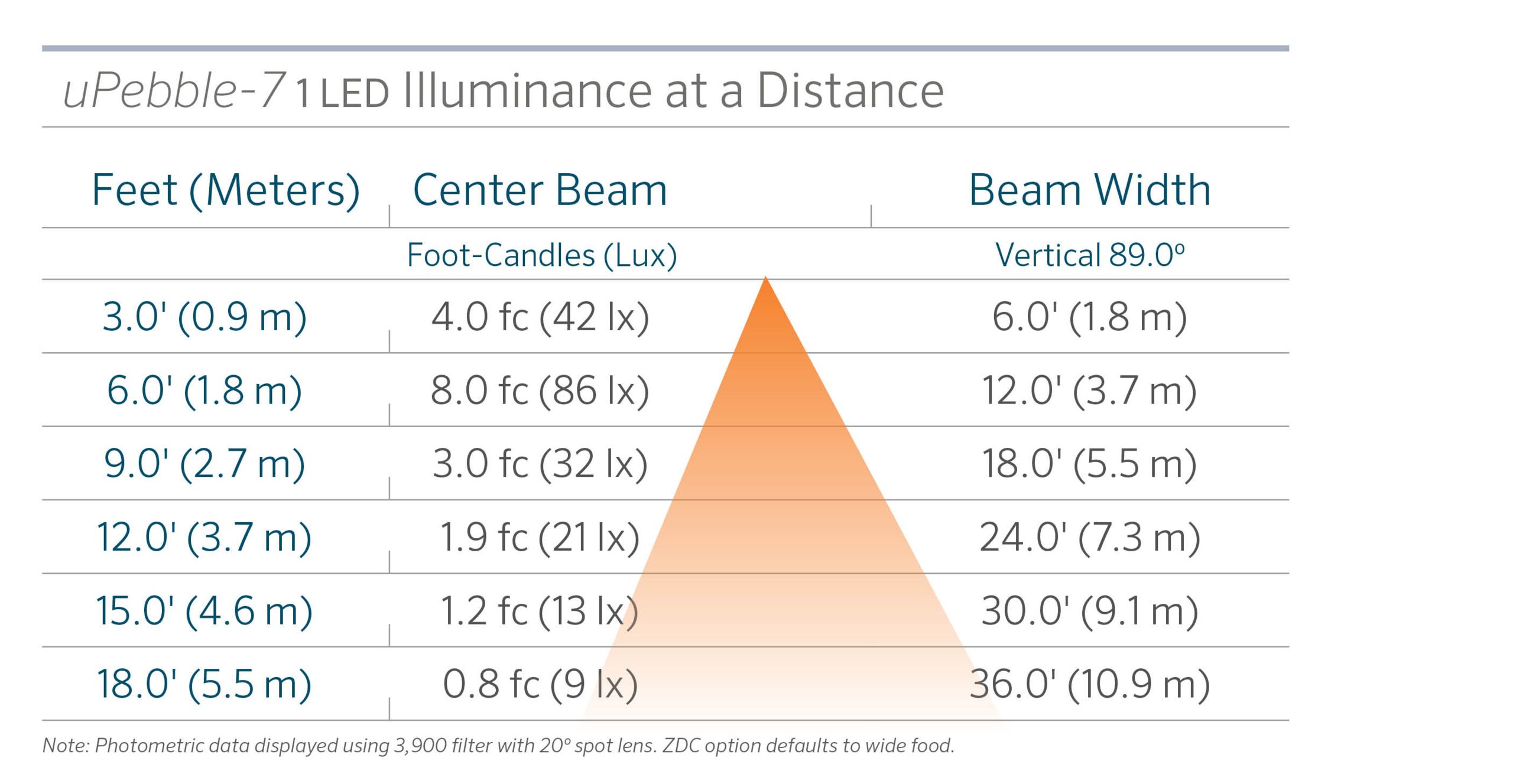

2.2 W (1LED)

74 lm

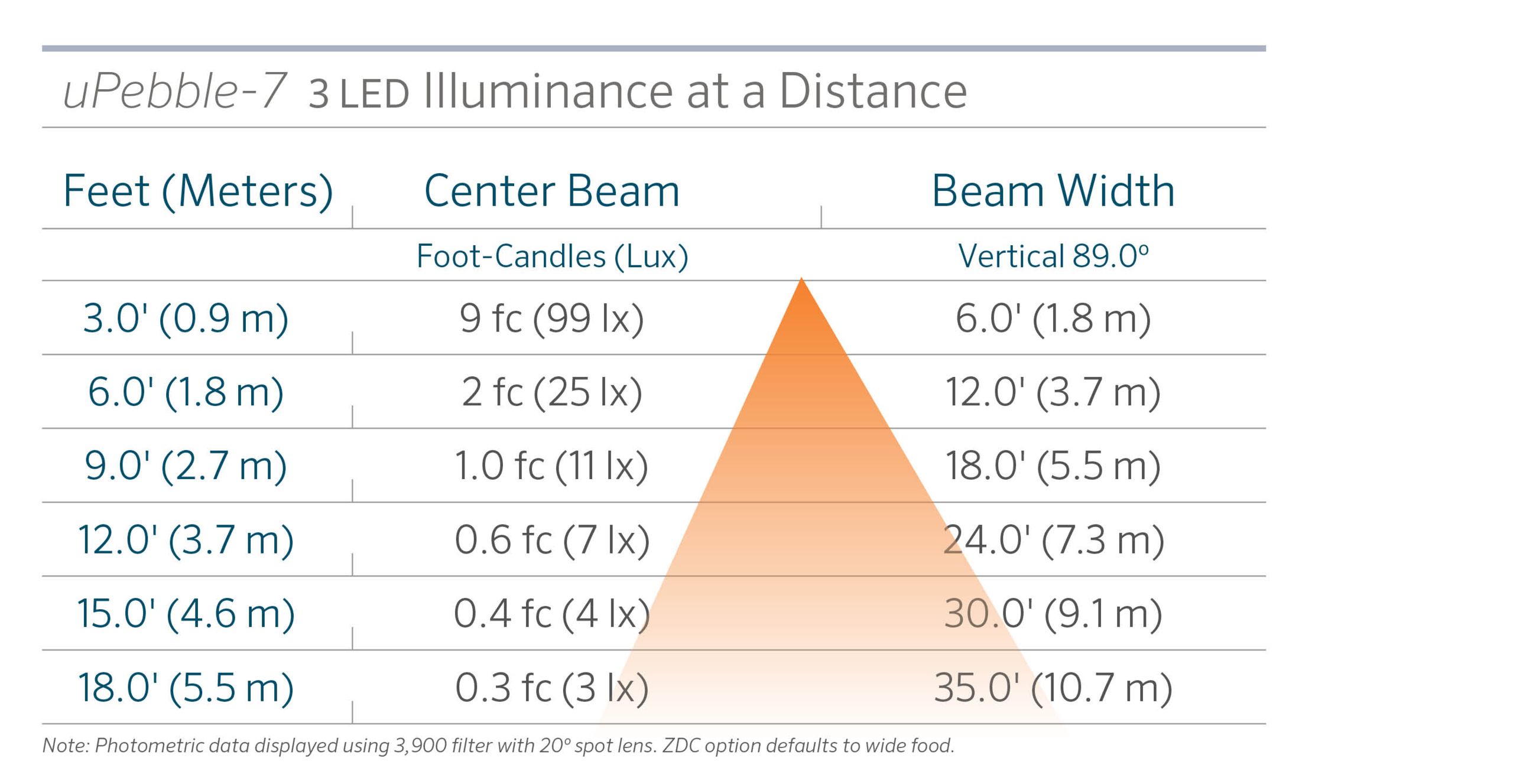

4.4 W (3LED)

173 lm

4.4 W

173 lm, for ZD control

4.5 W (-)

121 lm, Wildlife-friendly, for ZD control

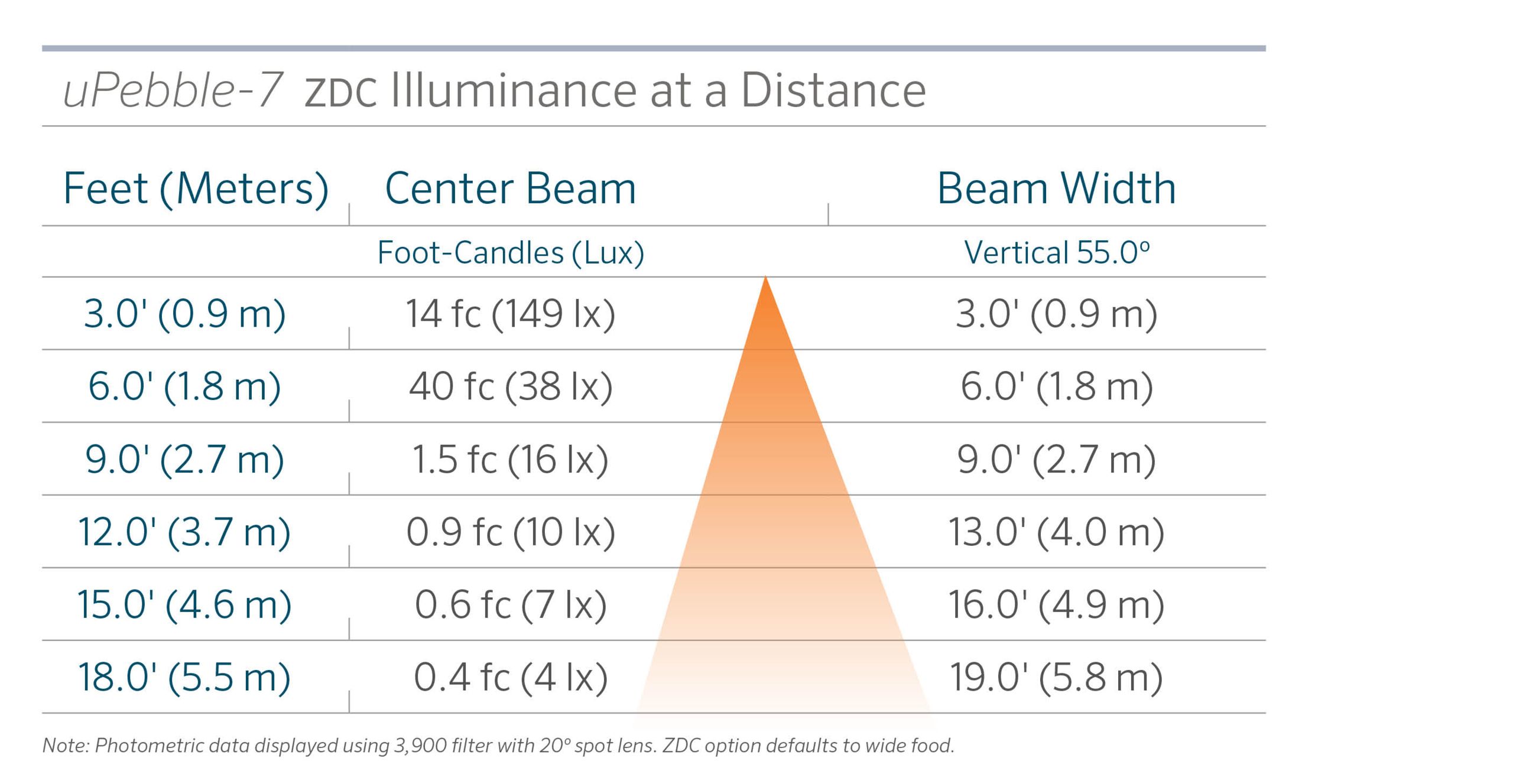

7.2 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Wildlife-Friendly (T)

Wildlife-Friendly (T)

Amber (585 to 595 nm)

Compliance

Required

North America

UL listed

International (E)

UL listed and CE approved. Required for shipment outside of North America.

Lead Direction

Required

Horizontal (HZ)

Horizontal (HZ)

With Support Stand

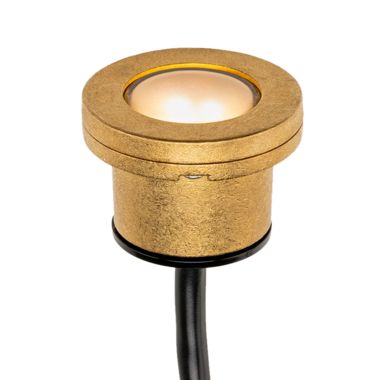

Vertical (VR)

Vertical (VR)

For North American 2.0 schedule 40 conduit

Lead Length

Required

Standard

30' (9m)

Extra-Long (XL)

100' (30 m)

Finish

Required

Natural Brass (BS)

Natural Brass (BS)

Accessories

Mounting & Installation

Specify Separately

Support Stand (250022480000)

Support Stand (250022480000)

4.0" (102 mm)

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
