uTide - uTID

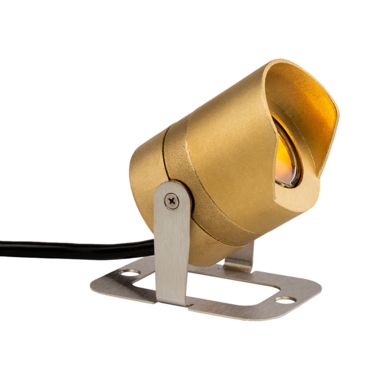

Durable brass underwater luminaire

Product Overview

The uTide is a durable brass underwater light for illuminating water features available in 3, 6 or 9 LED. An RGBW option is also available for use with ZDClink® Controllers.

Features

Total Lumens 378 lm Power Consumption 4.4 W | 4.5 W | 12.2 W | 11.0 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Underwater Up to Maximum Depth of 10' (3 m) Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 4.4 lbs (2.0 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Cool White RGBW Data Sheet

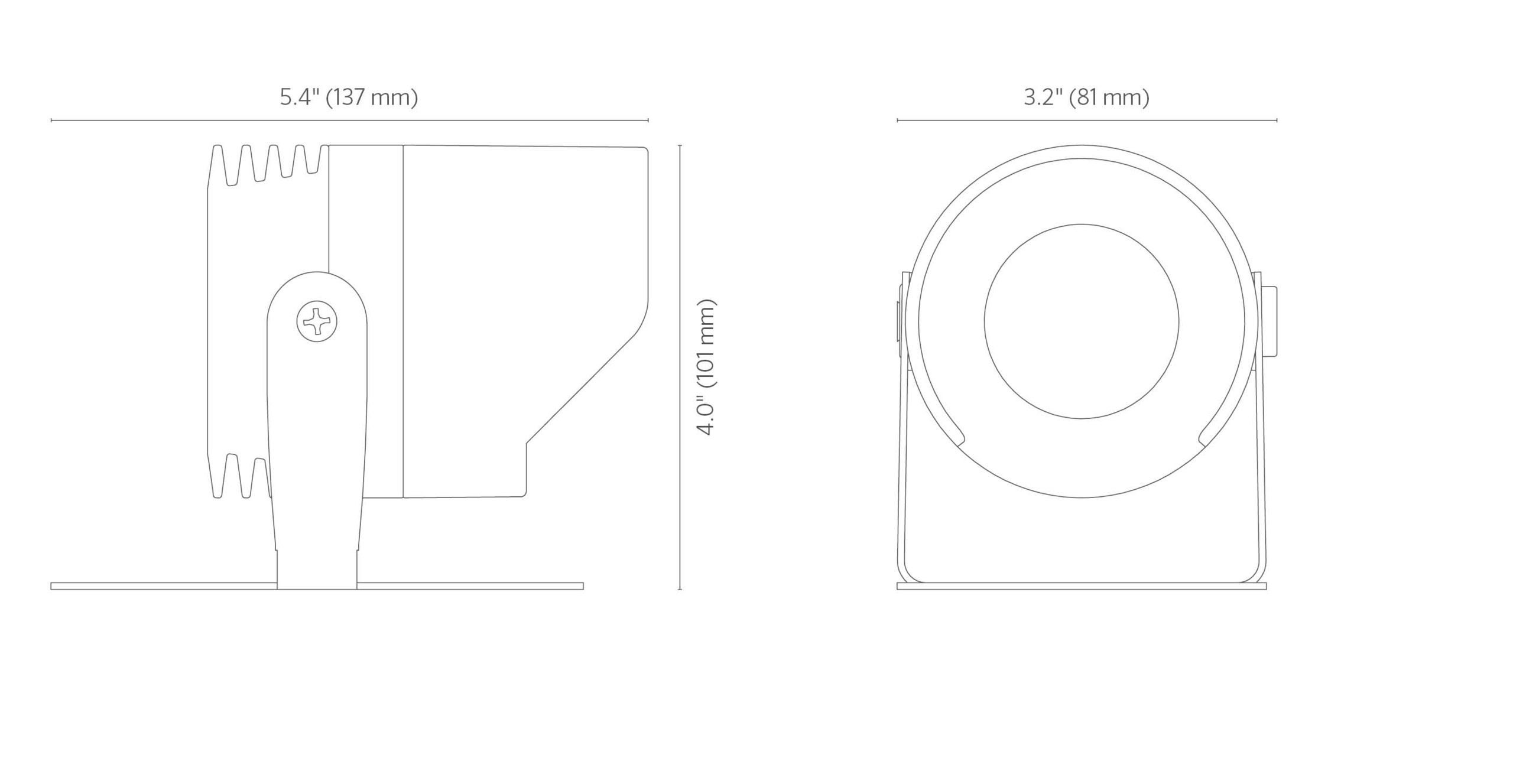

Specifications

Product Configurator

Customise uTide below

Input Voltage

12 Vac/Vdc

Control

Required

Default

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology

Output

Required

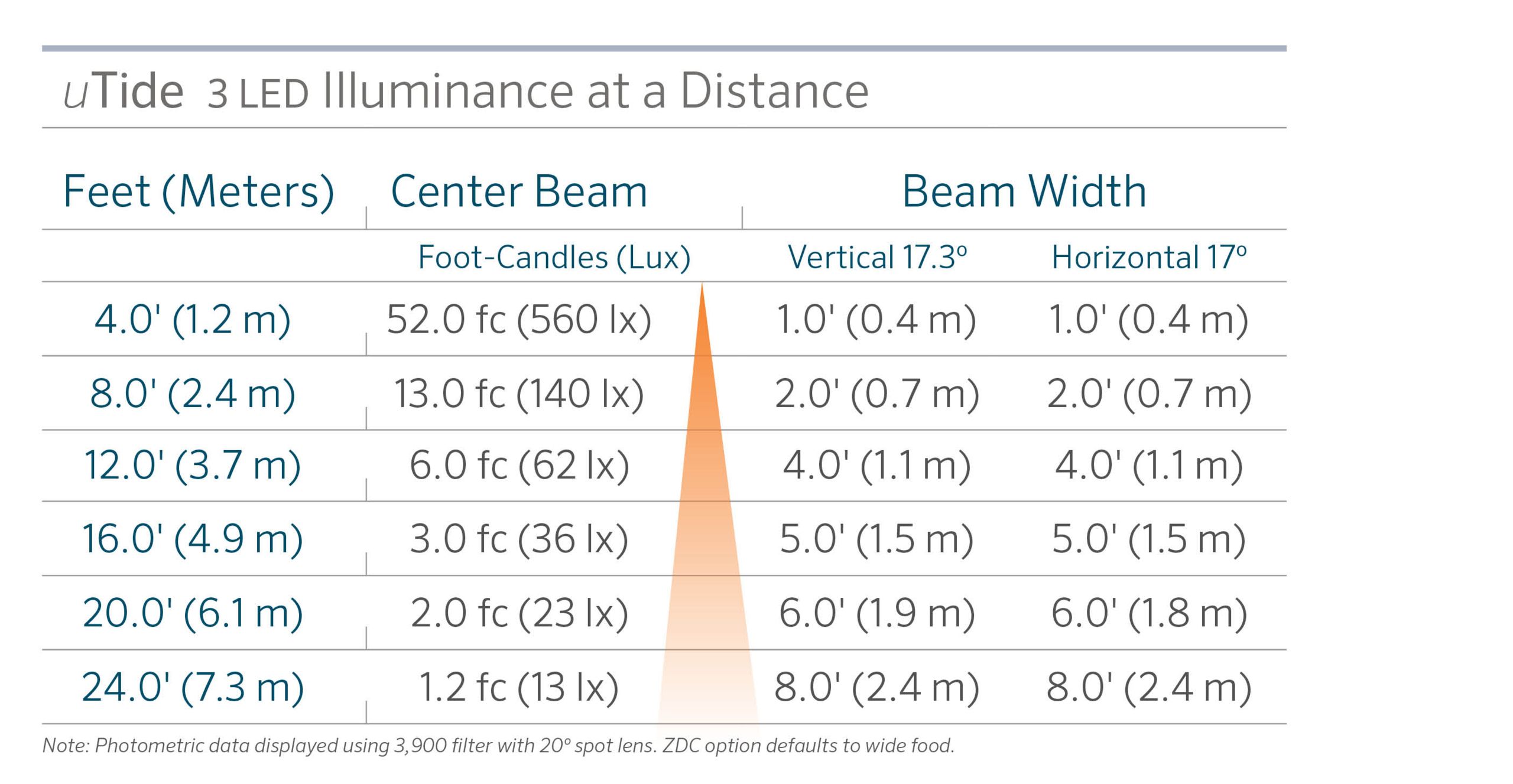

4.4 W (3LED)

133 lm

4.5 W (3LED)

121 lm, Wildlife-Friendly Option

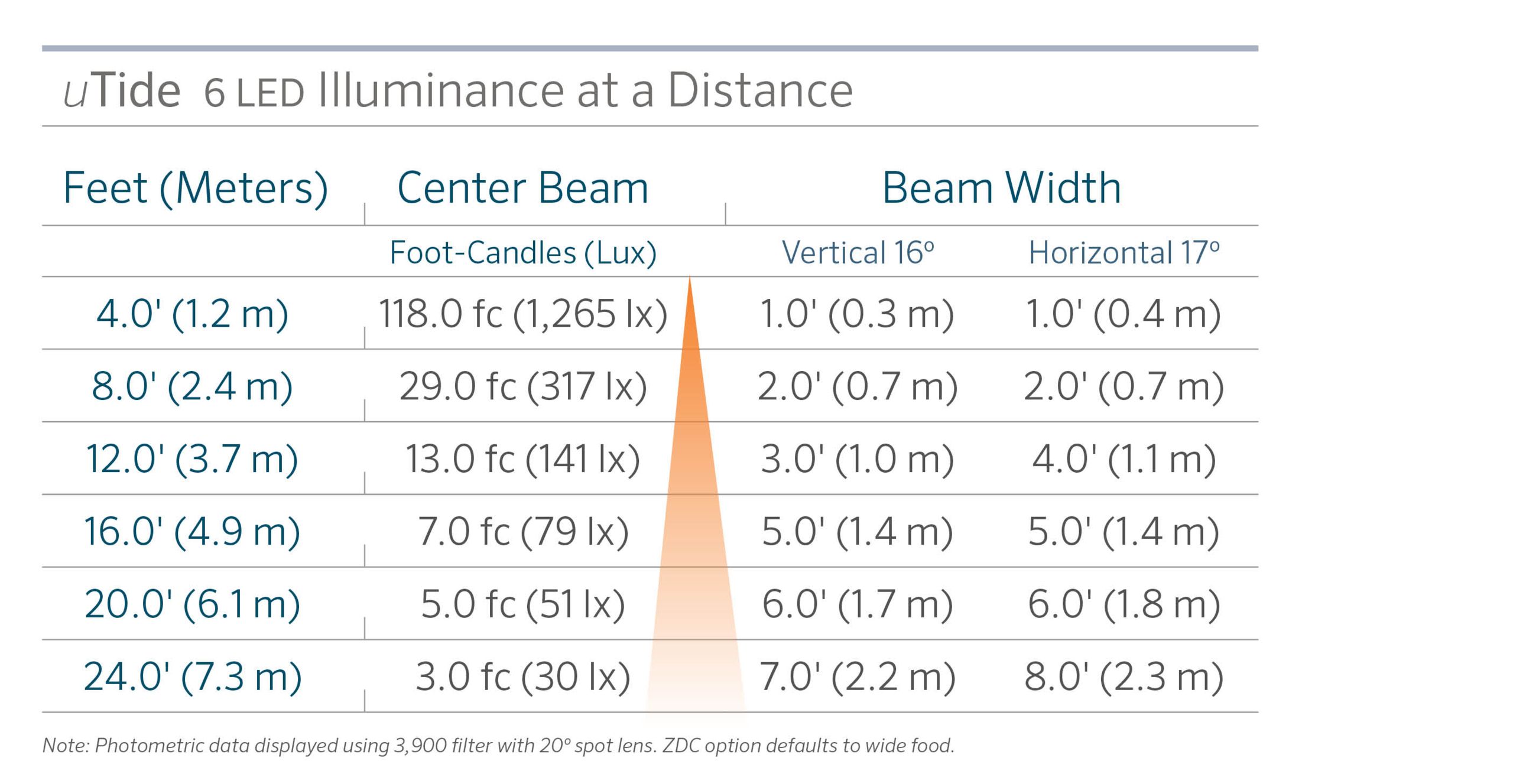

9.3 W (6LED)

292 lm

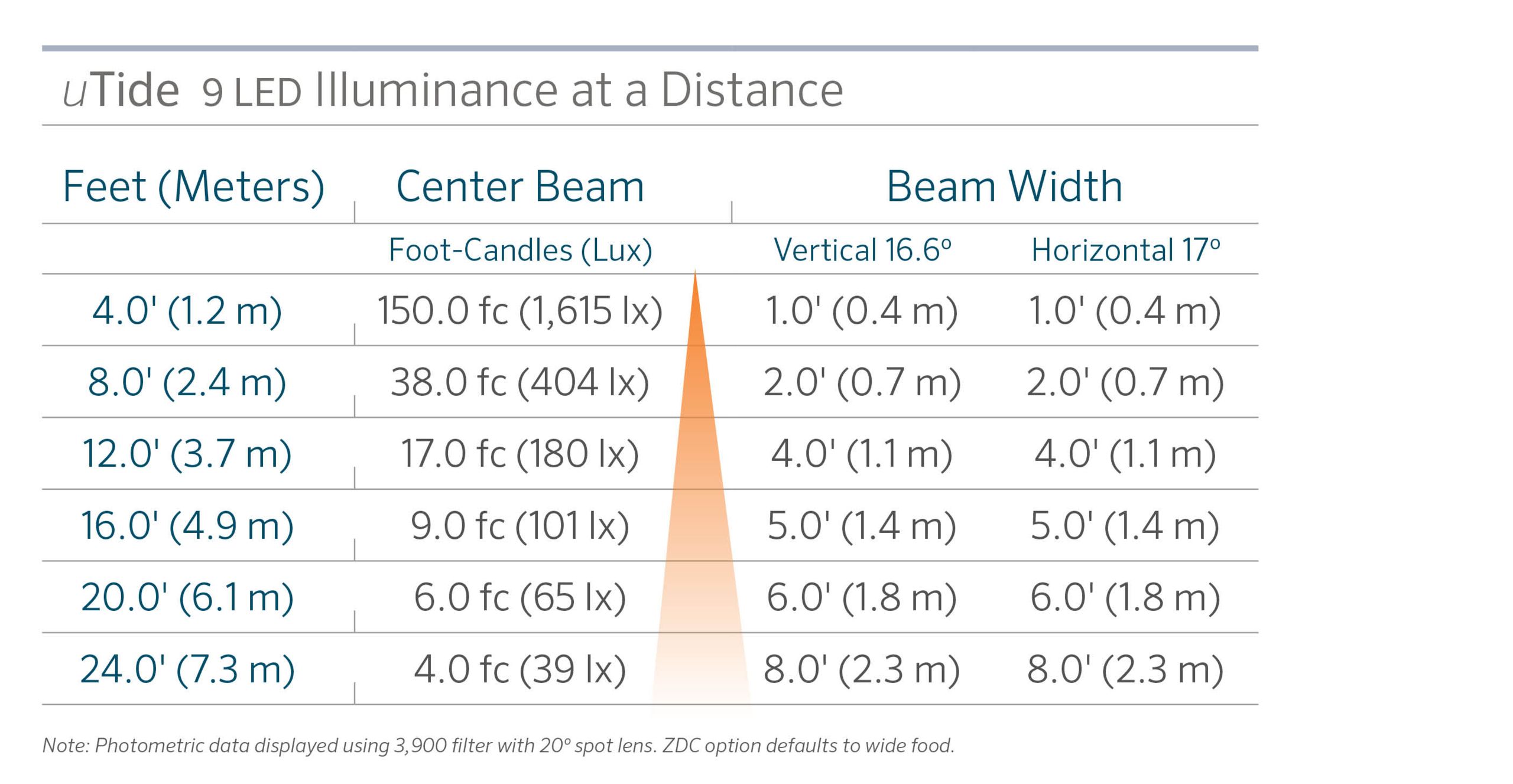

12.2 W (9LED)

378 lm

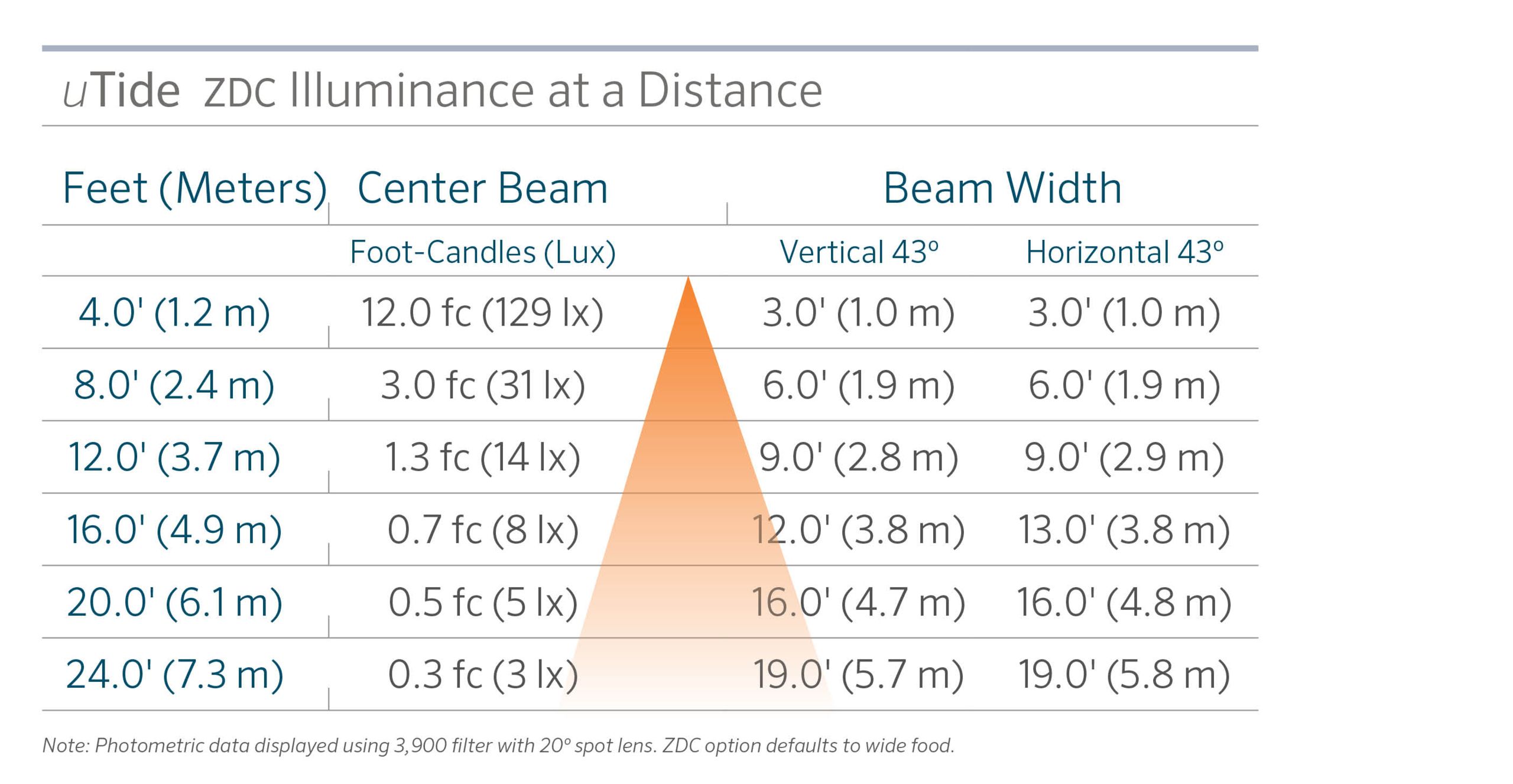

11.0 W

141 lm, ZDC Option Only

Color Temperature (CCT)

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

ZDC Option Only

Wildlife-Friendly (T)

Wildlife-Friendly (T)

Amber (585 to 595 nm)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º Beam Angle

Flood (FL)

30º beam angle

Flood

50º Beam Angle, ZDC Only

Wide Flood (WF)

60º Beam Angle

Lead Length

Required

Standard

30' (9m)

Extra-Long (XL)

100' (30 m)

Finish

Required

Natural Brass (BS)

Natural Brass (BS)

Accessories

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
