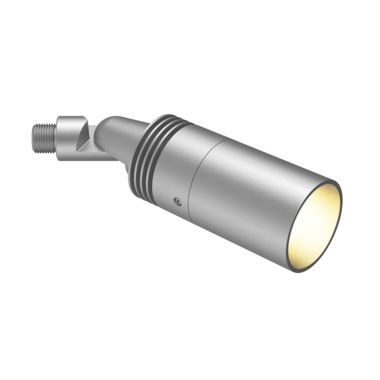

dBeam-6 - dBEM6

A versatile direction luminaire.

Product Overview

This versatile directional luminaire come in 1 or 3LED. Also available in an RGBW version for use with ZDClink® Controllers.

Features

Total Lumens 289 lm Power Consumption 2.2 W | 4.4 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac, 50/60 Hz Installation Requirements Downward Direction Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 1.5 lbs (0.7 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White RGBW Data Sheet

Specifications

Accessories


MM-050 Mini Mount
VB-050 Versabox®
MJ-050 Mini J-Box
TB Treebox®
GM-SS Gutter Mount
WP-1G-050 Wall Plate, 1-Gang
WP-RD-050 Wall Plate, Round
TR Non-Penetrating Tree Ring
S-RISER Riser, Straight
C-RISER Riser, Angled Sun-Light
COUP Coupling, Straight
ELBW-050 Coupling, 90º
TMNT-050 Coupling, T
250015260000 Lens, Hex Baffle
250013550000 Lens, Linear Spread Lens
250015240000 Lens, Solite Spread
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Product Configurator

Customise dBeam-6 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology

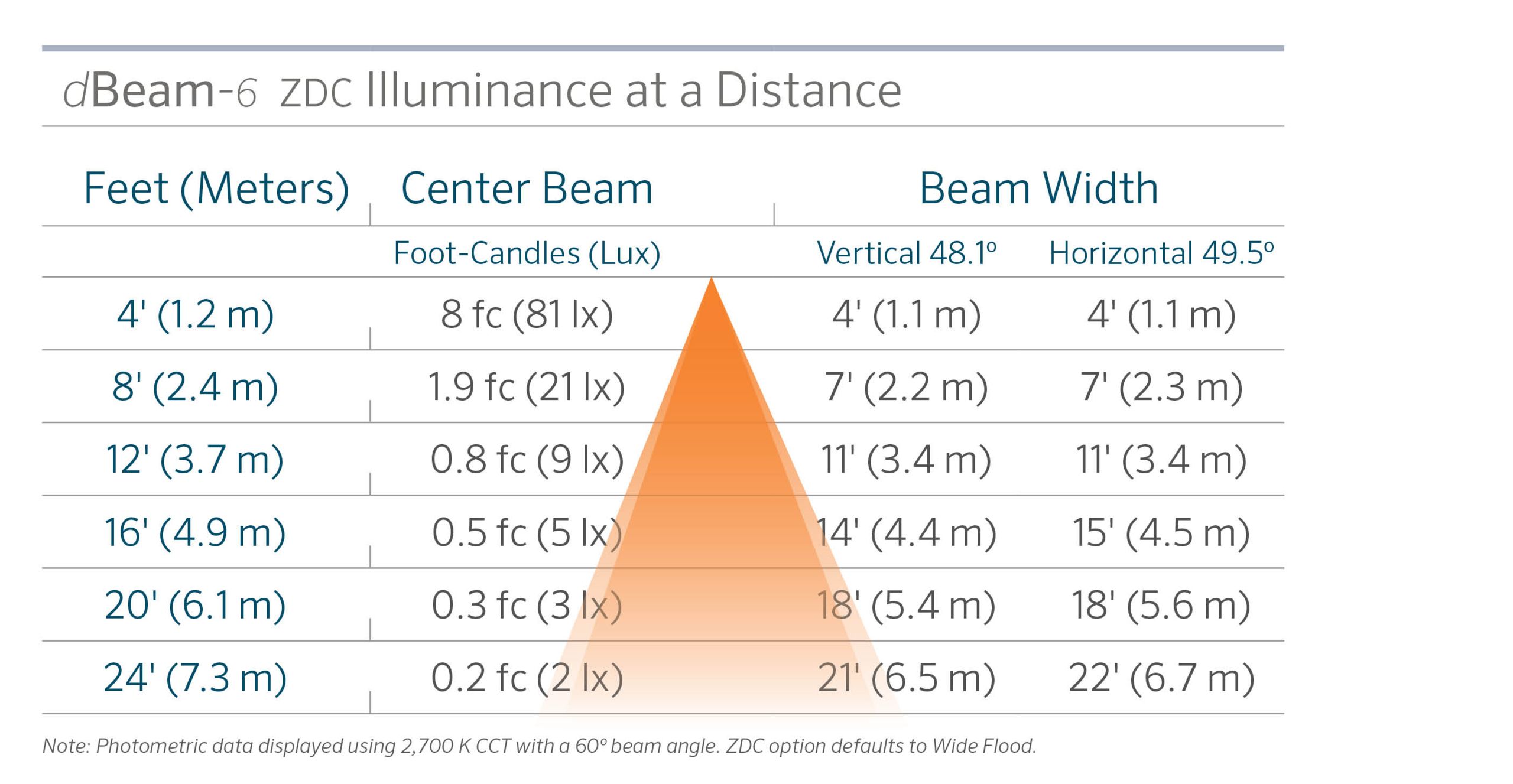

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology

Output

Required

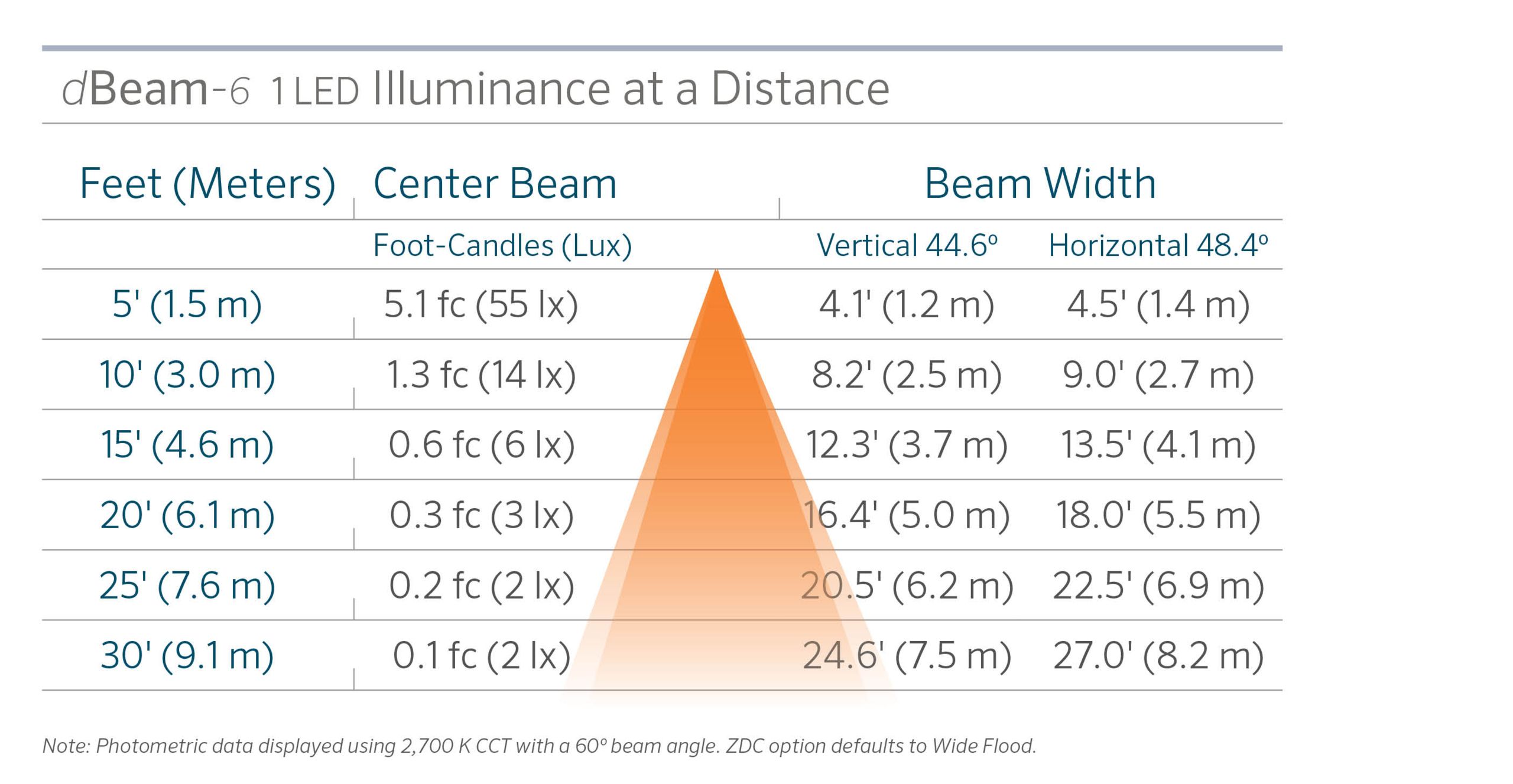

2.2 W (1LED)

106 lm

4.4 W (3LED)

289 lm

4.4 W (-)

289 lm, ZD Option Only

7.2 W

215 lm, ZDC Option Only

Color Temperature (CCT)

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

ZDC Option Only

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º Beam Angle

Flood (FL)

35º Beam Angle

Flood

45º Beam Angle, ZDC Only

Wide Flood (WF)

60º Beam Angle

Compliance

Required

North America

North America

UL Listed

International (E)

International (E)

Bracket Mount, UL Listed and CE Approved. Required for shipment outside of North America

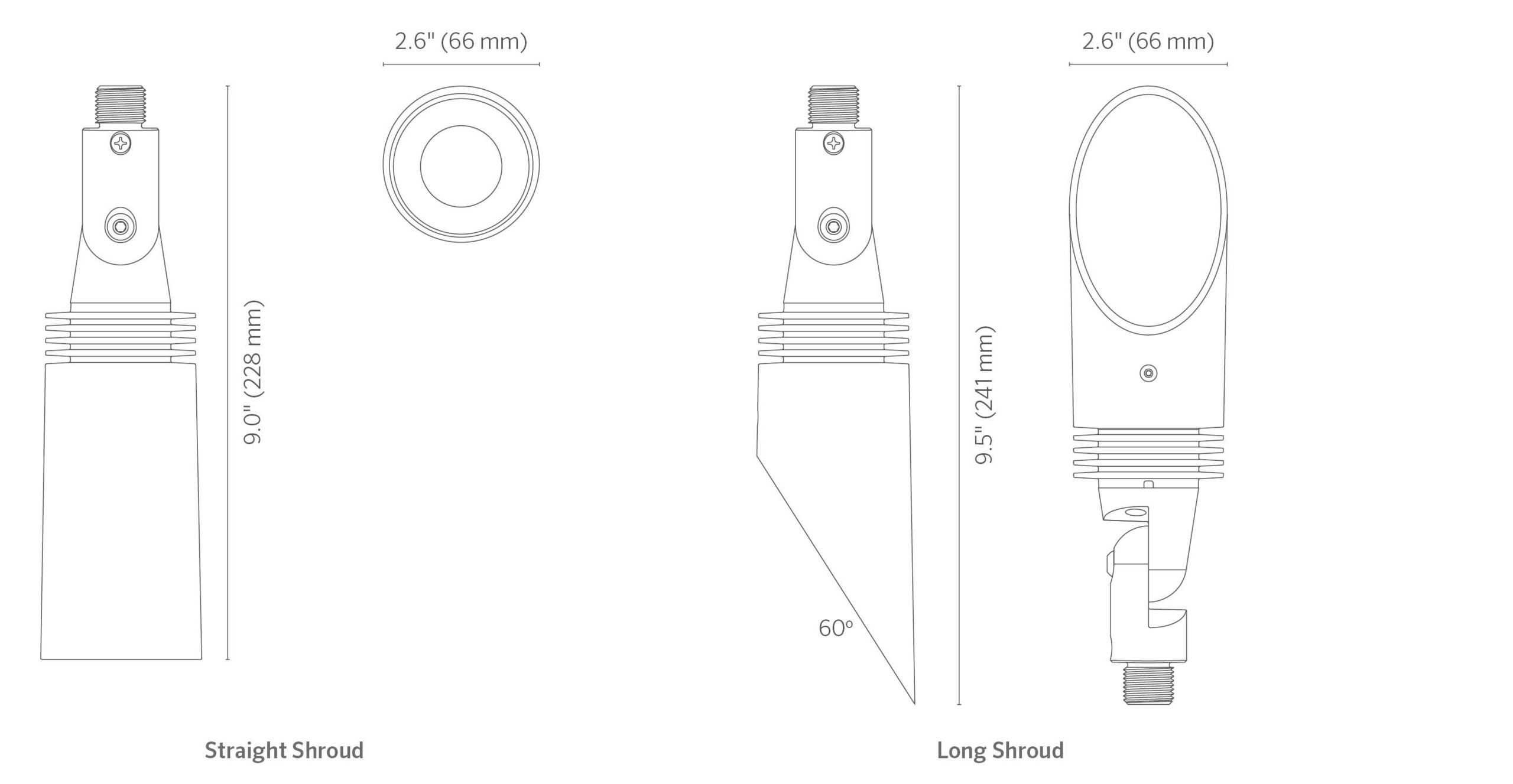

Shielding

Required

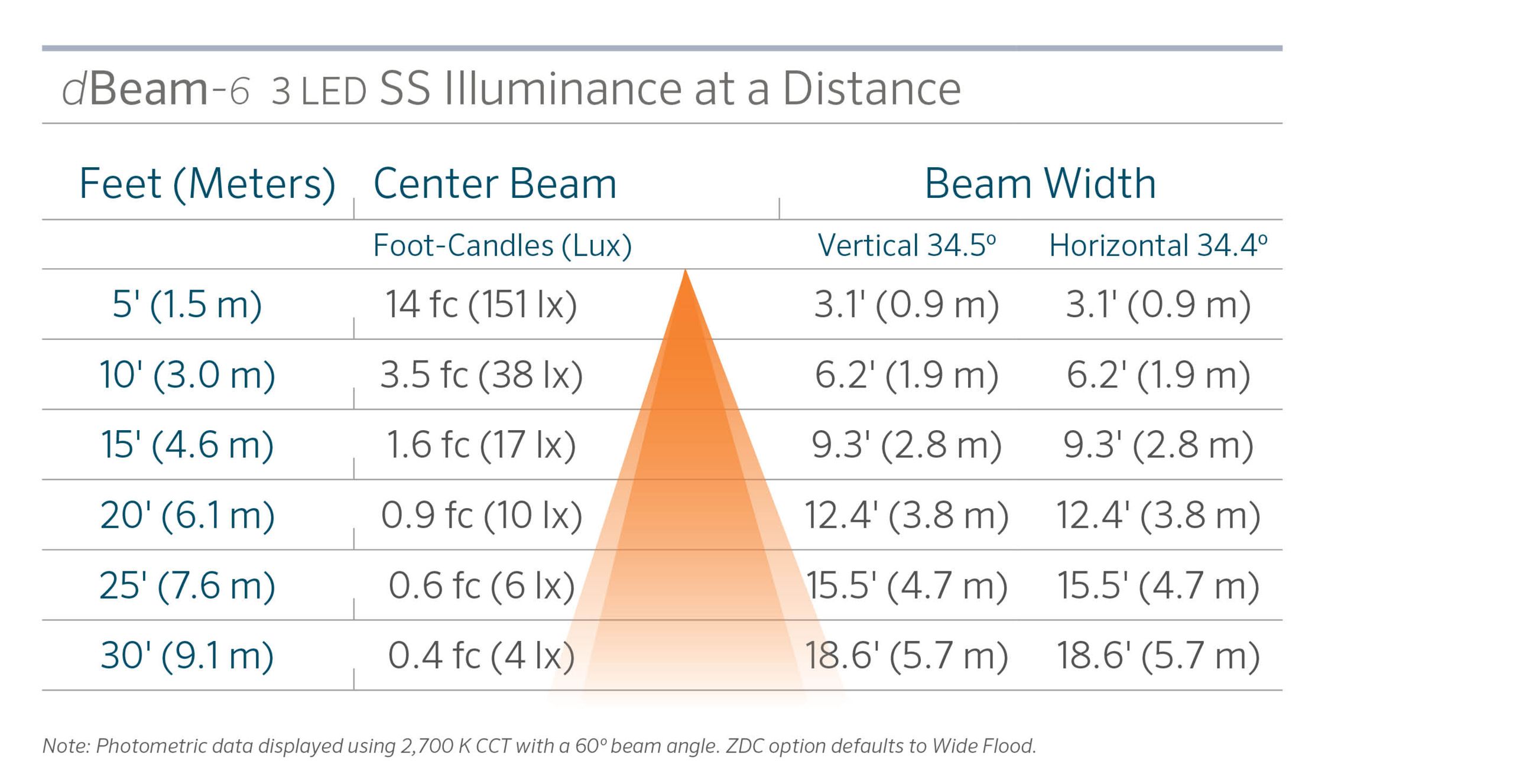

Straight Shroud (SS)

Straight Shroud (SS)

90º Straight Shroud

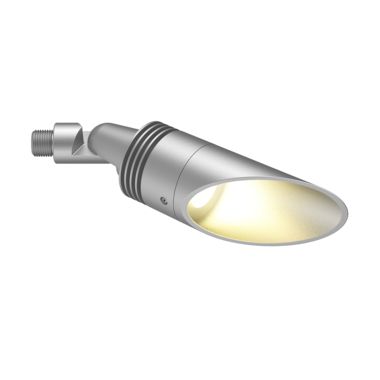

Long Shroud

Long Shroud

60º Angled Long Shroud

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Mounting & Installation

Specify Separately

Mini Mount (MM-050)

Mini Mount (MM-050)

More info
Versabox® (VB-050)

Versabox® (VB-050)

1.5" (38 mm) brass cap with ½"-14 NPSM threads

More info
Mini J-Box (MJ-050)

Mini J-Box (MJ-050)

1.5" (38 mm) aluminum wall mount with ½"-14" NPSM threads and wire compartment

More info
Treebox® (TB)

Treebox® (TB)

Dual ½"-14 NPSM threads with wire compartment

More info
Gutter Mount (GM-SS)

Gutter Mount (GM-SS)

Stainless steel bracket with ½’’-14 NPSM threads and rotational adjustability

More info
Wall Plate, 1-Gang (WP-1G-050)

Wall Plate, 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads

More info
Wall Plate, Round (WP-RD-050)

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads

More info
Non-Penetrating Tree Ring (TR)

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

More info

Straight Riser

Specify Separately. Powder-Coat finish must be specified.

4" (4R-XX)

4" (4R-XX)

4'' (100 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
6" (6R-XX)

6" (6R-XX)

6'' (150 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
8" (8R-XX)

8" (8R-XX)

8'' (200 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
12" (12R-XX)

12" (12R-XX)

12'' (300 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
18" (18R-XX)

18" (18R-XX)

18'' (450 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
24" (24R-XX)

24" (24R-XX)

24'' (600 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
30" (30R-XX)

30" (30R-XX)

30'' (750 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
36" (36R-XX)

36" (36R-XX)

36'' (900 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info

Angled Sign-Light Riser

Specify Separately. Powder-Coat finish must be specified.

24" (24R-SL-XX)

24" (24R-SL-XX)

24'' (600 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
36" (36R-SL-XX)

36" (36R-SL-XX)

36'' (900 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
48" (48R-SL-XX)

48" (48R-SL-XX)

48'' (1,200 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info

Coupling Options

Specify Separately. Powder-Coat finish must be specified.

Straight (COUP)

Straight (COUP)

2'' (50 mm) aluminum tapered coupling with ½''-14 NPSM threads

More info
90º Coupling (ELBW-050)

90º Coupling (ELBW-050)

2'' (50 mm) aluminum 90º coupling with 1/2''-14 NPSM threads

More info
T-Coupling (TMNT-050)

T-Coupling (TMNT-050)

An aluminum T-Coupling with ½''-14 NPSM threads

More info

Lens Accessories

Specify Separately

Hex Baffle (250015260000)

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens (250013550000)

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens (250015240000)

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
