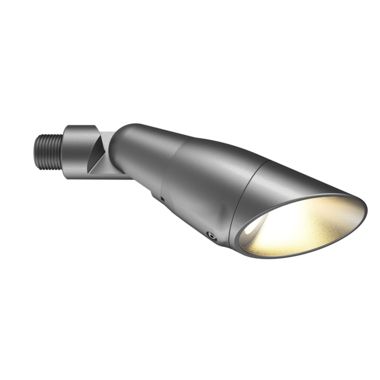

dBeam-5 - dBEM5

For downlighting compact spaces

Product Overview

The smallest directional luminaire built to house a 1LED board. A zoning/dimming version is also available for use with ZDClink® systems using Luxor® technology.

Features

Total Lumens 102 lm Power Consumption 2.2 W Input Voltage 10-15 Vac/dc, 50/60 Hz Installation Requirements Downward Direction Only Typical Lifetime 72,000 hrs Weight 1.1 lbs (0.5 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White Data Sheet

Specifications

Videos

Product Highlights | Pendant Lighting
Introducing the Essential Series range of pendant luminaires by Lumascape
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


MM-050 Mini Mount
VB-050 Versabox®
MJ-050 Mini J-Box
TB Treebox®
WP-1G-050 Wall Plate, 1-Gang
WP-RD-050 Wall Plate, Round
TR Non-Penetrating Tree Ring
S-RISER Riser, Straight
C-RISER Riser, Angled Sun-Light
COUP Coupling, Straight
ELBW-050 Coupling, 90º
TMNT-050 Coupling, T
250015250000 Lens, Hex Baffle
250015420000 Lens, Solite Spread
PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Product Configurator

Customise dBeam-5 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

102 lm

2.2 W

102 lm, ZD Option Only

Color Temperature (CCT)

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

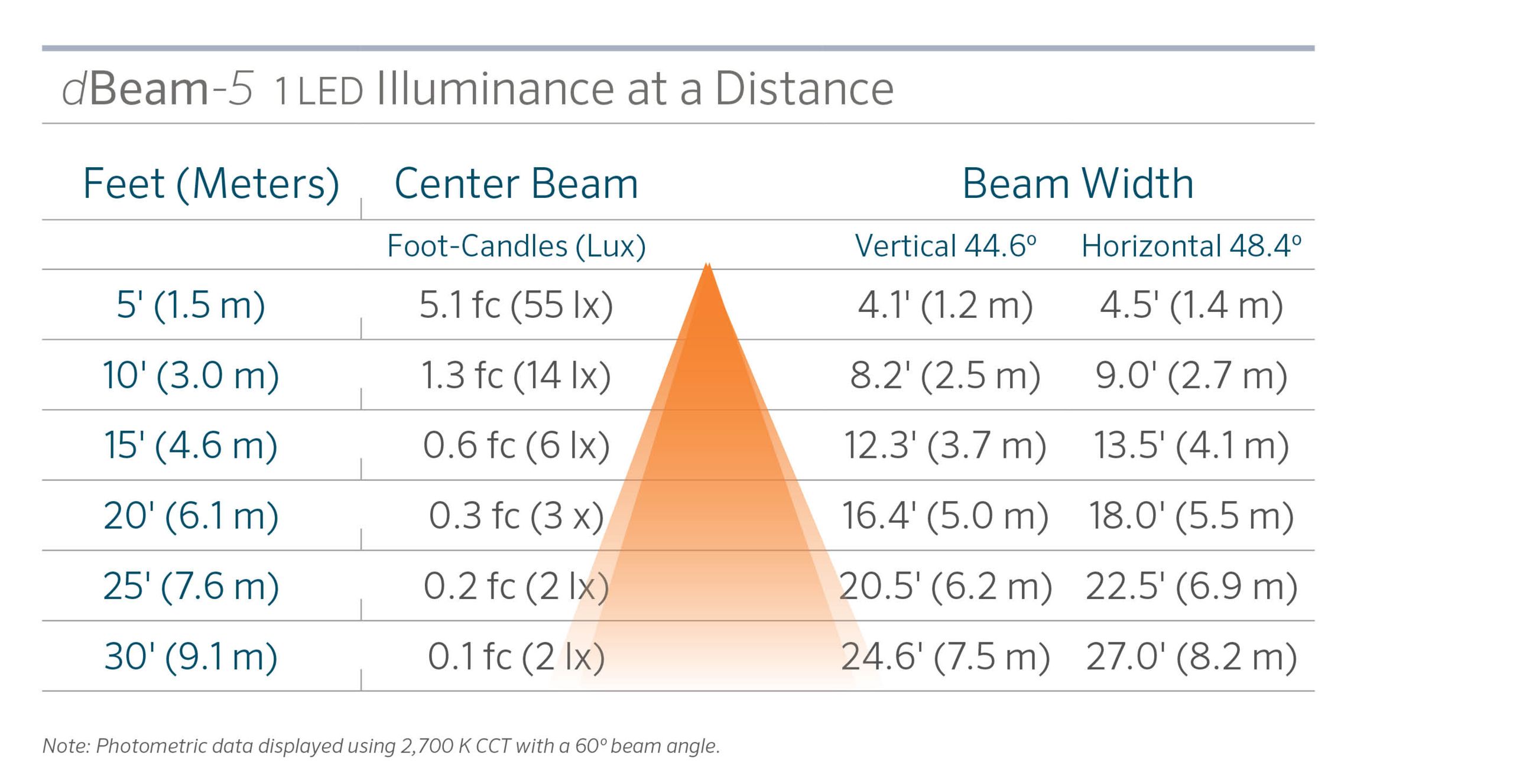

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º Beam Angle

Flood (FL)

35º Beam Angle

Wide Flood (WF)

60º Beam Angle

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Mounting & Installation

Specify Separately

Mini Mount (MM-050)

Mini Mount (MM-050)

More info
Versabox® (VB-050)

Versabox® (VB-050)

1.5" (38 mm) brass cap with ½"-14 NPSM threads

More info
Mini J-Box (MJ-050)

Mini J-Box (MJ-050)

1.5" (38 mm) aluminum wall mount with ½"-14" NPSM threads and wire compartment

More info
Treebox® (TB)

Treebox® (TB)

Dual ½"-14 NPSM threads with wire compartment

More info
Wall Plate, 1-Gang (WP-1G-050)

Wall Plate, 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads

More info
Wall Plate, Round (WP-RD-050)

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads

More info
Non-Penetrating Tree Ring (TR)

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

More info

Straight Riser

Specify Separately. Powder-Coat finish must be specified.

4" (4R-XX)

4" (4R-XX)

4'' (100 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
6" (6R-XX)

6" (6R-XX)

6'' (150 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
8" (8R-XX)

8" (8R-XX)

8'' (200 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
12" (12R-XX)

12" (12R-XX)

12'' (300 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
18" (18R-XX)

18" (18R-XX)

18'' (450 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
24" (24R-XX)

24" (24R-XX)

24'' (600 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
30" (30R-XX)

30" (30R-XX)

30'' (750 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info
36" (36R-XX)

36" (36R-XX)

36'' (900 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads

More info

Angled Sign-Light Riser

Specify Separately. Powder-Coat finish must be specified.

24" (24R-SL-XX)

24" (24R-SL-XX)

24'' (600 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
36" (36R-SL-XX)

36" (36R-SL-XX)

36'' (900 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info
48" (48R-SL-XX)

48" (48R-SL-XX)

48'' (1,200 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads

More info

Coupling Options

Specify Separately. Powder-Coat finish must be specified.

Straight (COUP)

Straight (COUP)

2'' (50 mm) aluminum tapered coupling with ½''-14 NPSM threads

More info
90º Coupling (ELBW-050)

90º Coupling (ELBW-050)

2'' (50 mm) aluminum 90º coupling with 1/2''-14 NPSM threads

More info
T-Coupling (TMNT-050)

T-Coupling (TMNT-050)

An aluminum T-Coupling with ½''-14 NPSM threads

More info

Lens Accessories

Specify Separately

Hex Baffle (250015250000)

Hex Baffle (250015250000)

1.4'' (36 mm) diameter (MR-11)

More info
Solite Spread Lens (250015420000)

Solite Spread Lens (250015420000)

1.4'' (36 mm) diameter (MR-11)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
