A practical directional luminaire in 3, 6 or 9LED. Also available in an RGBW version for use with ZDClink® Controllers.
Downlight
dBeam-5
dBeam-6
12 Vac/Vdc
Required
Standard (-)
1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.
Zone/Dim (ZD)
Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.
Zone/Dim/Color (ZDC)
Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

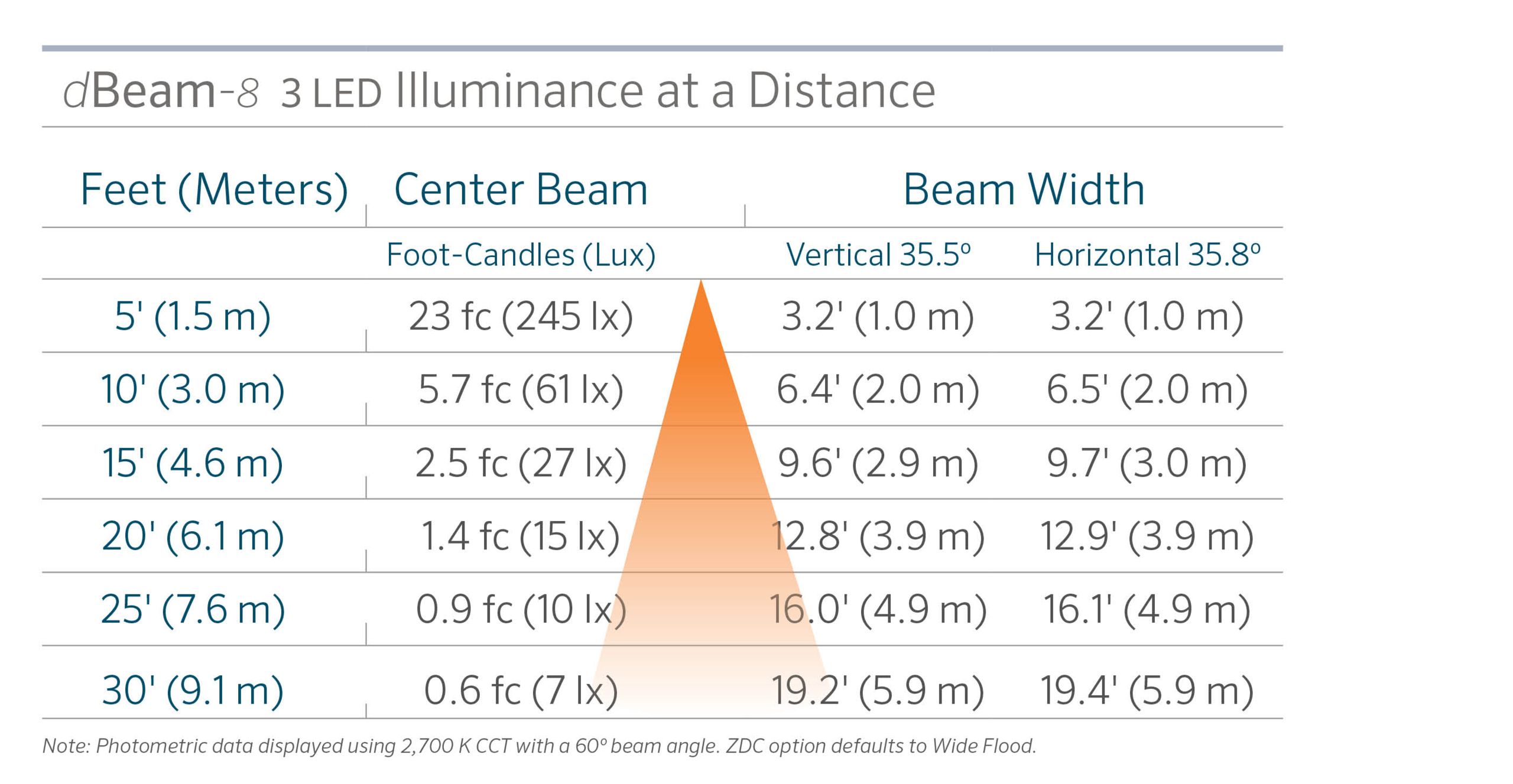

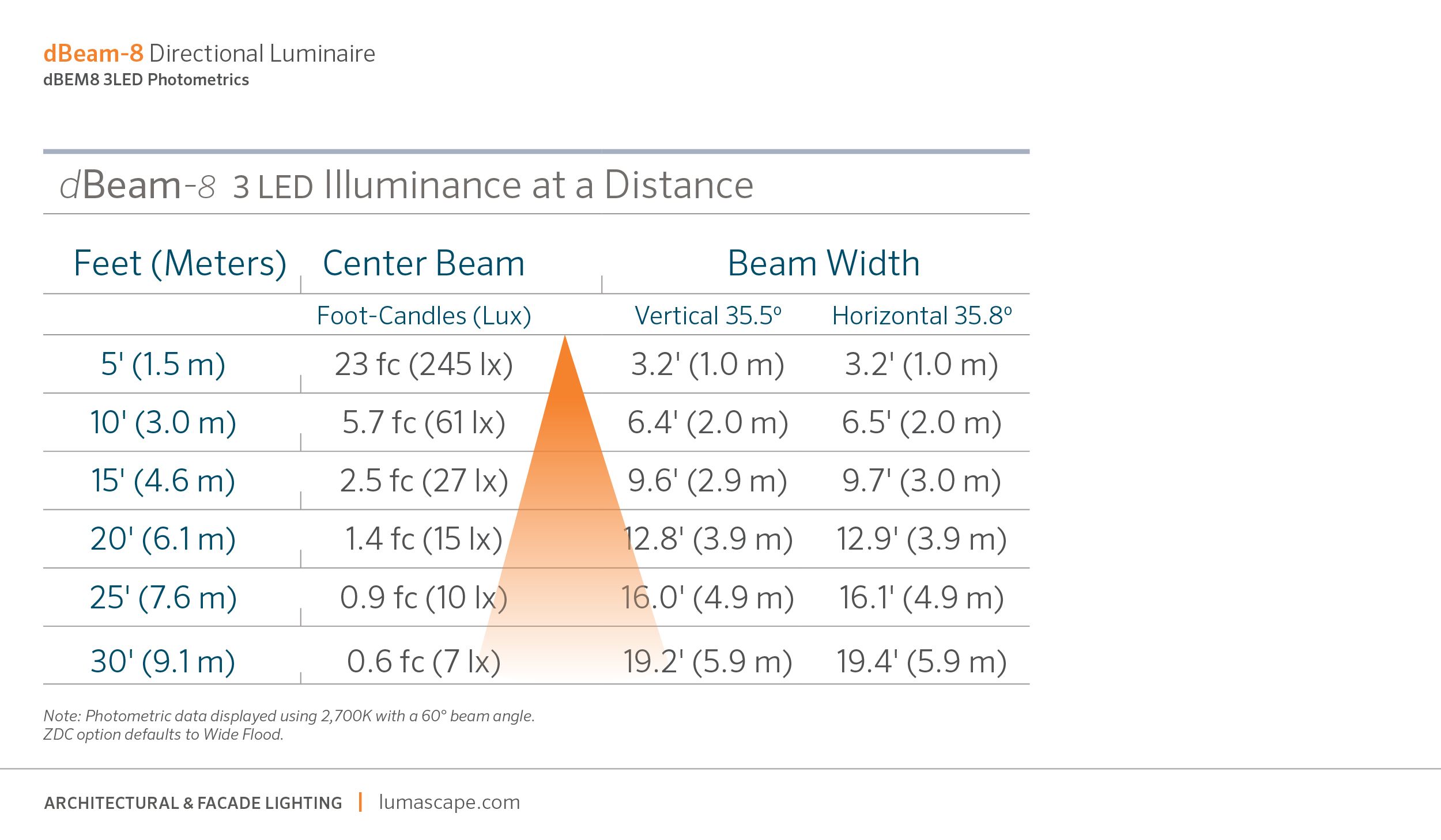

4.4 W (3LED)
263 lm

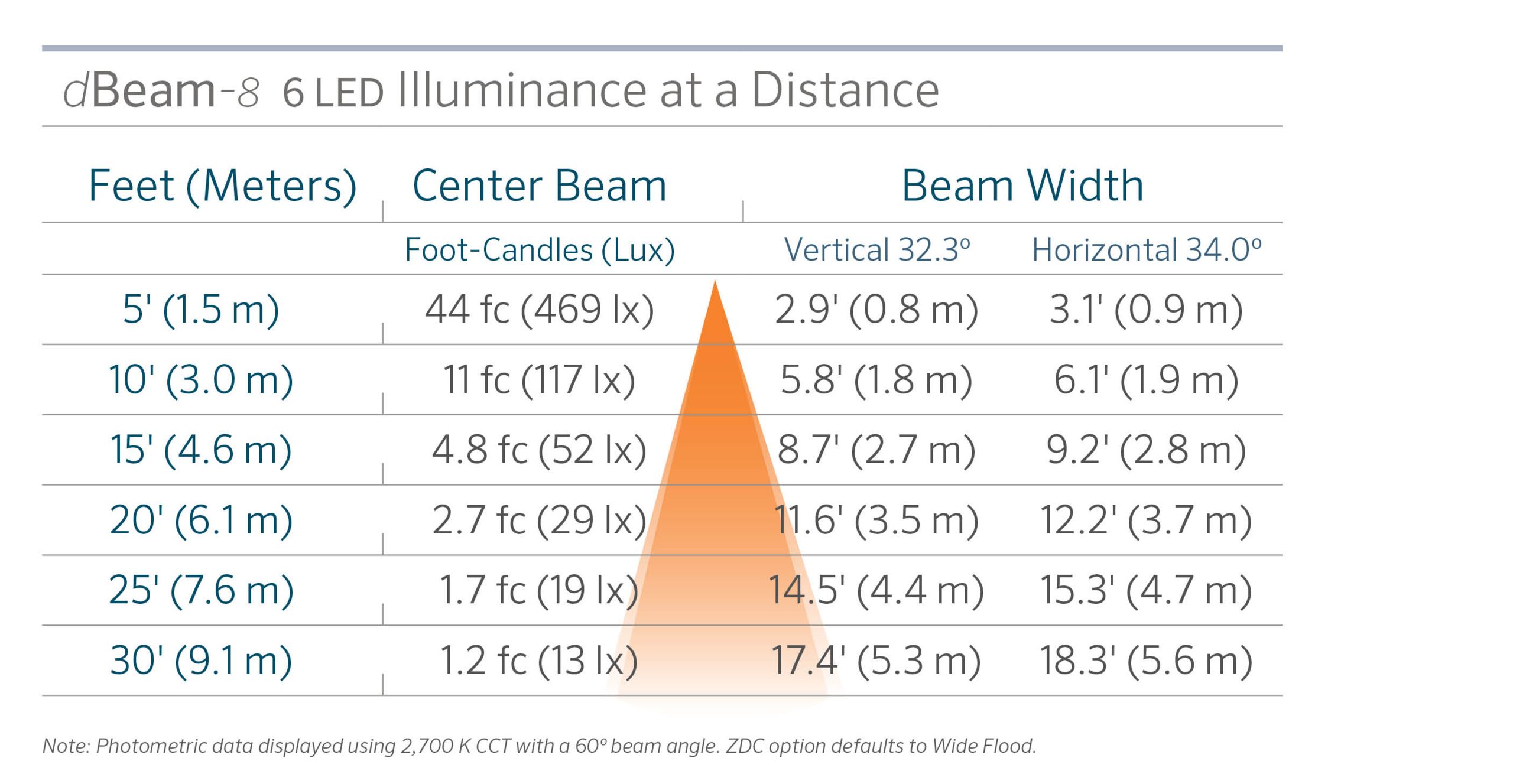

9.3 W (6LED)
472 lm

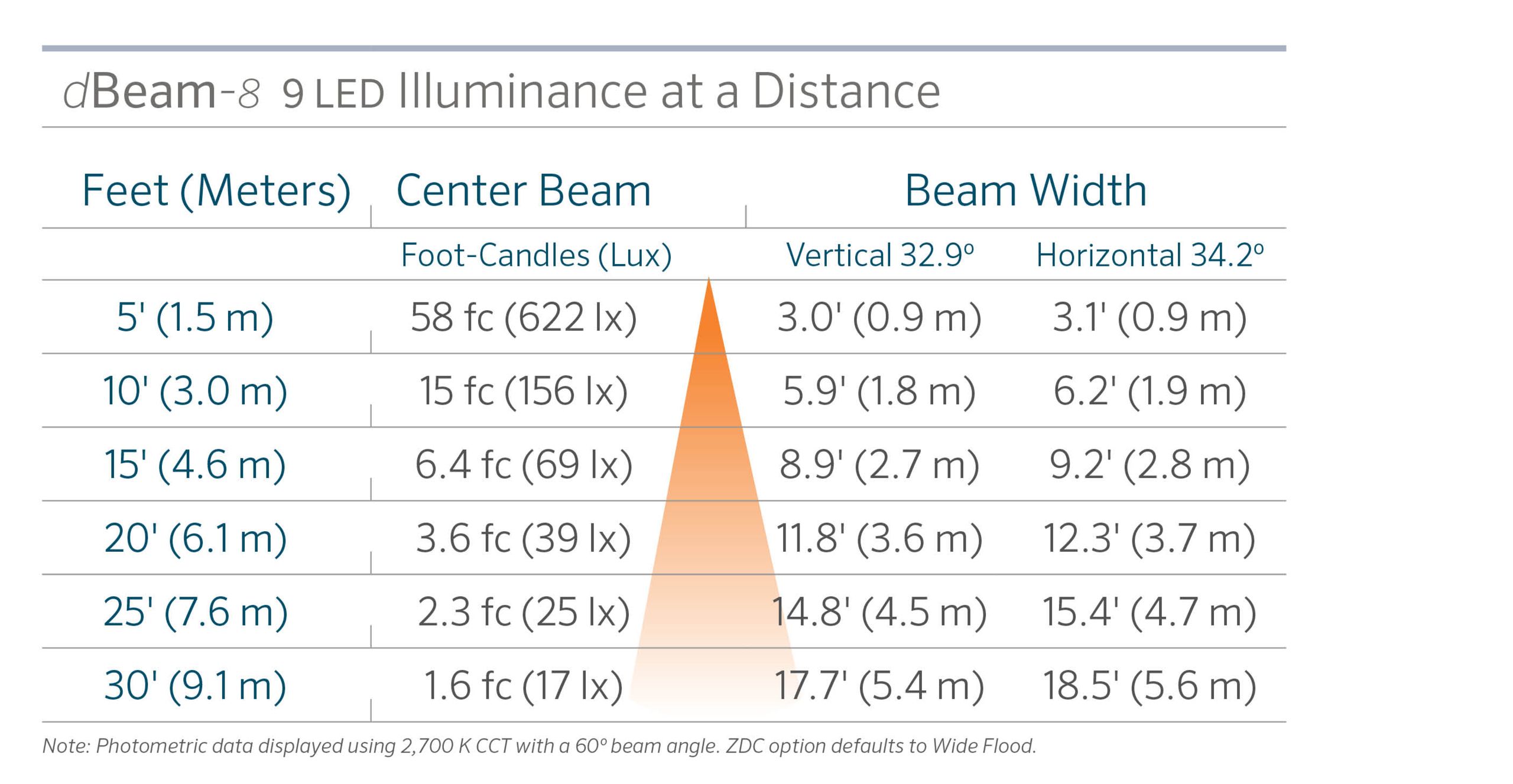

12.2 W (9LED)
665 lm
12.2 W
665 lm, for ZD control
11.0 W
For ZDC control
Static White (K27)
2,700 K (80+ CRI)
RGBW
Published angles may vary slightly to photometric data. Please refer to IES files where relevant.
Spot (SP)
20º beam angle
Flood (FL)
35º beam angle
Flood
45º beam angle, for ZDC control
Wide Flood (WF)
60º beam angle
North America
UL listed
International (E)
Bracket mount, UL listed and CE approved. Required for shipment outside of North America

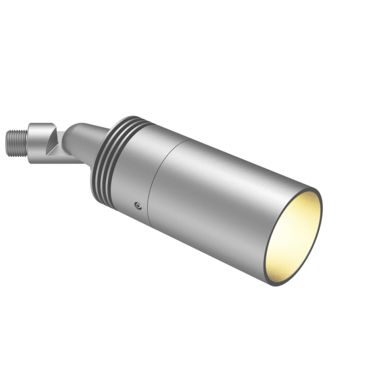

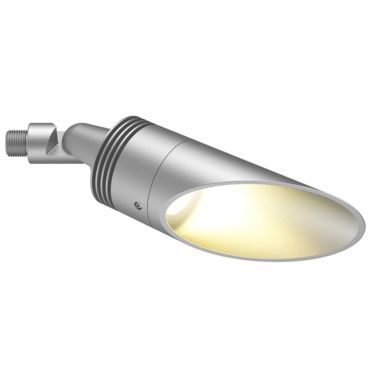

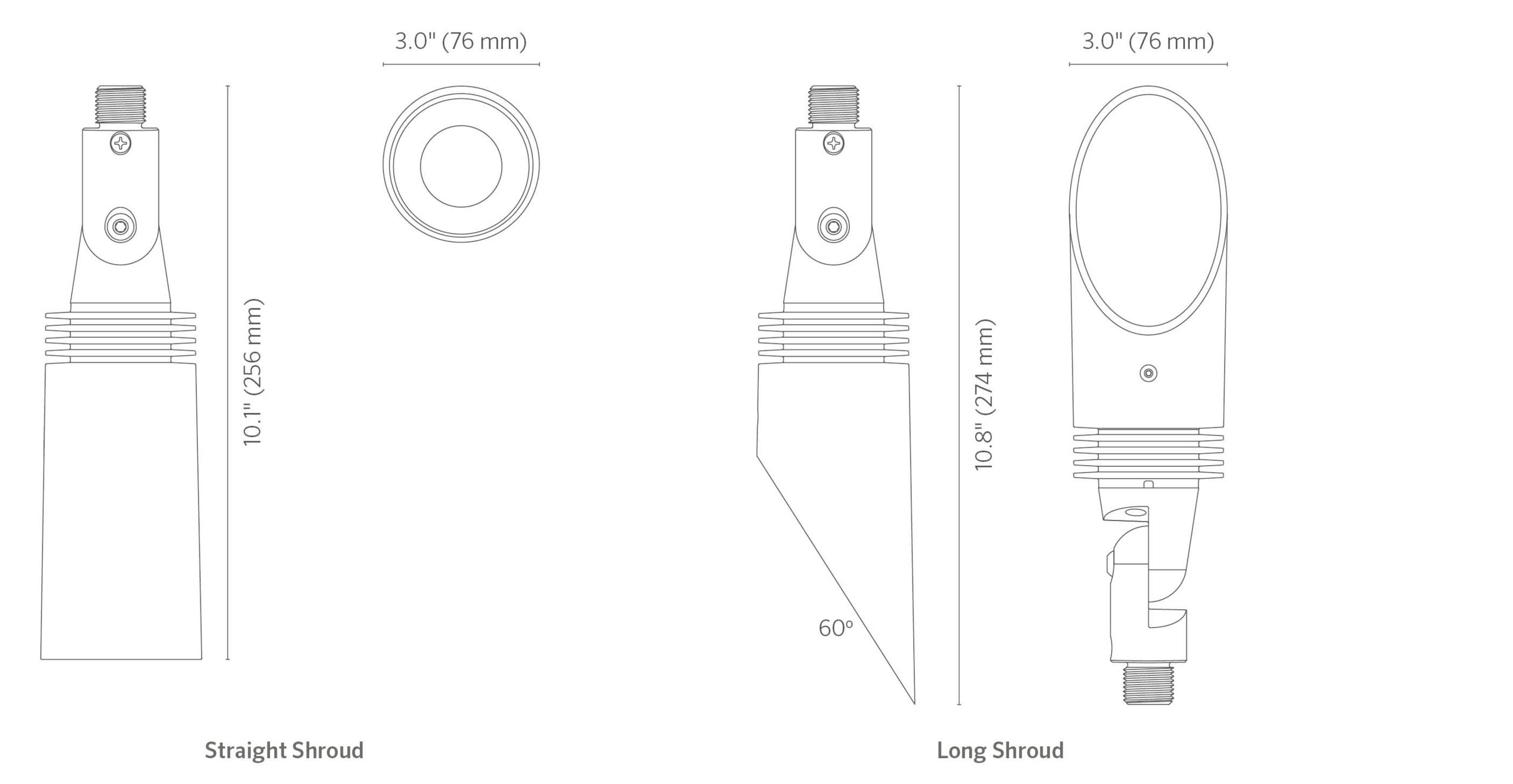

Long Shroud
60º Angled Long Shroud
Straight Shroud (SS)
90º Straight Shroud
Black (BL)
RAL9004 from RAL Classic collection
Anthracite Gray (AG)
RAL7016 from RAL Classic collection
Basalt Gray (BT)
RAL7012 from RAL Classic collection
Graphite Gray (GH)
Graphite Gray powder-coat finish
Anodic Silver (SL)
RAL9006 from RAL Classic collection
White (WT)
RAL9016 from RAL Classic collection
Dark Bronze (DB)
RAL8019 from RAL Classic collection
Latte (LT)
RAL7006 from RAL Classic collection
Dark Aluminium (DA)
RAL9007 from RAL Classic collection
Custom RAL (CC)
A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.
Specify Separately
Mini Mount (MM-050)
Versabox® (VB-050)
1.5" (38 mm) brass cap with ½"-14 NPSM threads
Mini J-Box (MJ-050)
1.5" (38 mm) aluminum wall mount with ½"-14" NPSM threads and wire compartment
Treebox® (TB)
Dual ½"-14 NPSM threads with wire compartment
Gutter Mount (GM-SS)
Stainless steel bracket with ½’’-14 NPSM threads and rotational adjustability
Wall Plate, 1-Gang (WP-1G-050)
1-gang wall plate with ½''-14 NPSM threads
Wall Plate, Round (WP-RD-050)
5'' (127 mm) round wall plate with 1/2''-14 NPSM threads
Non-Penetrating Tree Ring (TR)
Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.
Specify Separately. Powder-Coat finish must be specified.
4" (4R-XX)
4'' (100 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
6" (6R-XX)
6'' (150 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
8" (8R-XX)
8'' (200 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
12" (12R-XX)
12'' (300 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
18" (18R-XX)
18'' (450 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
24" (24R-XX)
24'' (600 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
30" (30R-XX)
30'' (750 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
36" (36R-XX)
36'' (900 mm) aluminum straight riser with 0.8'' (12 mm) OD and ½''-14 Male NPSM x2 threads
24" (24R-SL-XX)
24'' (600 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads
36" (36R-SL-XX)
36'' (900 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads
48" (48R-SL-XX)
48'' (1,200 mm) aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and ½''-14 NPSM x2 threads
Straight (COUP)
2'' (50 mm) aluminum tapered coupling with ½''-14 NPSM threads
90º Coupling (ELBW-050)
2'' (50 mm) aluminum 90º coupling with 1/2''-14 NPSM threads
T-Coupling (TMNT-050)
An aluminum T-coupling with ½''-14 NPSM threads
Hex Baffle (250015260000)
2'' (50 mm) diameter (MR-16)
Linear Spread Lens (250013550000)
Solite Spread Lens (250015240000)
PROlink Multi-Tap Transformer (PROLINK)
A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.
ZDClink® Lighting Controller (ZDClink)
A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™
Dimmable Mini Transformer (ST-120-DIM)
A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.
Non-Dimmable Mini Transformer (ST-UV)
A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.
6 W Plug-in Transformer (MT-6W)
Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.
30 W Plug-in Transformer (MT-30W)
Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.
In-Line Surge Arrestor (SURGE-MOD)
Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.
Heat Shrink Wire Connectors - Small (WCHSSM20)
Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)
Heat Shrink Wire Connectors - Medium (WCHSMD20)
Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
A 1.5" (38 mm) brass cap with ½"-14 NPSM threads.
A 1.5" (38 mm) aluminum wall mount with ½"-14 NPSM threads and wire compartment.
A dual ½"-14 NPSM threads with wire compartment.
A 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.
Wall Plate 1-Gang (WP-1G-050)
1-gang wall plate with 1/2''-14 NPSM threads.
5'' (127 mm) round wall plate with 1/2''-14 NPSM threads.
Straight Riser (‒)
An aluminum straight riser with 0.8'' (12 mm) OD and 1/2''-14 Male NPSM x2 threads.
Angled Sign-Light Riser (―)
An aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and 1/2''-14 NPSM x2 threads.
Straight Coupling (COUP)
An aluminum straight coupling 1.3" (32 mm) x 2.0" (51 mm).
Coupling, 90-deg, 1/2'' NPSM (ELBW-050)
An aluminum 90º coupling 1.3" (32 mm) x 2.0" (51 mm).
Coupling, T, 1/2'' NPSM (TMNT-050)
An aluminum T Coupling, ½" NPSM Thread.
Multi-Tap Transformer (PROLINK)
The industry's most reliable multi-tap transformer.
60 W, 120 V to 12 Vac step-down transformer.
30 W universal voltage step-down transformer.
Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.
Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.
Tin-coated copper butt splices with adhesive-filled heat shrink tubes.
