dTessa-6 - dTSA6

A versatile, classic halogen directional luminaire.
Price
Login to view pricing
Configure this product Features Specifications Videos

Product Overview

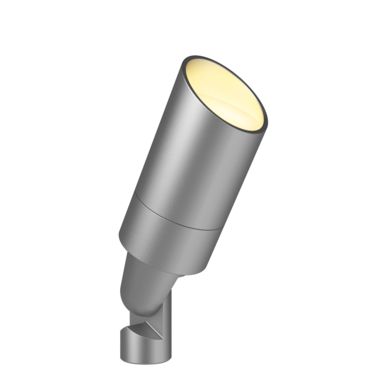

The dTessa-6 accepts an MR-16 lamp and is manufactured in die-cast aluminum. A zoning/dimming version is also available for use with ZDClink® Controllers.

Features

Total Lumens 337 lm Power Consumption 4.3 W | 5.4 W Input Voltage 10-15 Vac/dc, 50/60 Hz Lamp Type MR-16 Installation Requirements Upward Direction Only Typical Lifetime White: 72,000 hrs Weight 1.8 lbs (0.8 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Warm White Quickship Quickship Available Data Sheet

Specifications

Videos
Product Highlights | Directional
Introducing the Essential Series range of directional luminaires by Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Downloads

Data Sheet Install Guide
DXF Files dTessa-6 ZIP (49.12 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

dTSA6 _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise dTessa-6 below

Input Voltage

12 Vac/Vdc

Control

Required

Default (LED)

1) On/Off or 2) Phase-cut Dimming

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

4.3 W (20)

261 lm

5.4 W (35)

337 lm

Light Source

Required

Static White (W)

Static White (W)

2,700 K (80+ CRI)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Flood (FL)

35º beam angle

Compliance

Required

North America

North America

UL listed

International (E)

International (E)

Bracket mount, UL listed and CE approved. Required for shipment outside of North America

Shielding

Required

Standard Shroud

15º Angled Shroud

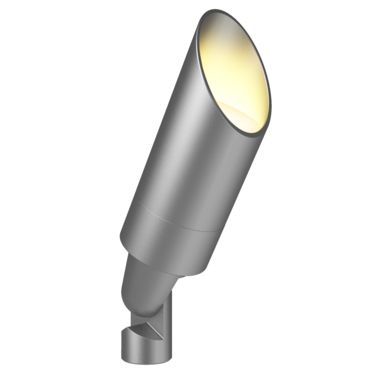

Long Shroud (LS)

45º Angled Long Shroud

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Mounting & Installation

Specify Separately

Non-Penetrating Tree Ring

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

More info
Super J-Box Stake

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake.

More info
Post Mount

Post Mount (PM)

Suitable for use on 1/2" NPSM ground-mount luminaires and is specified separately.

More info
Ground Mount

Ground Mount (GM)

The Ground Mount is a 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

More info
Versabox®

Versabox® (VB-050)

A 1.5" (38 mm) brass cap with ½"-14 NPSM threads.

More info
Mini J-Box

Mini J-Box (MJ-050)

A 1.5" (38 mm) aluminum wall mount with ½"-14 NPSM threads and wire compartment.

More info
Treebox®

Treebox® (TB)

A dual ½"-14 NPSM threads with wire compartment.

More info
Gutter Mount

Gutter Mount (GM-SS)

A 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

More info
Wall Plate 1-Gang

Wall Plate 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads.

More info
Wall Plate, Round

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads.

More info
Mini Mount

Mini Mount (MM-050)

More info
Line Mount

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

More info

Risers & Couplings

Specify Separately. Configure product in the enquiry.

Straight Riser

Straight Riser (‒)

An aluminum straight riser with 0.8'' (12 mm) OD and 1/2''-14 Male NPSM x2 threads.

More info
Angled Sign-Light Riser

Angled Sign-Light Riser (―)

An aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and 1/2''-14 NPSM x2 threads.

More info
Straight Coupling

Straight Coupling (COUP)

An aluminum straight coupling 1.3" (32 mm) x 2.0" (51 mm).

More info
Coupling, 90-deg, 1/2'' NPSM

Coupling, 90-deg, 1/2'' NPSM (ELBW-050)

An aluminum 90º coupling 1.3" (32 mm) x 2.0" (51 mm).

More info
Coupling, T, 1/2'' NPSM

Coupling, T, 1/2'' NPSM (TMNT-050)

An aluminum T Coupling, ½" NPSM Thread.

More info

Lens Accessories

Specify Separately

Hex Baffle

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

More info
Linear Spread Lens

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

More info
Solite Spread Lens

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

More info
RecessorRing®

RecessorRing® (RR-MR16)

Spacer pushes the lamp farther into the fixture body to reduce glare.

More info

Power Supplies

Specify Separately

Multi-Tap Transformer

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

More info
ZDClink® Lighting Controller

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer

Dimmable Mini Transformer (ST-120-DIM)

60 W, 120 V to 12 Vac step-down transformer.

More info
Non-Dimmable Mini Transformer

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

More info

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Medium

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info
Heat Shrink Wire Connectors - Small

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee
