Product Overview

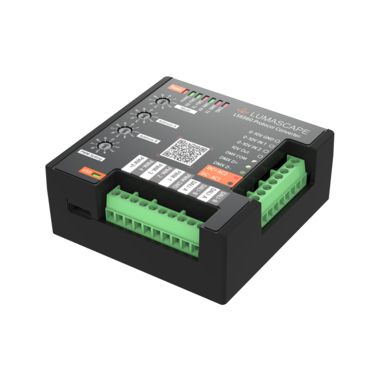

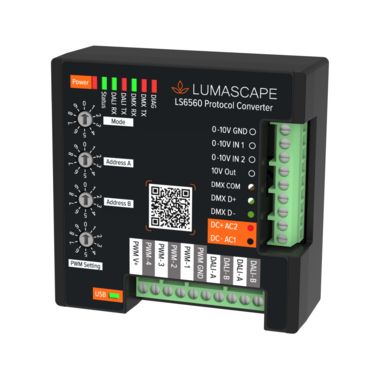

Lumascape’s LS6560 Protocol Converter has been designed to convert DMX to PWM, DALI to PWM, DALI to DMX and 0-10V to PWM. This effectively allows for seamless integration of Lumascape products into most commercial lighting installations.

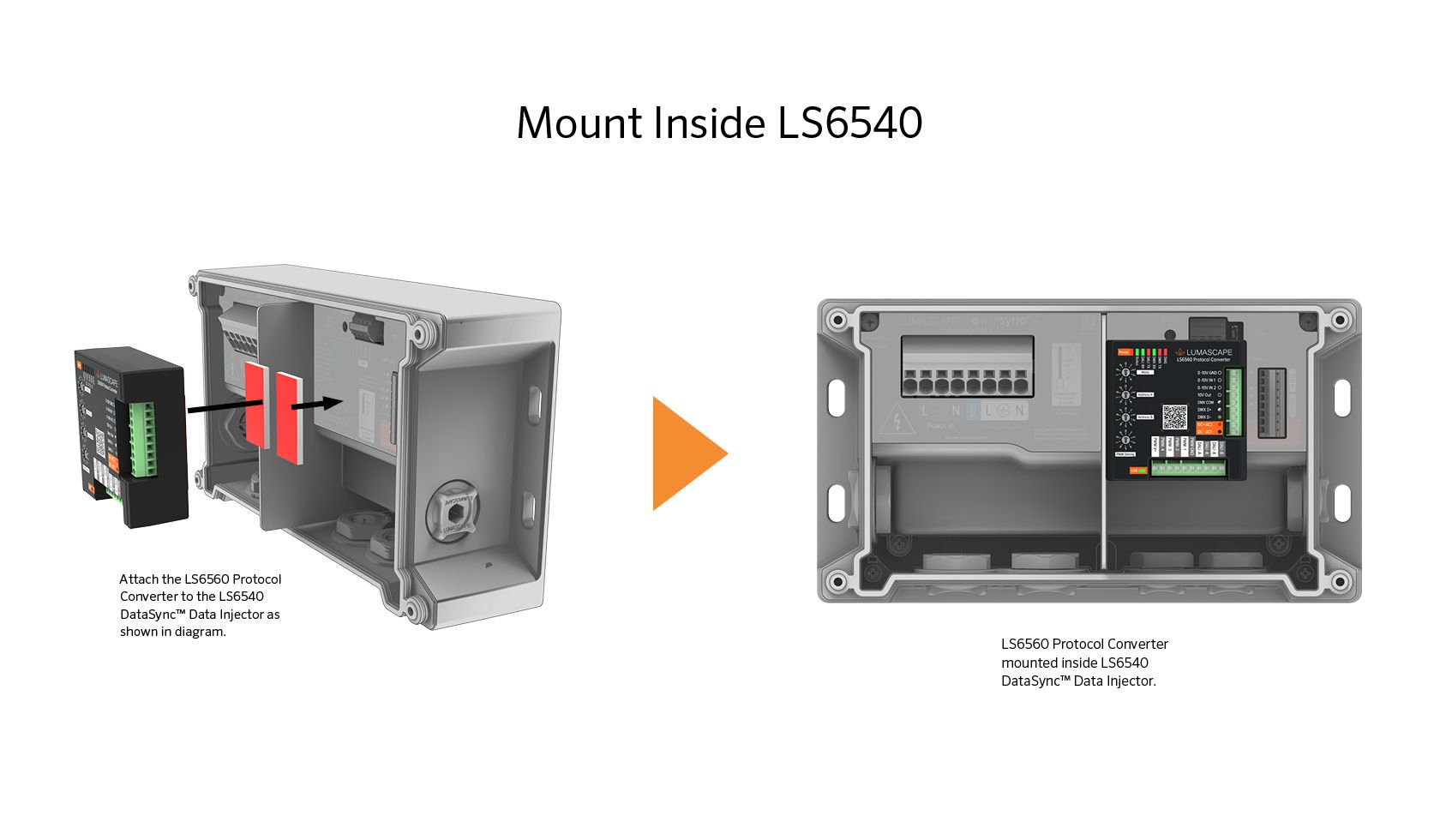

PowerSync™ enabled luminaires can now be controlled via DALI with ease. The DMX output signal of the LS6560 Protocol Translator can be fed directly into the LS6540, LS6550 or LS6555 PowerSync™ Data Injectors to control any PowerSync™ enabled luminaires on the network.
The LS6560 is also suitable to control Lumascape PWM enabled luminaires.
Features
Unit Operating Voltage Rage 12-30 V DC
Unit Operating Power Consumption 1.5 W
Electrical Connections Terminal Block
Protocol Conversions DMX to PWM, DALI to PWM, DALI to DMX, 0-10V to PWM

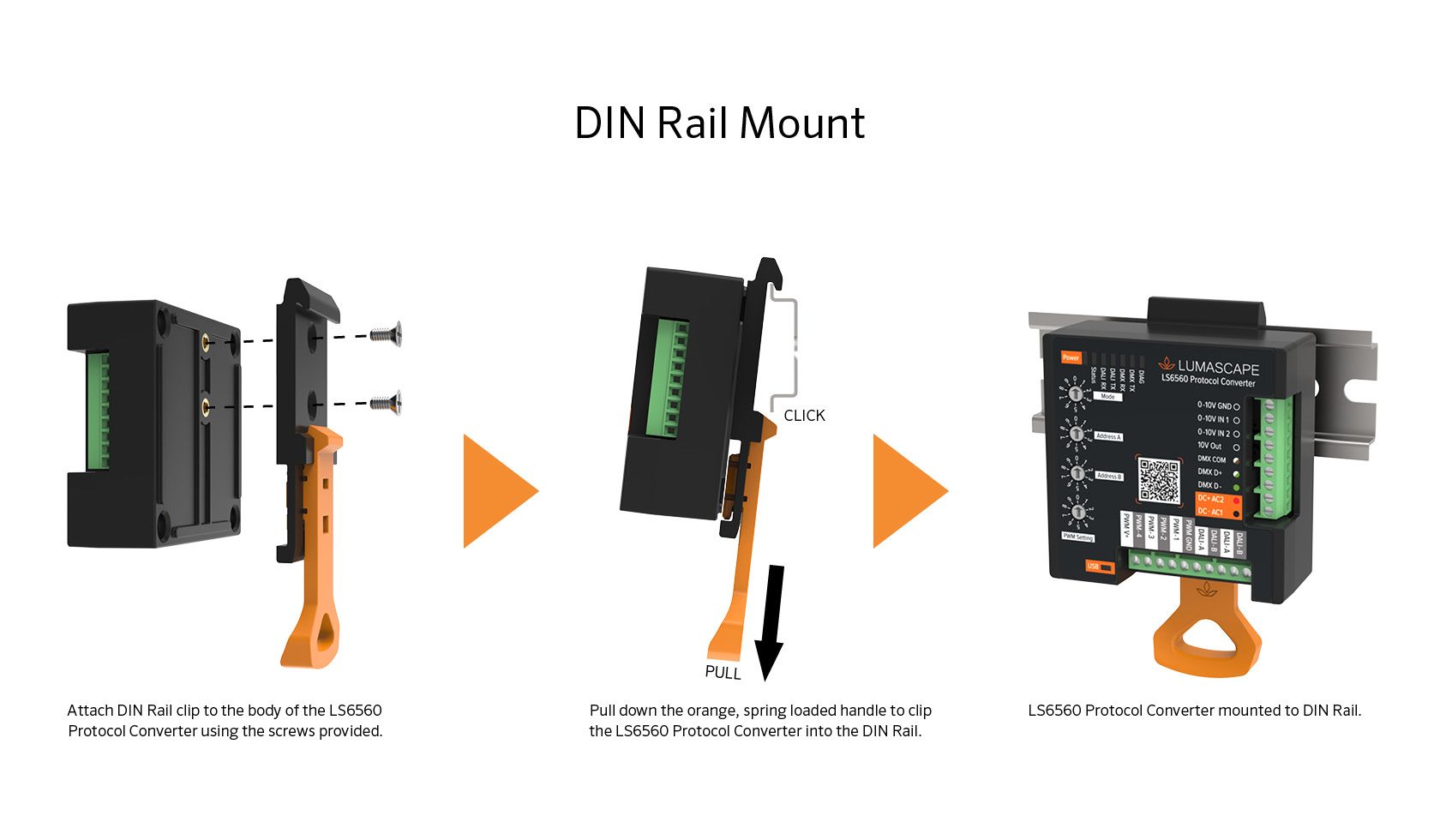

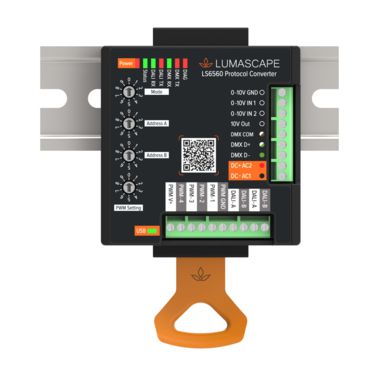

Mounting 35 mm DIN Rail / Direct surface mount
Weight 3.5 oz (100 g)
IP Rating IP30
