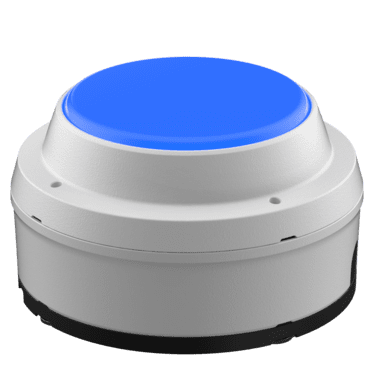

Faisca F6 - LS9260

An intelligent high-powered architectural marker light for architectural and infrastructure applications

Product Overview

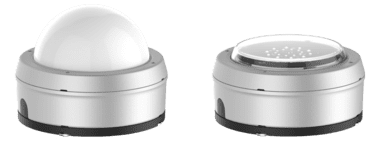

The Faisca F6 is an intelligent, ultra high-output marker light with a simple yet elegant design. that allows for easy and rapid installation. The plug and play electrical connections enhance the quick and easy installation process by preventing incorrect connections.

Leader cables of up to 164 ft (50 m) give greater flexibility during installation as power supplies and control equipment can be housed well away from the luminaires.

High-quality LEDs achieve high-intensity beautiful, rich and vibrant colors. From highlighting architectural elements to super-smooth crossfades and color flows.

Features

Lumen Output 2,840 lm LED Power 16 W Typical Lifetime > 60,000 hrs Input Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, sACN, 0-10 V IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK10 Compliance ETL - USA & Canada CE RCM FCC Colour Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

Specifications

Accessories

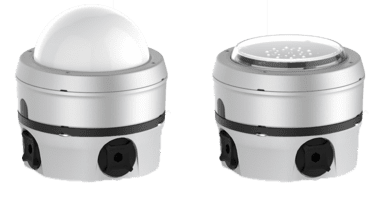

LS6327 UL Junction Box

Product Configurator

Customise Faisca F6 below

Light Engine

Required

16W (16W)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Hook Up Wire (82)

TFFN hook up wire for hardwired installations.

Hardwired via SOW cable (84)

Hardwired via SOW cable (84)

For hardwired connections 16 AWG 3-cord SOW 6 ft (1.8 m) cable.

Double entry (63)

Double entry (63)

Flexible cable for connectorized installations, includes MicroAntileach, 5.9" (150 mm)

Single entry (67)

Flexible cable for connectorized installations, includes MicroAntileach, 5.9" (150 mm)

Optics

Required

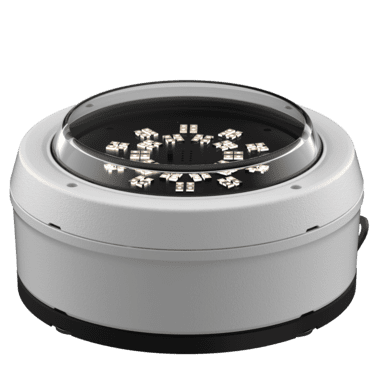

Flat Lens - Clear (DF)

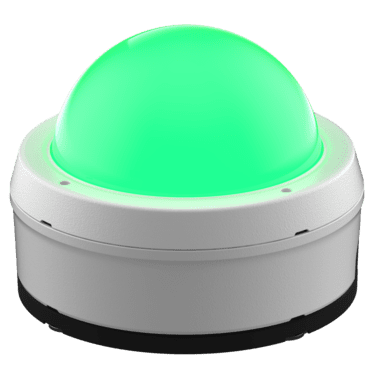

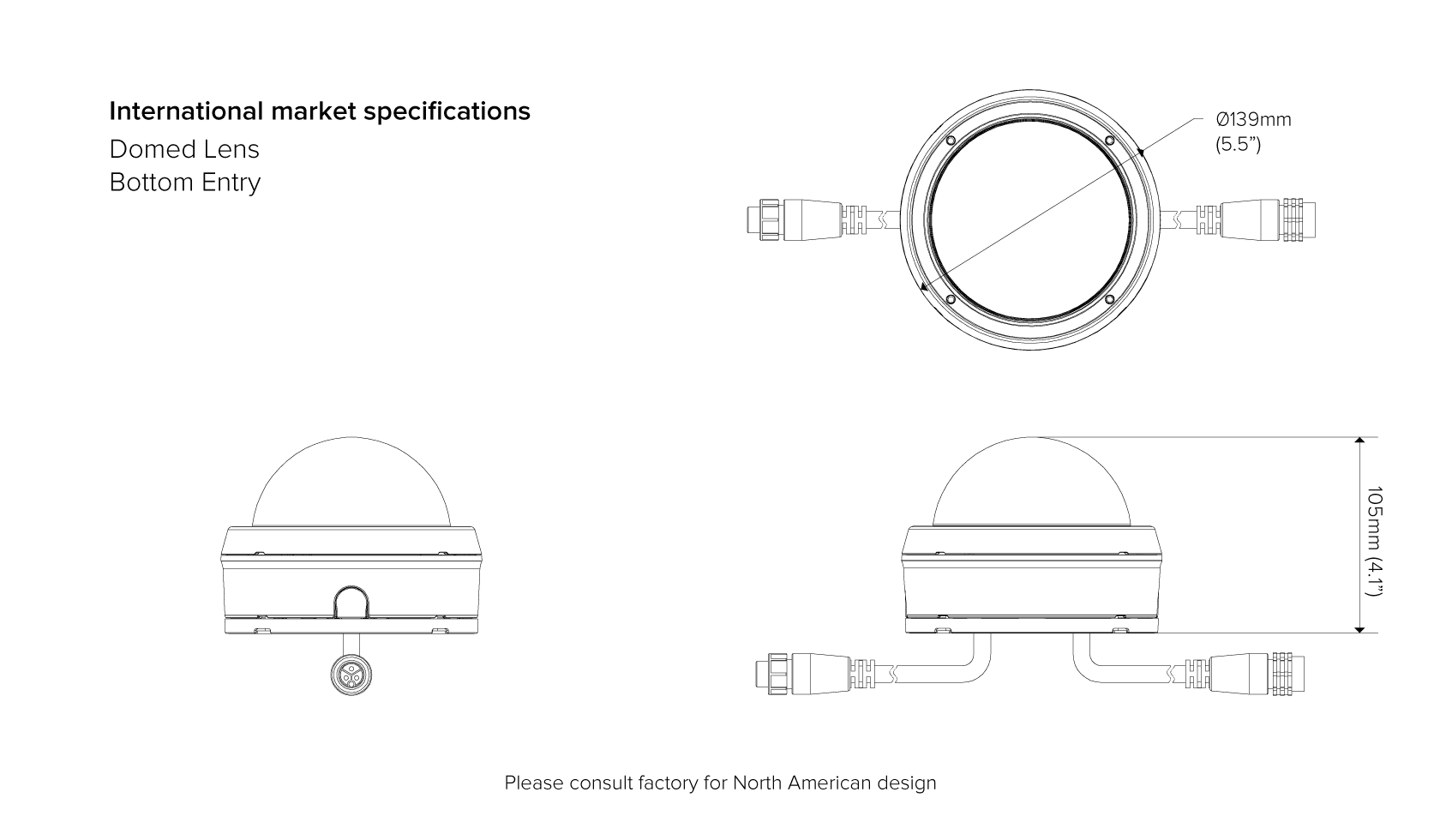

Domed Lens - Diffused (DC)

Cable Entry

Required

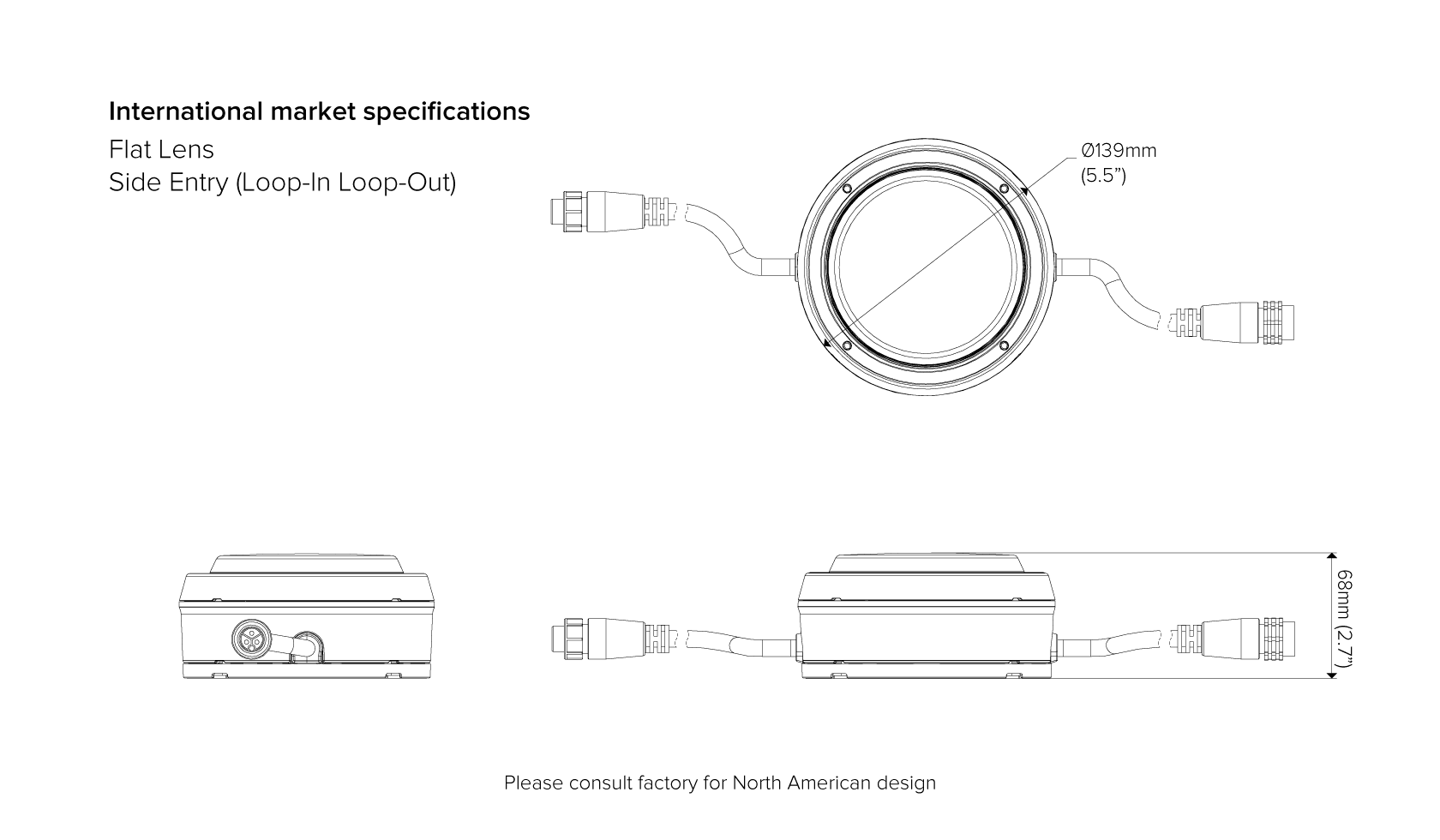

Side (N)

Side (N)

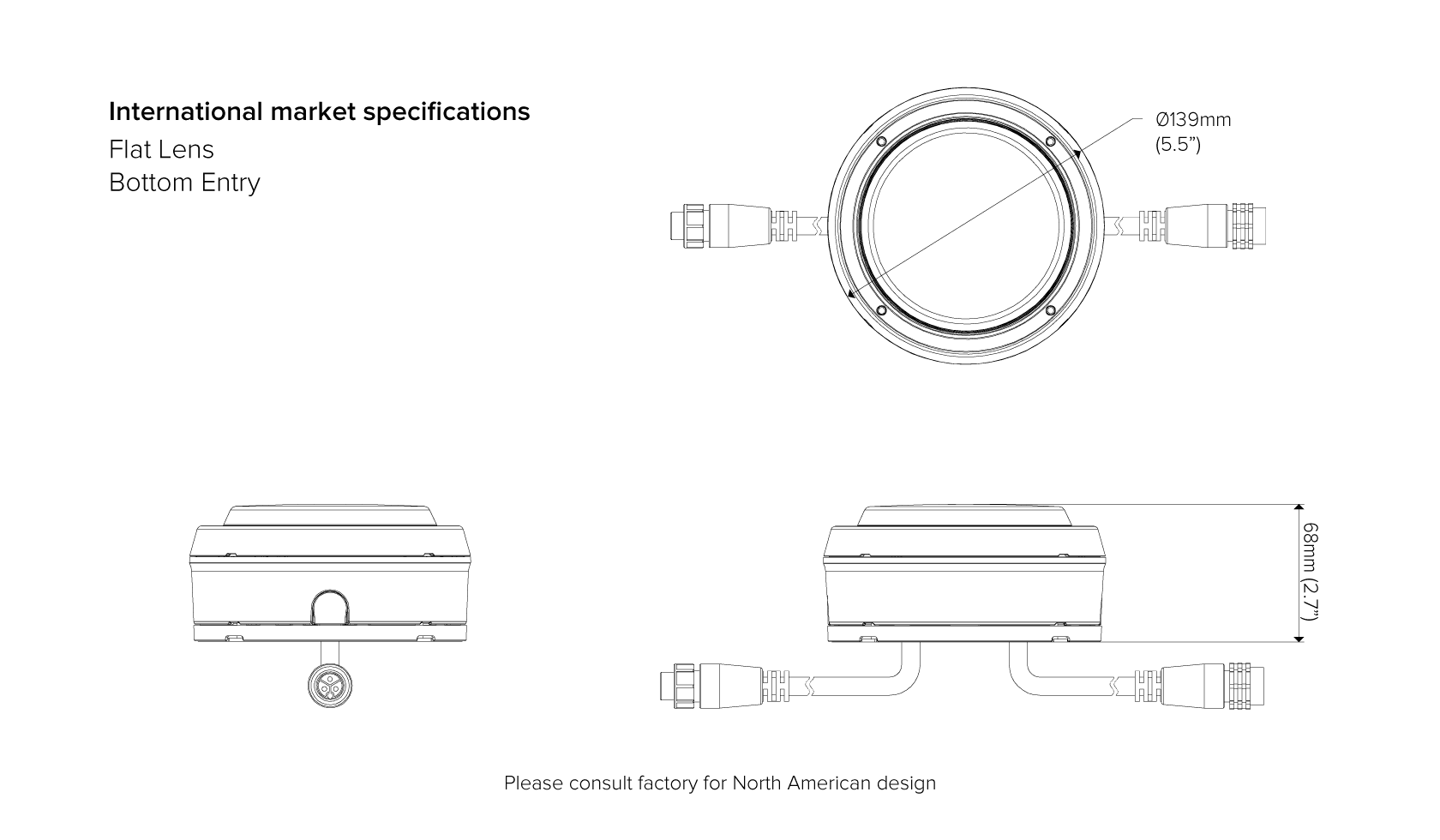

Bottom (Q)

Bottom (Q)

Input Voltage

Required

30 - 48 Vdc (13)

30 - 48 Vdc (13)

Low Voltage

Control

Required

Non-dimming (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

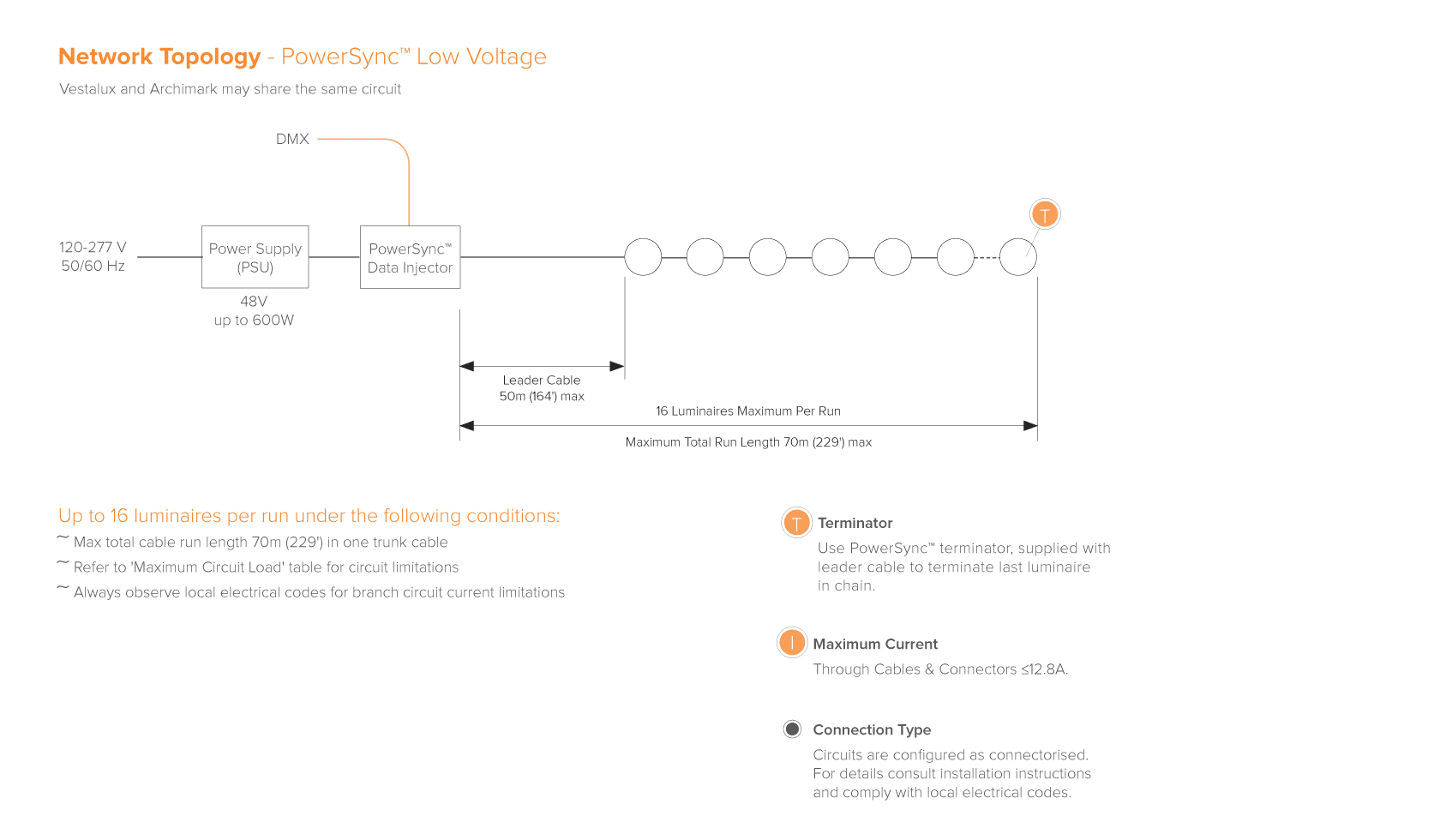

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.
