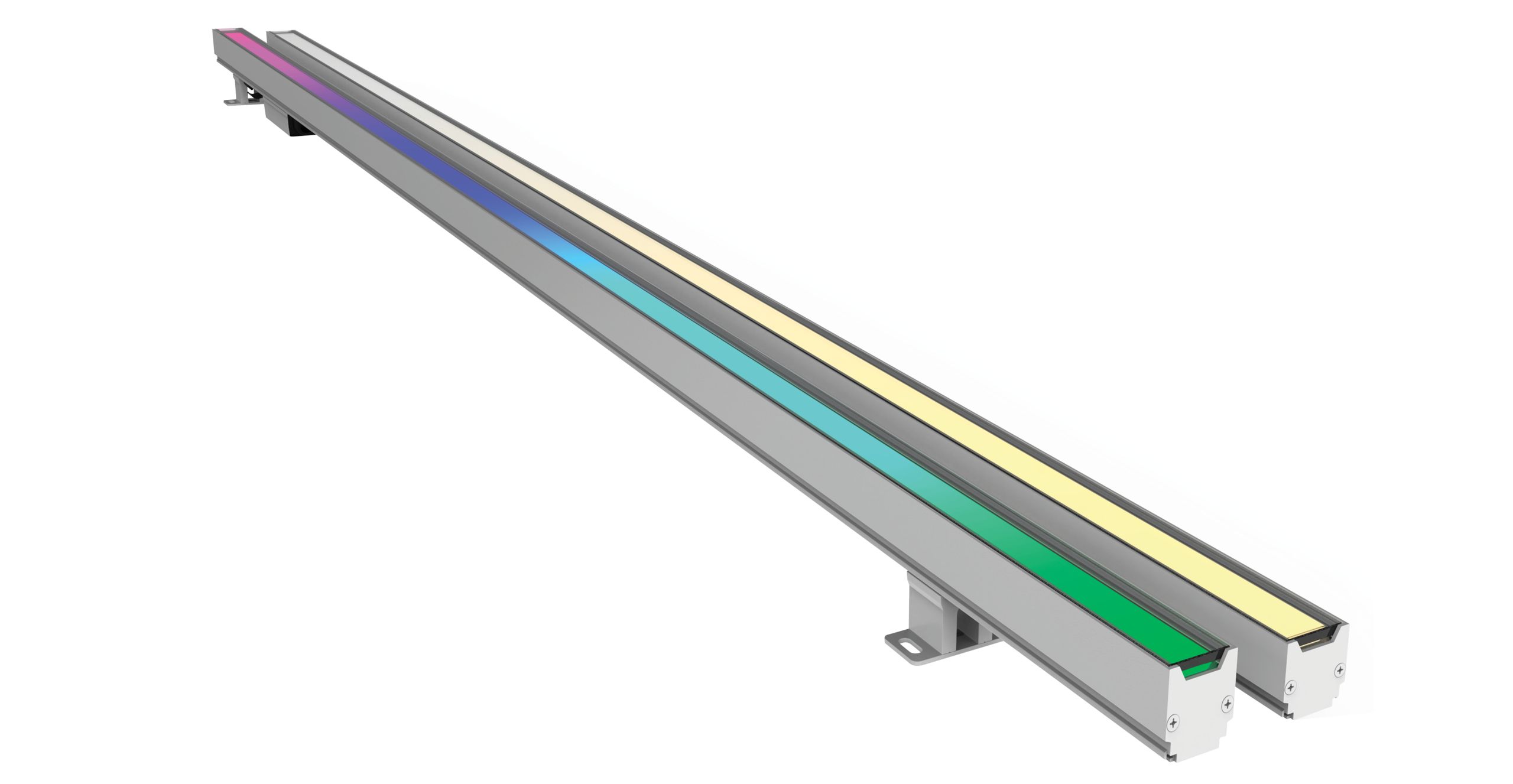

Vestalux V1 Generation 2 - LS9015

A high-performance exterior, architectural outliner featuring a flat glass diffuser.

Product Overview

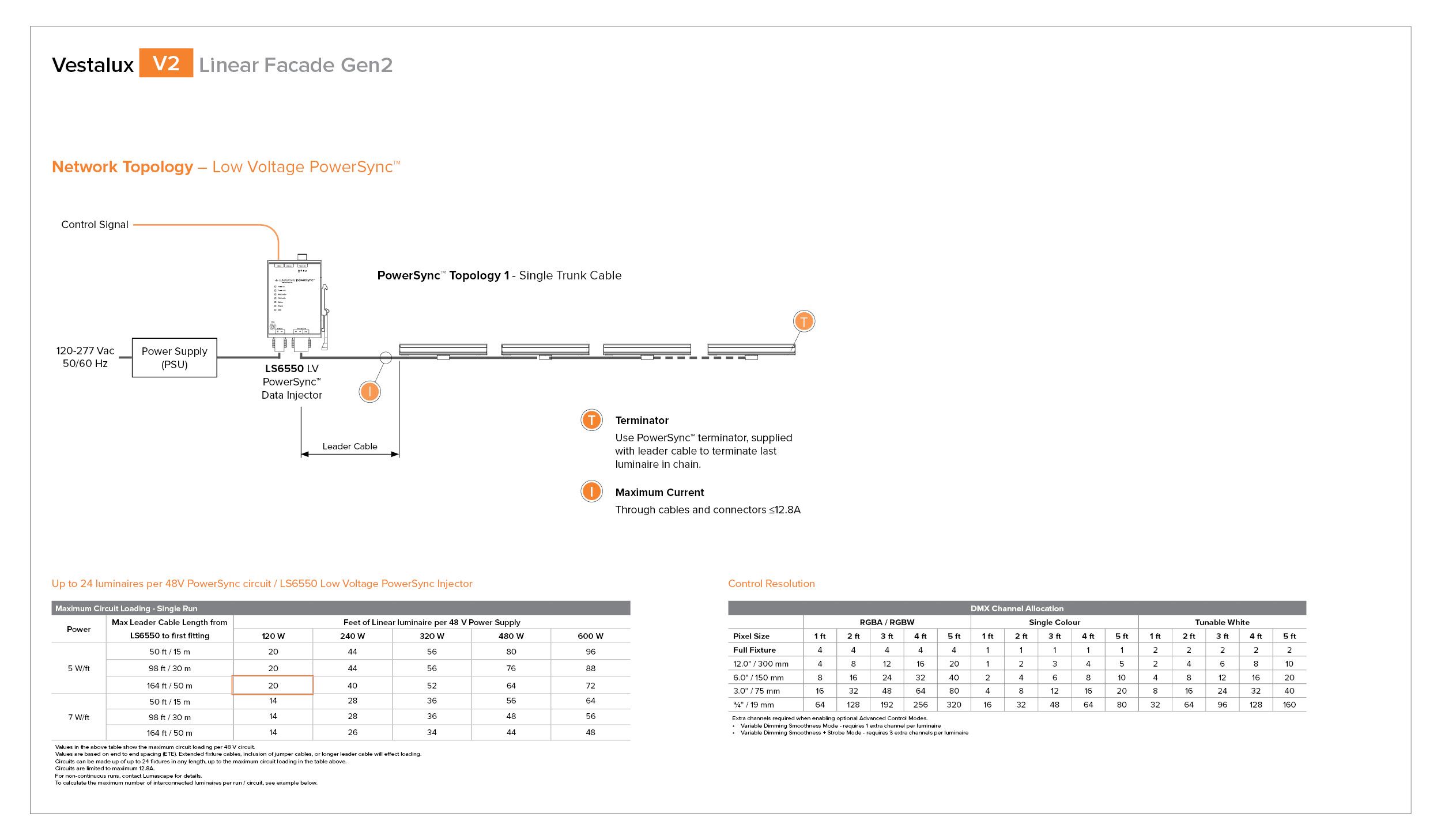

Designed for direct view, the luminaire has excellent light blending properties, ensuring uniformity when it comes to colour brightness and blending. Control, addressing and monitoring is via full DMX/RDM through the Lumascape PowerSync™ data injector. RDM addressing means that fixtures can be installed in any order and swapped in and out at will.

Features

Lumen Output 485 lm/ft LED Power 6 W/ft, 4 W/ft Power Consumption 7 W/ft, 5 W/ft Typical Lifetime > 60,000 hrs (B10, L70, TM21) Input Voltage Low Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK06 Compliance ETL - USA & Canada CE RCM Color Options Warm White Cool White Royal Blue RGBA RGBW with Royal Blue Tunable White Red Green Data Sheet

Specifications

Accessories


Control
LS6550 PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)
LSLED40W-48V DC Power Supply, 48 V, 40 W
LSLED80W-48V DC Power Supply, 48 V, 80W
LSLED120W-48V      DC Power Supply, 48 V, 120 W
LSLED240W-48V DC Power Supply, 48 V, 240 W
LSLED320W-48V DC Power Supply, 48 V, 320 W
LSLED480W-48V DC Power Supply, 48 V, 480 W
LSLED600W-48V DC Power Supply, 48 V, 600 W

Wiring
LS6426-PS Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
