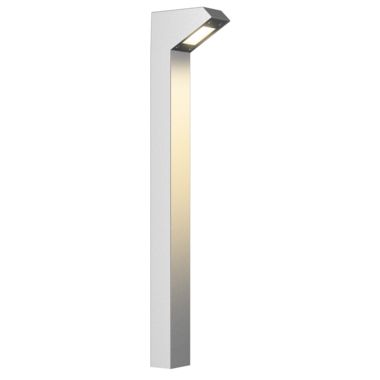

aSpur-6 - aSPR6

A stylish area luminaire for a range of modern lighting installations.

Product Overview

The aSpur-6 is a stylish area luminaire that adds elegance and sophistication to modern lighting installations in 1 and 3 LED. Available in aluminum. An RGBW version is also available for use with ZDClink® controllers.

Features

Total Lumens 152 lm Power Consumption 2.4 W | 4.4 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Downward direction only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 1.0 lb (0.5 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Color Options Cool White RGBW Data Sheet

Product Configurator

Customise aSpur-6 below

Input Voltage

12 Vac/Vdc

Control

Required

Default

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology

Output

Required

2.4 W (1LED)

67 lm

4.4 W (3LED)

152 lm

7.2 W

110 lm, ZDC Option Only

Color Temperature (CCT)

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

ZDC Option Only

Compliance

Required

North America

UL Listed

International (E)

UL Listed and CE Approved. Required for shipment outside of North America.

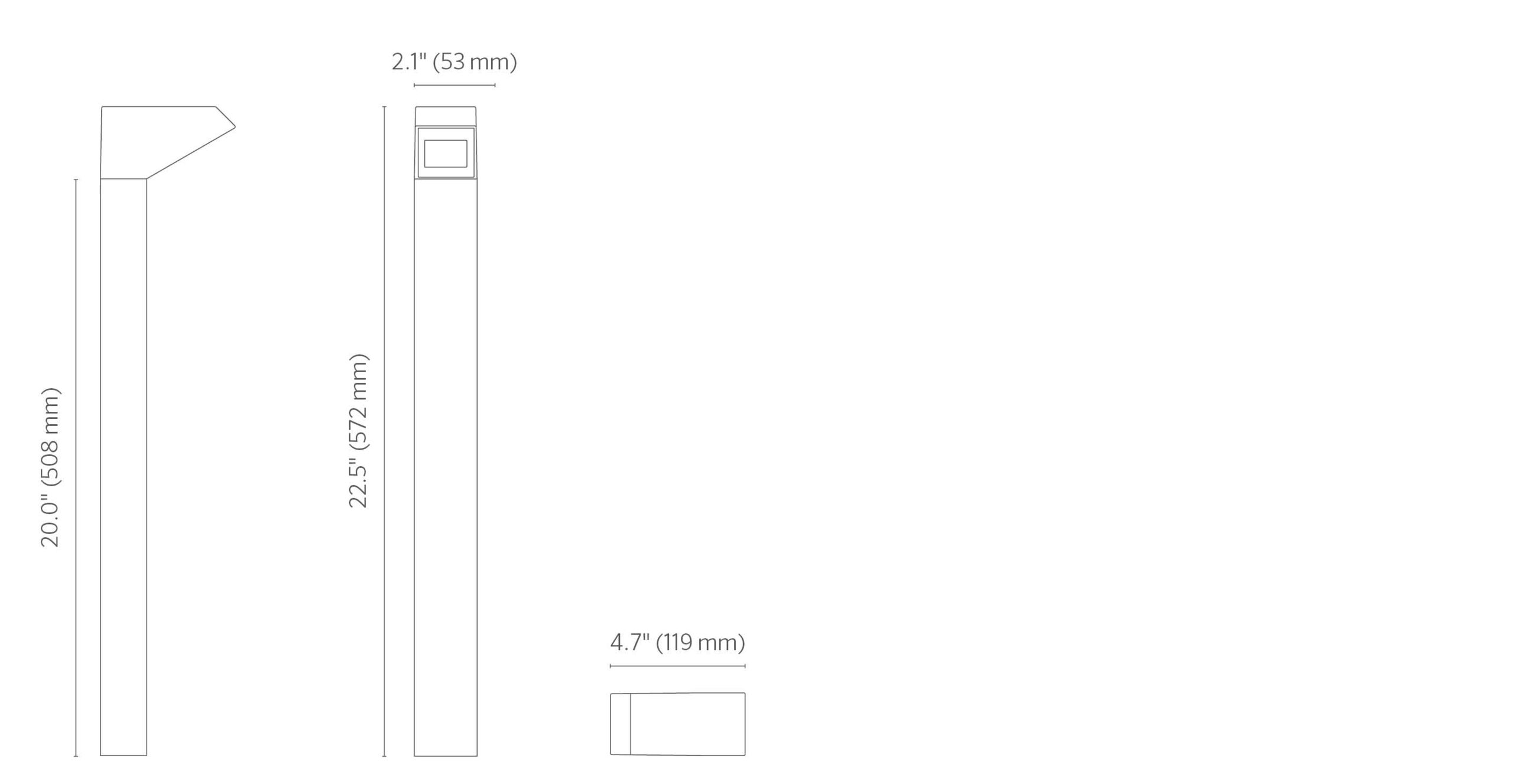

Height

Required

Standard (24)

24" (540 mm)

Mounting & Installation

Required

Ground Mount with Conduit (Default)

Luminaire secured to ground using North American 1.0" schedule 40 conduit, with stabilizer.

Deck Mount (DM)

Deck Mount (DM)

1.75" x 1.75" x 2.0" (44 mm x 32 mm x 51 mm)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Mounting & Installation

Specify Separately

Deck Mount (MPL-DM)

Deck Mount (MPL-DM)

1.75" x 1.75" x 2.0" (44 mm x 32 mm x 51 mm)

More info

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
