pShimmer-4 - pSHM4

Hanging down light designed for installation in the downward direction only.
Configure this product Features Specifications Videos Accessories

Product Overview

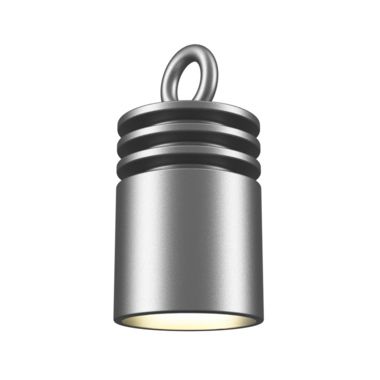

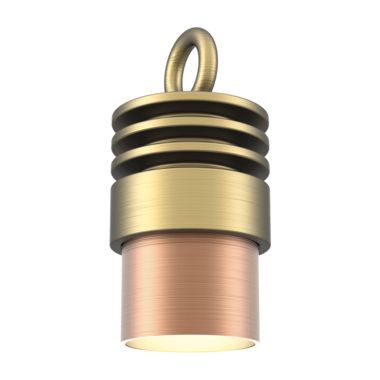

The pShimmer-4  is a hanging down light for overhead illumination in 1 LED. Available in brass/copper construction.

Features

Total Lumens 49 lm Power Consumption 2.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz Installation Requirements Downward Direction Only Typical Lifetime White: 72,000 hrs Weight 1.3 lb (0.6 kg) Compliance CE RoHS Color Options Warm White Data Sheet

Specifications

Videos
Product Highlights | Pendant Lighting
Introducing the Essential Series range of pendant luminaires by Lumascape
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
IES Files pShimmer-4 ZIP (663 B) DXF Files pShimmer-4 ZIP (22.91 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

pSHM4 _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise pShimmer-4 below

Input Voltage

12 Vac/Vdc

Material

Required

Copper/Brass

Aluminum (A)

Die-cast A380 aluminum with stainless steel hardware. Available in powder-coated finishes only.

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

49 lm

2.2 W

49 lm, for ZD control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

Compliance

Required

North America

UL listed

International (E)

UL listed and CE approved. Required for shipment outside of North America.

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Copper (CU)

Natural Copper (CU)

Requires the selection of cover option.

More info
Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

Stainless Steel Cable and Lock

Stainless Steel Cable and Lock

Accessories

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
