sShell-9 - sSHL9

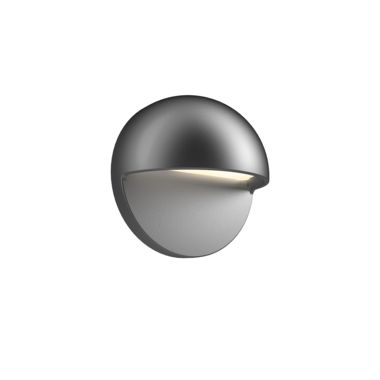

Low-profile, glare-free, surface-mounted wall luminaire.
Configure this product Features Specifications Videos Accessories

Product Overview

The sShell-9 is a low-profile, glare-free, surface-mounted wall lluminaire in 1 LED. Available in aluminum or brass construction. A zoning/dimming version is also available for use with ZDClink® Controllers.

Features

Total Lumens 101 lm Power Consumption 2.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz Installation Requirements Surface-Mount Installation Typical Lifetime White: 72,000 hrs Weight 1.1 lb (0.5 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Dark Sky Color Options Warm White Data Sheet

Specifications

Videos
Product Highlights | Surface Mount
Introducing the Essential Series range of wall lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Accessories


PROLINK Multi-Tap Transformer
ZDClink ZDClink® Lighting Controller
ST-120-DIM Mini Transformer, Dimmable
ST-UV Mini Transformer, Non-Dimmable
MT-6W Plug-in Transformer, 6 W
MT-30W Plug-in Transformer, 30 W
SURGE-MOD In-Line Surge Arrestor
WCHSSM20 Heat Shrink Wire Connectors, Small
WCHSMD20 Heat Shrink Wire Connectors, Medium

Downloads

Data Sheet Install Guide
IES Files sShell-9 ZIP (2.09 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

sSHL9 _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise sShell-9 below

Input Voltage

12 Vac/Vdc

Material

Required

Brass

Die-cast C360 brass with stainless steel hardware. Available in BS, AB or AT finishes only.

Aluminum (A)

Die-cast A380 aluminum with stainless steel hardware. Available in powder-coated finishes only.

Control

Required

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W

101 lm, for ZD control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

Compliance

Required

North America

UL listed

International (E)

UL listed and CE approved. Required for shipment outside of North America.

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Brass (BS)

Natural Brass (BS)

Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Power Supply

Specify Separately

PROlink Multi-Tap Transformer (PROLINK)

PROlink Multi-Tap Transformer (PROLINK)

A multi-tap, 120 Vac to 14 Vac transformer manufactured from stainless steel in 300, 600 and 900 Watt models.

More info
ZDClink® Lighting Controller (ZDClink)

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer (ST-120-DIM)

Dimmable Mini Transformer (ST-120-DIM)

A mini, phase-dimmable, class 2 step-down transformer (120 Vac to 12 Vac) with a 60 W capacity and flying leads.

More info
Non-Dimmable Mini Transformer (ST-UV)

Non-Dimmable Mini Transformer (ST-UV)

A mini, non-dimmable, class 2 step-down transformer (120-277 Vac to 12 Vac) with a 30 W capacity and terminal screw connectors.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads. Recommended for indoor and/or well-protected areas.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small (WCHSSM20)

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤12-gauge stranded wire (x2)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes. 20-pack. Sizing guideline: ≤10-gauge stranded wire (x2)
